保姆级教程:Ant Design Vue中 a-table 嵌套子表格

3 人参与  2024年04月15日 16:20  分类 : 《我的小黑屋》  评论

点击全文阅读


前端为Ant Design Vue 版本为1.6.2,使用的是vue2

Ant Design Vue中 a-table 嵌套子表格,说的可能稍微墨迹了点,不过重点内容都说的比较详细,利于新人理解,高手可以自取完整代码

内容概述:

完成样式及完整代码展示子表格嵌套只打开一个嵌套表格

完成样式及完整代码展示

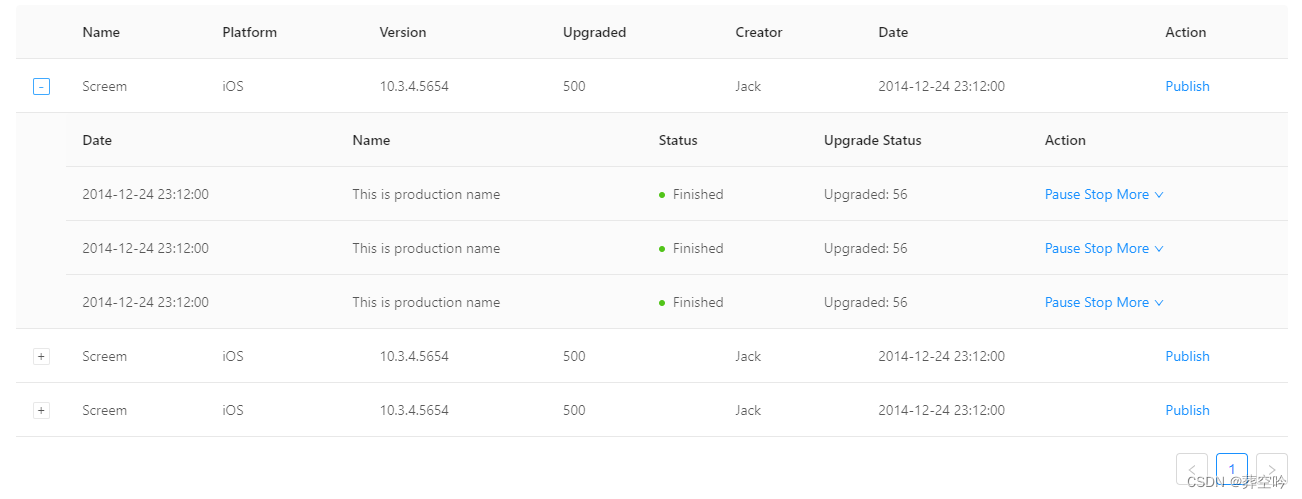

下图为官网图,会在每行最前面多一个加号,点击后会展开,看到子表格的数据
在这里插入图片描述

<template>  <div>    <a-card>      <a-table :columns="columns" :data-source="datasource"  :bordered="true"  :expandedRowKeys="expandedRowKeys"         @expand="getInnerData" :pagination="pagination">        <a-table slot="expandedRowRender" slot-scope="text" :columns="innerColumns" :data-source="inndata"          :pagination="false"></a-table>        <span slot="operation" slot-scope="text, record">          <a-button type="primary" icon="unordered-list" @click="getData(record)">            详情          </a-button>        </span>      </a-table>    </a-card>  </div></template><script>import { axios } from '@/utils/request'const columns = [  {    title: '序号',    dataIndex: 'id',    key: 'id',  }, 。。。。。中间省略  {    title: '操作',    key: 'operation',    width: '80px',    scopedSlots: { customRender: 'operation' },  },];const innerColumns = [   {    title: '子表单列',    dataIndex: 'XXX',    key: 'XXX',  },];const inndata = [];export default {  data() {    return {      datasource: [],      columns,      innerColumns,      inndata,      expandedRowKeys:[],      pagination: {        //分页        showSizeChanger: true, //是否分页        curPageSizeIndex: 0,        pageSize: 10, //一页显示多少条        // total: 1, //总条数        current: 1, //当前显示页面        pageSizeOptions: ['10', '20', '30'],        showTotal: (total) => `共计 ${total}条`, //显示总数        onShowSizeChange: (current, pagesize) => {          this.pagination.current = current          this.pagination.pageSize = pagesize          this.options.offset = (current - 1) * pagesize          this.options.limit = pagesize          this.refreshData()        },        onChange: (current, pageSize) => {          this.pagination.current = current          this.options.offset = (current - 1) * pageSize          this.options.limit = pageSize          this.refreshData()        },      },    }  },  mounted() {    this.refreshData()  },  methods: {    refreshData() {      axios({        url: 'url',        method: 'post',      }).then((res) => {        if (res.errCode > 0) {          this.$notification.error({            message: '错误信息',            description: res.errMsg,          })          return        }        console.log(res, '数据')        this.datasource = res      })    },        getInnerData(expanded, record) {      this.expandedRowKeys=[]      if (expanded) {         var b = ''        b=(record.id-1).toString()        this.expandedRowKeys.push(Number(b.slice(-1)))        this.inndata = [];        this.inndata.push(this.datasource[record.id - 1])      }    },    getData(record) {      console.log(record);    },  },}</script><style scoped></style>

子表格嵌套

子格嵌套从代码层简单理解就是一个<a-table></a-table>中套了一个<a-table></a-table>,即<a-table><a-table></a-table></a-table>,当然,这只是一个简单理解,并不是这样写,要在其中添加一些东西。
抛开一些配置项,解释下:

<template>  <div>    <a-card>    // 这里开始是父表格组件,columns -> 父级列名,datasource -> 父级表中的数据, @expand="getInnerData" -> 点开子表单的操作函数,pagination -> 分页的设置      <a-table :columns="columns" :data-source="datasource"          @expand="getInnerData" :pagination="pagination">        // 这里开始是子表格组件,slot="expandedRowRender" 重点,必须有,innerColumns-> 子级列名,inndata-> 子级表中的数据,        <a-table slot="expandedRowRender" slot-scope="text" :columns="innerColumns" :data-source="inndata"          :pagination="false"></a-table>// 这里是子表格组件结尾          // 这里是父表格span,不用的可以删掉        <span slot="operation" slot-scope="text, record">          <a-button type="primary" icon="unordered-list" @click="getData(record)">            详情          </a-button>        </span>      </a-table>// 这里是父表格组件结尾    </a-card>  </div></template><script>// 数据请求axios import { axios } from '@/utils/request'// 设置父级列名const columns = [  {    title: '序号',    dataIndex: 'id',    key: 'id',  }, 。。。。。中间省略  {    title: '操作',    key: 'operation',    width: '80px',    scopedSlots: { customRender: 'operation' },  },];// 设置子级列名const innerColumns = [   {    title: '子表单列',    dataIndex: 'XXX',    key: 'XXX',  },];// 设置子级数据,写下面data里也行const inndata = [];export default {  data() {    return {      datasource: [],      columns,      innerColumns,      inndata,      pagination: {        //分页        showSizeChanger: true, //是否分页        curPageSizeIndex: 0,        pageSize: 10, //一页显示多少条        // total: 1, //总条数        current: 1, //当前显示页面        pageSizeOptions: ['10', '20', '30'],        showTotal: (total) => `共计 ${total}条`, //显示总数        onShowSizeChange: (current, pagesize) => {          this.pagination.current = current          this.pagination.pageSize = pagesize          this.options.offset = (current - 1) * pagesize          this.options.limit = pagesize          this.refreshData()        },        onChange: (current, pageSize) => {          this.pagination.current = current          this.options.offset = (current - 1) * pageSize          this.options.limit = pageSize          this.refreshData()        },      },    }  },  mounted() {  // 进入页面直接运行的函数    this.refreshData()  },  methods: {  // 异步请求获取数据    refreshData() {      axios({        url: 'url',        method: 'post',      }).then((res) => {        if (res.errCode > 0) {          this.$notification.error({            message: '错误信息',            description: res.errMsg,          })          return        }        console.log(res, '数据')        // 将数据赋值给父级表格        this.datasource = res      })    },          // 点开子级表格(就是点击那个加号)触发的函数    getInnerData(expanded, record) {    // 判断是否点开      if (expanded) {       // 点开后执行。。。      // 先将子级表格数据清空,否则之前点开别的行的数据也会在里面        this.inndata = [];        // 再将父级点击的那一行的数据(record)给子级数据存进去,具体情况根据自己需求更改        this.inndata.push(record)      }    },// 点击父级表格表格span,也就是那个“详情”按钮触发的函数    getData(record) {      console.log(record);    },  },}</script><style scoped></style>

通过上述操作会发现能够实现基本的子表格嵌套,但是会发现点开一个子表单后,再点一个,两个都会打开,但是里面的子表格数据是相同的,这就是个很大的问题,为了解决这个问题,请看下面,这个在官网没直接写出来,API里有相关的参数,现在告诉你应该怎样操作

只打开一个嵌套表格

为了防止点开多个子表格内容相同,再结合我自己的使用场景,我只需要展开一个子表格就行,也就是说点开新的子表格后,原来的子表格自动关闭
下面把需要改动的代码片段给你们:
1. 父级中的修改内容

   // 添加  :expandedRowKeys="expandedRowKeys"   目的是使expandedRowKeys只有最新点开子表单的key<a-table :columns="columns" :data-source="datasource"  :bordered="true"  :expandedRowKeys="expandedRowKeys"         @expand="getInnerData" :pagination="pagination">        <a-table slot="expandedRowRender" slot-scope="text" :columns="innerColumns" :data-source="inndata"          :pagination="false"></a-table>        <span slot="operation" slot-scope="text, record">          <a-button type="primary" icon="unordered-list" @click="getData(record)">            详情          </a-button>        </span>     </a-table>

2. 在data里加上空的 expandedRowKeys

export default {  data() {    return {      datasource: [],      columns,      innerColumns,      inndata,      // 添加空的expandedRowKeys      expandedRowKeys:[],      。。。。。。

3. 修改getInnerData函数

 getInnerData(expanded, record) {    // 先将expandedRowKeys数据清空      this.expandedRowKeys=[]      if (expanded) {         //  将父级的第几条数据传到expandedRowKeys里,我这用的是数据表里的id处理的,我的id是从1开始        //  我这是一页十条数据,要放入0-9,第一条是0,第十条是9,一定要是数字格式        //  再一个,注意下,假设使用的是数据中的第45条,record.id=45        //  但是传入 expandedRowKeys 只能是0-9,且是数字格式,那么应该将数字4传到expandedRowKeys中        //  因为record.id=45这条数据,在表格中的第五行,应该是4        //  所以有了下面的record.id-1,再转成字符串格式,取最后一位,再转成数字        //  也有人用key,id能够获取到,不过我没弄成功,就这样吧,实现功能就行        var b=(record.id-1).toString()        this.expandedRowKeys.push(Number(b.slice(-1)))                //  下面两行说过,我就把注释直接粘过来了        // 先将子级表格数据清空,否则之前点开别的行的数据也会在里面        this.inndata = [];        // 再将父级点击的那一行的数据(record)给子级数据存进去,具体情况根据自己需求更改        this.inndata.push(record)      }    },
