之前的实战中，我们实战中，我们使用的镜像都是镜像仓库已有的镜像。 已有的镜像都是别人已经开发好上传的。今天我们一起来看看如何构建自己的镜像并上传到镜像仓库中。

?个人主页：我是沐风晓月
?个人简介：大家好，我是沐风晓月，阿里云社区博客专家??
? 座右铭： 先努力成长自己，再帮助更多的人 ，一起加油进步???
?欢迎大家：这里是CSDN，我总结知识的地方，喜欢的话请三连，有问题请私信?

文章目录

前言一. 设置docker构建镜像的环境1.1 commit 命令的介绍1.2 创建一个tomcat容器 二. 开始构建自己的镜像2.1 查看容器的ID2.2 使用命令docker commit 生成该容器的镜像，并保存在本地 三. 上传镜像到镜像仓库3.1 登录docker hub3.2 创建镜像3.3 上传到镜像仓库 总结

一. 设置docker构建镜像的环境

使用docker commit命令进行镜像的构建

1.1 commit 命令的介绍

我们执行 docker help commit来查看：

[root@mufeng63 ~]# docker help commitUsage:  docker commit [OPTIONS] CONTAINER [REPOSITORY[:TAG]]Create a new image from a container's changesAliases:  docker container commit, docker commitOptions:  -a, --author string    Author (e.g., "John Hannibal Smith <hannibal@a-team.com>")  -c, --change list      Apply Dockerfile instruction to the created image  -m, --message string   Commit message  -p, --pause            Pause container during commit (default true)[root@mufeng63 ~]#

1.2 创建一个tomcat容器

拉取Tomcat的镜像

[root@mufeng63 ~]# docker imagesREPOSITORY   TAG       IMAGE ID   CREATED   SIZE[root@mufeng63 ~]# docker pull tomcatUsing default tag: latestlatest: Pulling from library/tomcat0e29546d541c: Pull complete 9b829c73b52b: Pull complete cb5b7ae36172: Pull complete 6494e4811622: Pull complete 668f6fcc5fa5: Pull complete dc120c3e0290: Pull complete 8f7c0eebb7b1: Pull complete 77b694f83996: Pull complete 0f611256ec3a: Pull complete 4f25def12f23: Pull complete Digest: sha256:9dee185c3b161cdfede1f5e35e8b56ebc9de88ed3a79526939701f3537a52324Status: Downloaded newer image for tomcat:latestdocker.io/library/tomcat:latest[root@mufeng63 ~]#

基于Tomcat的镜像创建容器

[root@mufeng63 ~]# docker run  --name mytomcat -d -p 8080:8080 tomcat1f5bd6dcca0a614ec047bf3882e3fe2e4cdb17b7f343d7834145b17d1fc3c3c3[root@mufeng63 ~]#

在Tomcat中部署一个简单的页面

如果不创建页面，直接访问Tomcat是会报错的，所以这里需要手动创建一个web测试页面：

//查看正在运行的容器[root@mufeng63 ~]# docker psCONTAINER ID   IMAGE     COMMAND             CREATED          STATUS          PORTS                                       NAMES1f5bd6dcca0a   tomcat    "catalina.sh run"   53 seconds ago   Up 52 seconds   0.0.0.0:8080->8080/tcp, :::8080->8080/tcp   mytomcat// 登录Tomcat容器[root@mufeng63 ~]# docker exec -it 1f5bd6dcca0a /bin/bashroot@1f5bd6dcca0a:/usr/local/tomcat# lsBUILDING.txt LICENSE  README.md RUNNING.txt  conf  logs    temp     webapps.distCONTRIBUTING.md  NOTICE   RELEASE-NOTES  bin      lib   native-jni-lib  webapps  work// 创建web测试目录root@1f5bd6dcca0a:/usr/local/tomcat# mkdir webapps/mufeng_demo//创建index.htmlroot@1f5bd6dcca0a:/usr/local/tomcat# echo "<h1>This is mufenggrow </>" > webapps/mufeng_demo/index.htmlroot@1f5bd6dcca0a:/usr/local/tomcat#

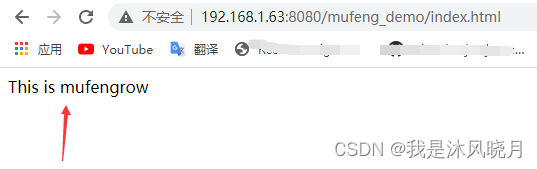

浏览器访问测试：
使用ip+端口号/mufeng_demo/index.html进行访问：

二. 开始构建自己的镜像

2.1 查看容器的ID

先要确定自己要基于哪个容器生成镜像， 这里我们用Tomcat的容器来构建：

[root@mufeng63 ~]# docker psCONTAINER ID   IMAGE     COMMAND             CREATED          STATUS          PORTS                                       NAMES1f5bd6dcca0a   tomcat    "catalina.sh run"   19 minutes ago   Up 19 minutes   0.0.0.0:8080->8080/tcp, :::8080->8080/tcp   mytomcat[root@mufeng63 ~]#

可以确定该容器的ID是1f5bd6dcca0a

2.2 使用命令docker commit 生成该容器的镜像，并保存在本地

[root@mufeng63 ~]# docker commit 1f5bd6dcca0a mufeng_tomcatsha256:3dbdf1f915ac9cc3210fb0e77d9f5d93f24064ac604cf12d24f602693396eed3[root@mufeng63 ~]# docker imagesREPOSITORY      TAG       IMAGE ID       CREATED         SIZEmufeng_tomcat   latest    3dbdf1f915ac   9 seconds ago   680MBtomcat          latest    fb5657adc892   15 months ago   680MB[root@mufeng63 ~]#

执行完成后，看到多了一个mufeng_tomcat 的镜像。

三. 上传镜像到镜像仓库

3.1 登录docker hub

docker hub的官网地址： https://hub.docker.com/

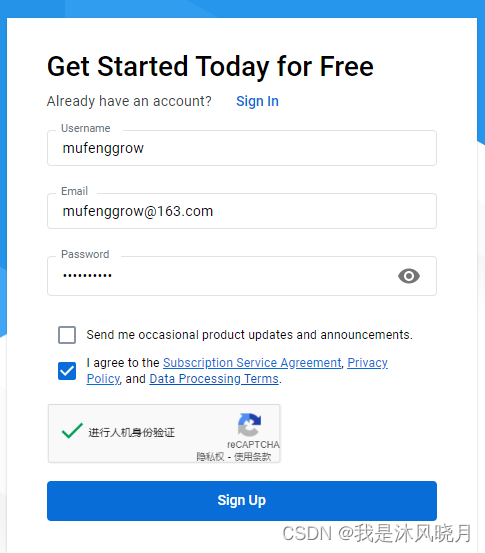

注册：

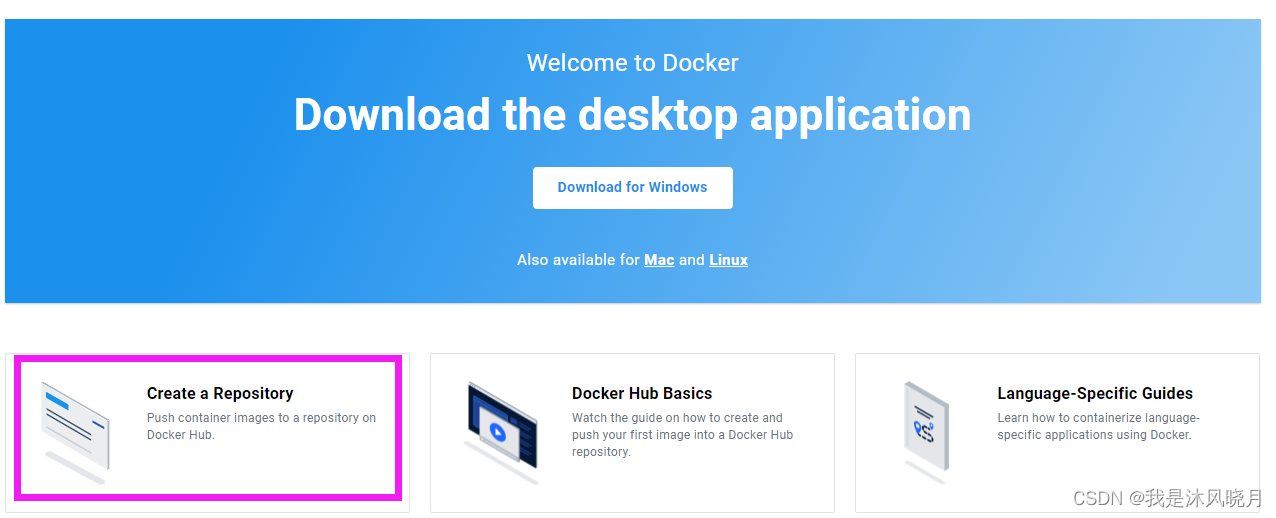

创建存储库

你可以手动创建存储库，当然也可以不创建，我们这里默认是不创建的，上传的时候直接用mufenggrow/ 即可

3.2 创建镜像

如果要上传到镜像仓库中，需要在镜像名称前加上仓库的路径信息：

[root@mufeng63 ~]# docker commit 1f5bd6dcca0a mufenggrow/mufeng_tomcatsha256:dc9420341e4bd06cdd7dc5881220481c9dbe8faf4d548356c6dbab265a36416b[root@mufeng63 ~]# docker imagesREPOSITORY                 TAG       IMAGE ID       CREATED          SIZEmufenggrow/mufeng_tomcat   latest    dc9420341e4b   5 seconds ago    680MBmufeng_tomcat              latest    3dbdf1f915ac   16 minutes ago   680MBtomcat                     latest    fb5657adc892   15 months ago    680MB

3.3 上传到镜像仓库

使用docker login 登录

[root@mufeng63 ~]# docker loginLogin with your Docker ID to push and pull images from Docker Hub. If you don't have a Docker ID, head over to https://hub.docker.com to create one.Username: mufenggrowPassword: WARNING! Your password will be stored unencrypted in /root/.docker/config.json.Configure a credential helper to remove this warning. Seehttps://docs.docker.com/engine/reference/commandline/login/#credentials-storeLogin Succeeded[root@mufeng63 ~]#

开始上传

[root@mufeng63 ~]# docker push mufenggrow/mufeng_tomcatUsing default tag: latestThe push refers to repository [docker.io/mufenggrow/mufeng_tomcat]66f50273e519: Pushed 3e2ed6847c7a: Mounted from library/tomcat bd2befca2f7e: Mounted from library/tomcat 59c516e5b6fa: Mounted from library/tomcat 3bb5258f46d2: Mounted from library/tomcat 832e177bb500: Mounted from library/tomcat f9e18e59a565: Mounted from library/tomcat 26a504e63be4: Mounted from library/tomcat 8bf42db0de72: Mounted from library/tomcat 31892cc314cb: Mounted from library/tomcat 11936051f93b: Mounted from library/tomcat latest: digest: sha256:4a696362a8586173d7f0f9b12eef1354060d10746796e59519ed083fe0acd5f8 size: 2630[root@mufeng63 ~]#

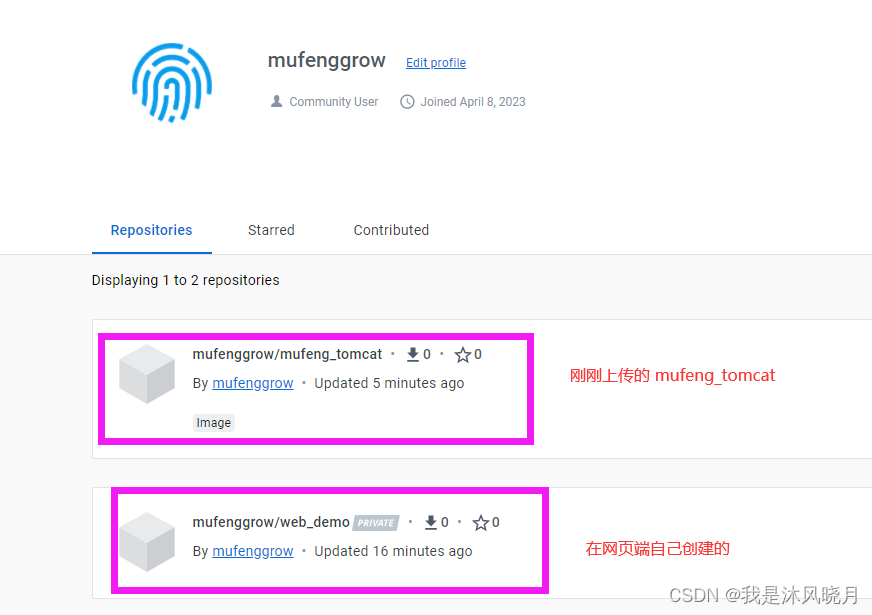

到网页端查看
下载测试

先删除系统中已经有的包：

[root@mufeng63 ~]# docker rmi mufenggrow/mufeng_tomcat:latest Untagged: mufenggrow/mufeng_tomcat:latestUntagged: mufenggrow/mufeng_tomcat@sha256:4a696362a8586173d7f0f9b12eef1354060d10746796e59519ed083fe0acd5f8Deleted: sha256:dc9420341e4bd06cdd7dc5881220481c9dbe8faf4d548356c6dbab265a36416bDeleted: sha256:6d5bd3130a0c60a6075e5856fa11c8acfdab7a2252360a6fbeabdef1f83fc526[root@mufeng63 ~]# docker rmi mufeng_tomcatUntagged: mufeng_tomcat:latestDeleted: sha256:3dbdf1f915ac9cc3210fb0e77d9f5d93f24064ac604cf12d24f602693396eed3Deleted: sha256:ea120c9388c452a6f215f1761b5981e40370e74b68d1886237e0931ce33a45f3[root@mufeng63 ~]# docker imagesREPOSITORY   TAG       IMAGE ID       CREATED         SIZEtomcat       latest    fb5657adc892   15 months ago   680MB[root@mufeng63 ~]#

下载镜像包

[root@mufeng63 ~]# docker search mufenggrow/mufeng_tomcatNAME                       DESCRIPTION   STARS     OFFICIAL   AUTOMATEDmufenggrow/mufeng_tomcat                 0                    [root@mufeng63 ~]# docker pull mufenggrow/mufeng_tomcatUsing default tag: latestlatest: Pulling from mufenggrow/mufeng_tomcat0e29546d541c: Already exists 9b829c73b52b: Already exists cb5b7ae36172: Already exists 6494e4811622: Already exists 668f6fcc5fa5: Already exists dc120c3e0290: Already exists 8f7c0eebb7b1: Already exists 77b694f83996: Already exists 0f611256ec3a: Already exists 4f25def12f23: Already exists 5a8cdbad1b10: Pull complete Digest: sha256:4a696362a8586173d7f0f9b12eef1354060d10746796e59519ed083fe0acd5f8Status: Downloaded newer image for mufenggrow/mufeng_tomcat:latestdocker.io/mufenggrow/mufeng_tomcat:latest[root@mufeng63 ~]# docker imagesREPOSITORY                 TAG       IMAGE ID       CREATED          SIZEmufenggrow/mufeng_tomcat   latest    dc9420341e4b   24 minutes ago   680MBtomcat                     latest    fb5657adc892   15 months ago    680MB[root@mufeng63 ~]#

可以看到，我们自己构建的镜像，已经可以下载了。
