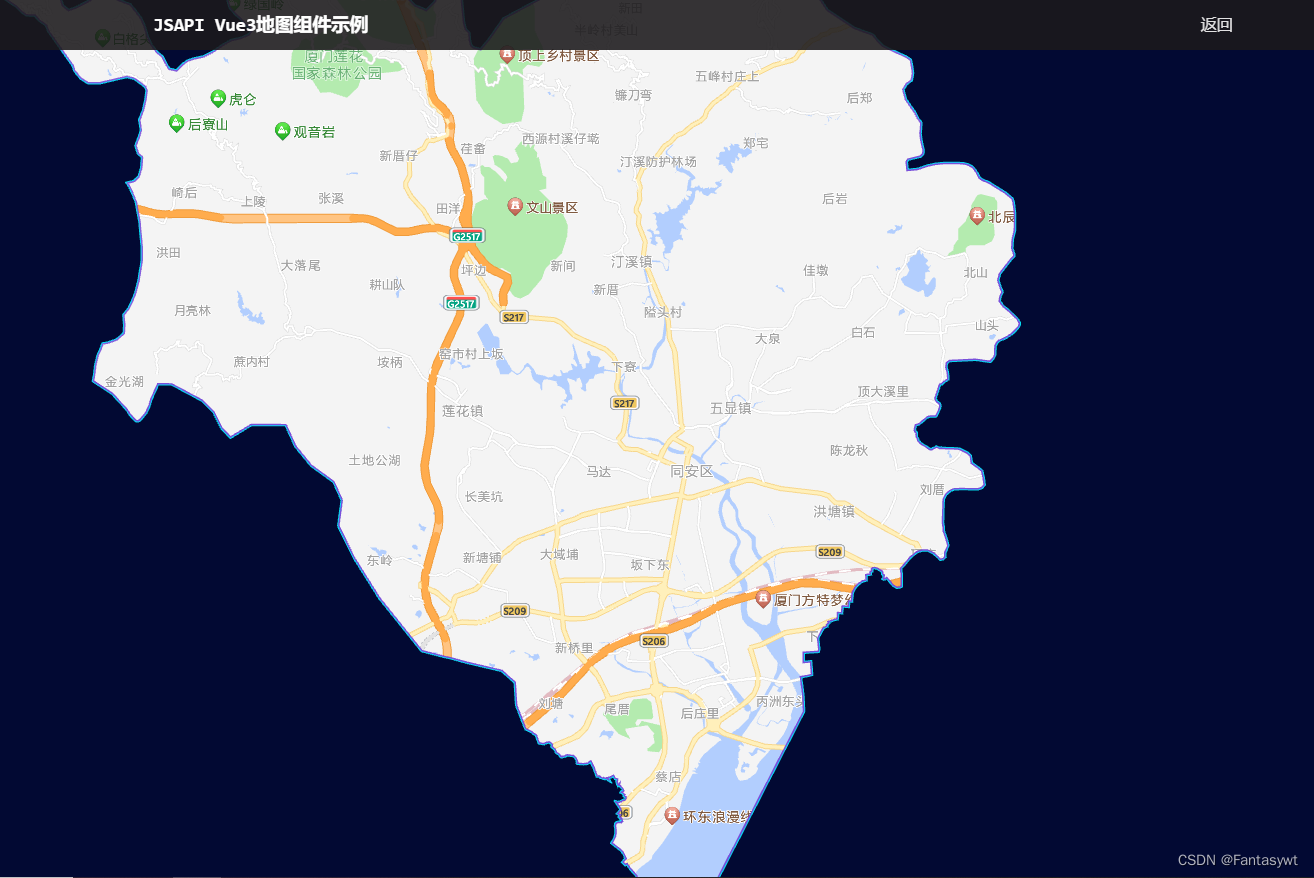

实现：例如像这样，只展示厦门的地图，隐藏其他地方，点击区域，在单独展示区，点击返回回到总览。
一、获取高德地图的key，和密钥
地址：高德控制台
具体的获取流程就不教授了，百度很多
二、安装
npm i @amap/amap-jsapi-loader --save三、引入使用
要注意的是，因为使用了行政服务搜索的api，它的search()方法要有回调，就必须配置密钥
点击查看官方推荐的密钥使用方式
window._AMapSecurityConfig = { securityJsCode: "你的密钥", };主要使用的api: 行政区查询服务（AMap.DistrictSearch）
完整代码
<template> <div class="home_div"> <div class="map-title"> <h3>JSAPI Vue3地图组件示例</h3> <div v-if="back" id="back" @click="showAllMap" style="cursor: pointer;">返回</div> </div> <div id="container"></div> </div></template><script lang="ts">import AMapLoader from "@amap/amap-jsapi-loader";import { shallowRef } from "@vue/reactivity";import { ref } from "vue";export default { name: "mapComtaint", setup() { const map = shallowRef(null) as any; const AMap = shallowRef(null) as any; const back = ref(false); const polygons = shallowRef([]) as any; // 区描边、遮罩 const district = shallowRef(null) as any; const polygon = shallowRef(null) as any; // 市描边、遮罩 return { map, AMap, back, polygons, district, polygon, }; }, create() {}, methods: { /* 返回区域对应颜色 adcode:厦门市 350200 厦门市市辖区350201 思明区 350203 海沧区 350205 湖里区 350206 集美区 350211 同安区 350212 翔安区 350213 */ getColorByAdcode(adcode: string) { let colors = { "350200": "#111111", "350201": "#456aed", "350203": "428cced", "350205": "#a456e1", "350206": "#123fee", "350211": "#666eee", "350212": "#963qde", "350213": "#784eda", } as any; return colors[adcode]; }, // 初始化遮罩 initArea(city: string, isChildDraw: boolean = false) { let that = this; this.district.search(city, function (status: string, result: any) { // 外多边形坐标数组和内多边形坐标数组 var outer = [ new that.AMap.LngLat(-360, 90, true), new that.AMap.LngLat(-360, -90, true), new that.AMap.LngLat(360, -90, true), new that.AMap.LngLat(360, 90, true), ]; console.log(result); // 绘制遮罩 var holes = result.districtList[0].boundaries; var pathArray = [outer]; pathArray.push.apply(pathArray, holes); that.polygon = new that.AMap.Polygon({ pathL: pathArray, strokeColor: "#00eeff", strokeWeight: 1, fillColor: "#020933", fillOpacity: 1, }); that.polygon.setPath(pathArray); that.map.add(that.polygon); // 判断是否要绘制子区域 if (isChildDraw) { // 将搜索层级设置为 区、县 that.district.setLevel("district"); for (let i = 0; i < result.districtList[0].districtList.length; i++) { that.areaPolyline(result.districtList[0].districtList[i].adcode); } } }); }, // 显示总览 showAllMap() { this.back = false; if (this.polygon) { // 清除遮罩 this.map.remove(this.polygon); } this.initArea("厦门市", true); this.map.setCenter([118.113994, 24.614998]); this.map.setZoom(11); }, // 绘制区域描边 areaPolyline(adcode: string) { let that = this; if (this.polygons.length) { this.map.remove(this.polygons); this.polygons = []; } this.district.search(adcode, function (status: string, result: any) { console.log("区", result); // 绘制区域描边 let bounds = result.districtList[0].boundaries; for (let i = 0; i < bounds.length; i++) { const color = that.getColorByAdcode(result.districtList[0].adcode); const polygon = new that.AMap.Polygon({ path: bounds[i], strokeColor: "#784eda", strokeWeight: 4, fillColor: "#784eda", fillOpacity: 0, }); // 添加监听事件 polygon.on("mouseover", () => { if (!that.back) { polygon.setOptions({ fillOpacity: 0.7, }); } }); // 添加点击事件 polygon.on("click", () => { // 判断是否为市级 if (!that.back) { // 显示返回按钮 that.back = true; that.map.setZoom(12); // 修改中心位置为区级中心 that.map.setCenter([ result.districtList[0].center.lng, result.districtList[0].center.lat, ]); // 绘画 that.initArea(result.districtList[0].adcode, false); } }); polygon.on("mouseout", () => { polygon.setOptions({ fillOpacity: 0, }); }); that.polygons.push(polygon); } that.map.add(that.polygons); }); }, ininMap() { let that = this; // 这个配置很重要，必须设置，否则你的 行政服务搜索api无法使用生成回调 window._AMapSecurityConfig = { securityJsCode: "密钥", }; AMapLoader.load({ key: "你的key", //设置您的key version: "2.0", plugins: [ "AMap.ToolBar", "AMap.Driving", "AMap.Polygon", "AMap.DistrictSearch", "AMap.Object3DLayer", "AMap.Object3D", "AMap.Polyline", ], AMapUI: { version: "1.1", plugins: [], }, Loca: { version: "2.0.0", }, }) .then((AMap) => { that.AMap = AMap; that.map = new AMap.Map("container", { viewMode: "3D", zoom: 11, zooms: [10, 20], center: [118.113994, 24.614998], }); that.district = new AMap.DistrictSearch({ subdistrict: 3, //获取边界返回下级行政区 extensions: "all", //返回行政区边界坐标组等具体信息 level: "city", //查询行政级别为 市 }); that.initArea("厦门市", true); }) .catch((e) => { console.log(e); }); }, }, mounted() { //DOM初始化完成进行地图初始化 this.ininMap(); },};</script><style scope>.home_div { height: 100%; width: 100%; padding: 0px; margin: 0px; position: relative;}#container { height: 100vh; width: 100%; padding: 0px; margin: 0px;}.map-title { position: absolute; z-index: 1; width: 100%; height: 50px; background-color: rgba(27, 25, 27, 0.884); display: flex; justify-content: space-around; align-items: center;}h3 { z-index: 2; color: white;}</style>
