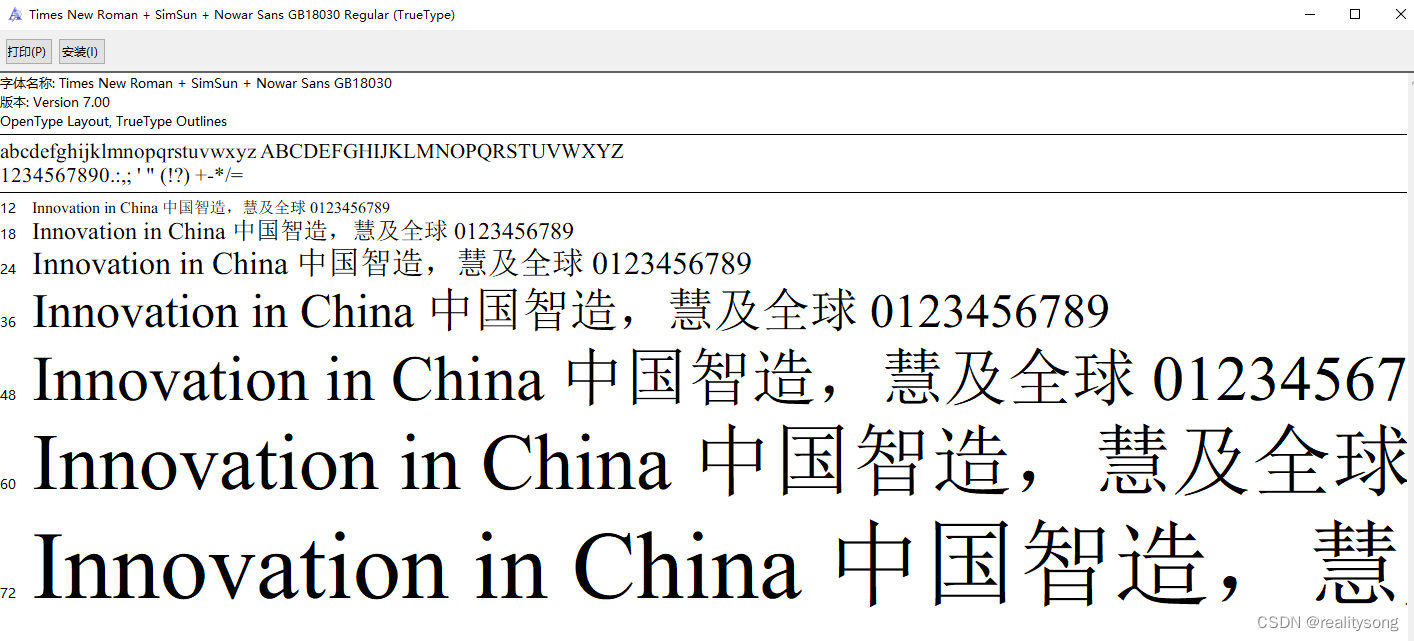

1、合并字体
将电脑自带的宋体和Times New Roman字体合并为新字体，我命名为SongNTR.ttf
https://github.com/nowar-fonts/Warcraft-Font-Merger（上述网站可以合并字体）

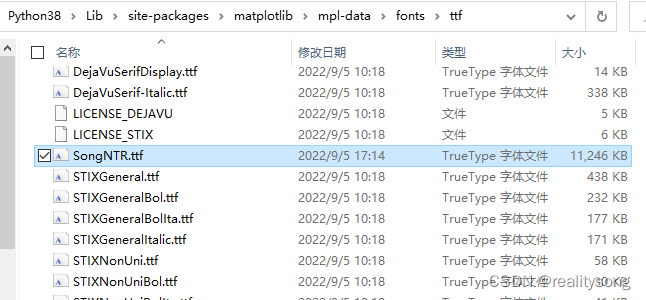

2、将合并后的字体放置到matplotlib字体文件夹中
文件夹路径通过以下方式可以获得：
import matplotlib.pyplot as pltimport numpy as npimport matplotlib print(matplotlib.matplotlib_fname())输出路径：
c:\users\dell\appdata\local\programs\python\python38\lib\site-packages\matplotlib\mpl-data\matplotlibrc

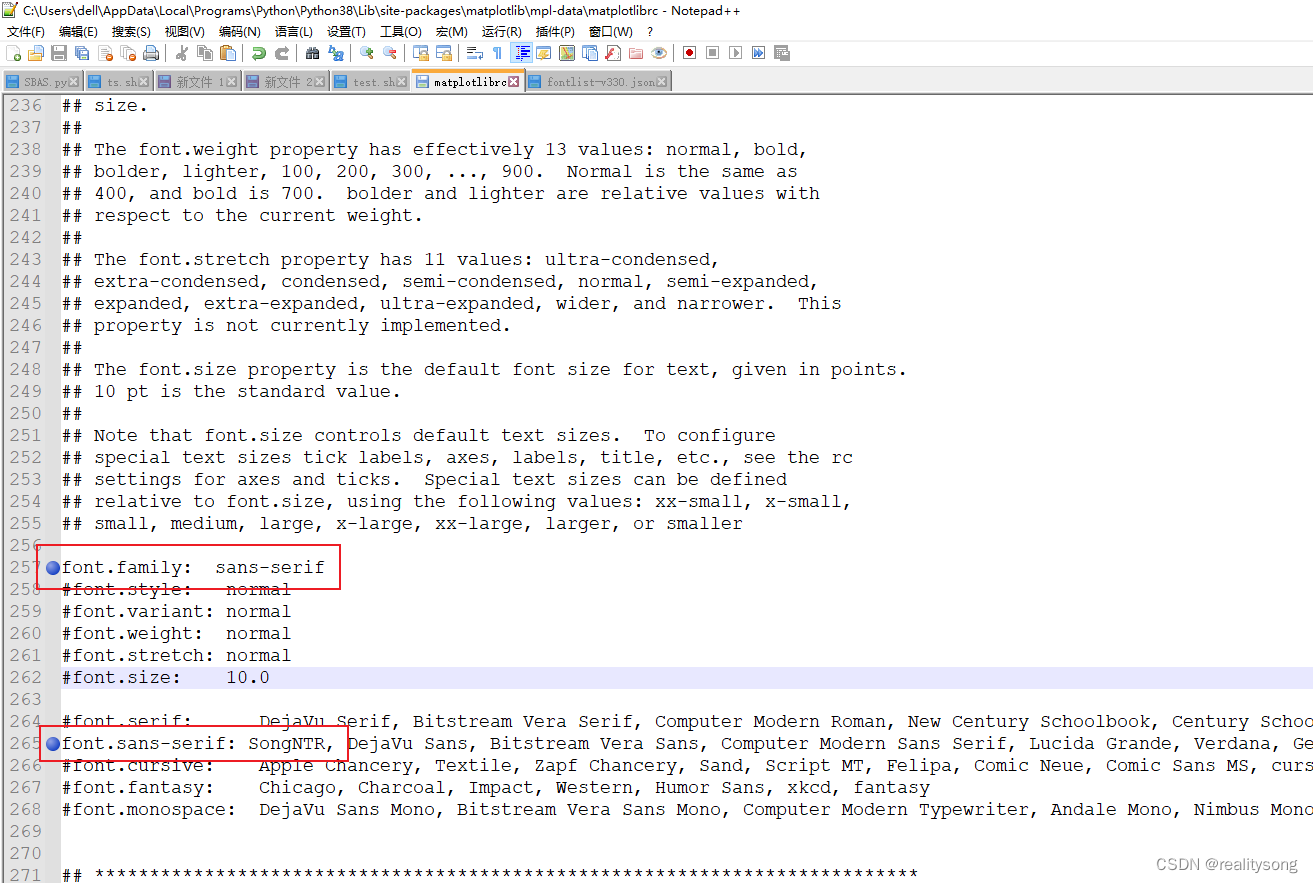

3、修改matplotlibrc文件
文件位于 C:\Users\dell\AppData\Local\Programs\Python\Python38\Lib\site-packages\matplotlib\mpl-data
打开后修改257行和265行，其中257行去掉注释，265行去掉注释并添加字体 SongNTR
font.family: sans-serif#font.style: normal#font.variant: normal#font.weight: normal#font.stretch: normal#font.size: 10.0#font.serif: DejaVu Serif, Bitstream Vera Serif, Computer Modern Roman, New Century Schoolbook, Century Schoolbook L, Utopia, ITC Bookman, Bookman, Nimbus Roman No9 L, Times New Roman, Times, Palatino, Charter, seriffont.sans-serif: SongNTR, DejaVu Sans, Bitstream Vera Sans, Computer Modern Sans Serif, Lucida Grande, Verdana, Geneva, Lucid, Arial, Helvetica, Avant Garde, sans-serif#font.cursive: Apple Chancery, Textile, Zapf Chancery, Sand, Script MT, Felipa, Comic Neue, Comic Sans MS, cursive#font.fantasy: Chicago, Charcoal, Impact, Western, Humor Sans, xkcd, fantasy

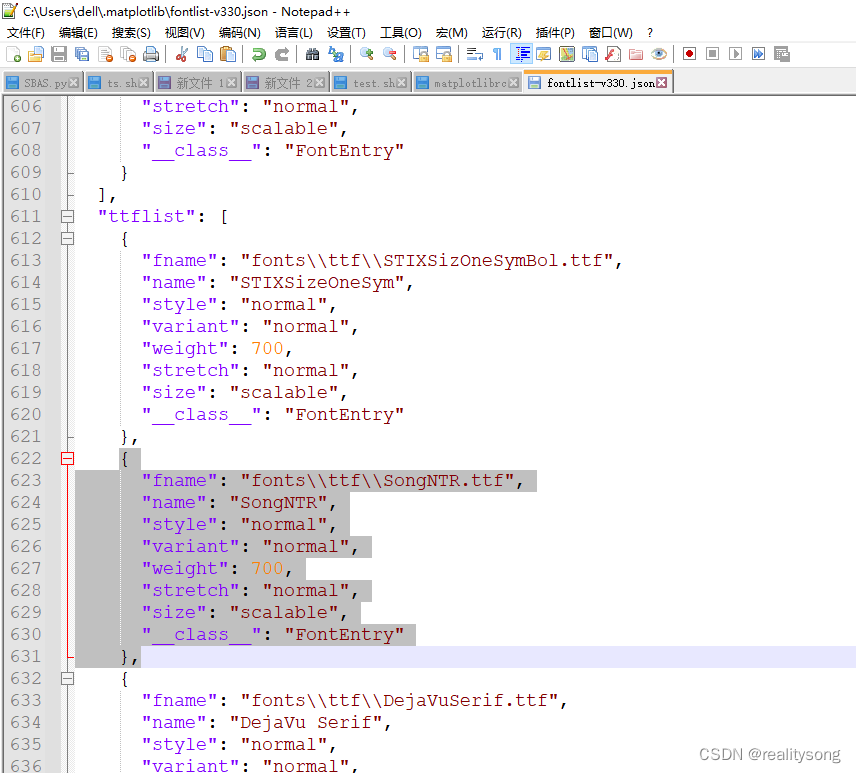

4、修改.matplotlib缓存文件 fontlist-v330.json
位于 C:\Users\dell.matplotlib
打开后插入以下内容：
{ "fname": "fonts\\ttf\\SongNTR.ttf", "name": "SongNTR", "style": "normal", "variant": "normal", "weight": 700, "stretch": "normal", "size": "scalable", "__class__": "FontEntry" },
4、重启python

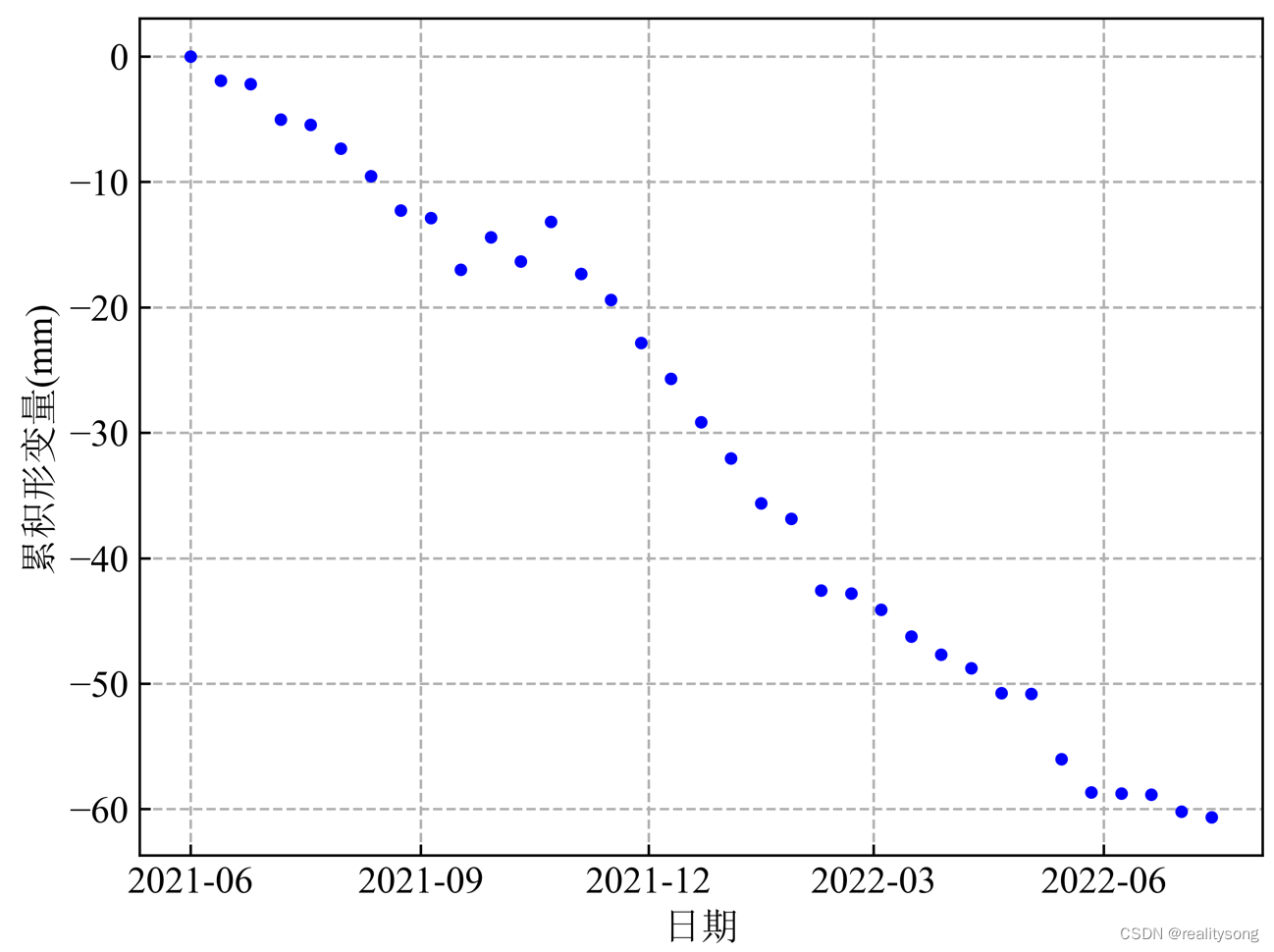

5、测试
设置字体，实现中文：宋体，英文：Times New Roman
plt.rcParams['font.sans-serif'] = ['SongNTR'] ##设置字体
