海康视频播放，包含h5和web插件

自行下载

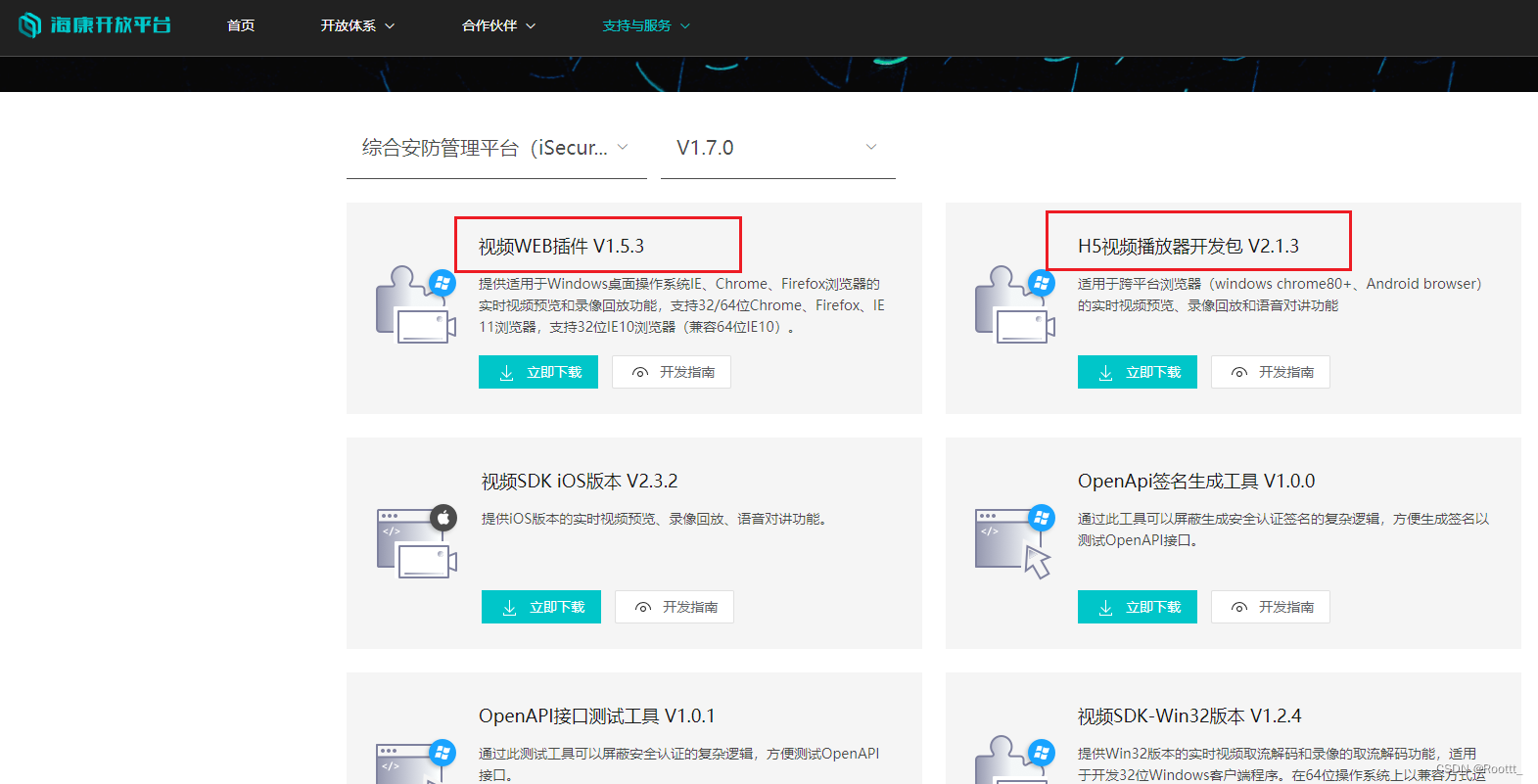

海康开放平台

demo 都写得很清楚，不多描述
注意，两者需要的数据不一样，web是需要第三方标识，下载安装插件到电脑，要配置海康数据。h5是视频流，只需传接口返回的流地址

1.视频web插件

ps: 逆天插件，层级非常高，打开弹窗都会被挡住，需要做限制

vue2写法，公共vue文件写法，调用文件即可

开始时需要以下配置，不知道的找对接平台数据的人，必须要，否则播不了

getParameterData: {    port: 443,    ip: "10.10.2.22",    appKey: "20224202",    appSecret: "ndqXXXXXt1jHY2r8Uy",    enableHTTPS: 1,}, //海康数据

// 注意版本不一样，加载插件的声明不一样，下面vue3的是最新的，声明实例new WebControl切换下

<!-- 海康插件组件 --><template>    <div class="video-center" ref="videoCenter">        <div :id="playWnd" class="playWnd"></div>    </div>  </template>  <script>  const control = require("../video/jsWebControl-1.0.0.min.js");  const jsencrypt = require("../video/jsencrypt.min.js");  export default {    data() {        return {            oWebControl: null,            pubKey: "",            initCount: 0,            w: 0,            h: 0,            winId: 1,        };    },    props: {        playWnd: {          type: String,          default: 'playWnd',        },        //播放类型  0预览 1回放        playMode: {            type: Number,            default: 0,        },        //初始化数据        initData: {            type: Object,            default() {                return {                    enableHttps: 1,                    encryptedFields: "secret",                    layout: "1x1",                    btIds: "0,16,256,257,258,259,260,512,513,514,515,516,517,768,769",                    showSmart: 1,                    showToolbar: 1,                    snapDir: "D:\\SnapDir",                    videoDir: "D:\\VideoDir",                };            },        },    },    created: function () {        this.initPlugin();    },    mounted: function () {        this.$nextTick(()=>{          this.h = this.$refs["videoCenter"].clientHeight;          this.w = this.$refs["videoCenter"].clientWidth;        })        window.addEventListener("resize",() => {            if (this.$refs["videoCenter"]) {                this.h = this.$refs["videoCenter"].clientHeight;                this.w = this.$refs["videoCenter"].clientWidth;                this.resetFun();            }        });    },    computed: {},    methods: {        // 设置窗口裁剪，当因滚动条滚动导致窗口需要被遮住的情况下需要JS_CuttingPartWindow部分窗口        setWndCover() {            var iWidth = window.width;            var iHeight = window.height;            var oDivRect = document                .querySelector("#"+this.playWnd)                .getBoundingClientRect();            var iCoverLeft = oDivRect.left < 0 ? Math.abs(oDivRect.left) : 0;            var iCoverTop = oDivRect.top < 0 ? Math.abs(oDivRect.top) : 0;            var iCoverRight =                oDivRect.right - iWidth > 0                    ? Math.round(oDivRect.right - iWidth)                    : 0;            var iCoverBottom =                oDivRect.bottom - iHeight > 0                    ? Math.round(oDivRect.bottom - iHeight)                    : 0;            iCoverLeft = iCoverLeft > this.w ? this.w : iCoverLeft;            iCoverTop = iCoverTop > this.h ? this.h : iCoverTop;            iCoverRight = iCoverRight > this.w ? this.w : iCoverRight;            iCoverBottom = iCoverBottom > this.h ? this.h : iCoverBottom;            this.oWebControl.JS_RepairPartWindow(0, 0, this.w + 1, this.h); // 多1个像素点防止还原后边界缺失一个像素条            if (iCoverLeft != 0) {                this.oWebControl.JS_CuttingPartWindow(0, 0, iCoverLeft, this.h);            }            if (iCoverTop != 0) {                this.oWebControl.JS_CuttingPartWindow(                    0,                    0,                    this.w + 1,                    iCoverTop                ); // 多剪掉一个像素条，防止出现剪掉一部分窗口后出现一个像素条            }            if (iCoverRight != 0) {                this.oWebControl.JS_CuttingPartWindow(                    this.w - iCoverRight,                    0,                    iCoverRight,                    this.h                );            }            if (iCoverBottom != 0) {                this.oWebControl.JS_CuttingPartWindow(                    0,                    this.h - iCoverBottom,                    this.w,                    iCoverBottom                );            }        },        // 初始化        init() {            this.getPubKey(() => {                let { appSecret, ...hkData } = this.$store.state.getParameterData;//海康提供的认证信息                this.oWebControl.JS_RequestInterface({                        funcName: "init",                        argument: JSON.stringify({                            appkey: hkData.appKey,                            //API网关提供的appkey                            secret: this.setEncrypt(appSecret),            //API网关提供的secret                            ip: hkData.ip,                                    //API网关IP地址                            playMode: this.playMode,                        //播放模式（决定显示预览还是回放界面）                            port: hkData.port,                                //端口                            snapDir: this.initData.snapDir,                    //抓图存储路径                            videoDir: this.initData.videoDir,                      //紧急录像或录像剪辑存储路径                            layout: this.initData.layout,                    //布局                            enableHTTPS: hkData.enableHTTPS,                  //是否启用HTTPS协议                            encryptedFields: this.initData.encryptedFields,          //加密字段                            showToolbar: this.initData.showToolbar,                  //是否显示工具栏                            showSmart: this.initData.showSmart,                      //是否显示智能信息                        })                    }).then((oData) => {                        // 初始化后resize一次，规避firefox下首次显示窗口后插件窗口未与DIV窗口重合问题                        this.oWebControl.JS_Resize(this.w, this.h);                    });            });        },        /* 视频预览业务功能 */        startPreviewFun(val) {            this.oWebControl.JS_RequestInterface({                funcName: "startPreview",                argument: JSON.stringify({                    cameraIndexCode: val,                    streamMode: 0,                    transMode: 1,                    gpuMode: 0,                    wndId: this.winId,                }),            }).then((oData) => {                console.log('播放成功',oData)            });        },        /* 视频回放业务功能 */        startPlaybackFun(val, start, end, streamMode = 1) {            this.oWebControl.JS_RequestInterface({                funcName: "startPlayback",                argument: JSON.stringify({                    cameraIndexCode: val,                   //监控点编号                    startTimeStamp: start,  //录像查询开始时间戳，单位：秒                    endTimeStamp: end,      //录像结束开始时间戳，单位：秒                    streamMode: streamMode,//主子码流标识：0-主码流，1-子码流                    recordLocation: 0,                     //录像存储类型：0-中心存储，1-设备存储                    transMode: 1,                               //传输协议：0-UDP，1-TCP                    gpuMode: 0,                                   //是否启用GPU硬解，0-不启用，1-启用                    wndId: this.wndId                                     //可指定播放窗口                })            }).then((oData) => {                console.log('回放',oData)            });        },        // RSA加密        setEncrypt(value) {            var encrypt = new jsencrypt.JSEncrypt();            encrypt.setPublicKey(this.pubKey);            return encrypt.encrypt(value);        },        // 推送消息        cbIntegrationCallBack(oData) {            // 窗口选中            if (oData.responseMsg.type === 1) {                this.winId = oData.responseMsg.msg.wndId            }                    },        // 设置窗口控制回调        setCallbacks() {            this.oWebControl.JS_SetWindowControlCallback({                cbIntegrationCallBack: this.cbIntegrationCallBack,            });        },        /* 获取公钥 */        getPubKey(callback) {            this.oWebControl.JS_RequestInterface({                funcName: "getRSAPubKey",                argument: JSON.stringify({                    keyLength: 1024,                }),            }).then((oData) => {                if (oData.responseMsg.data) {                    this.pubKey = oData.responseMsg.data;                    callback();                }            });        },        // 加载插件        initPlugin() {            let _this = this;            this.oWebControl = new control.WebControl({                szPluginContainer: this.playWnd,                iServicePortStart: 15900,                iServicePortEnd: 15909,                szClassId: "23BF3B0A-2C56-4D97-9C03-0CB103AA8F11", // 用于IE10使用ActiveX的clsid                cbConnectSuccess: function () {                    _this.setCallbacks();                    _this.oWebControl                        .JS_StartService("window", { dllPath: "./VideoPluginConnect.dll"}).then(() => {                            _this.oWebControl.JS_CreateWnd(_this.playWnd, _this.w, _this.h).then(() => {                                _this.init();                            });                        },                        function () {}                    );                },                cbConnectError: function () {                    _this.oWebControl = null;                    initCount ++;                    if (initCount < 3) {                                                     setTimeout(function () {                            initPlugin();                        }, 3000)                    } else {                        console.log('插件启动失败，请检查插件是否安装！')                    }                },                cbConnectClose: function (bNormalClose) {                    console.log("cbConnectClose");                    _this.oWebControl = null;                },            });        },        // 重置窗口大小        resetFun() {            if (this.oWebControl != null) {                this.oWebControl.JS_Resize(this.w, this.h);                this.setWndCover();            }        },    },    destroyed() {        this.oWebControl.JS_HideWnd();        this.oWebControl.JS_DestroyWnd().then(            function () {                console.log("销毁插件窗口成功");            },            function () {                console.log("销毁插件窗口失败");            }        );    },  };  </script>  <style scoped="scoped">  .video-center {    width: 100%;    height: 100%;  }  </style>

不完整，自行补充

<template><PreviewVideo   ref="webVideo"   :playMode="0"   :initData="initData"/></template><script>export default {  data() {    return {         initData: {    enableHttps: 0,    encryptedFields: "secret",    layout: "2x2", // 4个窗口    showSmart: 1,    showToolbar: 1,    snapDir: "D:SnapDir",    videoDir: "D:VideoDir",},    }  },  method () {  //播放时调用videoPlayFun() {//预览//第三方标识，由海康提供，后端传回this.$refs['webVideo'].startPreviewFun(data.deviceNameEn)//回放，需要回放时间，若使用element的时间戳，需要/1000，变为秒单位//playMode传1this.$refs['webVideo'].startPlaybackFun(        data.deviceNameEn,        startTime,        endTime     )  }  }}</script>

vue3+vite

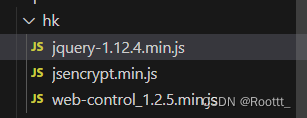

使用版本

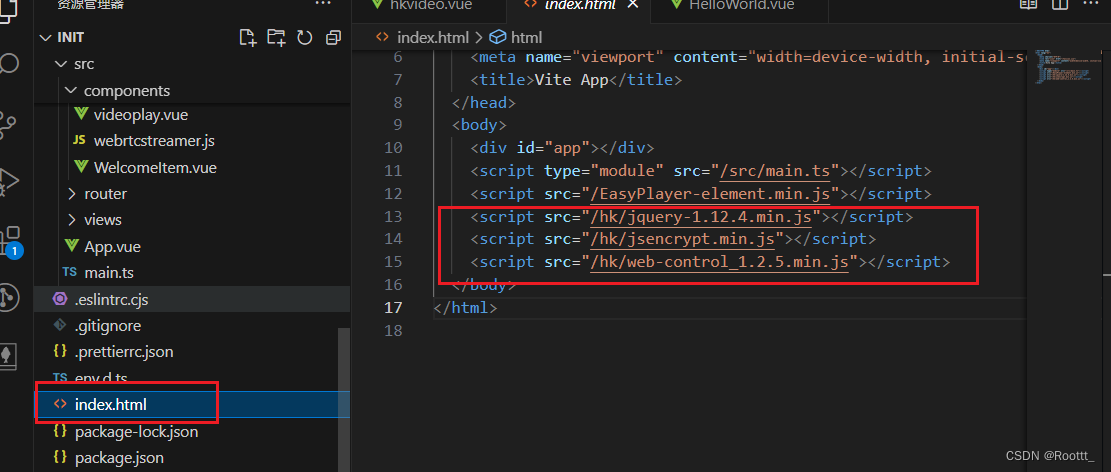

index文件引入

playVideo传第三方标识，请自行修改以下变量值如上
可直接复制使用vue，点击播放

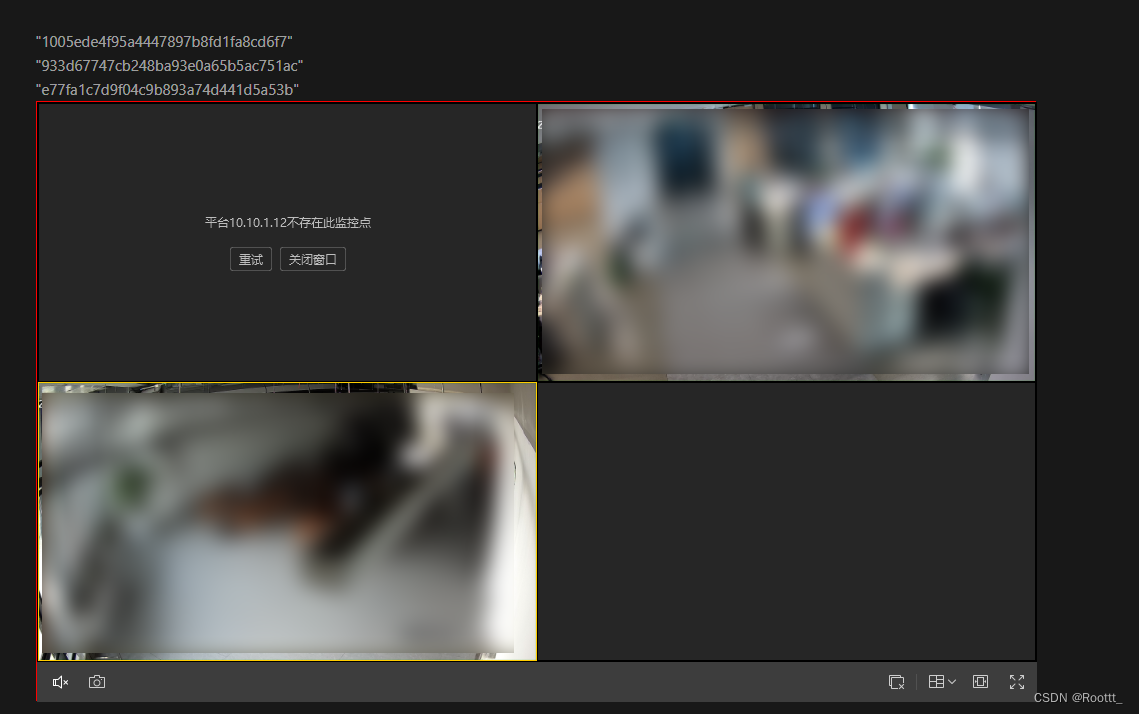

能直接使用，测试如下，可测试第三方标识能否使用

<template> <div class="video-center" ref="videoCenter">  <div @click="playVideo('1005ede4f95a4447897b8fd1fa8cd6f7', 1)">"1005ede4f95a4447897b8fd1fa8cd6f7"</div>  <div @click="playVideo('933d67747cb248ba93e0a65b5ac751ac', 2)">"933d67747cb248ba93e0a65b5ac751ac"</div>  <div @click="playVideo('e77fa1c7d9f04c9b893a74d441d5a53b', 3)">"e77fa1c7d9f04c9b893a74d441d5a53b"</div>    <div id="playWnd" class="playWnd"></div>  </div></template><script setup lang="ts">import { onMounted, ref, reactive, unref } from 'vue'var initCount = 0;var oWebControl = nullvar pubKey = '';// 创建播放实例const initPlugin = () => {      oWebControl = new WebControl({      szPluginContainer: "playWnd",                       // 指定容器idiServicePortStart: 15900,                           // 指定起止端口号，建议使用该值iServicePortEnd: 15900,                             szClassId:"23BF3B0A-2C56-4D97-9C03-0CB103AA8F11",   // 用于IE10使用ActiveX的clsidcbConnectSuccess: function () {                     // 创建WebControl实例成功oWebControl.JS_StartService("window", {         // WebControl实例创建成功后需要启动服务dllPath: "./VideoPluginConnect.dll"         // 值"./VideoPluginConnect.dll"写死 }).then(function () {                           // 启动插件服务成功oWebControl.JS_SetWindowControlCallback({   // 设置消息回调cbIntegrationCallBack: cbIntegrationCallBack});oWebControl.JS_CreateWnd("playWnd", 1000, 600).then(function () { //JS_CreateWnd创建视频播放窗口，宽高可设定init();  // 创建播放实例成功后初始化});}, function () { // 启动插件服务失败});},cbConnectError: function () { // 创建WebControl实例失败oWebControl = null;WebControl.JS_WakeUp("VideoWebPlugin://"); // 程序未启动时执行error函数，采用wakeup来启动程序initCount ++;if (initCount < 3) {                             setTimeout(function () {initPlugin();}, 3000)} else {          console.log('插件启动失败，请检查插件是否安装！')// $("#playWnd").html("插件启动失败，请检查插件是否安装！");}},cbConnectClose: function (bNormalClose) {            // 异常断开：bNormalClose = false// JS_Disconnect正常断开：bNormalClose = trueconsole.log("cbConnectClose");oWebControl = null;        console.log('插件未启动，正在尝试启动，请稍候...')// $("#playWnd").html("插件未启动，正在尝试启动，请稍候...");WebControl.JS_WakeUp("VideoWebPlugin://");initCount ++;if (initCount < 3) {setTimeout(function () {initPlugin();}, 3000)} else {          console.log('插件启动失败，请检查插件是否安装！')// $("#playWnd").html("插件启动失败，请检查插件是否安装！");}}});}// 推送消息const cbIntegrationCallBack = (oData) => {  console.log(JSON.stringify(oData.responseMsg))}const init = () =>     {    getPubKey(function () {    // 请自行修改以下变量值        var appkey = "20224202";                           //综合安防管理平台提供的appkey，必填        var secret = setEncrypt("xxxCAFyke4t1jHY2r8Uy");   //综合安防管理平台提供的secret，必填        var ip = "10.10.11.12";                           //综合安防管理平台IP地址，必填        var playMode = 0;                                  //初始播放模式：0-预览，1-回放        var port = 443;                                    //综合安防管理平台端口，若启用HTTPS协议，默认443        var snapDir = "D:\\SnapDir";                       //抓图存储路径        var videoDir = "D:\\VideoDir";                     //紧急录像或录像剪辑存储路径        var layout = "2x2";                                //playMode指定模式的布局        var enableHTTPS = 1;                               //是否启用HTTPS协议与综合安防管理平台交互，这里总是填1        var encryptedFields = 'secret';   //加密字段，默认加密领域为secret  var showToolbar = 1;                               //是否显示工具栏，0-不显示，非0-显示  var showSmart = 1;                                 //是否显示智能信息（如配置移动侦测后画面上的线框），0-不显示，非0-显示  var buttonIDs = "0,16,256,257,258,259,260,512,513,514,515,516,517,768,769";  //自定义工具条按钮  // 请自行修改以上变量值        oWebControl.JS_RequestInterface({            funcName: "init",            argument: JSON.stringify({                appkey: appkey,                            //API网关提供的appkey                secret: secret,                            //API网关提供的secret                ip: ip,                                    //API网关IP地址                playMode: playMode,                        //播放模式（决定显示预览还是回放界面）                port: port,                                //端口                snapDir: snapDir,                          //抓图存储路径                videoDir: videoDir,                        //紧急录像或录像剪辑存储路径                layout: layout,                            //布局                enableHTTPS: enableHTTPS,                  //是否启用HTTPS协议                encryptedFields: encryptedFields,          //加密字段      showToolbar: showToolbar,                  //是否显示工具栏      showSmart: showSmart,                      //是否显示智能信息      buttonIDs: buttonIDs                       //自定义工具条按钮            })        }).then(function (oData) {    oWebControl.JS_Resize(1000, 600);  // 初始化后resize一次，规避firefox下首次显示窗口后插件窗口未与DIV窗口重合问题        });    });} //获取公钥const getPubKey = (callback) => {    oWebControl.JS_RequestInterface({        funcName: "getRSAPubKey",        argument: JSON.stringify({            keyLength: 1024        })    }).then(function (oData) {        console.log(oData);        if (oData.responseMsg.data) {            pubKey = oData.responseMsg.data;            callback()        }    })}    //RSA加密const setEncrypt = (value) => {      var encrypt = new JSEncrypt();      encrypt.setPublicKey(pubKey);      return encrypt.encrypt(value);}onMounted(() => {  initPlugin()  window.addEventListener('unload', () => {    if (oWebControl != null){      oWebControl.JS_HideWnd();    }  })  window.addEventListener('resize', () => {    if (oWebControl != null) {        oWebControl.JS_Resize(1000, 600);        setWndCover();    }  })  window.addEventListener('scroll', () => {    if (oWebControl != null) {        oWebControl.JS_Resize(1000, 600);        setWndCover();    }  })})const setWndCover = () => {    var iWidth = window.innerWidth;    var iHeight = window.innerHeight;    var oDivRect = document.querySelector("#playWnd").getBoundingClientRect();    console.log('oDivRect', oDivRect)      var iCoverLeft = (oDivRect.left < 0) ? Math.abs(oDivRect.left): 0;      var iCoverTop = (oDivRect.top < 0) ? Math.abs(oDivRect.top): 0;      var iCoverRight = (oDivRect.right - iWidth > 0) ? Math.round(oDivRect.right - iWidth) : 0;      var iCoverBottom = (oDivRect.bottom - iHeight > 0) ? Math.round(oDivRect.bottom - iHeight) : 0;      iCoverLeft = (iCoverLeft > 1000) ? 1000 : iCoverLeft;      iCoverTop = (iCoverTop > 600) ? 600 : iCoverTop;      iCoverRight = (iCoverRight > 1000) ? 1000 : iCoverRight;      iCoverBottom = (iCoverBottom > 600) ? 600 : iCoverBottom;  oWebControl.JS_RepairPartWindow(0, 0, 1001, 600);    // 多1个像素点防止还原后边界缺失一个像素条      if (iCoverLeft != 0) {    oWebControl.JS_CuttingPartWindow(0, 0, iCoverLeft, 600);      }      if (iCoverTop != 0) {          oWebControl.JS_CuttingPartWindow(0, 0, 1001, iCoverTop);    // 多剪掉一个像素条，防止出现剪掉一部分窗口后出现一个像素条      }      if (iCoverRight != 0) {          oWebControl.JS_CuttingPartWindow(1000 - iCoverRight, 0, iCoverRight, 600);      }      if (iCoverBottom != 0) {          oWebControl.JS_CuttingPartWindow(0, 600 - iCoverBottom, 1000, iCoverBottom);      }}const playVideo = (val:string, i) => {  oWebControl.JS_RequestInterface({      funcName: "startPreview",      argument: JSON.stringify({          cameraIndexCode:val,                //监控点编号          streamMode: 0,                         //主子码流标识          transMode: 1,                           //传输协议          gpuMode: 0,                               //是否开启GPU硬解          wndId:  i                                    //可指定播放窗口      })  })}</script><style> .playWnd {        width: 1000px;                  /*播放容器的宽和高设定*/        height: 600px;        border: 1px solid red;    }</style>

2.H5视频播放器

vue3写法，将下载的文件复制到public下
在index.html 引入

<script src="/js/h5player.min.js"></script>

<!-- 海康插件 --><template>  <div :id="props.playId" class="w-full"></div></template><script setup lang="ts">const message = useMessage() // 消息弹窗const props = defineProps({  playId: {    require: true,    type: String,    default: () => {      return 'player'    }  }})const player = ref()onMounted(() => {  initPlayer()  // 设置播放容器的宽高并监听窗口大小变化  window.addEventListener('resize', () => {    player.value.JS_Resize()  })})const emit = defineEmits(['error'])const initPlayer = () => {  // @ts-ignore  player.value = new JSPlugin({    szId: props.playId,    szBasePath: '/js', //public下命名的文件名    bSupporDoubleClickFull: true,    // 当容器div#play_window有固定宽高时，可不传iWidth和iHeight，窗口大小将自适应容器宽高    // iWidth: props.iWidth,    // iHeight: props.iHeight,    // 分屏播放，默认最大分屏4*4    iMaxSplit: 4,    iCurrentSplit: 1  })  // 事件回调绑定  player.value.JS_SetWindowControlCallback({    //插件选中窗口回调    windowEventSelect: (iWndIndex) => {      console.log('windowSelect callback: ', iWndIndex)      wndIndex.value = iWndIndex    },    // @ts-ignore 取流失败，流中断等错误都会触发该回调函数    pluginErrorHandler: (index, iErrorCode, oError) => {      // 取流失败      if (iErrorCode === '0x12f910011') emit('error')    }  })}const wndIndex = ref(0)const createPlayer = (url: string, i = wndIndex.value) => {  console.log('视频流地址:', url, props.playId)  if (!url) return  player.value.JS_Play(url, { playURL: url, mode: 0 }, i).then(    () => {      console.log('play success=============')    },    (err) => {      // message.warning('播放失败！')      console.info('JS_Play failed:', err)    }  )}// 分屏const splitPlayer = (num) => {  if (num === 1) wndIndex.value = 0  player.value.JS_ArrangeWindow(num)}// 全屏const fullScreen = (isFull) => {  player.value.JS_FullScreenDisplay(isFull)}// 回放const replayFun = (data) => {player.value    .JS_Play(data.url, { playURL: data.url, mode: 0 }, 0, data.startTime, data.endTime)     .then(       () => {         console.log('playbackStart success')       },       (err) => {         console.info('JS_Play failed:', err)       }     )}// 设置窗口大小const resizeFun = (iWidth, iHeight) => {  player.value.JS_Resize(iWidth, iHeight)}const stopAllPlay = () => {  player.value.JS_StopRealPlayAll().then(() => {    console.info('JS_StopRealPlayAll success')  })}const playerFun = {  createPlayer,  splitPlayer,  fullScreen,  replayFun,  resizeFun,  stopAllPlay}defineExpose({ playerFun })</script>

不完整，自行补充
上传了代码，可以参考下，在hkvideo.vue文件下
测试代码地址

 <player class="w-full h-400px" ref="playRef" />

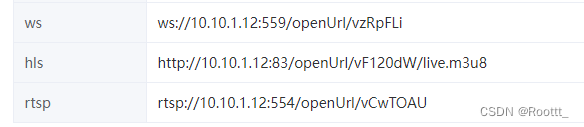

这是我本地的地址，需要后端返回类似的
ws和hls都试过可以播放，ws基本没延迟，优先使用

 unref(playRef).playerFun.createPlayer(item, index)  回放时间格式要转为 format('YYYY-MM-DDTHH:mm:ss.SSSZ') unref(playRef).playerFun.replayFun({ ... })
