【Spring Boot 3】【Web】返回图片
背景介绍开发环境开发步骤及源码工程目录结构
背景
软件开发是一门实践性科学，对大多数人来说，学习一种新技术不是一开始就去深究其原理，而是先从做出一个可工作的DEMO入手。但在我个人学习和工作经历中，每次学习新技术总是要花费或多或少的时间、检索不止一篇资料才能得出一个可工作的DEMO，这占用了我大量的时间精力。因此本文旨在通过一篇文章即能还原出可工作的、甚至可用于生产的DEMO，期望初学者能尽快地迈过0到1的这一步骤，并在此基础上不断深化对相关知识的理解。
为达以上目的，本文会将开发环境、工程目录结构、开发步骤及源码尽量全面地展现出来，文字描述能简则简，能用代码注释的绝不在正文中再啰嗦一遍，正文仅对必要且关键的信息做重点描述。
介绍
本文介绍开发 Spring Boot Web 应用时如何返回图片给前端显示。
开发环境
| 分类 | 名称 | 版本 |
|---|---|---|
| 操作系统 | Windows | Windows 11 |
| JDK | Oracle JDK | 21.0.1 |
| IDE | IntelliJ IDEA | 2023.3.7 |
| 构建工具 | Apache Maven | 3.9.9 |
开发步骤及源码
1> 创建Maven工程，添加依赖。
<?xml version="1.0" encoding="UTF-8"?><project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <parent> <groupId>com.jiyongliang</groupId> <artifactId>springboot3-web</artifactId> <version>0.0.1</version> </parent> <artifactId>springboot3-web-media</artifactId> <properties> <java.version>21</java.version> <maven.compiler.source>21</maven.compiler.source> <maven.compiler.target>21</maven.compiler.target> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> <spring-boot.version>3.3.3</spring-boot.version> <lombok.version>1.18.34</lombok.version> </properties> <dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-dependencies</artifactId> <version>${spring-boot.version}</version> <type>pom</type> <scope>import</scope> </dependency> </dependencies> </dependencyManagement> <dependencies> <dependency> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-starter-web</artifactId> </dependency> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>${lombok.version}</version> <scope>compile</scope> </dependency> </dependencies> <build> <pluginManagement> <plugins> <plugin> <groupId>org.springframework.boot</groupId> <artifactId>spring-boot-maven-plugin</artifactId> </plugin> </plugins> </pluginManagement> </build></project>2> 定义SpringBoot应用启动类。

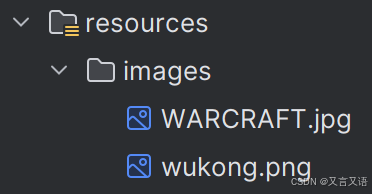

package com.jiyongliang.springboot;import org.springframework.boot.SpringApplication;import org.springframework.boot.autoconfigure.SpringBootApplication;@SpringBootApplicationpublic class SpringBoot3WebMediaApplication { public static void main(String[] args) { SpringApplication.run(SpringBoot3WebMediaApplication.class, args); }}3> 创建测试用图片资源，目录：src/main/resources/images。
4> 创建返回图片的 Controller。
package com.jiyongliang.springboot.controller;import lombok.extern.slf4j.Slf4j;import org.springframework.core.io.FileSystemResource;import org.springframework.http.HttpStatus;import org.springframework.http.MediaType;import org.springframework.http.ResponseEntity;import org.springframework.util.ResourceUtils;import org.springframework.web.bind.annotation.GetMapping;import org.springframework.web.bind.annotation.PathVariable;import org.springframework.web.bind.annotation.RequestMapping;import org.springframework.web.bind.annotation.RestController;import java.io.File;import java.io.FileNotFoundException;import java.io.IOException;import java.nio.file.Files;@RestController@RequestMapping("/image")@Slf4jpublic class ImageController { /** * http://localhost:8080/image/jpg/WARCRAFT.jpg */ @GetMapping("/jpg/{imageName}") public ResponseEntity<FileSystemResource> jpg(@PathVariable(name = "imageName") String imageName) { return getImageAsResource(imageName, MediaType.IMAGE_JPEG); } /** * http://localhost:8080/image/png/wukong.png */ @GetMapping("/png/{imageName}") public ResponseEntity<byte[]> png(@PathVariable(name = "imageName") String imageName) { return getImageAsByteArray(imageName, MediaType.IMAGE_PNG); } private ResponseEntity<FileSystemResource> getImageAsResource(String imageName, MediaType mediaType) { try { File file = ResourceUtils.getFile("classpath:images/" + imageName); FileSystemResource resource = new FileSystemResource(file); return ResponseEntity.ok() .contentLength(file.length()) .contentType(mediaType) .body(resource); } catch (FileNotFoundException e) { log.error("File[{}] is not existed", imageName); return ResponseEntity.status(HttpStatus.BAD_REQUEST).build(); } } private ResponseEntity<byte[]> getImageAsByteArray(String imageName, MediaType mediaType) { try { File file = ResourceUtils.getFile("classpath:images/" + imageName); byte[] imageBytes = Files.readAllBytes(file.toPath()); return ResponseEntity.ok() .contentLength(imageBytes.length) .contentType(mediaType) .body(imageBytes); } catch (FileNotFoundException e) { log.error("File[{}] is not existed", imageName); return ResponseEntity.status(HttpStatus.BAD_REQUEST).build(); } catch (IOException e) { log.error("Unexpected server error: {}", e.getMessage()); return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build(); } }}5> 启动应用，使用浏览器测试。

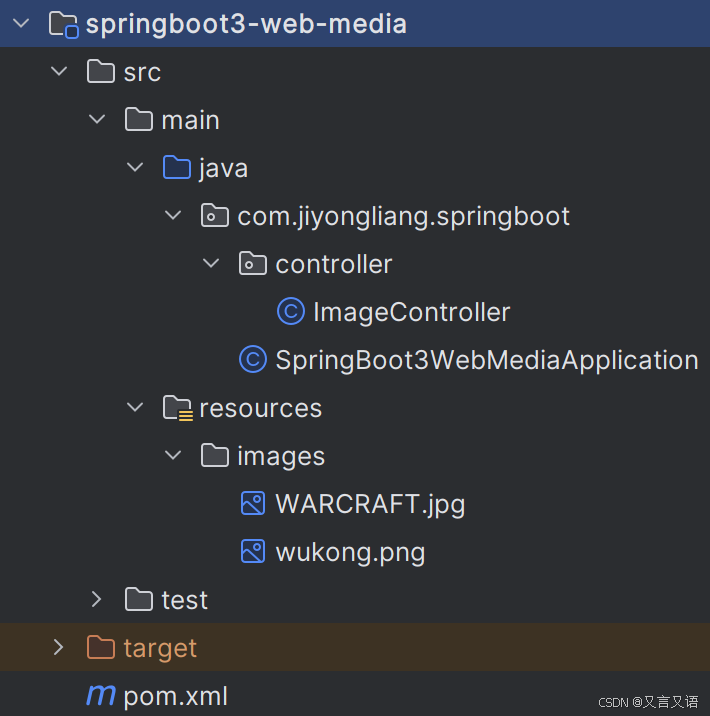

http://localhost:8080/image/jpg/WARCRAFT.jpghttp://localhost:8080/image/png/wukong.png工程目录结构
