【WebGIS实例】（16）GeoServer 自定义样式 - 渲染矢量数据

1. 前言

本篇博客将会分享一系列的 GeoServer 样式，通过这些样式预先在服务端完成数据渲染，让前端应用更便捷的加载数据服务。

2. 面矢量

示例数据：

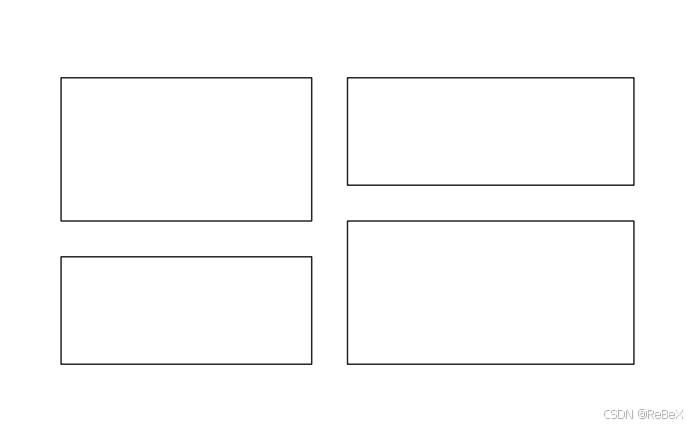

{  type: 'FeatureCollection',  features: [    {      type: 'Feature',      properties: {        分类字段: '字段一'      },      geometry: {        coordinates: [[[158, 44],[158, 40],[165, 40],[165, 44],[158, 44]]],        type: 'Polygon'      },      id: 0    },    {      type: 'Feature',      properties: {        分类字段: '字段二'      },      geometry: {        coordinates: [[[158, 39],[158, 36],[165, 36],[165, 39],[158, 39]]],        type: 'Polygon'      }    },    {      type: 'Feature',      properties: {        分类字段: '字段三'      },      geometry: {        coordinates: [[[166, 44],[166, 41],[174, 41],[174, 44],[166, 44]]],        type: 'Polygon'      }    },    {      type: 'Feature',      properties: {        分类字段: '字段四'      },      geometry: {        coordinates: [[[166, 40],[166, 36],[174, 36],[174, 40],[166, 40]]],        type: 'Polygon'      }    }  ]}

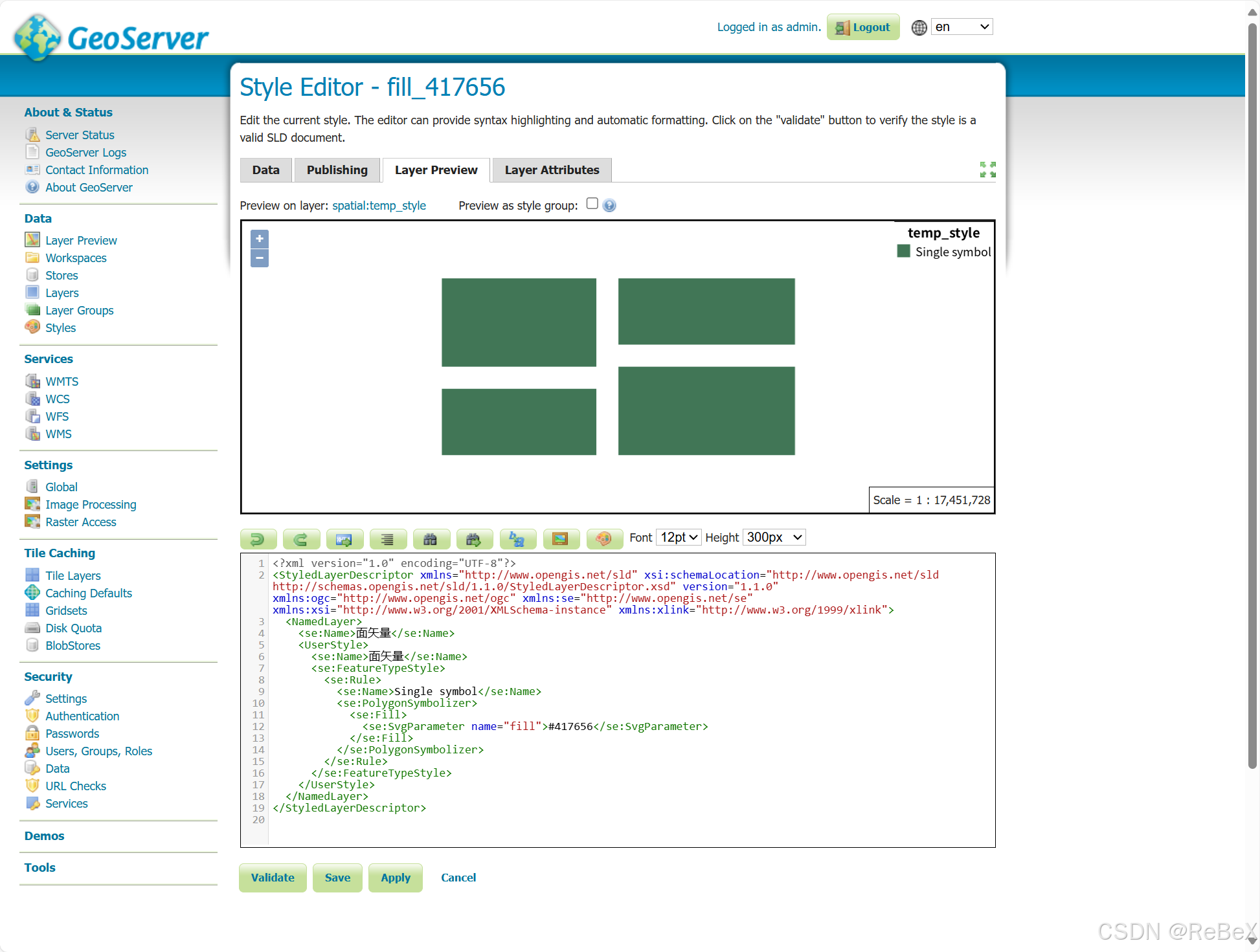

2.1. 无描边单色填充

<?xml version="1.0" encoding="UTF-8"?><StyledLayerDescriptor xmlns="http://www.opengis.net/sld" xsi:schemaLocation="http://www.opengis.net/sld http://schemas.opengis.net/sld/1.1.0/StyledLayerDescriptor.xsd" version="1.1.0" xmlns:ogc="http://www.opengis.net/ogc" xmlns:se="http://www.opengis.net/se" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:xlink="http://www.w3.org/1999/xlink">  <NamedLayer>    <se:Name>面矢量</se:Name>    <UserStyle>      <se:Name>面矢量</se:Name>      <se:FeatureTypeStyle>        <se:Rule>          <se:Name>无描边单色填充</se:Name>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#417656</se:SvgParameter>            </se:Fill>          </se:PolygonSymbolizer>        </se:Rule>      </se:FeatureTypeStyle>    </UserStyle>  </NamedLayer></StyledLayerDescriptor>

修改上述代码中的 #417656 即可改变配色。

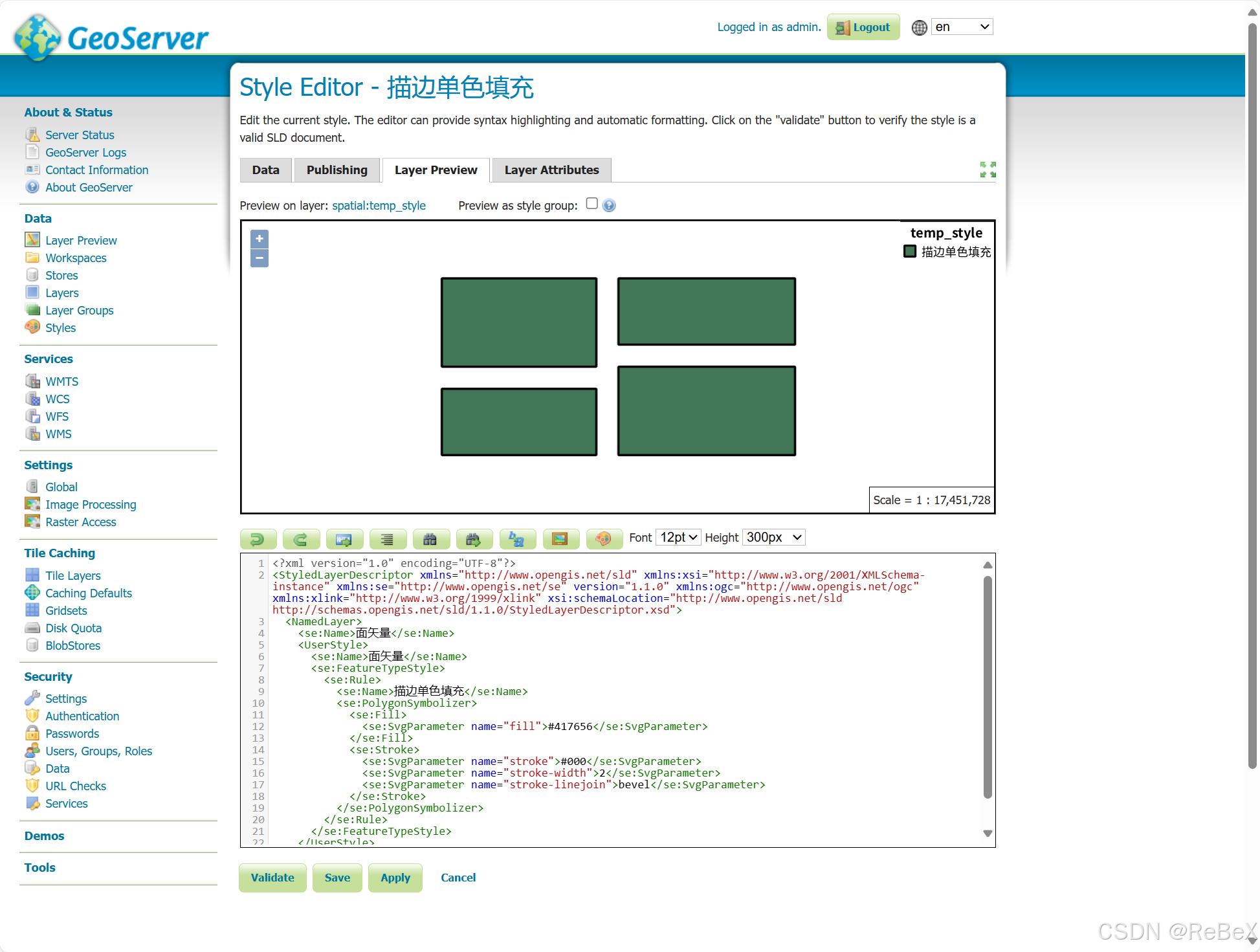

2.2. 描边单色填充

<?xml version="1.0" encoding="UTF-8"?><StyledLayerDescriptor xmlns="http://www.opengis.net/sld" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:se="http://www.opengis.net/se" version="1.1.0" xmlns:ogc="http://www.opengis.net/ogc" xmlns:xlink="http://www.w3.org/1999/xlink" xsi:schemaLocation="http://www.opengis.net/sld http://schemas.opengis.net/sld/1.1.0/StyledLayerDescriptor.xsd">  <NamedLayer>    <se:Name>面矢量</se:Name>    <UserStyle>      <se:Name>面矢量</se:Name>      <se:FeatureTypeStyle>        <se:Rule>          <se:Name>描边单色填充</se:Name>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#417656</se:SvgParameter>            </se:Fill>            <se:Stroke>              <se:SvgParameter name="stroke">#000</se:SvgParameter>              <se:SvgParameter name="stroke-width">1</se:SvgParameter>              <se:SvgParameter name="stroke-linejoin">bevel</se:SvgParameter>            </se:Stroke>          </se:PolygonSymbolizer>        </se:Rule>      </se:FeatureTypeStyle>    </UserStyle>  </NamedLayer></StyledLayerDescriptor>

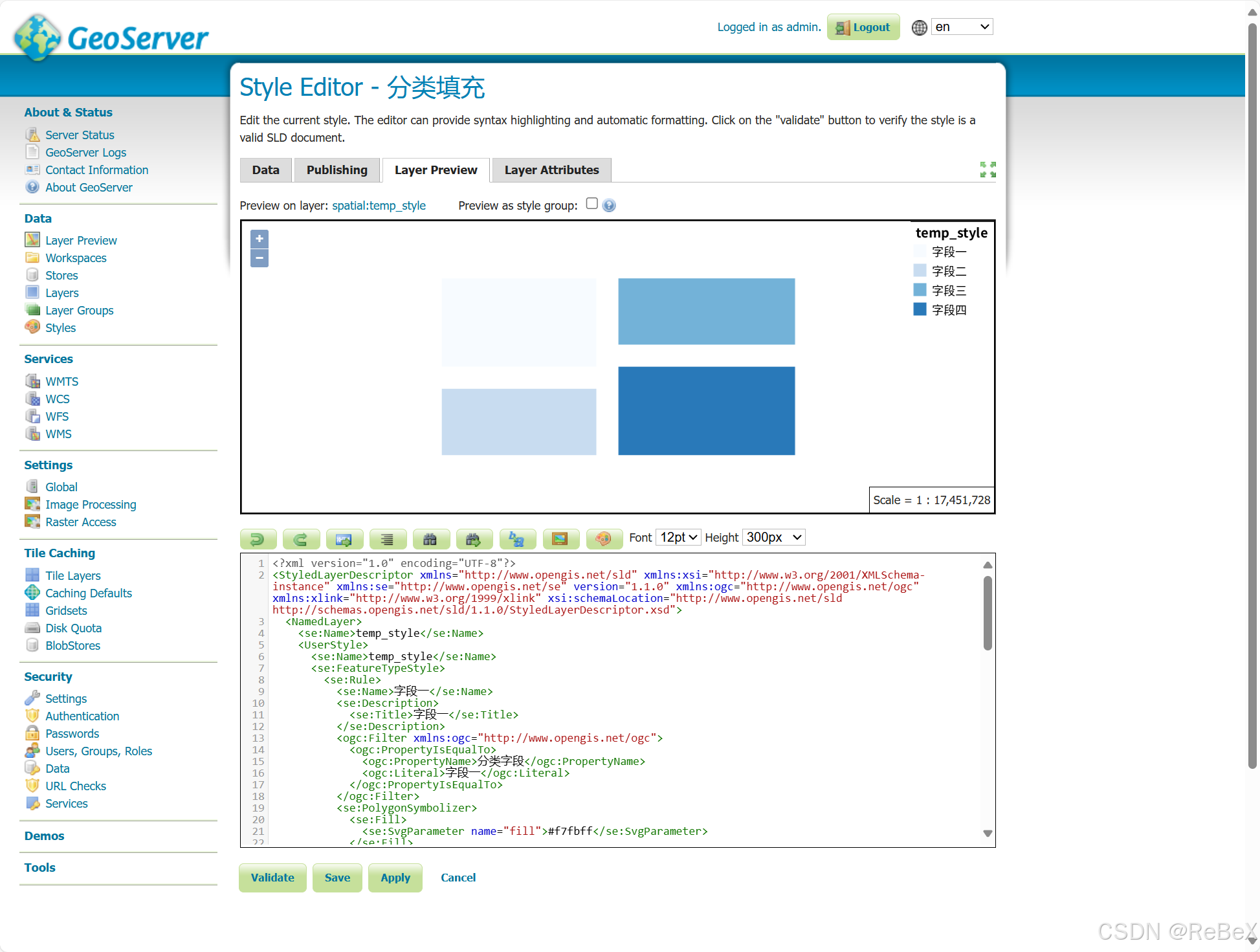

2.3. 根据属性字段分类填充

<?xml version="1.0" encoding="UTF-8"?><StyledLayerDescriptor xmlns="http://www.opengis.net/sld" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:se="http://www.opengis.net/se" version="1.1.0" xmlns:ogc="http://www.opengis.net/ogc" xmlns:xlink="http://www.w3.org/1999/xlink" xsi:schemaLocation="http://www.opengis.net/sld http://schemas.opengis.net/sld/1.1.0/StyledLayerDescriptor.xsd">  <NamedLayer>    <se:Name>面矢量</se:Name>    <UserStyle>      <se:Name>面矢量</se:Name>      <se:FeatureTypeStyle>        <se:Rule>          <se:Name>字段一</se:Name>          <se:Description>            <se:Title>字段一</se:Title>          </se:Description>          <ogc:Filter xmlns:ogc="http://www.opengis.net/ogc">            <ogc:PropertyIsEqualTo>              <ogc:PropertyName>分类字段</ogc:PropertyName>              <ogc:Literal>字段一</ogc:Literal>            </ogc:PropertyIsEqualTo>          </ogc:Filter>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#f7fbff</se:SvgParameter>            </se:Fill>          </se:PolygonSymbolizer>        </se:Rule>        <se:Rule>          <se:Name>字段二</se:Name>          <se:Description>            <se:Title>字段二</se:Title>          </se:Description>          <ogc:Filter xmlns:ogc="http://www.opengis.net/ogc">            <ogc:PropertyIsEqualTo>              <ogc:PropertyName>分类字段</ogc:PropertyName>              <ogc:Literal>字段二</ogc:Literal>            </ogc:PropertyIsEqualTo>          </ogc:Filter>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#c8dcf0</se:SvgParameter>            </se:Fill>          </se:PolygonSymbolizer>        </se:Rule>        <se:Rule>          <se:Name>字段三</se:Name>          <se:Description>            <se:Title>字段三</se:Title>          </se:Description>          <ogc:Filter xmlns:ogc="http://www.opengis.net/ogc">            <ogc:PropertyIsEqualTo>              <ogc:PropertyName>分类字段</ogc:PropertyName>              <ogc:Literal>字段三</ogc:Literal>            </ogc:PropertyIsEqualTo>          </ogc:Filter>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#73b2d8</se:SvgParameter>            </se:Fill>          </se:PolygonSymbolizer>        </se:Rule>        <se:Rule>          <se:Name>字段四</se:Name>          <se:Description>            <se:Title>字段四</se:Title>          </se:Description>          <ogc:Filter xmlns:ogc="http://www.opengis.net/ogc">            <ogc:PropertyIsEqualTo>              <ogc:PropertyName>分类字段</ogc:PropertyName>              <ogc:Literal>字段四</ogc:Literal>            </ogc:PropertyIsEqualTo>          </ogc:Filter>          <se:PolygonSymbolizer>            <se:Fill>              <se:SvgParameter name="fill">#2979b9</se:SvgParameter>            </se:Fill>          </se:PolygonSymbolizer>        </se:Rule>      </se:FeatureTypeStyle>    </UserStyle>  </NamedLayer></StyledLayerDescriptor>

持续（缓慢）更新……
