C#搭建WebApi服务

22 人参与  2024年09月27日 14:00  分类 : 《关于电脑》  评论

点击全文阅读


1,OWIN的介绍

   OWIN 的全称是 "Open Web Interface for .NET", OWIN 在 .NET Web 服务器和 .NET Web 应用之间定义了一套标准的接口, 其目的是为了实现服务器与应用之间的解耦,使得便携式 .NET Web 应用以及跨平台的愿望成为现实, 标准的 OWIN 应用可以在任何 OWIN 兼容的服务器上运行, 不再依赖于Windows和IIS 。

2,添加NutGet

添加Microsoft.AspNet.WebApi.Owin 和 Microsoft.AspNet.WebApi.Owin Self Host包(Self Host 用于开启OWIN Host,设置监听接受Http请求)

 3,添加Startup类

   Startup是OWIN约定的,用于对OWIN做相关配置的,代码如下:

using Owin;using System;using System.Collections.Generic;using System.Linq;using System.Net.Http.Headers;using System.Text;using System.Threading.Tasks;using System.Web.Http;using System.Web.Http.Cors;namespace WebAPIServer{    /// <summary>    /// Startup是OWIN约定的,用于对OWIN做相关配置    /// </summary>    public class Startup    {        public void Configuration(IAppBuilder appBuilder)        {            try            {                HttpConfiguration config = new HttpConfiguration();                config.Formatters.JsonFormatter.SupportedMediaTypes.Add(new MediaTypeHeaderValue("text/html"));                config.EnableCors(new EnableCorsAttribute("*", "*", "*"));                //启用路由特性                config.MapHttpAttributeRoutes();                config.Routes.MapHttpRoute(                    name: "DefaultApi",                    routeTemplate: "api/{controller}/{id}",                    defaults: new { id = RouteParameter.Optional },                    constraints: new { id = @"\d*" }//新增一个约束,指定id只能是数字,不能是其他                );                //再自定义一个路由,第一个路由匹配失败再匹配这个                config.Routes.MapHttpRoute(                   name: "ActionApi",                   routeTemplate: "api/{controller}/{action}/{id}",                   defaults: new { id = RouteParameter.Optional }               );                appBuilder.UseWebApi(config);            }            catch (Exception ex)            {                throw ex;            }        }    }}

4,新建Controllers文件夹,添加FileControllers类

    按照 Web API 项目的约定,在项目中添加一个名称为 Controllers 的文件夹,然后新建 一个FileController类,设置其基类为 System.Web.Http.ApiController ,作为示例,其内容与 Visual Studio 自带的 Web API Controller 模板一致,包含4种请求方式(GET/POST/PUT/DELETE),用于演示,重写GET方法(直接返回请求参数)和POST方法(接受实体类参数直接返回),FileController代码如下:

using System;using System.Collections.Generic;using System.IO;using System.Linq;using System.Net;using System.Net.Http;using System.Net.Http.Headers;using System.Threading.Tasks;using System.Web;using System.Web.Http;using WebAPIServer.Services;namespace WebAPIServer.Controllers{    /// <summary>    /// 文件类控制器    /// </summary>    public class FileController : ApiController    {        private string UploadFolderPath = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "UploadFolder");        private MediaServer _mediaServer = new MediaServer();        /// <summary>        /// 上传文件        /// </summary>        /// <returns></returns>        [HttpPost]        public async Task<IHttpActionResult> UploadFolder()        {            if (!Request.Content.IsMimeMultipartContent("form-data"))            {                return StatusCode(HttpStatusCode.UnsupportedMediaType);            }            var provider = new MultipartMemoryStreamProvider();            await Request.Content.ReadAsMultipartAsync(provider);            await _mediaServer.UploadFolder(provider, UploadFolderPath);            // 创建文件夹(如果尚未存在)            return Ok();        }        [HttpGet]        public async Task<HttpResponseMessage> DownloadFile(string fileName)        {            // 获取文件路径            string filePath = Path.Combine(AppDomain.CurrentDomain.BaseDirectory, "~/UploadFolder/" + fileName);            // 检查文件是否存在            if (!File.Exists(filePath))            {                return Request.CreateErrorResponse(HttpStatusCode.NotFound, "The specified file does not exist.");            }            // 创建 HTTP 响应消息            HttpResponseMessage response = new HttpResponseMessage(HttpStatusCode.OK);            // 设置响应内容            using (FileStream fileStream = File.OpenRead(filePath))            {                response.Content = new StreamContent(fileStream);                // 设置响应头                response.Content.Headers.ContentType = new MediaTypeHeaderValue("application/octet-stream");                response.Content.Headers.ContentDisposition = new ContentDispositionHeaderValue("attachment")                {                    FileName = fileName                };                await response.Content.LoadIntoBufferAsync();            }            return response;        }    }
using System;using System.Collections.Generic;using System.IO;using System.Linq;using System.Net.Http;using System.Threading.Tasks;using System.Web;namespace WebAPIServer.Services{    public class MediaServer    {        /// <summary>        /// 上传文件        /// </summary>        /// <param name="provider"></param>        /// <param name="_uploadFolder"></param>        /// <returns></returns>        public async Task UploadFolder(MultipartMemoryStreamProvider provider, string _uploadFolder)        {            // 创建文件夹(如果尚未存在)            Directory.CreateDirectory(_uploadFolder);            foreach (var content in provider.Contents)            {                var disposition = content.Headers.ContentDisposition;                var fileName = disposition.FileName.Trim('"');                fileName = Path.GetFileName(fileName);                var fileData = await content.ReadAsByteArrayAsync();                // 将文件保存到本地文件夹中                var filePath = Path.Combine(_uploadFolder, fileName);                using (var fileStream = new FileStream(filePath, FileMode.Create))                {                    await fileStream.WriteAsync(fileData, 0, fileData.Length);                }            }        }    }}
using System;using System.Collections.Generic;using System.Linq;using System.Net.Http;using System.Text;using System.Threading.Tasks;using System.Web.Http;namespace WebAPIServer.Controllers{    /// <summary>    /// 验证管理控制器    /// </summary>    public class AuthorizationController : ApiController    {        // GET api/<controller>        public string Get()        {            return "ok";        }        // GET api/<controller>/5        public string Get(int id)        {            return string.Format("owin {0} by:linezero", id);        }        /// <summary>        /// 获取授权码        /// </summary>        /// <param name="info"></param>        /// <returns></returns>        [Route("api/Authorization"), HttpPost] // 自定义路由        public async Task<HttpResponseMessage> GetAuthorizationCode([FromBody] AuthorizationInfo info)        {                     await Task.Run(() =>            {                //进行计算并将相应值保存至服务器                WebAPIOWINServer.AuthorizationInfoRequest?.Invoke(this, info);            });            HttpResponseMessage response = new HttpResponseMessage(System.Net.HttpStatusCode.OK);            response.Content = new StringContent($"感谢您的支持,我们将以邮件的形式将授权码发送给您的Email:{info.Email},请注意查收。", Encoding.UTF8);            return response;        }        // PUT api/<controller>/5        public string Put([FromBody] string value)        {            return "Success";        }        // DELETE api/<controller>/5        public string Delete([FromBody] string value)        {            return "Success";        }    }    public class AuthorizationInfo    {        public string Id { get; set; }        public string CPUSerialNumber { get; set; }        public string BIOSSerialNumber { get; set; }        public string Email { get; set; }        public DateTime CreateDate { get; set; }    }}

5,添加WebApi服务类,代码如下:

using Microsoft.Owin.Hosting;using System;using System.Collections.Generic;using System.Linq;using System.Net.Http;using System.Text;using System.Threading.Tasks;using WebAPIServer.Controllers;namespace WebAPIServer{    /// <summary>    /// WebAPI服务类,提供WebApi服务    /// </summary>    public class WebAPIOWINServer     {        static IDisposable webApiObject = null;        /// <summary>        /// 开启WebApi服务        /// </summary>        /// <param name="ServerUrl">绑定的服务uri</param>        /// <returns></returns>        public  bool Start(string ServerUrl)        {            try            {                //调用Startup启动owin,url需要调用方传入                webApiObject = WebApp.Start<Startup>(url: ServerUrl);                HttpClient client = new HttpClient();                //通过get请求数据,测试owin服务是否正常开启                Uri uri = new Uri(new Uri(ServerUrl), "api/Authorization/get");                                     var response = client.GetAsync(uri).Result;                if (response.IsSuccessStatusCode)                {                    return true;                }                else                {                    webApiObject?.Dispose();                    throw new Exception("Owin loacal server start failed!");                }            }            catch (Exception)            {                webApiObject?.Dispose();                throw;            }        }        #region 定义应用于webapi接口        /// <summary>        /// 请求获取授权码        /// </summary>        public static Action<object, Controllers.AuthorizationInfo> AuthorizationInfoRequest;        #endregion        /// <summary>        /// 关闭服务        /// </summary>        public void Close()        {            webApiObject?.Dispose();        }    }}

6,实例:

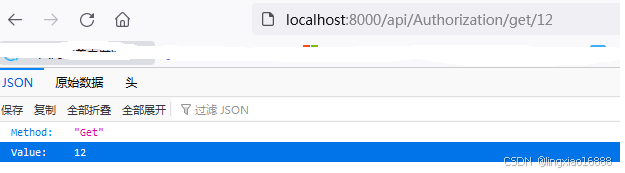

效果:

特别注意事项:非管理员权限只用于绑定localhost,若绑定其他地址如:http;//127.0.0.1将抛出“调用目标发生异常”的异常。如果想绑定其他地址请使用管理员权限。



代码:

using System;using System.Collections.Generic;using System.ComponentModel;using System.Data;using System.Drawing;using System.Linq;using System.Text;using System.Threading.Tasks;using System.Windows.Forms;namespace Demo{    public partial class Form1 : Form    {        WebAPIServer.WebAPIOWINServer server = new WebAPIServer.WebAPIOWINServer();        public Form1()        {            InitializeComponent();        }        private void btnStart_Click(object sender, EventArgs e)        {            if (btnStart.Text == "启动服务")            {                if (Uri.IsWellFormedUriString(txtIP.Text.Trim(), UriKind.RelativeOrAbsolute))                {                    try                    {                        if (server.Start(txtIP.Text.Trim()))                        {                            SetStatus(true);                        }                    }                    catch (Exception ex)                    {                        MessageBox.Show(ex.Message);                    }                }                else                {                    MessageBox.Show("网址格式错误");                }            }            else            {                server.Close();                SetStatus(false);            }        }        void SetStatus(bool isOpen)        {            if (isOpen)            {                btnStart.BackColor = Color.Green;                btnStart.Text = "停止服务";                btnStart.ForeColor = Color.Black;                txtIP.Enabled = false;            }            else            {                btnStart.BackColor = Color.Red;                btnStart.Text = "启动服务";                btnStart.ForeColor = Color.White;                txtIP.Enabled = true;            }        }    }}

  API控制器

using System;using System.Collections.Generic;using System.Linq;using System.Net.Http;using System.Text;using System.Threading.Tasks;using System.Web.Http;namespace WebAPIServer.Controllers{    /// <summary>    /// 验证管理控制器    /// </summary>    public class AuthorizationController : ApiController    {        // GET api/<controller>        public string Get()        {            return "ok";        }        // GET api/<controller>/5        public IHttpActionResult Get(int id)        {            return Json(new {Method="Get",Value=id });        }        /// <summary>        /// 获取授权码        /// </summary>        /// <param name="info"></param>        /// <returns></returns>        [Route("api/Authorization"), HttpPost] // 自定义路由        public async Task<HttpResponseMessage> GetAuthorizationCode([FromBody] AuthorizationInfo info)        {                     await Task.Run(() =>            {                //进行计算并将相应值保存至服务器                WebAPIOWINServer.AuthorizationInfoRequest?.Invoke(this, info);            });            HttpResponseMessage response = new HttpResponseMessage(System.Net.HttpStatusCode.OK);            response.Content = new StringContent($"感谢您的支持,我们将以邮件的形式将授权码发送给您的Email:{info.Email},请注意查收。", Encoding.UTF8);            return response;        }        // PUT api/<controller>/5        public string Put([FromBody] string value)        {            return "Success";        }        // DELETE api/<controller>/5        public string Delete([FromBody] string value)        {            return "Success";        }    }    public class AuthorizationInfo    {        public string Id { get; set; }        public string CPUSerialNumber { get; set; }        public string BIOSSerialNumber { get; set; }        public string Email { get; set; }        public DateTime CreateDate { get; set; }    }}

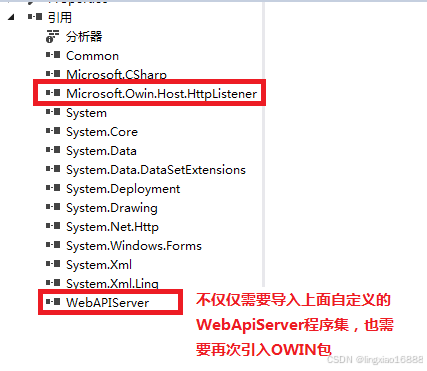

  调用WebApi服务时,不仅仅需要引用上述自定义的程序集WebApiServer.dll,还需要再次添加Microsoft.AspNet.WebApi.Owin 和 Microsoft.AspNet.WebApi.Owin Self Host包,否则将报错。

7,WebApiDemo链接。

https://download.csdn.net/download/lingxiao16888/89726657
