SeaTunnel Web安装 一把成

安装相关jar包，以及SeaTunnel 和Web 打成的包，可以直接使用，但是需要安装MySQL客户端的分享：

链接：https://pan.baidu.com/s/1qrt1RAX38SgIpNklbQJ7pA
提取码：0kmf

1. 环境准备

环境名称	版本
系统环境	CentOS7.9
Java环境	JDK1.8

1.1 系统环境

略

1.2 Java环境安装

下载jdk1.8安装包并拷贝到服务器

# 进入文件夹cd /usr/local#  将jdk拷贝到该位置#  解压文件tar -zxvf jdk-8u381-linux-x64.tar.gz

修改环境变量

vim /etc/profile

在环境变量中添加Java环境

export JAVA_HOME=/usr/local/jdk1.8.0_381/export CLASSPATH=$JAVA_HOME/jre/lib/rt.jar:$JAVA_HOME/lib/dt.jar:$JAVA_HOME/lib/tools.jarexport PATH=$PATH:$JAVA_HOME/bin

重新加载环境变量

source /etc/profile

验证Java环境

java -version

1.3 SeaTunnel单节点安装

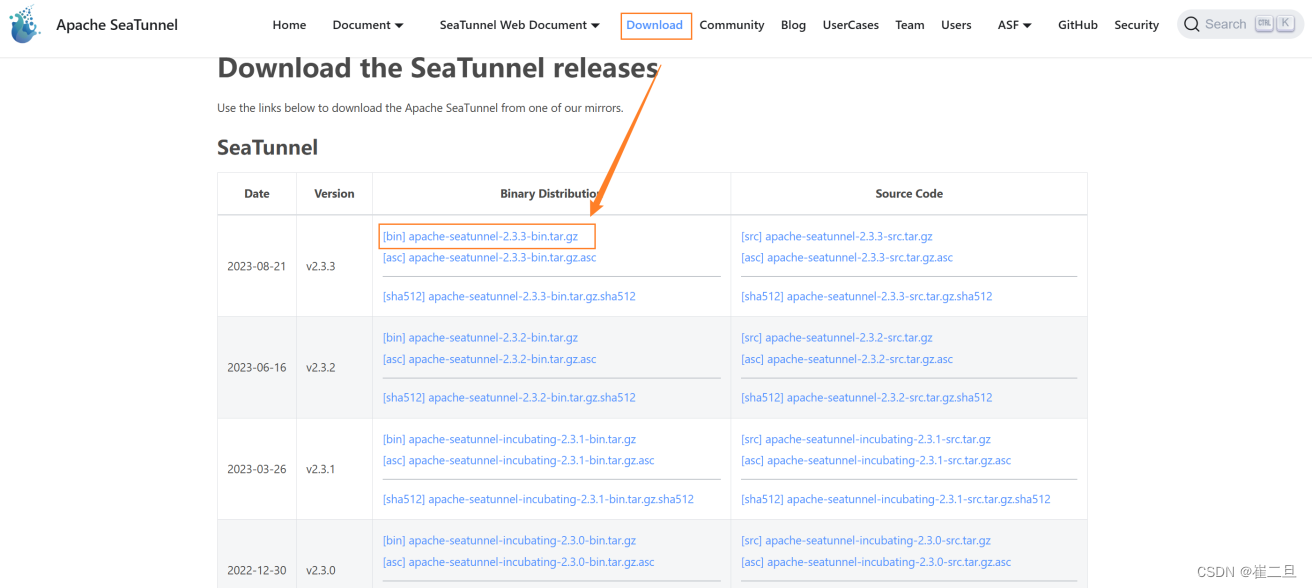

下载安装包

下载地址：

Apache SeaTunnel

下载SeaTunnel安装包

下载SeaTunnel Web安装包

创建安装SeaTunnel 目录

# 创建用于安装SeaTunnel 后台引擎的目录mkdir -p /opt/seatunnel/backend# 创建用户安装SeaTunnel Web前台页面的目录mkdir -p /opt/seatunnel/web

拷贝并安装SeaTunnel

# 进入到SeaTunnel 后台安装目录，将下载好的安装包拷贝到该目录[root@localhost backend]# pwd/opt/seatunnel/backend[root@localhost backend]# lsapache-seatunnel-2.3.3-bin.tar.gz# 安装SeaTunnel 后台tar -zxvf apache-seatunnel-2.3.3-bin.tar.gz# 进入到SeaTunnel Web页面程序安装目录，将下载号的安装包拷贝到该目录[root@localhost web]# pwd/opt/seatunnel/web[root@localhost web]# lsapache-seatunnel-web-1.0.0-bin.tar.gz# 安装SeaTunnel Web页面程序tar -zxvf apache-seatunnel-web-1.0.0-bin.tar.gz

将SeaTunnel 后台配置到环境变量中

# 打开环境变量文件vim /etc/profile# 在环境变量文件最后添加如下配置export SEATUNNEL_HOME=/opt/seatunnel/backend/apache-seatunnel-2.3.3export PATH=$PATH:$SEATUNNEL_HOME/bin# 重新加载环境变量文件source /etc/profile

安装需要的连接器

# 进入到seatunnel 安装目录下[root@localhost seatunnel]# cd apache-seatunnel-2.3.3# 进入到插件配置文件中          [root@localhost apache-seatunnel-2.3.3]# vim config/plugin_config# 删除多余连接器，留下需要用到的连接器--connectors-v2--connector-cdc-mysqlconnector-cdc-sqlserverconnector-dorisconnector-elasticsearchconnector-jdbc--end--# 退出保存连接器配置文件:qw# 在线安装拦截器[root@localhost apache-seatunnel-2.3.3]# sh bin/install-plugin.sh # 等待安装，安装完成后可查看已经安装的连接器[root@localhost apache-seatunnel-2.3.3]# ls connectors/seatunnel/*connectors/seatunnel/connector-cdc-mysql-2.3.3.jarconnectors/seatunnel/connector-cdc-sqlserver-2.3.3.jarconnectors/seatunnel/connector-console-2.3.3.jarconnectors/seatunnel/connector-doris-2.3.3.jarconnectors/seatunnel/connector-elasticsearch-2.3.3.jarconnectors/seatunnel/connector-fake-2.3.3.jarconnectors/seatunnel/connector-jdbc-2.3.3.jar

注意：

connector-jdbc 连接器可以连接多种使用JDBC进行连接的多种数据库，如下：

MySQL、PostgreSQL、DM、Phoenix 、SQLServer、Oracle、sqlite、GBase8a、StarRocks、db2、saphana、Doris、teradata、Redshift、Snowflake、Vertica、OceanBase

拷贝需要的数据库连接jar包

# 进入SeaTunnel 后台安装目录cd /opt/seatunnel/backend/apache-seatunnel-2.3.3# 创建连接器对应的目录，用于存放数据库连接驱动[root@localhost apache-seatunnel-2.3.3]# mkdir -p plugins/jdbc/lib/# 将下载的数据库连接包上传到该目录下[root@localhost lib]# pwd/opt/seatunnel/backend/apache-seatunnel-2.3.3/plugins/jdbc/lib[root@localhost lib]# lsmysql-connector-java-8.0.28.jar  ojdbc8.jar  postgresql-42.6.0.jar

数据库连接包下载地址：

数据库	下载地址
mysql	https://mvnrepository.com/artifact/mysql/mysql-connector-java
oracle	https://mvnrepository.com/artifact/com.oracle.database.jdbc/ojdbc8
postgresql	https://mvnrepository.com/artifact/org.postgresql/postgresql
doris	https://mvnrepository.com/artifact/mysql/mysql-connector-java

测试验证

# 进入SeaTunnel 后台安装目录cd /opt/seatunnel/backend/apache-seatunnel-2.3.3# 跑样例脚本sh bin/seatunnel.sh --config config/v2.batch.config.template -e local

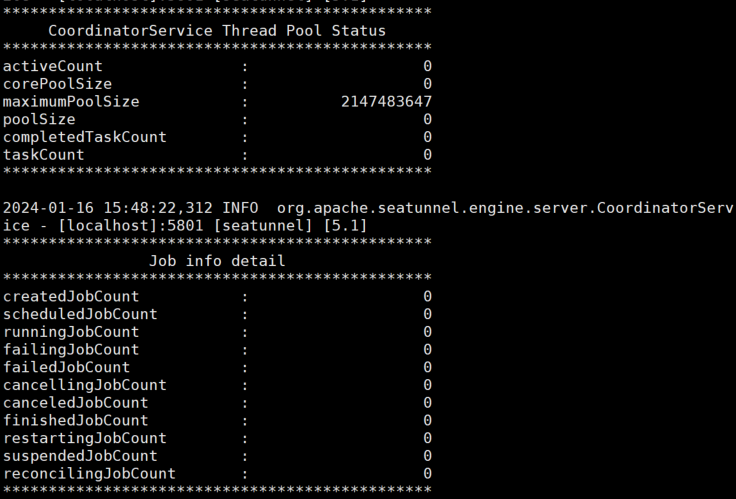

出现以下信息表示验证成功

后台启用服务

# 进入SeaTunnel 后台安装目录cd /opt/seatunnel/backend/apache-seatunnel-2.3.3# 启动服务nohup sh bin/seatunnel-cluster.sh 2>&1 &

查看SeaTunnel 运行日志

# 查看SeaTunnel运行日志tail -100f logs/seatunnel-engine-server.log

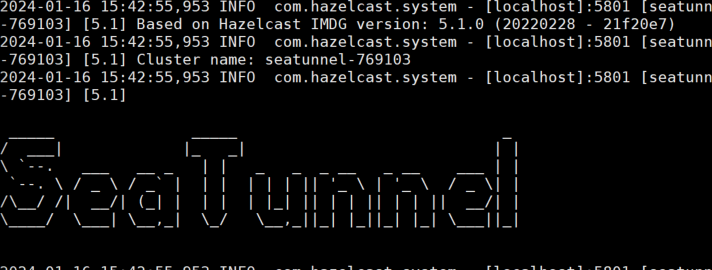

日志中有以下信息表示后台启动成功

1.4 安装SeaTunnel Web

注意：必须保证SeaTunnel的后台引擎服务正常运行，Web端才可以正常运行。

安装MySQL客户端

因为SeaTunnel Web 需要连接到MySQL数据库，并初始化数据库，所以需要安装MySQL Client。

# 先检查服务器中是否存在mariadbrpm -qa|grep mariadb#删除相关依赖包（若不存在，可以跳过）rpm -e --nodeps mariadb-libs#检查是否删除干净rpm -qa|grep mariadb# 检查MySQLrpm -qa|grep mysql# 创建一个目录用于存放MySQL Client 安装文件mkdir -p /opt/mysqlrpm# 将安装包拷贝到该目录下[root@localhost mysqlrpm]# pwd/opt/mysqlrpm[root@localhost mysqlrpm]# lslrzsz-0.12.20-36.el7.x86_64.rpmmysql-community-client-5.7.40-1.el7.x86_64.rpmmysql-community-common-5.7.40-1.el7.x86_64.rpmmysql-community-libs-5.7.40-1.el7.x86_64.rpm# 安装lrzsz rpm -ivh lrzsz-0.12.20-36.el7.x86_64.rpm# 按照顺序安装MySQL Client rpm -ivh mysql-community-common-5.7.40-1.el7.x86_64.rpm rpm -ivh mysql-community-libs-5.7.40-1.el7.x86_64.rpmrpm -ivh mysql-community-client-5.7.40-1.el7.x86_64.rpm

修改SeaTunnel Web 下script/seatunnel_server_env.sh中连接数据库信息

# 进入到SeaTunnel Web 安装目录cd /opt/seatunnel/web/apache-seatunnel-web-1.0.0-bin# 备份script/seatunnel_server_env.sh文件cp script/seatunnel_server_env.sh script/seatunnel_server_env.sh.bak# 修改script/seatunnel_server_env.sh文件vim script/seatunnel_server_env.sh# 修改以下配置信息export HOSTNAME="127.0.0.1"export PORT="3306"export USERNAME="root"export PASSWORD="123456"# 修改如下,加上了前缀，以防与系统中其它配置冲突# 将数据库连接信息修改成你要链接的信息export STWEB_HOSTNAME="127.0.0.1"export STWEB_PORT="3306"export STWEB_USERNAME="root"export STWEB_PASSWORD="123456"

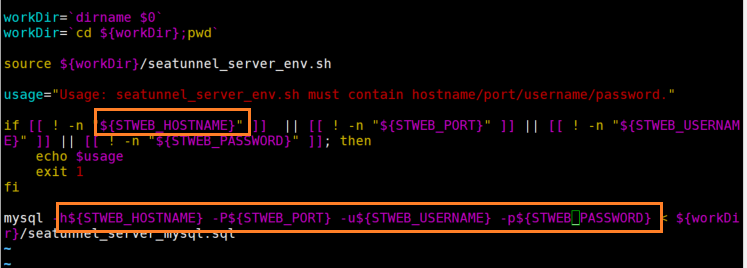

修改SeaTunnel Web 下script/init_sql.sh 中连接数据库信息

vim script/init_sql.sh

主要是保证里边的${XXXXX}的配置信息与script/seatunnel_server_env.sh中的保持一致。

执行数据库初始化脚本

# 进入SeaTunnel Web 安装目录cd /opt/seatunnel/web/apache-seatunnel-web-1.0.0-bin# 执行初始化文件sh script/init_sql.sh

修改SeaTunnel Web 连接MySQL数据库的配置信息

# 进入SeaTunnel Web 安装目录cd /opt/seatunnel/web/apache-seatunnel-web-1.0.0-bin# 打开SeaTunnel Web 配置文件vim conf/application.yml# 修改以下部分配置：端口号，MySQL连接IP，MySQL用户名和密码server:  #port: 8801  port: 8882spring:  application:    name: seatunnel  jackson:    date-format: yyyy-MM-dd HH:mm:ss  datasource:    driver-class-name: com.mysql.jdbc.Driver    url: jdbc:mysql://192.168.1.111:3306/seatunnel?useSSL=false&useUnicode=true&characterEncoding=utf-8&allowMultiQueries=true&allowPublicKeyRetrieval=true        username: root    password: 123456

配置client信息

# 将seatunnel后台的两个文件拷贝到web的conf目录下cp /opt/seatunnel/backend/apache-seatunnel-2.3.3/config/hazelcast-client.yaml conf/cp /opt/seatunnel/backend/apache-seatunnel-2.3.3/connectors/plugin-mapping.properties conf/

下载Web程序需要的数据源（数据源需要的各种jar包）

这里在各种jar包，如果缺失的话，在Web页面创建数据源时会出现空数据源的情况。

下载jar包

首先你自己的电脑上安装了github

下载jar包额度脚本

我是在我电脑的D盘根目录下，创建了download_datasource.sh文件，文件内容如下：

有两处需要修改，请看注释。

#!/bin/bash## Licensed to the Apache Software Foundation (ASF) under one or more# contributor license agreements.  See the NOTICE file distributed with# this work for additional information regarding copyright ownership.# The ASF licenses this file to You under the Apache License, Version 2.0# (the "License"); you may not use this file except in compliance with# the License.  You may obtain a copy of the License at##    http://www.apache.org/licenses/LICENSE-2.0## Unless required by applicable law or agreed to in writing, software# distributed under the License is distributed on an "AS IS" BASIS,# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.# See the License for the specific language governing permissions and# limitations under the License.##This script is used to download the connector plug-ins required during the running process.#All are downloaded by default. You can also choose what you need.#You only need to configure the plug-in name in config/plugin_config.# get seatunnel web home# SEATUNNEL_WEB_HOME=$(cd $(dirname $0);cd ../;pwd)# 此处需要修改成你本地的目录DATASOURCE_DIR=D:/down_jars# If you don’t want to download a certain data source, you can delete the element belowdatasource_list=(  "datasource-plugins-api"  "datasource-elasticsearch"  "datasource-hive"  "datasource-jdbc-clickhouse"  "datasource-jdbc-hive"  "datasource-jdbc-mysql"  "datasource-jdbc-oracle"  "datasource-jdbc-postgresql"  "datasource-jdbc-redshift"  "datasource-jdbc-sqlserver"  "datasource-jdbc-starrocks"  "datasource-jdbc-tidb"  "datasource-kafka"  "datasource-mysql-cdc"  "datasource-s3"  "datasource-sqlserver-cdc"  "datasource-starrocks")# the datasource default version is 1.0.0, you can also choose a custom version. eg: 1.1.2:  sh install-datasource.sh 2.1.2version=1.0.0if [ -n "$1" ]; then    version="$1"fiecho "Downloading SeaTunnel Web Datasource lib, usage version is ${version}"# create the datasource directoryif [ ! -d "$DATASOURCE_DIR" ];  then      mkdir -p "$DATASOURCE_DIR"      echo "Created datasource directory."fifor i in "${datasource_list[@]}"doecho "$i"echo "Downloading datasource: " "$i"# 修改成mvn  mvn dependency:get -DgroupId=org.apache.seatunnel -DartifactId="$i" -Dversion="$version" -Ddest="$DATASOURCE_DIR"done

之后在download_datasource.sh目录下点击鼠标右键，选择Git Bash Here

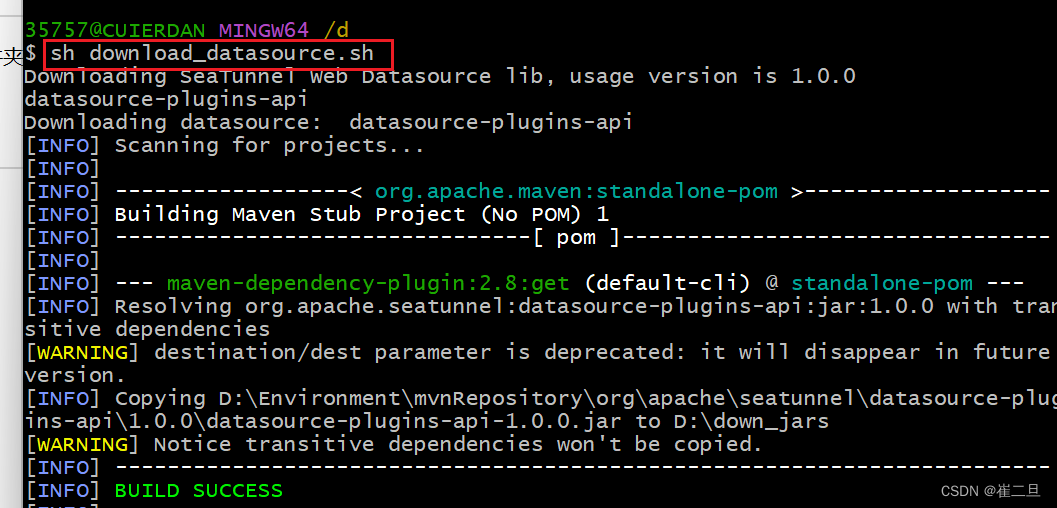

之后在打开的页面执行 sh download_datasource.sh  点击回车，等待下载完成。

之后将下载下来的包，拷贝到SeaTunnel Web 程序的 /libs目录下。

将MySQL Jar 包拷贝到libs目录下

将mysql连接数据库的Jar 拷贝到 /libs 目录下，否则Web程序启动时会报错，连不上数据库。

启动SeaTunnel Web 程序

# 进入SeaTunnel Web 安装目录cd /opt/seatunnel/web/apache-seatunnel-web-1.0.0-bin# 启动SeaTunnel Websh bin/seatunnel-backend-daemon.sh start# 查看启动日志tail -100f logs/seatunnel-web.log

配置开放端口号(两种方式)

#-------------iptables-----------------#开打端口号开放配置文件vim /etc/sysconfig/iptables# 添加一行-A INPUT -p tcp -m state --state NEW -m tcp --dport 8882 -j ACCEPT# 重启启动防火墙systemctl restart iptables.service#------------firewall-------------------# 依次执行下面命令firewall-cmd --zone=public --add-port=8882/tcp --permanentfirewall-cmd --reloadfirewall-cmd --list-all

查看日志文件

访问SeaTunnel Web

http://192.168.182.166:8882

默认用户名密码：admin/admin

到此为止SeaTunnel 与SeaTunnel Web 已经安装完成。
