前言
现如今网页越来越趋近于动画，相信大家平时浏览网页或多或少都能看到一些动画效果，今天我们来做一个有意思的动画效果，纯 css 实现 loading 加载中（多种展现形式），下面一起看看吧。
1. 常规 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="loadBox"> <div class="loaderContantBox"></div> </div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .loadBox .loaderContantBox { color: white; font-size: 40px; overflow: hidden; width: 40px; height: 40px; border-radius: 50%; transform: translateZ(0); /* animation：规定完成动画所花费的时间，该属性必须规定，否则动画时长为0，无法播放 */ animation: loadBox 1.7s infinite ease, round 1.7s infinite ease; } @keyframes loadBox { 0% { box-shadow: 0 -0.83em 0 -0.4em, 0 -0.83em 0 -0.42em, 0 -0.83em 0 -0.44em, 0 -0.83em 0 -0.46em, 0 -0.83em 0 -0.477em; } 5%, 95% { box-shadow: 0 -0.83em 0 -0.4em, 0 -0.83em 0 -0.42em, 0 -0.83em 0 -0.44em, 0 -0.83em 0 -0.46em, 0 -0.83em 0 -0.477em; } 10%, 59% { box-shadow: 0 -0.83em 0 -0.4em, -0.087em -0.825em 0 -0.42em, -0.173em -0.812em 0 -0.44em, -0.256em -0.789em 0 -0.46em, -0.297em -0.775em 0 -0.477em; } 20% { box-shadow: 0 -0.83em 0 -0.4em, -0.338em -0.758em 0 -0.42em, -0.555em -0.617em 0 -0.44em, -0.671em -0.488em 0 -0.46em, -0.749em -0.34em 0 -0.477em; } 38% { box-shadow: 0 -0.83em 0 -0.4em, -0.377em -0.74em 0 -0.42em, -0.645em -0.522em 0 -0.44em, -0.775em -0.297em 0 -0.46em, -0.82em -0.09em 0 -0.477em; } 100% { box-shadow: 0 -0.83em 0 -0.4em, 0 -0.83em 0 -0.42em, 0 -0.83em 0 -0.44em, 0 -0.83em 0 -0.46em, 0 -0.83em 0 -0.477em; } } @keyframes round { 0% { transform: rotate(0deg); /* 开始旋转 div 元素 */ } 100% { transform: rotate(360deg); /* 结束旋转 div 元素 */ } }}</style>2. 抛出线条式 loading
实现效果
代码如下
<template> <div class="parentBox"> <svg class="scalableBox" viewBox="0 0 128 256" width="128px" height="256px" xmlns="http://www.w3.org/2000/svg"> <defs> <linearGradient id="ap-grad1" x1="0" y1="0" x2="0" y2="1"> <stop offset="0%" stop-color="hsl(223,90%,55%)" /> <stop offset="100%" stop-color="hsl(253,90%,55%)" /> </linearGradient> <linearGradient id="ap-grad2" x1="0" y1="0" x2="0" y2="1"> <stop offset="0%" stop-color="hsl(193,90%,55%)" /> <stop offset="50%" stop-color="hsl(223,90%,55%)" /> <stop offset="100%" stop-color="hsl(253,90%,55%)" /> </linearGradient> </defs> <circle class="apringBox" r="56" cx="64" cy="192" fill="none" stroke="#ddd" stroke-width="16" stroke-linecap="round" /> <circle class="apwormOneBox" r="56" cx="64" cy="192" fill="none" stroke="url(#ap-grad1)" stroke-width="16" stroke-linecap="round" stroke-dasharray="87.96 263.89" /> <path class="apwormTwoBox" d="M120,192A56,56,0,0,1,8,192C8,161.07,16,8,64,8S120,161.07,120,192Z" fill="none" stroke="url(#ap-grad2)" stroke-width="16" stroke-linecap="round" stroke-dasharray="87.96 494" /> </svg> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .scalableBox { width: 40px; height: 70px; } .apringBox { transition: stroke 0.3s; } .apwormOneBox, .apwormTwoBox { animation-duration: 3s; animation-iteration-count: infinite; } .apwormTwoBox { animation-name: worm2; visibility: hidden; } .apwormOneBox { animation-name: worm1; }}@media (prefers-color-scheme: dark) { :root { --bg: hsl(var(--hue), 10%, 10%); --fg: hsl(var(--hue), 10%, 90%); } .apringBox { stroke: hsla(var(--hue), 10%, 90%, 0.9); }}@keyframes worm1 { from { animation-timing-function: ease-in-out; stroke-dashoffset: -87.96; } 20% { animation-timing-function: ease-in; stroke-dashoffset: 0; } 60% { stroke-dashoffset: -791.68; visibility: visible; } 60.1%, to { stroke-dashoffset: -791.68; visibility: hidden; }}@keyframes worm2 { from, 60% { stroke-dashoffset: -87.96; visibility: hidden; } 60.1% { animation-timing-function: cubic-bezier(0, 0, 0.5, 0.75); stroke-dashoffset: -87.96; visibility: visible; } 77% { animation-timing-function: cubic-bezier(0.5, 0.25, 0.5, 0.88); stroke-dashoffset: -340; visibility: visible; } to { stroke-dashoffset: -669.92; visibility: visible; }}</style>3. 进度条颜色覆盖式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 20px; background: linear-gradient(rgb(12, 132, 223) 0 0) 0/0% no-repeat #ddd; animation: cartoon 2s infinite linear; } @keyframes cartoon { 100% { background-size: 100%; } }}</style>4. 椭圆式进度条 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 22px; border-radius: 20px; color: #514b82; border: 2px solid; position: relative; } .contantBox::before { content: ""; position: absolute; margin: 2px; inset: 0 100% 0 0; border-radius: inherit; background: #514b82; animation: cartoon 2s infinite; } @keyframes cartoon { 100% { inset: 0; } }}</style>5. 卡顿式进度条 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 20px; border-radius: 20px; background: linear-gradient(orange 0 0) 0/0% no-repeat lightblue; animation: cartoon 2s infinite steps(10); } @keyframes cartoon { 100% { background-size: 110%; } }}</style>6. 进度条波纹 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 20px; border-radius: 20px; background: repeating-linear-gradient( 135deg, #f03355 0 10px, #ffa516 0 20px ) 0/0% no-repeat, repeating-linear-gradient(135deg, #ddd 0 10px, #eee 0 20px) 0/100%; animation: cartoon 2s infinite; } @keyframes cartoon { 100% { background-size: 100%; } }}</style>7. 进度条分隔式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 20px; -webkit-mask: linear-gradient(90deg, #000 70%, #0000 0) 0/20%; background: linear-gradient(rgb(73, 255, 57) 0 0) 0/0% no-repeat #ddd; animation: cartoon 2s infinite steps(6); } @keyframes cartoon { 100% { background-size: 120%; } }}</style>8. 圆球连接式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 24px; -webkit-mask: radial-gradient(circle closest-side, #000 94%, #0000) 0 0/25% 100%, linear-gradient(#000 0 0) center/calc(100% - 12px) calc(100% - 12px) no-repeat; background: linear-gradient(#25b09b 0 0) 0/0% no-repeat #ddd; animation: cartoon 2s infinite linear; } @keyframes cartoon { 100% { background-size: 100%; } }}</style>9. 电池充电式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 80px; height: 40px; border: 2px solid rgb(103, 194, 58); padding: 3px; background: repeating-linear-gradient( 90deg, rgb(103, 194, 58) 0 10px, #0000 0 16px ) 0/0% no-repeat content-box content-box; position: relative; animation: cartoon 2s infinite steps(6); } .contantBox::before { content: ""; position: absolute; top: 50%; left: 100%; transform: translateY(-50%); width: 10px; height: 10px; border: 2px solid rgb(103, 194, 58); } @keyframes cartoon { 100% { background-size: 120%; } }}</style>10. 球体分隔式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 60px; height: 60px; border-radius: 50%; -webkit-mask: linear-gradient(0deg, #000 55%, #0000 0) bottom/100% 18.18%; background: linear-gradient(#f03355 0 0) bottom/100% 0% no-repeat #ddd; animation: cartoon 2s infinite steps(7); } @keyframes cartoon { 100% { background-size: 100% 115%; } }}</style>11. 水球波纹式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { --r1: 154%; --r2: 68.5%; width: 60px; height: 60px; border-radius: 50%; background: radial-gradient( var(--r1) var(--r2) at top, #0000 79.5%, #269af2 80% ) center left, radial-gradient(var(--r1) var(--r2) at bottom, #269af2 79.5%, #0000 80%) center center, radial-gradient(var(--r1) var(--r2) at top, #0000 79.5%, #269af2 80%) center right, #ccc; background-size: 50.5% 220%; background-position: -100% 0%, 0% 0%, 100% 0%; background-repeat: no-repeat; animation: cartoon 2s infinite linear; } @keyframes cartoon { 33% { background-position: 0% 33%, 100% 33%, 200% 33%; } 66% { background-position: -100% 66%, 0% 66%, 100% 66%; } 100% { background-position: 0% 100%, 100% 100%, 200% 100%; } }}</style>12. 半圆线条式 loading
实现效果
代码如下
<template> <div class="parentBox"> <div class="contantBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .contantBox { width: 120px; height: 60px; border-radius: 200px 200px 0 0; -webkit-mask: repeating-radial-gradient( farthest-side at bottom, #0000 0, #000 1px 12%, #0000 calc(12% + 1px) 20% ); background: radial-gradient(farthest-side at bottom, #514b82 0 95%, #0000 0) bottom/0% 0% no-repeat #ddd; animation: cartoon 2s infinite steps(6); } @keyframes cartoon { 100% { background-size: 120% 120%; } }}</style>13. 球体内小球跳跃式 loading
实现效果
代码如下
<template> <div class="parentBox"> <!-- 第一种 --> <div> <figure> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> </figure> </div> <!-- 第二种 --> <div> <figure> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> </figure> </div> <!-- 第三种 --> <div> <figure> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> </figure> </div> <!-- 第四种 --> <div> <figure> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> <section> <div></div> </section> </figure> </div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; display: flex; @keyframes move { from { transform: translate(0, 50%); } to { transform: translate(0, 850%); } } figure { margin: 10px; width: 40px; height: 40px; border-radius: 50%; position: relative; background: rgb(240,109,78); } section { width: 10%; height: 100%; position: absolute; left: 45%; } section:nth-child(2) { transform: rotate(22.5deg); } section:nth-child(3) { transform: rotate(45deg); } section:nth-child(4) { transform: rotate(67.5deg); } section:nth-child(5) { transform: rotate(90deg); } section:nth-child(6) { transform: rotate(112.5deg); } section:nth-child(7) { transform: rotate(135deg); } section:nth-child(8) { transform: rotate(157.5deg); } figure div { height: 10%; border-radius: 50%; background: #fff; animation: move 1s ease-in-out infinite alternate; } figure:nth-child(1) > section:nth-child(1) > div { animation-delay: -0.1875s; } figure:nth-child(1) > section:nth-child(2) > div { animation-delay: -0.175s; } figure:nth-child(1) > section:nth-child(3) > div { animation-delay: -0.1625s; } figure:nth-child(1) > section:nth-child(4) > div { animation-delay: -0.15s; } figure:nth-child(1) > section:nth-child(5) > div { animation-delay: -0.9375s; } figure:nth-child(1) > section:nth-child(6) > div { animation-delay: -0.925s; } figure:nth-child(1) > section:nth-child(7) > div { animation-delay: -0.9125s; } figure:nth-child(1) > section:nth-child(8) > div { animation-delay: -0.9s; } figure:nth-child(2) > section:nth-child(1) > div { animation-delay: -0.875s; } figure:nth-child(2) > section:nth-child(2) > div { animation-delay: -0.75s; } figure:nth-child(2) > section:nth-child(3) > div { animation-delay: -0.625s; } figure:nth-child(2) > section:nth-child(4) > div { animation-delay: -0.5s; } figure:nth-child(2) > section:nth-child(5) > div { animation-delay: -0.375s; } figure:nth-child(2) > section:nth-child(6) > div { animation-delay: -0.25s; } figure:nth-child(2) > section:nth-child(7) > div { animation-delay: -0.125s; } figure:nth-child(3) > section:nth-child(1) > div { animation-delay: -0.5s; } figure:nth-child(3) > section:nth-child(3) > div { animation-delay: -0.5s; } figure:nth-child(3) > section:nth-child(5) > div { animation-delay: -0.5s; } figure:nth-child(3) > section:nth-child(7) > div { animation-delay: -0.5s; } figure:nth-child(4) > section:nth-child(1) > div { animation-delay: -0.35s; } figure:nth-child(4) > section:nth-child(2) > div { animation-delay: -0.3s; } figure:nth-child(4) > section:nth-child(3) > div { animation-delay: -0.25s; } figure:nth-child(4) > section:nth-child(4) > div { animation-delay: -0.2s; } figure:nth-child(4) > section:nth-child(5) > div { animation-delay: -0.15s; } figure:nth-child(4) > section:nth-child(6) > div { animation-delay: -0.1s; } figure:nth-child(4) > section:nth-child(7) > div { animation-delay: -0.05s; }}</style>14. 球体内动图式 loading

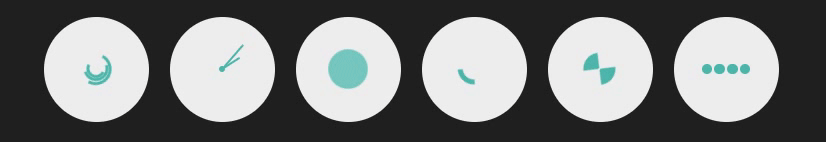

实现效果
代码如下
<template> <div class="parentBox"> <div class="containerBox"> <!-- 第一种 --> <div class="canvasBox"> <div class="spinnerOneBox spinnerMaxBox"> <div class="spinnerOneBox spinnerMidBox"> <div class="spinnerOneBox spinnerMinBox"></div> </div> </div> </div> <!-- 第二种 --> <div class="canvasBox canvasTwoBox"> <div class="spinnerTwoBox"></div> <div class="hourHandBox"></div> <div class="dotBox"></div> </div> <!-- 第三种 --> <div class="canvasBox"> <div class="spinnerThreeBox"></div> </div> <!-- 第四种 --> <div class="canvasBox"> <div class="spinnerFourBox"></div> </div> <!-- 第五种 --> <div class="canvasBox"> <div class="spinnerFiveBox"></div> </div> <!-- 第六种 --> <div class="canvasBox"> <div class="spinnerSexBox p1"></div> <div class="spinnerSexBox p2"></div> <div class="spinnerSexBox p3"></div> <div class="spinnerSexBox p4"></div> </div> </div> </div></template><style lang="less" scoped>.parentBox { height: 100%; background: rgb(31, 31, 31); padding: 100px; .containerBox { display: flex; .canvasBox { align-items: center; background: #eeeeee; border-radius: 50%; display: flex; justify-content: center; margin: 1em; width: 10em; height: 10em; // 第一种 .spinnerOneBox { align-items: center; border: 0.3em solid transparent; border-top: 0.3em solid #4db6ac; border-right: 0.3em solid #4db6ac; border-radius: 100%; display: flex; justify-content: center; } .spinnerMaxBox { animation: spinnerOne 3s linear infinite; height: 3em; width: 3em; .spinnerMidBox { animation: spinnerOne 5s linear infinite; height: 2.4em; width: 2.4em; .spinnerMinBox { animation: spinnerOne 5s linear infinite; height: 1.8em; width: 1.8em; } } } } @keyframes spinnerOne { 0% { transform: rotate(0deg); } 100% { transform: rotate(360deg); } } // 第二种 .canvasTwoBox { position: relative; .spinnerTwoBox { animation: spinnerTwo 1s linear infinite; background: #4db6ac; border-radius: 100px; height: 3em; transform-origin: top; position: absolute; top: 50%; width: 0.22em; } .hourHandBox { animation: spinnerTwo 7s linear infinite; background: #4db6ac; border-radius: 100px; height: 2em; transform-origin: top; position: absolute; top: 50%; width: 0.2em; } .dotBox { background: #4db6ac; border-radius: 100%; height: 0.5em; width: 0.5em; } } @keyframes spinnerTwo { 0% { transform: rotate(0deg); } 100% { transform: rotate(360deg); } } // 第三种 .spinnerThreeBox { animation: spinnerThree 1s linear infinite; background: #4db6ac; border-radius: 100%; width: 3em; height: 3em; } @keyframes spinnerThree { 0%, 35% { background: #4db6ac; transform: scale(1); } 20%, 50% { background: #80cbc4; transform: scale(1.3); } } // 第四种 .spinnerFourBox { animation: spinnerFour 1s linear infinite; border: solid 7px transparent; border-top: solid 7px #4db6ac; border-radius: 100%; width: 3em; height: 3em; } @keyframes spinnerFour { 0% { transform: rotate(0deg); } 100% { transform: rotate(360deg); } } // 第五种 .spinnerFiveBox { animation: spinnerFive 1s linear infinite; border: solid 1.5em #4db6ac; border-right: solid 1.5em transparent; border-left: solid 1.5em transparent; border-radius: 100%; width: 0; height: 0; } @keyframes spinnerFive { 0% { transform: rotate(0deg); } 50% { transform: rotate(60deg); } 100% { transform: rotate(360deg); } } // 第六种 .spinnerSexBox { background: #4db6ac; border-radius: 50%; height: 1em; margin: 0.1em; width: 1em; } .p1 { animation: fall 1s linear 0.3s infinite; } .p2 { animation: fall 1s linear 0.2s infinite; } .p3 { animation: fall 1s linear 0.1s infinite; } .p4 { animation: fall 1s linear infinite; } @keyframes fall { 0% { transform: translateY(-15px); } 25%, 75% { transform: translateY(0); } 100% { transform: translateY(-15px); } } }}</style>15. 渐变加载 loading

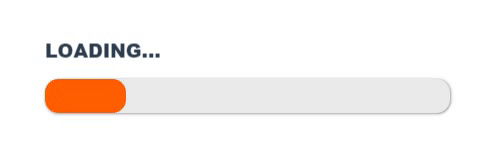

实现效果
代码如下
<template> <div class="parentBox"> <div class="containerBox"> <span>L</span> <span>O</span> <span>A</span> <span>D</span> <span>I</span> <span>N</span> <span>G</span> <span>.</span> <span>.</span> <span>.</span> </div> <div class="progBox"></div> </div></template><style lang="less" scoped>.parentBox { height: 100%; padding: 100px; .containerBox { font-weight: 900; padding-bottom: 10px; span { animation: load-text 1s infinite cubic-bezier(0.1, 0.15, 0.9, 1); display: inline-block; } } .progBox { background-color: #eaeaea; width: 300px; height: 25px; box-shadow: 1px 0px 2px rgba(0, 0, 0, 0.25), 0px 1px 2px rgba(0, 0, 0, 0.25); border-radius: 10px; position: relative; } .progBox:after { content: ""; background-color: green; position: absolute; border-radius: 10px; width: 100%; height: 100%; top: 0px; left: 0px; animation: load 4s infinite linear; } @keyframes load { 0% { width: 5%; background-color: red; } 25% { background-color: orange; } 50% { background-color: yellow; } 75% { background-color: lightgreen; } 90% { background-color: green; width: 100%; } } @keyframes load-text { 0% { transform: translateY(0px); } 25% { transform: translateY(5px); } 50% { transform: translateY(0px); } 75% { transform: translateY(-5px); } 100% { transform: translateY(0px); } }}</style>持续更新中...
