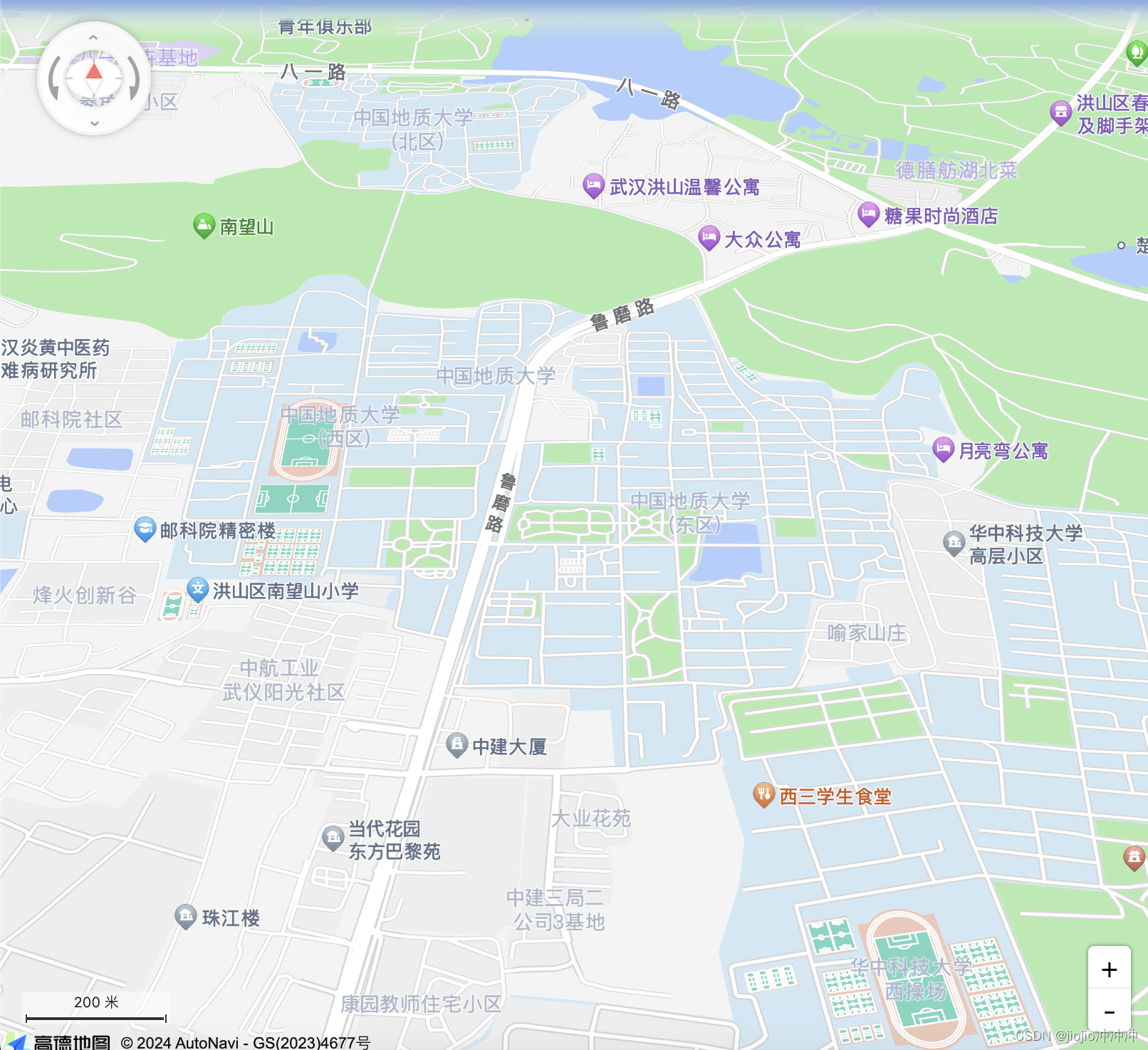

1.引入资源创建地图
//index.html<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>智慧校园</title> <!-- 引⼊资源 --> <!-- css样式 --> <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" /> <link rel="stylesheet" href="./css/index.css"> <!-- 引⼊js资源 --> <script type="text/javascript"> window._AMapSecurityConfig = { securityJsCode: 'code', } </script> <script type="text/javascript" src="https://webapi.amap.com/maps?v=2.0&key=key"></script></head><body> <!-- 创建地图容器 --> <div id="container"></div> <script> //创建地图对象 var map = new AMap.Map('container', { center: [114.402672, 30.518987], zoom: 16, viewMode: '3D', pitch: 45, }) </script></body></html>//css/index.csshtml,body,#container { width: 100%; height: 100%;}2.使用控件
// 使⽤控件 AMap.plugin(['AMap.ToolBar', 'AMap.Scale', 'AMap.ControlBar'], function () { map.addControl(new AMap.ToolBar()) map.addControl(new AMap.Scale()) map.addControl(new AMap.ControlBar()) })3.标记功能

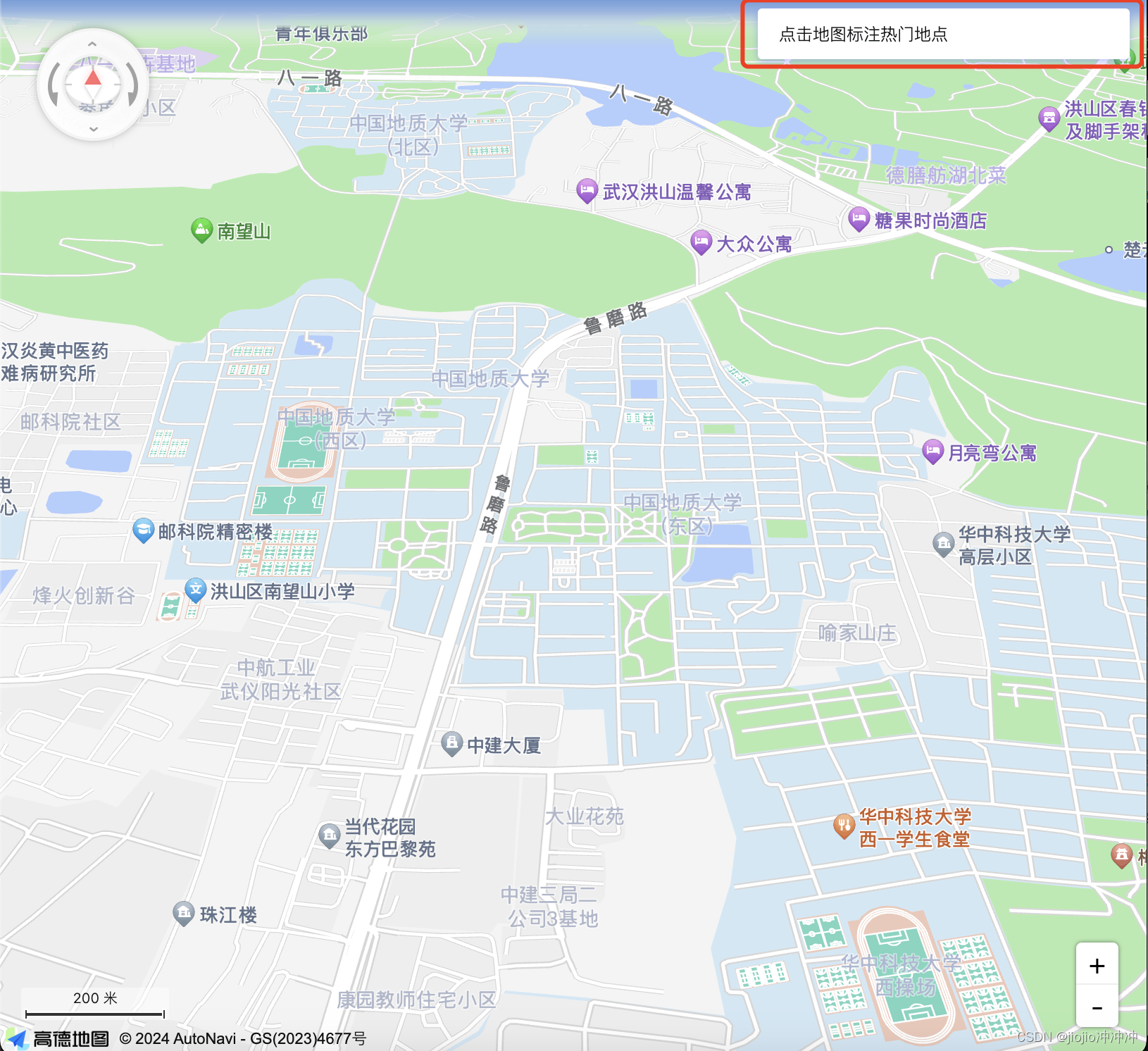

右上⻆就有了交互控件，且可以⽤⿏标左键单击添加标记。
//使⽤⾼德的css样式来创建⼀个div控件 <div class="info">点击地图标注热⻔地点</div> // 添加监听地图点击事件 map.on('click',function(e){ // 创建标记 var marker = new AMap.Marker({ position:e.lnglat, }) // 添加标记图层 map.add(marker) })4.使⽤GeoJSON数据持久化

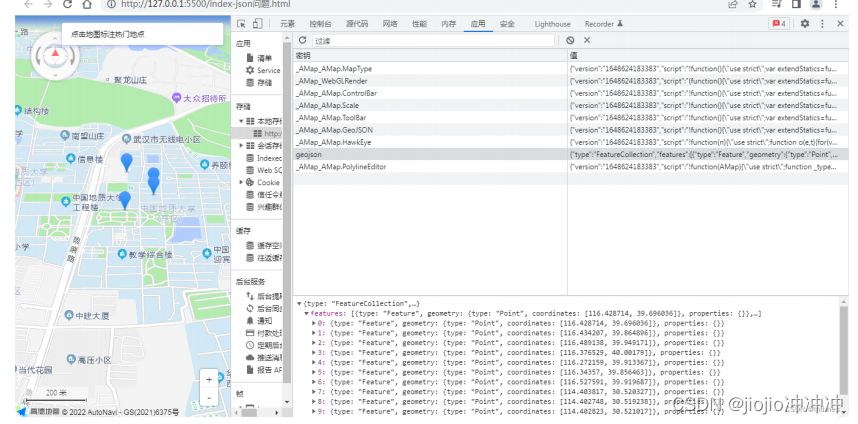

使⽤GeoJSON在本地存储中记录数据
首页我们需要创建一个store.js文件用来写读取和存入的函数
// 从local storage中读取数据function getData() { //判断本地local storage中不存在数据 if (!localStorage.getItem('geojson')) { localStorage.setItem('geojson', '[]') } return JSON.parse(localStorage.getItem('geojson'))}// 从local storage中写数据function saveData(data) { localStorage.setItem('geojson', JSON.stringify(data))}在index .html引入<script src="./js/store.js"></script>
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>智慧校园</title> <!-- 引⼊资源 --> <!-- css样式 --> <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" /> <link rel="stylesheet" href="./css/index.css"> <!-- 引⼊js资源 --> <script type="text/javascript"> window._AMapSecurityConfig = { securityJsCode: 'code', } </script> <script src="./js/store.js"></script> <script type="text/javascript" src="https://webapi.amap.com/maps?v=2.0&key=key"></script></head><body> <!-- 创建地图容器 --> <div id="container"></div> <div class="info">点击地图标注热⻔地点</div> <script> //创建地图对象 var map = new AMap.Map('container', { center: [114.402672, 30.518987], zoom: 16, viewMode: '3D', pitch: 45, }) // 使⽤控件 AMap.plugin(['AMap.ToolBar', 'AMap.Scale', 'AMap.ControlBar','AMap.GeoJSON'], function () { map.addControl(new AMap.ToolBar()) map.addControl(new AMap.Scale()) map.addControl(new AMap.ControlBar()) }) //定义全局变量 var geojson = new AMap.GeoJSON({ geoJSON: null, }) // 导⼊数据 if (JSON.stringify(getData()) != '[]') { //有数据的时候才导⼊ geojson.importData(getData()) } map.add(geojson) // 监听地图点击事件 map.on('click', function (e) { // 创建标记 var marker = new AMap.Marker({ position: e.lnglat, }) // 通过geojson对象管理覆盖物 geojson.addOverlay(marker) //console.log(geojson) saveData(geojson.toGeoJSON()) }) </script></body></html>5.实现打卡

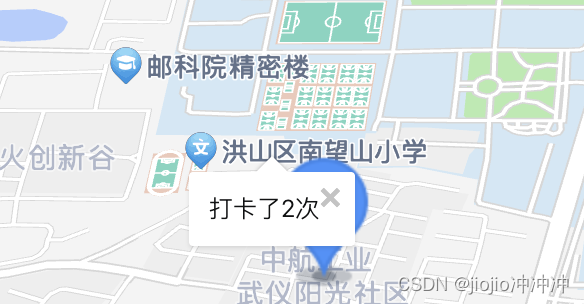

实现思路：使用marker覆盖物的点击事件，导入数据的地方恢复旧数据的点击事件
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>智慧校园</title> <!-- 引⼊资源 --> <!-- css样式 --> <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" /> <link rel="stylesheet" href="./css/index.css"> <!-- 引⼊js资源 --> <script type="text/javascript"> window._AMapSecurityConfig = { securityJsCode: 'code', } </script> <script src="./js/store.js"></script> <script type="text/javascript" src="https://webapi.amap.com/maps?v=2.0&key=key"></script></head><body> <!-- 创建地图容器 --> <div id="container"></div> <div class="info">点击地图标注热⻔地点,点击地点可以打卡</div> <script> //创建地图对象 var map = new AMap.Map('container', { center: [114.402672, 30.518987], zoom: 16, viewMode: '3D', pitch: 45, }) // 使⽤控件 AMap.plugin(['AMap.ToolBar', 'AMap.Scale', 'AMap.ControlBar', 'AMap.GeoJSON'], function () { map.addControl(new AMap.ToolBar()) map.addControl(new AMap.Scale()) map.addControl(new AMap.ControlBar()) }) // 创建一个 Icon var startIcon = new AMap.Icon({ // 图标的取图地址 image: 'https://a.amap.com/jsapi_demos/static/demo-center/icons/poi-marker-default.png', }); //定义全局变量 var geojson = new AMap.GeoJSON({ geoJSON: null, }) // 导⼊数据 if (JSON.stringify(getData()) != '[]') { //有数据的时候才导⼊ geojson.importData(getData()) geojson.eachOverlay(function (item) { item.on('click', function (e) { var ext = item.getExtData() var click = ++ext._geoJsonProperties.click }) }) saveData(geojson.toGeoJSON()) } map.add(geojson) // 监听地图点击事件 map.on('click', function (e) { // 创建标记 var marker = new AMap.Marker({ position: e.lnglat, icon: startIcon, //固定写法 extData: { _geoJsonProperties: { gid: geojson.getOverlays().length + 1, click: 0, }, } }) marker.on('click', function (e) { //固定写法 var ext = marker.getExtData() var click = ++ext._geoJsonProperties.click saveData(geojson.toGeoJSON()) // 使⽤消息提示框 var infowindow = new AMap.InfoWindow({ anchor: 'top-center',//模板字符串 content: `<div>打卡了${click}次</div>`, }) //打开信息框在标记的位置 infowindow.open(map, marker.getPosition()) }) // 通过geojson对象管理覆盖物 geojson.addOverlay(marker) //console.log(geojson) saveData(geojson.toGeoJSON()) // 添加标记图层 // map.add(marker) }) </script></body></html>6.推荐浏览路线
<!DOCTYPE html><html lang="en"><head> <meta charset="UTF-8"> <meta http-equiv="X-UA-Compatible" content="IE=edge"> <meta name="viewport" content="width=device-width, initial-scale=1.0"> <title>智慧校园</title> <!-- 引⼊资源 --> <!-- css样式 --> <link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css" /> <link rel="stylesheet" href="./css/index.css"> <!-- 引⼊js资源 --> <script type="text/javascript"> window._AMapSecurityConfig = { securityJsCode: 'code', } </script> <script src="./js/store.js"></script> <script type="text/javascript" src="https://webapi.amap.com/maps?v=2.0&key=key"></script></head><body> <!-- 创建地图容器 --> <div id="container"></div> <div class="info">点击地图标注热⻔地点,点击地点可以打卡</div> <div class="input-card" style="width:10rem;"> <h4>推荐游览路线</h4> <div class="input-item"> <button class="btn" onclick="startAnimation()">开始动画 </button> </div> </div> <script> //创建地图对象 var map = new AMap.Map('container', { center: [114.402672, 30.518987], zoom: 16, viewMode: '3D', pitch: 45, }) // 使⽤控件 AMap.plugin(['AMap.ToolBar', 'AMap.Scale', 'AMap.ControlBar', 'AMap.GeoJSON','AMap.MoveAnimation'], function () { map.addControl(new AMap.ToolBar()) map.addControl(new AMap.Scale()) map.addControl(new AMap.ControlBar()) // map.addControl(new AMap.MoveAnimation()) }) //定义全局变量 var geojson = new AMap.GeoJSON({ geoJSON: null, }) // 导⼊数据 if (JSON.stringify(getData()) != '[]') { //有数据的时候才导⼊ geojson.importData(getData()) geojson.eachOverlay(function (item) { item.on('click', function (e) { var ext = item.getExtData() var click = ++ext._geoJsonProperties.click }) }) saveData(geojson.toGeoJSON()) } map.add(geojson) // 监听地图点击事件 map.on('click', function (e) { // 创建标记 var marker = new AMap.Marker({ position: e.lnglat, extData: { _geoJsonProperties: { gid: geojson.getOverlays().length + 1, click: 0, }, } }) marker.on('click', function (e) { var ext = marker.getExtData() var click = ++ext._geoJsonProperties.click saveData(geojson.toGeoJSON()) // 使⽤消息提示框 var infowindow = new AMap.InfoWindow({ anchor: 'top-center',//模板字符串 content: `<div>打卡了${click}次</div>`, }) //打开信息框在标记的位置 infowindow.open(map, marker.getPosition()) }) // 通过geojson对象管理覆盖物 geojson.addOverlay(marker) //console.log(geojson) saveData(geojson.toGeoJSON()) // 添加标记图层 // map.add(marker) }) function startAnimation() { AMap.plugin('AMap.Driving', function () { var driving = new AMap.Driving({ map: map, policy: AMap.DrivingPolicy.LEAST_TIME,//驾⻋策略 }) //设置起点和终点 var start = new AMap.LngLat(114.400984, 30.518653) var end = new AMap.LngLat(114.404755, 30.523851) // 创建途经点 var opts = { waypoints: [], } geojson.eachOverlay(function (item) {//拿到每⼀个点 opts.waypoints.push(item.getPosition()) }) driving.search(start, end, opts, function (status, result) { //result结果就会返回当前轨迹对象，其中包含了导航信息 var lineArr = [] result.routes[0].steps.forEach(function (item) { lineArr.push(...item.path) }); if (status == 'complete') { var marker = new AMap.Marker({ map: map, position: start, icon: 'https://webapi.amap.com/images/car.png', offset: new AMap.Pixel(-26 ,- 13), autoRotation: true, angle: -180, }) var passedPolyline = new AMap.Polyline({ map: map, strokeColor: '#AF5',//描边的绿⾊ strokeWeight: 6,//线宽 }) marker.on('moving', function (e) { passedPolyline.setPath(e.passedPath) }) map.setFitView() marker.moveAlong(lineArr, { duration: 500, autoRotation: true, }) } else { } }) }) } </script></body></html>
