centos 7 部署k8s集群 1.28.2版本

1. 准备工作（所有节点执行）

1.1. 准备虚拟机

本地部署，仅供参考。

三个节点：名字为k8s-node1、k8s-node2、k8s-master

设置系统主机名及Host 文件

sudo cat << EOF >> /etc/hosts192.168.255.141 k8s-node1192.168.255.142 k8s-node2192.168.255.140 k8s-masterEOF

# 对应的节点执行sudo hostnamectl set-hostname k8s-node1sudo hostnamectl set-hostname k8s-node2sudo hostnamectl set-hostname k8s-master

1.2 更新yum

# 需要更新很久sudo yum update -y#设置存储库    sudo yum install -y yum-utils    sudo yum-config-manager --add-repo https://download.docker.com/linux/centos/docker-ce.repo

1.3 相关设置

1.3.1 禁用iptables和firewalld服务

systemctl stop firewalldsystemctl disable firewalldsystemctl stop iptablessystemctl disable iptables

1.3.2 禁用selinux

# 永久关闭sed -i 's/enforcing/disabled/' /etc/selinux/config# 临时关闭setenforce 0

1.3.3 禁用swap分区

# 临时关闭swapoff -a# 永久关闭vim /etc/fstab将行 /dev/mapper/xxx    swap   xxx注释

1.3.4 调整内核参数，对于 K8S

cat <<EOF | sudo tee /etc/sysctl.d/k8s.confnet.bridge.bridge-nf-call-iptables  = 1net.bridge.bridge-nf-call-ip6tables = 1net.ipv4.ip_forward                 = 1EOF# 依次执行下面命令sysctl -pmodprobe br_netfilterlsmod | grep br_netfilter

显示：

1.3.5 配置 ipvs 功能

# 安装ipset和ipvsadmyum install ipset ipvsadmin -y# 添加需要加载的模块写入脚本文件cat <<EOF > /etc/sysconfig/modules/ipvs.modules#!/bin/bashmodprobe -- ip_vsmodprobe -- ip_vs_rrmodprobe -- ip_vs_wrrmodprobe -- ip_vs_shmodprobe -- nf_conntrack_ipv4EOF# 为脚本文件添加执行权限chmod +x /etc/sysconfig/modules/ipvs.modules# 执行脚本文件 /bin/bash /etc/sysconfig/modules/ipvs.modules# 查看对应的模块是否加载成功lsmod | grep -e ip_vs -e nf_conntrack_ipv4

显示：

重启

reboot

2. 安装docker和cri-dockerd（所有节点执行）

2.1 安装docker

2.1.1 移除旧版docker（新安装虚拟机则不需执行）

sudo yum remove docker \     docker-client \     docker-client-latest \     docker-common \     docker-latest \     docker-latest-logrotate \     docker-logrotate \     docker-engine

2.1.2 安装docker及其依赖库

sudo yum install -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin

2.1.3 启动Docker，设置开机自启动

# 启动dockersudo systemctl start docker# 设置docker开机启动sudo systemctl enable docker# 验证sudo systemctl status docker

2.2 安装cri-dockerd

k8s 1.24版本后需要使用cri-dockerd和docker通信

2.2.1 下载cri-dockerd

# 若没有wget，则执行sudo yum install -y wget# 下载sudo wget https://github.com/Mirantis/cri-dockerd/releases/download/v0.3.4/cri-dockerd-0.3.4-3.el7.x86_64.rpm# 安装sudo rpm -ivh cri-dockerd-0.3.4-3.el7.x86_64.rpm# 重载系统守护进程sudo systemctl daemon-reload

2.2.2 设置镜像加速

sudo tee /etc/docker/daemon.json <<-'EOF'{  "registry-mirrors": ["https://c12xt3od.mirror.aliyuncs.com"]}EOF

2.2.3 修改配置文件

修改第10行 ExecStart=改为ExecStart=/usr/bin/cri-dockerd --network-plugin=cni --pod-infra-container-image=registry.aliyuncs.com/google_containers/pause:3.7vi /usr/lib/systemd/system/cri-docker.service

2.2.4 自启动、重启Docker组件

# 重载系统守护进程sudo systemctl daemon-reload# 设置cri-dockerd自启动sudo systemctl enable cri-docker.socket cri-docker# 启动cri-dockerdsudo systemctl start cri-docker.socket cri-docker# 检查Docker组件状态sudo systemctl status docker cir-docker.socket cri-docker

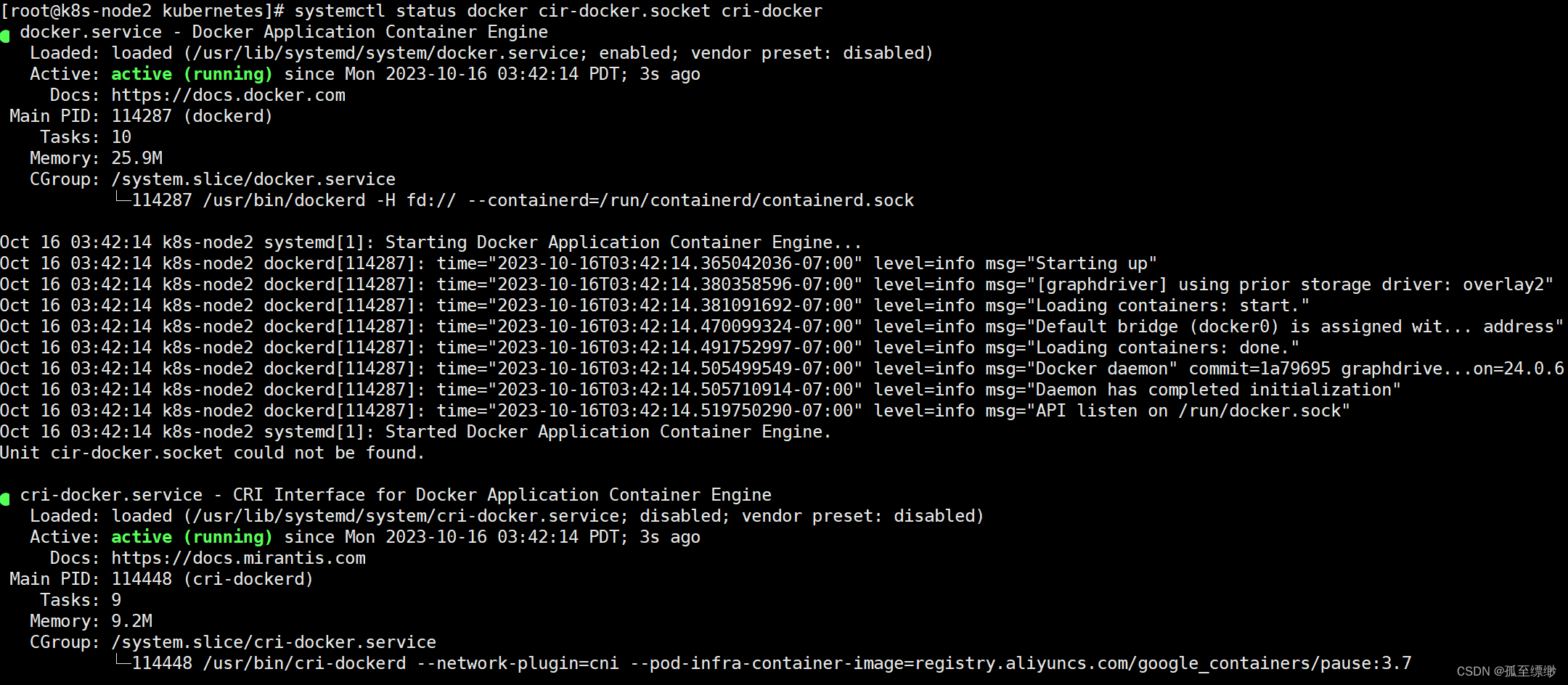

显示：

3. 安装Kubernetes

3.1 安装kubectl（所有节点执行）

#  当前使用的是最新版本 v1.28.2# 下载curl -LO "https://dl.k8s.io/release/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl"# 检验curl -LO "https://dl.k8s.io/$(curl -L -s https://dl.k8s.io/release/stable.txt)/bin/linux/amd64/kubectl.sha256"echo "$(cat kubectl.sha256)  kubectl" | sha256sum --check# 安装sudo install -o root -g root -m 0755 kubectl /usr/local/bin/kubectl# 测试kubectl version --client

3.2 安装kubeadm（所有节点执行）

# 改国内源cat <<EOF | sudo tee /etc/yum.repos.d/kubernetes.repo[kubernetes]name=Kubernetesbaseurl=http://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64enabled=1gpgcheck=0repo_gpgcheck=1gpgkey=http://mirrors.aliyun.com/kubernetes/yum/doc/yum-key.gpg        http://mirrors.aliyun.com/kubernetes/yum/doc/rpm-package-key.gpgexclude=kubelet kubeadm kubectlEOF  # 安装sudo yum install -y install kubeadm-1.28.2-0 kubelet-1.28.2-0 kubectl-1.28.2-0 --disableexcludes=kubernetes# 设置自启动sudo systemctl enable --now kubelet

3.3 安装runc（所有节点执行）

# 下载 runc.amd64  sudo wget https://github.com/opencontainers/runc/releases/download/v1.1.9/runc.amd64# 安装sudo install -m 755 runc.amd64 /usr/local/bin/runc# 验证runc -v

3.4 部署集群

3.4.1 初始化集群（master节点执行）

# 执行 kubeadm  init 命令kubeadm init  --node-name=k8s-master --image-repository=registry.aliyuncs.com/google_containers --cri-socket=unix:///var/run/cri-dockerd.sock --apiserver-advertise-address=192.168.255.140 --pod-network-cidr=10.244.0.0/16 --service-cidr=10.96.0.0/12# 需要修改的参数--apiserver-advertise-address # 指定 API 服务器的广告地址、我设置为master节点的ip# 初始化成功后运行下面的命令    mkdir -p $HOME/.kube    sudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/config    sudo chown $(id -u):$(id -g) $HOME/.kube/config# master节点执行 配置文件的复制（为了在node节点可以使用kubectl相关命令）scp /etc/kubernetes/admin.conf 192.168.255.141:/etc/kubernetes/scp /etc/kubernetes/admin.conf 192.168.255.142:/etc/kubernetes/

显示：

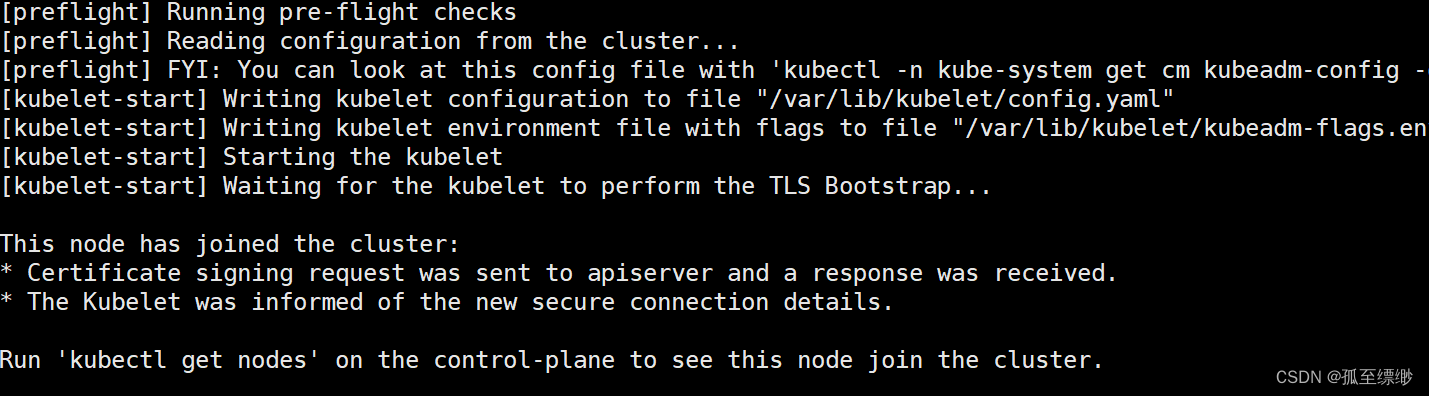

3.4.2 node节点加入（node节点执行）

# 到node节点检查admin.conf文件是否传输完成ls /etc/kubernetes/admin.conf  manifests# 将admin.conf加入环境变量，直接使用永久生效echo "export KUBECONFIG=/etc/kubernetes/admin.conf" >>  ~/.bash_profile# 加载source ~/.bash_profile# ---------------------------------加入集群-------------------------------------# 1.在master节点执行 kubeadm init成功后，会出现 kubeadm join xxx xxx的命令，直接复制到node节点执行就好。# 2.下面是若没有复制到kubeadm join的命令或者是想要在集群中加入新节点，#   则先在master执行，获取token 和 discovery-token-ca-cert-hash。#   获取 token 参数kubeadm token list   # 查看已有 tokenkubeadm token create # 没有token则执行，创建新的 TOKEN#   获取 discovery-token-ca-cert-hash 参数 openssl x509 -pubkey -in /etc/kubernetes/pki/ca.crt | openssl rsa -pubin -outform der 2>/dev/null |  openssl dgst -sha256 -hex | sed 's/^.* //'# 3.node节点执行 kubeadm join# 修改获取的 token 和 discovery-token-ca-cert-hash 后，再执行    kubeadm join 192.168.255.140:6443 --token y8v2nc.ie2ovh1kxqtgppbo --discovery-token-ca-cert-hash sha256:1fa593d1bc58653afaafc9ca492bde5b8e40e9adef055e8e939d4eb34fb436bf --cri-socket unix:///var/run/cri-dockerd.sock

3.4.3 重新加入集群（node节点执行）

# 先执行kubeadm reset --cri-socket unix:///var/run/cri-dockerd.sock# 再获取TOKEN、discovery-token-ca-cert-hash 参数后，最后执行kubeadm join 192.168.255.140:6443 --token y8v2nc.ie2ovh1kxqtgppbo --discovery-token-ca-cert-hash sha256:1fa593d1bc58653afaafc9ca492bde5b8e40e9adef055e8e939d4eb34fb436bf --cri-socket unix:///var/run/cri-dockerd.sock

3.4.4 安装网络插件下载然后运行

# 下载，若网络抽风~~，则复制下面的kube-flannel.ymlsudo wget https://github.com/flannel-io/flannel/releases/download/v0.22.3/kube-flannel.yml# 执行kubectl apply -f kube-flannel.yml

或者

vi kube-flannel.yml

# kube-flannel.ymlapiVersion: v1kind: Namespacemetadata:  labels:    k8s-app: flannel    pod-security.kubernetes.io/enforce: privileged  name: kube-flannel---apiVersion: v1kind: ServiceAccountmetadata:  labels:    k8s-app: flannel  name: flannel  namespace: kube-flannel---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRolemetadata:  labels:    k8s-app: flannel  name: flannelrules:- apiGroups:  - ""  resources:  - pods  verbs:  - get- apiGroups:  - ""  resources:  - nodes  verbs:  - get  - list  - watch- apiGroups:  - ""  resources:  - nodes/status  verbs:  - patch- apiGroups:  - networking.k8s.io  resources:  - clustercidrs  verbs:  - list  - watch---apiVersion: rbac.authorization.k8s.io/v1kind: ClusterRoleBindingmetadata:  labels:    k8s-app: flannel  name: flannelroleRef:  apiGroup: rbac.authorization.k8s.io  kind: ClusterRole  name: flannelsubjects:- kind: ServiceAccount  name: flannel  namespace: kube-flannel---apiVersion: v1data:  cni-conf.json: |    {      "name": "cbr0",      "cniVersion": "0.3.1",      "plugins": [        {          "type": "flannel",          "delegate": {            "hairpinMode": true,            "isDefaultGateway": true          }        },        {          "type": "portmap",          "capabilities": {            "portMappings": true          }        }      ]    }  net-conf.json: |    {      "Network": "10.244.0.0/16",      "Backend": {        "Type": "vxlan"      }    }kind: ConfigMapmetadata:  labels:    app: flannel    k8s-app: flannel    tier: node  name: kube-flannel-cfg  namespace: kube-flannel---apiVersion: apps/v1kind: DaemonSetmetadata:  labels:    app: flannel    k8s-app: flannel    tier: node  name: kube-flannel-ds  namespace: kube-flannelspec:  selector:    matchLabels:      app: flannel      k8s-app: flannel  template:    metadata:      labels:        app: flannel        k8s-app: flannel        tier: node    spec:      affinity:        nodeAffinity:          requiredDuringSchedulingIgnoredDuringExecution:            nodeSelectorTerms:            - matchExpressions:              - key: kubernetes.io/os                operator: In                values:                - linux      containers:      - args:        - --ip-masq        - --kube-subnet-mgr        command:        - /opt/bin/flanneld        env:        - name: POD_NAME          valueFrom:            fieldRef:              fieldPath: metadata.name        - name: POD_NAMESPACE          valueFrom:            fieldRef:              fieldPath: metadata.namespace        - name: EVENT_QUEUE_DEPTH          value: "5000"        image: docker.io/flannel/flannel:v0.22.3        name: kube-flannel        resources:          requests:            cpu: 100m            memory: 50Mi        securityContext:          capabilities:            add:            - NET_ADMIN            - NET_RAW          privileged: false        volumeMounts:        - mountPath: /run/flannel          name: run        - mountPath: /etc/kube-flannel/          name: flannel-cfg        - mountPath: /run/xtables.lock          name: xtables-lock      hostNetwork: true      initContainers:      - args:        - -f        - /flannel        - /opt/cni/bin/flannel        command:        - cp        image: docker.io/flannel/flannel-cni-plugin:v1.2.0        name: install-cni-plugin        volumeMounts:        - mountPath: /opt/cni/bin          name: cni-plugin      - args:        - -f        - /etc/kube-flannel/cni-conf.json        - /etc/cni/net.d/10-flannel.conflist        command:        - cp        image: docker.io/flannel/flannel:v0.22.3        name: install-cni        volumeMounts:        - mountPath: /etc/cni/net.d          name: cni        - mountPath: /etc/kube-flannel/          name: flannel-cfg      priorityClassName: system-node-critical      serviceAccountName: flannel      tolerations:      - effect: NoSchedule        operator: Exists      volumes:      - hostPath:          path: /run/flannel        name: run      - hostPath:          path: /opt/cni/bin        name: cni-plugin      - hostPath:          path: /etc/cni/net.d        name: cni      - configMap:          name: kube-flannel-cfg        name: flannel-cfg      - hostPath:          path: /run/xtables.lock          type: FileOrCreate        name: xtables-lock

3.5 测试kubernetes 集群

# 下面一般在master节点执行，若node节点可以使用kubectl命令，也可以在node节点上操作kubectl get nodeskubectl get pod -A

显示：

3.5.1 使用nginx测试

vi nginx-deployment.yamlkubectl apply -f nginx-deployment.yaml

# nginx-deployment.yamlapiVersion: apps/v1kind: Deploymentmetadata:  name: nginx-deploymentspec:  replicas: 3  selector:    matchLabels:      app: nginx  template:    metadata:      labels:        app: nginx    spec:      containers:        - name: nginx          image: nginx:latest          ports:            - containerPort: 80---apiVersion: v1kind: Servicemetadata:  name: nginx-servicespec:  selector:    app: nginx  ports:    - name: http       port: 80      targetPort: 80      nodePort: 30080  type: NodePort

执行

[root@k8s-master k8s]# kubectl get pod,svc |grep nginxpod/nginx-deployment-7c79c4bf97-4xzc9   1/1     Running   0          83spod/nginx-deployment-7c79c4bf97-lp4fn   1/1     Running   0          83spod/nginx-deployment-7c79c4bf97-vt8wh   1/1     Running   0          83sservice/nginx-service   NodePort    10.97.154.241   <none>        80:30080/TCP   83s

访问：http://192.168.255.140:30080/，出现这个页面就算大功告成！
