启动环境
需要提前准备的(只提供作者试过且可行的方案)
window11ubuntu20(wsl2) window11内置ubuntu的方式自行百度,此处不做陈述jdk8mysql8navicatvscode环境准备不做过多陈述,以下是正式的安装启动步骤
SeaTunnel 2.3.3
资源准备

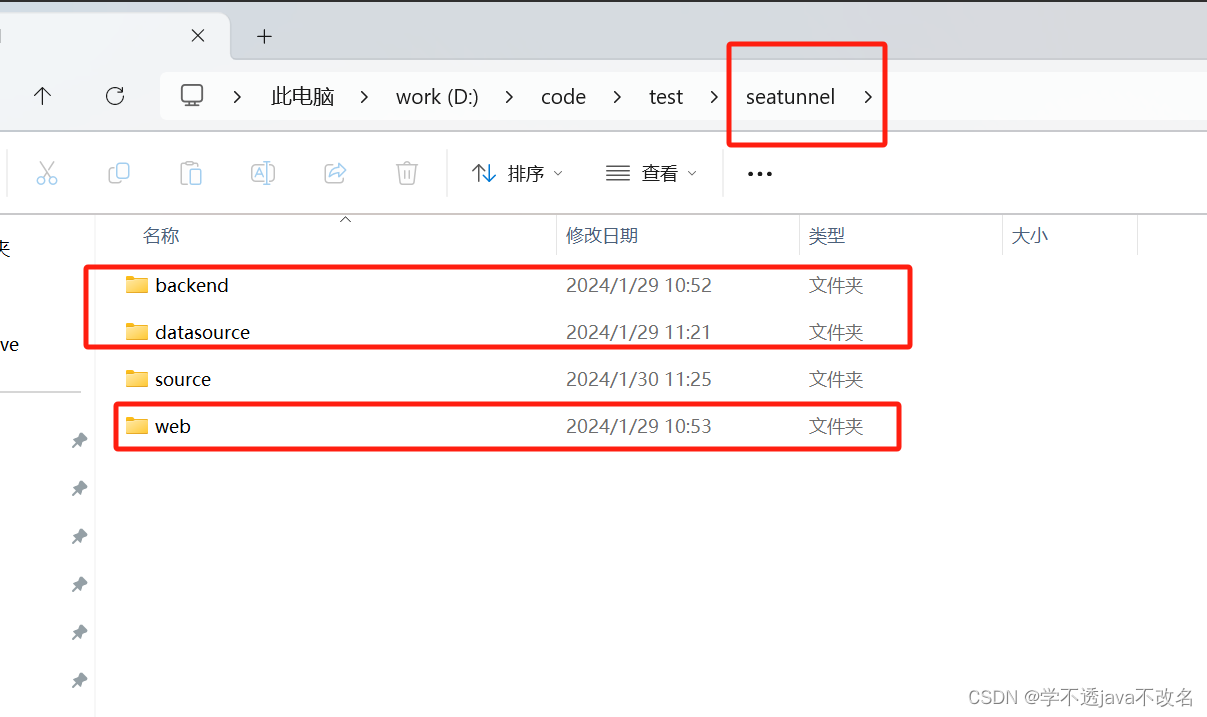

第一步: 创建文件夹 (话不多说,直接上图,按照红框所示创建即可)
![在这里插入图片描述](http://zhangshiyu.com/zb_users/upload/2024/04/20240402114541171202954148536.png)
2.第二步: 下载二进制包,放到backend文件夹下
链接: apache-seatunnel-2.3.3-bin.tar.gz
SeaTunnel 服务端安装

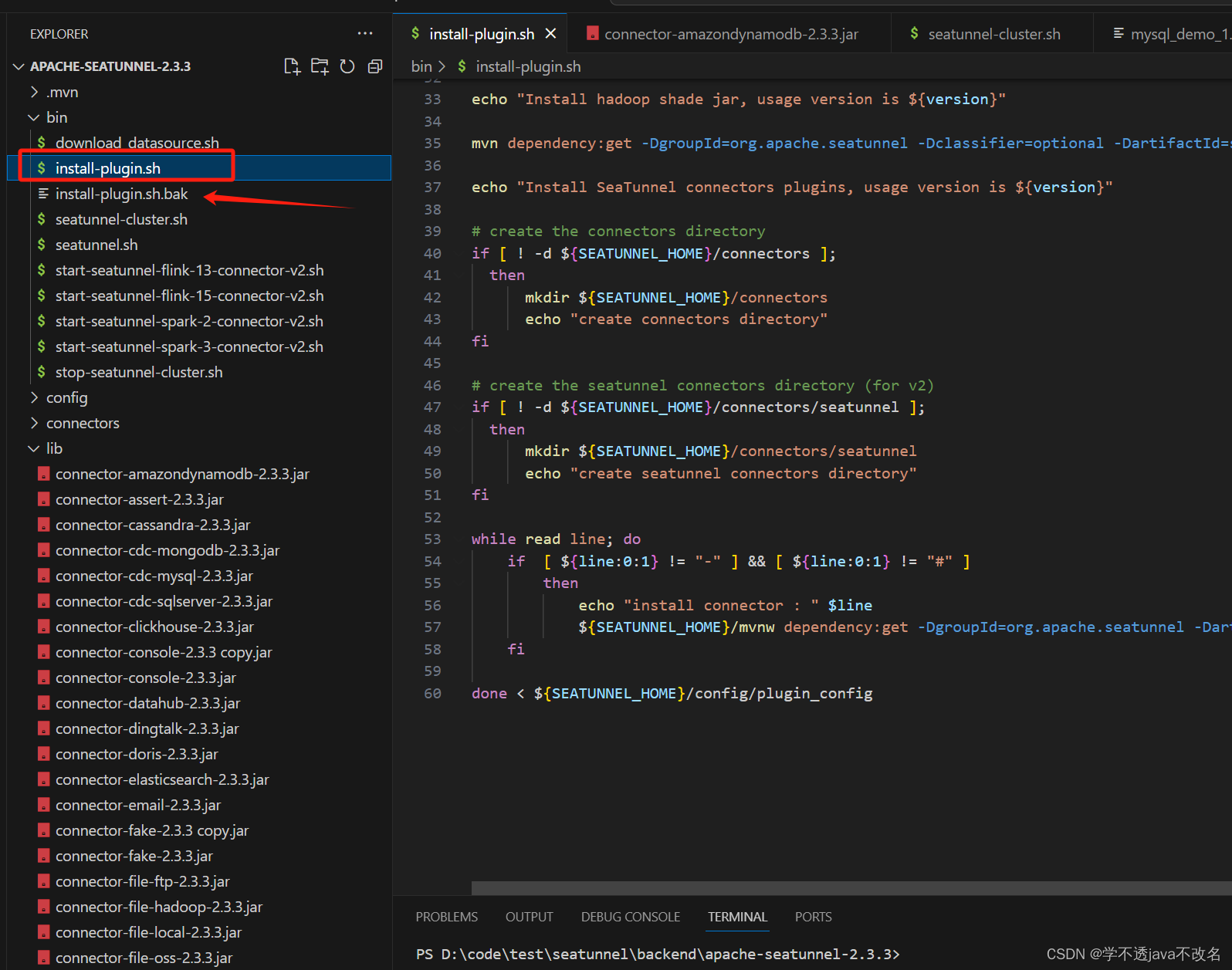

备份 install-plugin.sh
install-plugin.sh 复制一份,更名为install-plugin.sh.bak

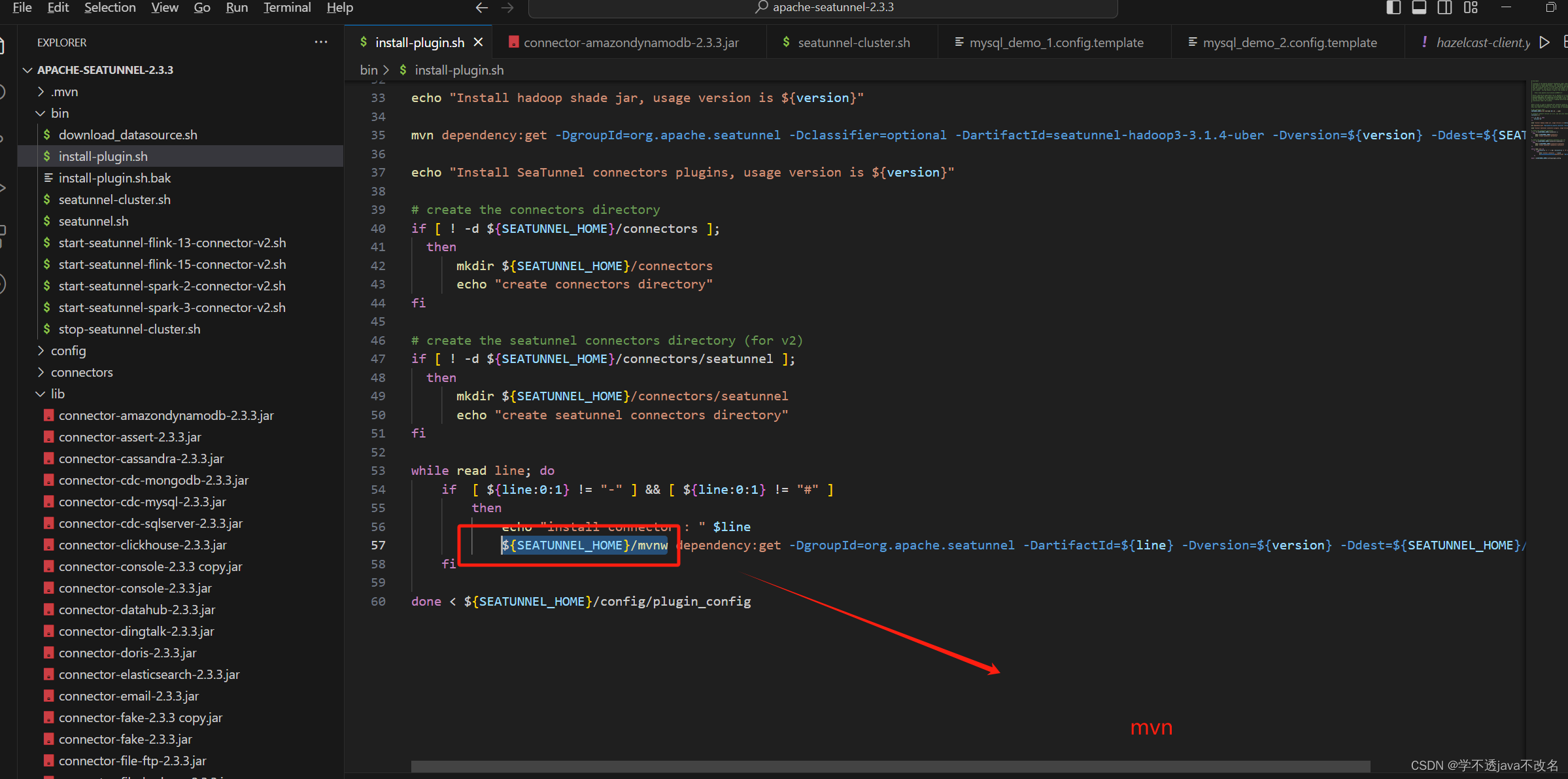

更改${SEATUNNEL_HOME}/mvnw 为mvn

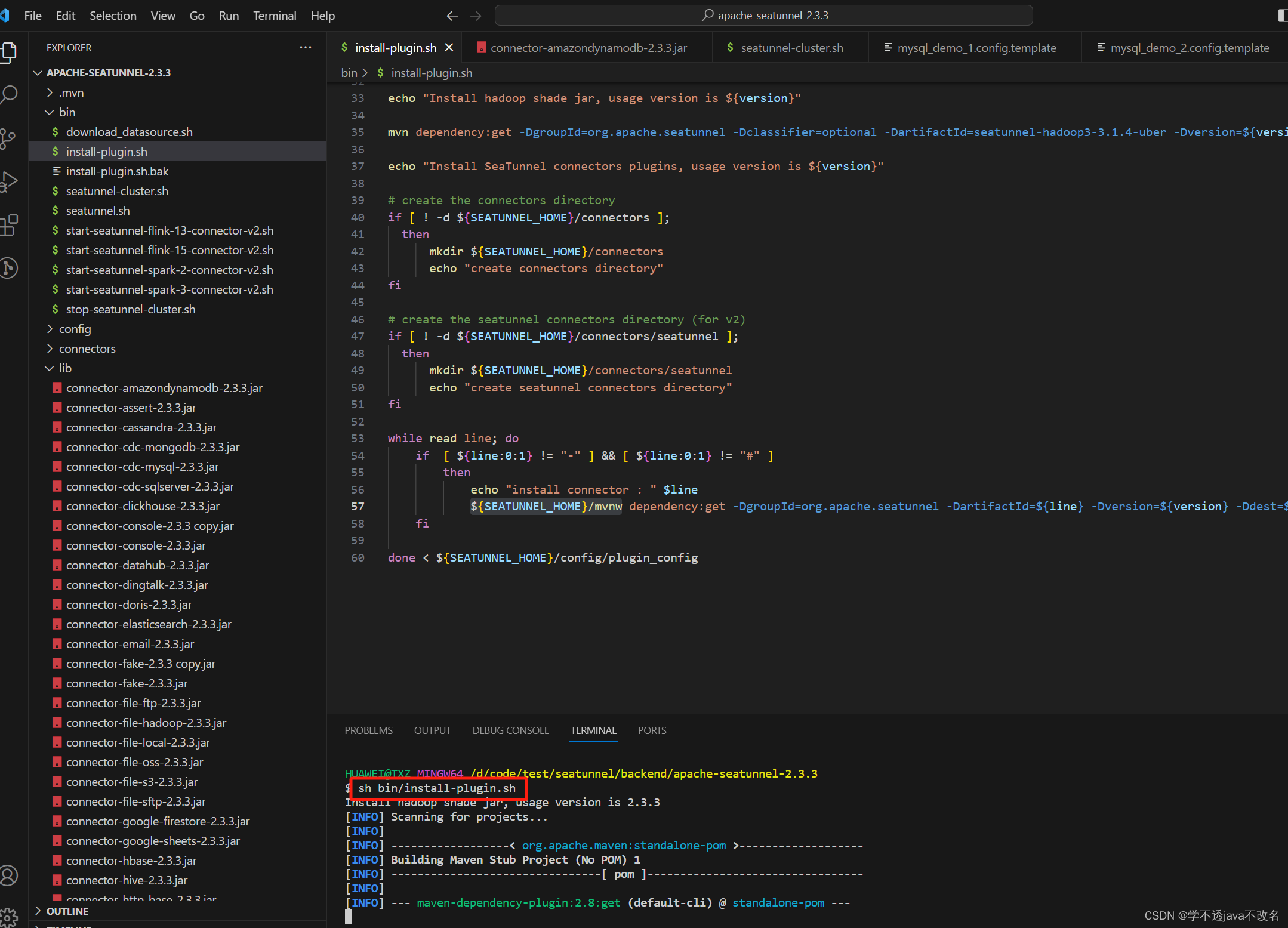

项目根目录执行 sh bin/ install-plugin.sh 安装依赖

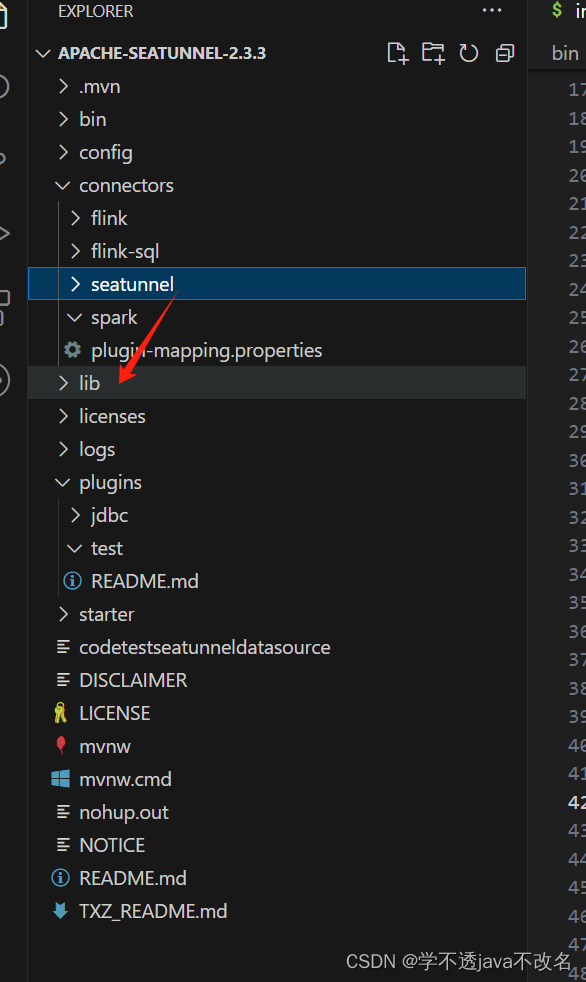

移动connectors/seatunnel下的所有jar到 lib目录
下载datasource

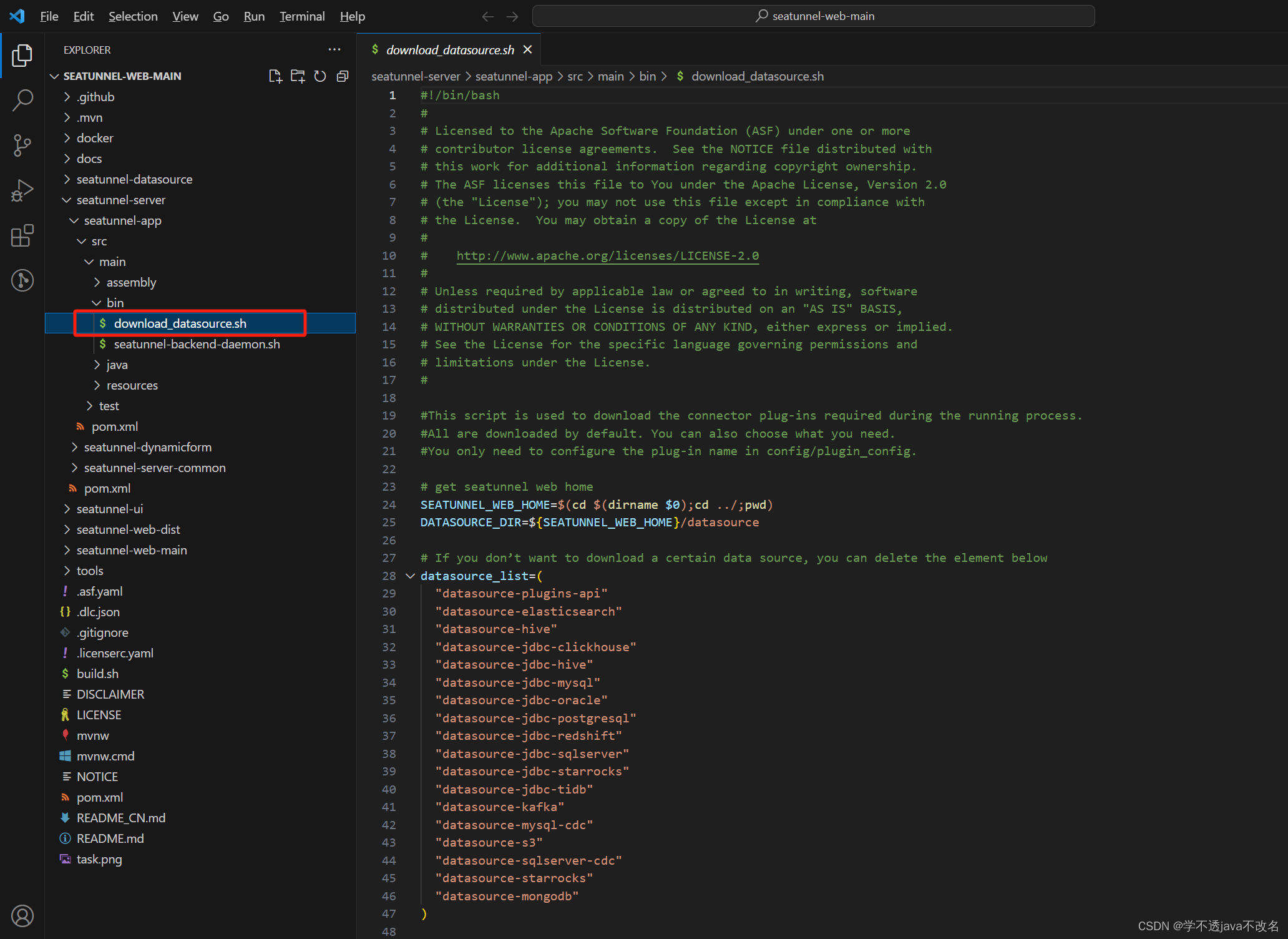

这里稍微带一下源码的东西,在源码里有下载datasource的脚本复制到bin下,如下图所示
我把脚本内容写在下面,可以自己创建
#!/bin/bash## Licensed to the Apache Software Foundation (ASF) under one or more# contributor license agreements. See the NOTICE file distributed with# this work for additional information regarding copyright ownership.# The ASF licenses this file to You under the Apache License, Version 2.0# (the "License"); you may not use this file except in compliance with# the License. You may obtain a copy of the License at## http://www.apache.org/licenses/LICENSE-2.0## Unless required by applicable law or agreed to in writing, software# distributed under the License is distributed on an "AS IS" BASIS,# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.# See the License for the specific language governing permissions and# limitations under the License.##This script is used to download the connector plug-ins required during the running process.#All are downloaded by default. You can also choose what you need.#You only need to configure the plug-in name in config/plugin_config.# get seatunnel web homeSEATUNNEL_WEB_HOME=$(cd $(dirname $0);cd ../;pwd)DATASOURCE_DIR=${SEATUNNEL_WEB_HOME}/datasource# If you don’t want to download a certain data source, you can delete the element belowdatasource_list=( "datasource-plugins-api" "datasource-elasticsearch" "datasource-hive" "datasource-jdbc-clickhouse" "datasource-jdbc-hive" "datasource-jdbc-mysql" "datasource-jdbc-oracle" "datasource-jdbc-postgresql" "datasource-jdbc-redshift" "datasource-jdbc-sqlserver" "datasource-jdbc-starrocks" "datasource-jdbc-tidb" "datasource-kafka" "datasource-mysql-cdc" "datasource-s3" "datasource-sqlserver-cdc" "datasource-starrocks" "datasource-mongodb")# the datasource default version is 1.0.0, you can also choose a custom version. eg: 1.1.2: sh install-datasource.sh 2.1.2version=1.0.0if [ -n "$1" ]; then version="$1"fiecho "Downloading SeaTunnel Web Datasource lib, usage version is ${version}"# create the datasource directoryif [ ! -d "$DATASOURCE_DIR" ]; then mkdir -p "$DATASOURCE_DIR" echo "Created datasource directory."fifor i in "${datasource_list[@]}"doecho "$i"echo "Downloading datasource: " "$i" "$SEATUNNEL_WEB_HOME"/mvnw dependency:get -DgroupId=org.apache.seatunnel -DartifactId="$i" -Dversion="$version" -Ddest="$DATASOURCE_DIR"done

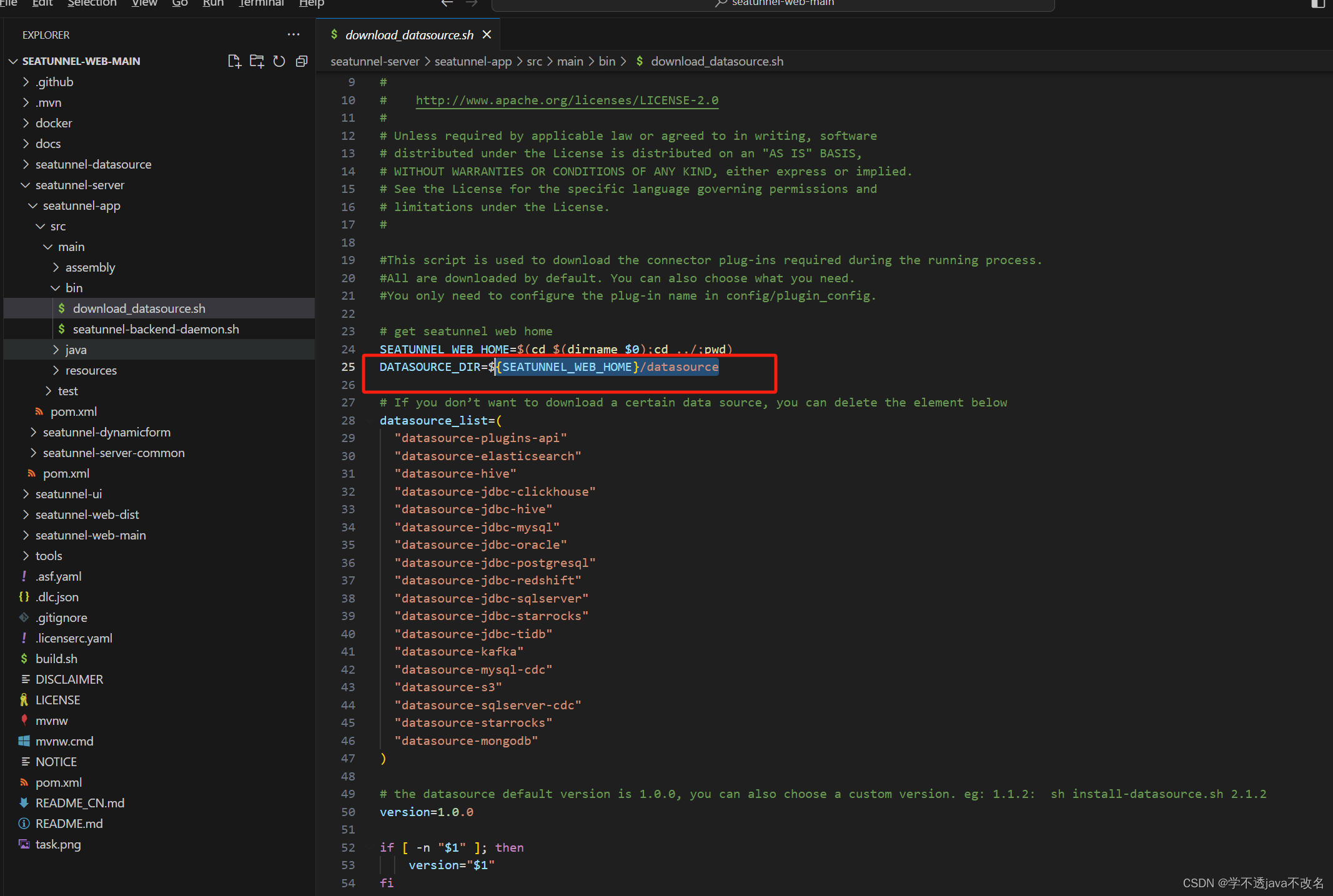

替换脚本的下载路劲,下载到之前创建的datasource目录中去
具体路径自定,只要能找到就行,然后同理,执行这个脚本

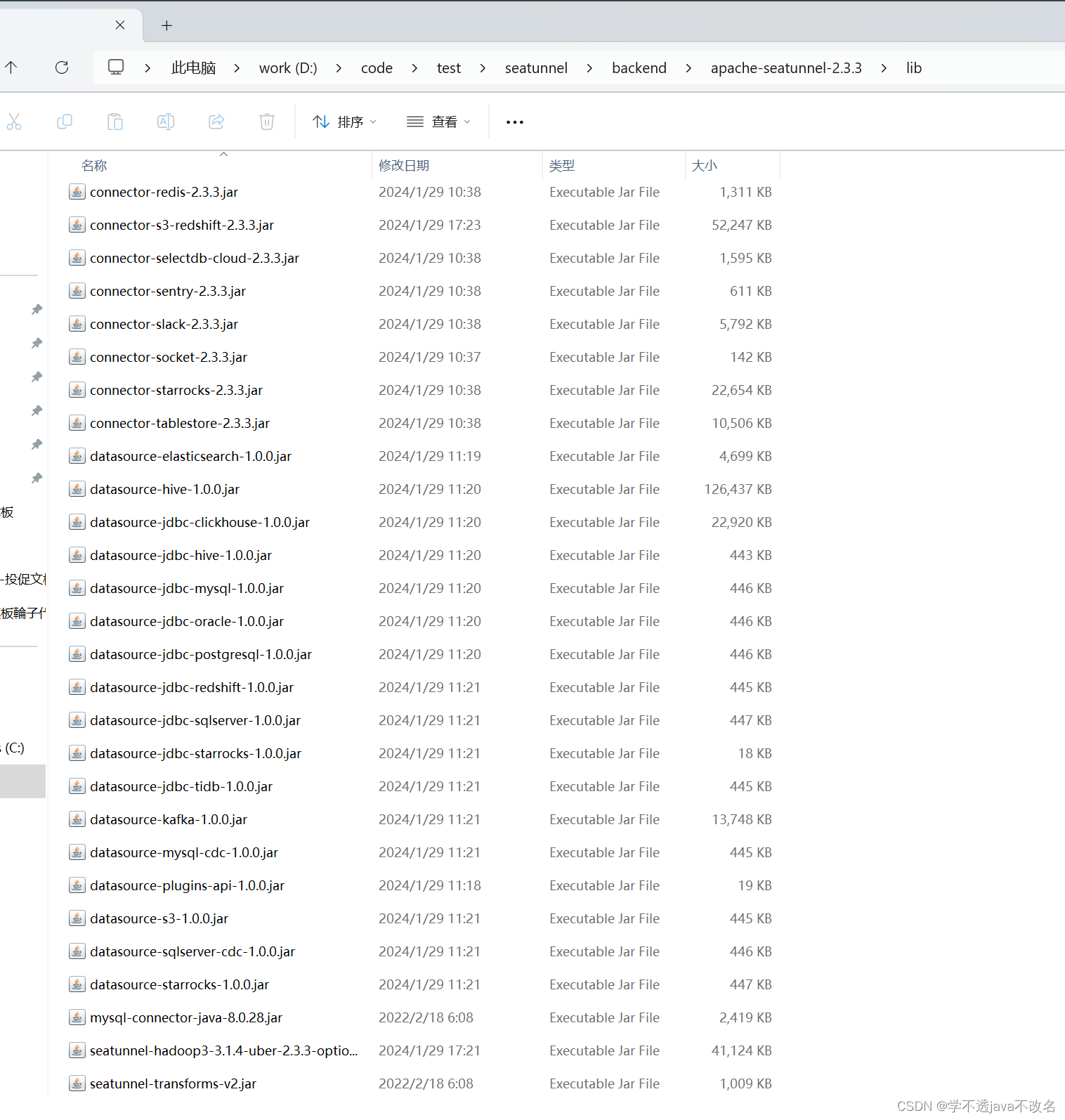

将下载的jar包复制到lib中去
然后最后我们来一个简单的全量同步

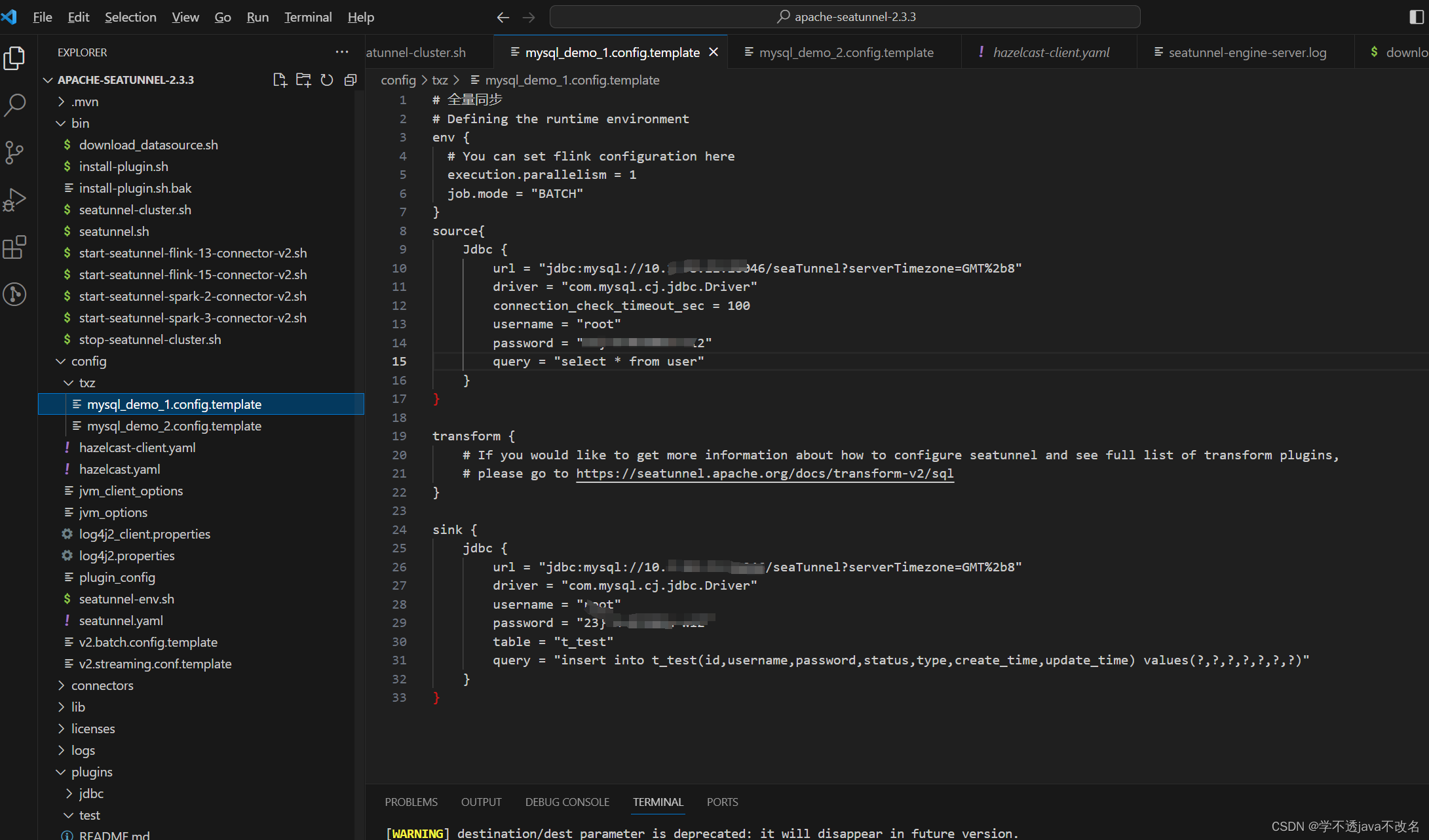

创建一个任务文件
如图
连通性自检哈
执行任务文件
./bin/seatunnel.sh --config config/txz/mysql_demo_1.config.template -e local
最后观察数据库同步情况即可
