一，旅行商问题QUBO的两种实现
提示：上篇已经讲过了旅行商问题的QUBO建模，这里直接讲两种编程实现：

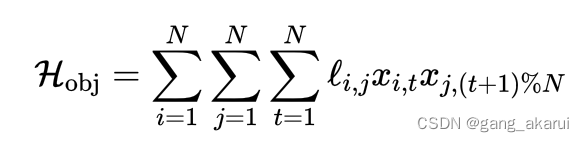

看过上篇的读者应该已经注意到，因为旅行商问题需要最终返回到初始点的。所以，下面?的目标函数里，循环进行到 N N N时，最后一个 x j , t + 1 x_{j,t+1} xj,t+1应该确定回到初始点的。
针对这个特殊设定，我们可以有两种实现方式：

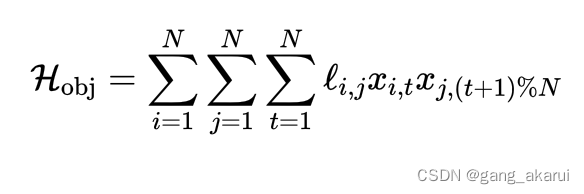

方式一：使用取余操作符%，在 t = N t=N t=N时，这样的话 ( t + 1 ) % N (t+1)\%N (t+1)%N=1，也就相当于最后一个时间步回到了初始点。

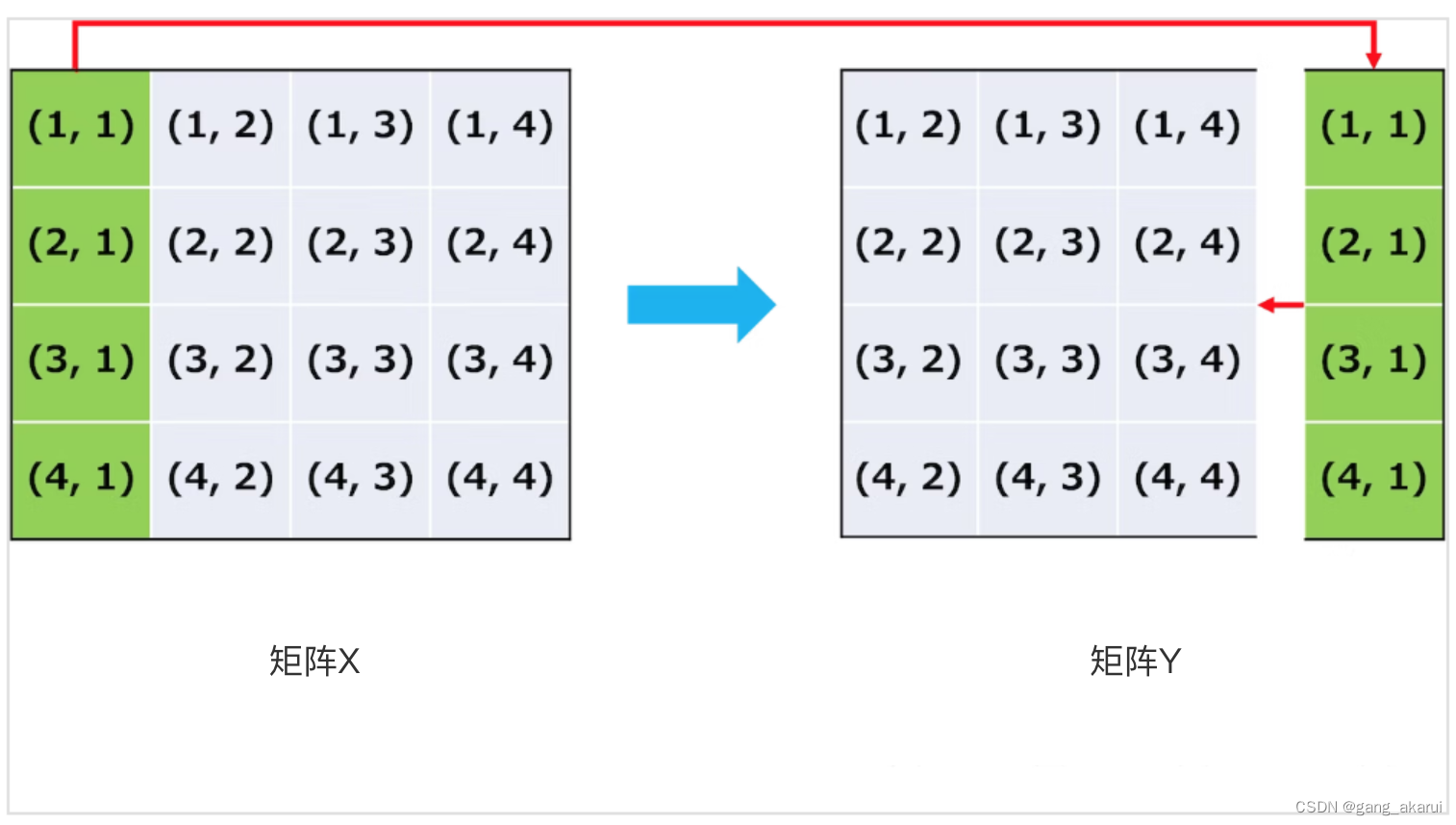

方式二：把 x i , t x_{i,t} xi,t 和 x j , t + 1 x_{j,t+1} xj,t+1对应的数值矩阵，分为独立的两个矩阵。具体来说， x i , t x_{i,t} xi,t从矩阵X中取值和 x j , t + 1 x_{j,t+1} xj,t+1从矩阵Y中取值。矩阵Y的数值就是， y j , t = x j , t + 1 y_{j,t} = x_{j,t+1} yj,t=xj,t+1，从式子上看，有点难以理解，大家可以看下面的图示。其实就是把矩阵X的第一列，转移到最后一列。

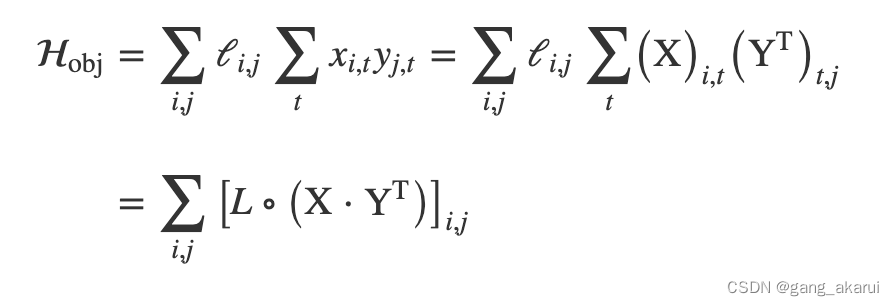

最后我们的目标函数就就看转换如下：
大家可以品味一下，∑符号怎么转换为矩阵操作。
提示：下面分别献上python实现：
二，方式一：取余操作
这里代码复制于下面的链接，这里只讲解QUBO部分的代码：
https://github.com/recruit-communications/pyqubo/blob/master/notebooks/TSP.ipynb旅行问题的QUBO的定义：
%matplotlib inlinefrom pyqubo import Array, Placeholder, Constraintimport matplotlib.pyplot as pltimport networkx as nximport numpy as npimport neal# 地点名和坐标 list[("name", (x, y))]cities = [ ("a", (0, 0)), ("b", (1, 3)), ("c", (3, 2)), ("d", (2, 1)), ("e", (0, 1))]n_city = len(cities)下面实现约束部分：

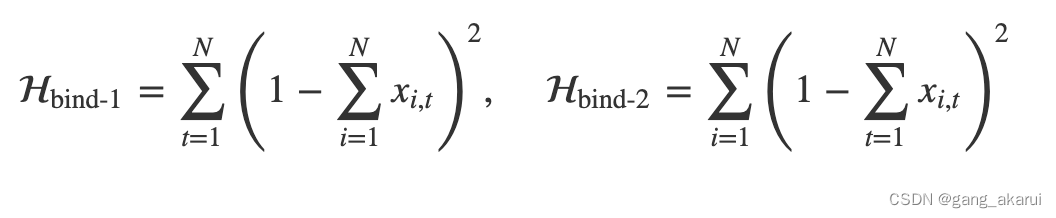

# ‘BINARY’代表目标变量时0或1 x = Array.create('c', (n_city, n_city), 'BINARY')# 约束① : 每个时间步只能访问1个地点time_const = 0.0for i in range(n_city): # Constraint(...)函数用来定义约束项 time_const += Constraint((sum(x[i, j] for j in range(n_city)) - 1)**2, label="time{}".format(i))# 约束② : 每个地点只能经过1次city_const = 0.0for j in range(n_city): city_const += Constraint((sum(x[i, j] for i in range(n_city)) - 1)**2, label="city{}".format(j))接下来是目标函数：
# 目标函数的定义distance = 0.0for i in range(n_city): for j in range(n_city): for k in range(n_city): d_ij = dist(i, j, cities) distance += d_ij * x[k, i] * x[(k+1)%n_city, j]最后就是整体的Hamiltonian量定义和输出采样结果。
# 总体的Hamiltonian，这里的A代表约束项的惩罚系数，数值自由指定A = Placeholder("A")H = distance + A * (time_const + city_const)# 求BQMmodel = H.compile()feed_dict = {'A': 4.0}bqm = model.to_bqm(feed_dict=feed_dict)sa = neal.SimulatedAnnealingSampler()# 这里要注意，退火算法是要采样足够的次数，从中取占比最高的结果作为最优解sampleset = sa.sample(bqm, num_reads=100, num_sweeps=100)# Decode solutiondecoded_samples = model.decode_sampleset(sampleset, feed_dict=feed_dict)best_sample = min(decoded_samples, key=lambda x: x.energy)# 如果指定参数only_broken=True，则只会返回损坏的约束。# 如果best_sample长度为0，就代表没有损坏的约束项，也就满足最优解了。num_broken = len(best_sample.constraints(only_broken=True))if num_broken == 0:print(best_sample.sample)三、方式二：独立矩阵
这里的实现复制于以下文章：

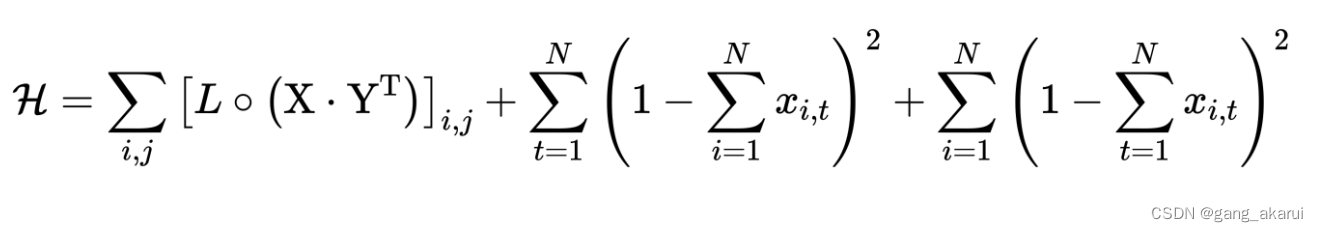

https://qiita.com/yufuji25/items/0425567b800443a679f7import nealimport numpy as npimport networkx as nximport matplotlib.pyplot as pltfrom pyqubo import Array, Placeholderfrom scipy.spatial.distance import cdistdef construct_graph(n_pos:int): """ construct complete graph """ pos = nx.spring_layout(nx.complete_graph(n_pos)) coordinates = np.array(list(pos.values())) G = nx.Graph(cdist(coordinates, coordinates)) nx.set_node_attributes(G, pos, "pos") return G整体Hamiltonian量：
def create_hamiltonian(G:nx.Graph): """ create QUBO model from graph structure """ # generate QUBO variable n_pos = G.number_of_nodes() X = np.array(Array.create("X", shape = (n_pos, n_pos), vartype = "BINARY")) # construct `Y` matrix Xtmp = np.concatenate([X, X[:, 0].reshape(-1, 1)], axis = 1) Y = np.delete(Xtmp, 0, 1) # Distance matrix L = np.array(nx.adjacency_matrix(G).todense()) # return hamiltonian Hbind1 = np.sum((1 - X.sum(axis = 0)) ** 2) Hbind2 = np.sum((1 - X.sum(axis = 1)) ** 2) Hobj = np.sum(X.dot(Y.T) * L) H = Hobj + Placeholder("a1") * Hbind1 + Placeholder("a2") * Hbind2 return H.compile()求解并输出结果：
def decode(response, Gorigin:nx.Graph): """ return output graph generated from response """ # derive circuit solution = min(response.record, key = lambda x: x[1])[0] X = solution.reshape((num_pos, num_pos)) circuit = np.argmax(X, axis = 0).tolist() circuit.append(circuit[0]) # generate output graph structure Gout = nx.Graph() Gout.add_edges_from(list(zip(circuit, circuit[1:]))) positions = nx.get_node_attributes(Gorigin, "pos") nx.set_node_attributes(Gout, positions, "pos") return Goutdef draw_graph(G:nx.Graph, **config): """ drawing graph """ plt.figure(figsize = (5, 4.5)) nx.draw(G, nx.get_node_attributes(G, "pos"), **config) plt.show()# configuration for drawing graphconfig = {"with_labels":True, "node_size":500, "edge_color":"r", "width":1.5, "node_color":"k", "font_color":"w", "font_weight":"bold"}# construct complete graphnum_pos = 8G = construct_graph(num_pos)draw_graph(G, **config)# samplingmodel = create_hamiltonian(G)qubo, offset = model.to_qubo(feed_dict = {"a1":500, "a2":500})response = neal.SimulatedAnnealingSampler().sample_qubo(qubo, num_reads = 1000)# output graphGout = decode(response, G)draw_graph(Gout, **config)总结
以上就是两种实现方式，大家可以体会一下，怎么实现稍微复杂的Hamiltonian量，接下来，讲解一下量子退火的物理原理。
参考文献：
[*1] : https://www.nttdata.com/jp/ja/-/media/nttdatajapan/files/news/services_info/2021/012800/012800-01.pdf
[*2] : https://qiita.com/yufuji25/items/0425567b800443a679f7
