【云原生】k8s 一键部署（ansible）

文章目录

一、概述二、Ansible 部署1）开启记录日志2）去掉第一次连接ssh ask确认3）配置hosts 三、开始编排 ansible playbook1）创建目录2）节点初始化3）安装 docker4）安装 k8s 相关组件5）k8s master节点初始化6）安装 CNI（flannel）7）master 节点加入k8s集群8）node 节点加入k8s集群9）安装 ingress-nginx10）安装 nfs 共享存储11）k8s 环境安装编排 roles12）k8s 环境卸载13）k8s 环境卸载编排 roles

一、概述

前面我写了关于k8s环境部署的几篇文章，k8s部署还是比较麻烦的，所以是有必要考虑一键部署的方案，这里借助ansible playbook来实现k8s环境的一键部署，实现快速部署的目的。关于k8s传统部署详细过程可以参考我以下几篇文章：

Kubernetes（k8s）安装以及搭建k8s-Dashboard详解Kubernetes（k8s）最新版最完整版环境部署+master高可用实现（k8sV1.24.1+dashboard+harbor）

关于Ansible的介绍可以参考我以下几篇文章：

Ansible 介绍与实战操作演示Ansible playbook 讲解与实战操作

节点信息

主机名	IP	角色	操作系统
local-168-182-110	192.168.182.110	master，ansible	centos7
local-168-182-111	192.168.182.110	master	centos7
local-168-182-112	192.168.182.110	master	centos7
local-168-182-113	192.168.182.110	node	centos7

k8s 架构图：

ansible部署流程图：

二、Ansible 部署

yum -y install epel-releaseyum -y install ansibleansible --version

1）开启记录日志

配置文件：/etc/ansible/ansible.cfg

vi /etc/ansible/ansible.cfg  # 去掉前面的'#'号#log_path = /var/log/ansible.log ==> log_path = /var/log/ansible.log

2）去掉第一次连接ssh ask确认

vi /etc/ansible/ansible.cfg  # 其实就是把#去掉# host_key_checking = False  ==> host_key_checking = False

3）配置hosts

配置文件：/etc/ansible/hosts

[master1]192.168.182.110[master2]192.168.182.111192.168.182.112[node]192.168.182.113[k8s:children]master1master2node[k8s:vars]ansible_ssh_user=rootansible_ssh_pass=1331301116ansible_ssh_port=22# k8s 版本k8s_version=1.23.6

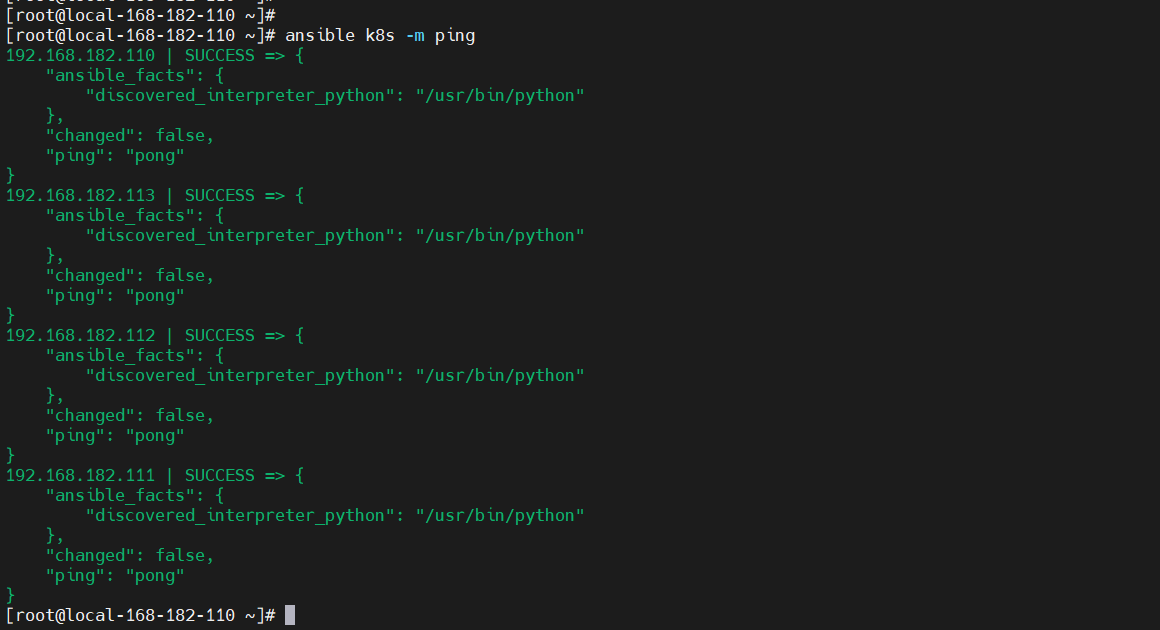

测试连通性

ansible k8s -m ping

三、开始编排 ansible playbook

1）创建目录

mkdir -pv ./install-k8s/{init,install-docker,install-k8s,master-init,install-cni,install-ipvs,master-join,node-join,install-ingress-nginx,install-nfs-provisioner,install-harbor,install-metrics-server,uninstall-k8s}/{files,templates,vars,tasks,handlers,meta,default}

2）节点初始化

准备install-k8s/init/files/hosts文件

192.168.182.110 local-168-182-110192.168.182.111 local-168-182-111192.168.182.112 local-168-182-112192.168.182.113 local-168-182-113

准备脚本install-k8s/init/templates/init.sh，内容如下：

#!/usr/bin/env bash### 【第一步】修改主机名# 获取主机名hostnamectl set-hostname $(grep `hostname -i` /tmp/hosts|awk '{print $2}')### 【第二步】配置hosts# 先删除for line in `cat /tmp/hosts`do    sed -i "/$line/d" /etc/hostsdone# 追加cat /tmp/hosts >> /etc/hosts### 【第三步】添加互信# 先创建秘钥对ssh-keygen -f ~/.ssh/id_rsa -P '' -q# 安装expectyum -y install expect -y# 批量推送公钥for line in `cat /tmp/hosts`doip=`echo $line|awk '{print $1}'`password={{ ansible_ssh_pass }}expect <<-EOFspawn ssh-copy-id -i /root/.ssh/id_rsa.pub $ipexpect {    "(yes/no)?"    {        send "yes\n"        expect "*assword:" { send "$password\n"}    }    "*assword:"    {        send "$password\n"    }}expect eofEOFdone### 【第四步】时间同步yum install chrony -ysystemctl start chronydsystemctl enable chronydchronyc sources### 【第五步】关闭防火墙systemctl stop firewalldsystemctl disable firewalld### 【第六步】关闭swap# 临时关闭；关闭swap主要是为了性能考虑swapoff -a# 永久关闭sed -ri 's/.*swap.*/#&/' /etc/fstab### 【第七步】禁用SELinux# 临时关闭setenforce 0# 永久禁用sed -i 's/^SELINUX=enforcing$/SELINUX=disabled/' /etc/selinux/config### 【第八步】允许 iptables 检查桥接流量sudo modprobe br_netfilterlsmod | grep br_netfilter# 先删rm -rf /etc/modules-load.d/k8s.confcat <<EOF | sudo tee /etc/modules-load.d/k8s.confoverlaybr_netfilterEOFsudo modprobe overlaysudo modprobe br_netfilterrm -rf /etc/sysctl.d/k8s.conf# 设置所需的 sysctl 参数，参数在重新启动后保持不变cat <<EOF | sudo tee /etc/sysctl.d/k8s.confnet.bridge.bridge-nf-call-iptables  = 1net.bridge.bridge-nf-call-ip6tables = 1net.ipv4.ip_forward                 = 1EOF# 应用 sysctl 参数而不重新启动sudo sysctl --system

任务编排 install-k8s/init/tasks/main.yml

- name: cp hosts  copy: src=hosts dest=/tmp/hosts- name: init cp  template: src=init.sh dest=/tmp/init.sh- name: init install  shell: sh /tmp/init.sh

3）安装 docker

install-k8s/install-docker/files/install-docker.sh

#!/usr/bin/env bash### 安装docker# 配置yum源cd /etc/yum.repos.d ; mkdir bak; mv CentOS-Linux-* bak/# centos7wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo# centos8# wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-8.repo# 安装yum-config-manager配置工具yum -y install yum-utils# 设置yum源yum-config-manager --add-repo http://mirrors.aliyun.com/docker-ce/linux/centos/docker-ce.repo# 安装docker-ce版本yum install -y docker-ce# 启动并开机自启systemctl enable --now docker# Docker镜像源设置# 修改文件 /etc/docker/daemon.json，没有这个文件就创建# 添加以下内容后，重启docker服务：cat >/etc/docker/daemon.json<<EOF{   "registry-mirrors": ["http://hub-mirror.c.163.com"],    "exec-opts": ["native.cgroupdriver=systemd"]}EOF# 重启systemctl restart docker# 查看systemctl status docker containerd

任务编排 install-k8s/install-docker/tasks/main.yml

- name: install docker cp  copy: src=install-docker.sh dest=/tmp/install-docker.sh- name: install docker  shell: sh /tmp/install-docker.sh

4）安装 k8s 相关组件

install-k8s/install-k8s/templates/install-k8s.sh

#!/usr/bin/env bash# 检查是否已经安装yum list installed kubeletif [ $? -eq 0 ];then   exit 0ficat > /etc/yum.repos.d/kubernetes.repo << EOF[k8s]name=k8senabled=1gpgcheck=0baseurl=https://mirrors.aliyun.com/kubernetes/yum/repos/kubernetes-el7-x86_64/EOF# disableexcludes=kubernetes：禁掉除了这个kubernetes之外的别的仓库yum install -y kubelet-{{ k8s_version }} kubeadm-{{ k8s_version }} kubectl-{{ k8s_version }} --disableexcludes=kubernetes# 设置为开机自启并现在立刻启动服务 --now：立刻启动服务systemctl enable --now kubelet# 查看状态，这里需要等待一段时间再查看服务状态，启动会有点慢systemctl status kubelet# 提前下载好docker pull registry.aliyuncs.com/google_containers/kube-apiserver:v{{ k8s_version }}docker pull registry.aliyuncs.com/google_containers/kube-controller-manager:v{{ k8s_version }}docker pull registry.aliyuncs.com/google_containers/kube-scheduler:v{{ k8s_version }}docker pull registry.aliyuncs.com/google_containers/kube-proxy:v{{ k8s_version }}docker pull registry.aliyuncs.com/google_containers/pause:3.6docker pull registry.aliyuncs.com/google_containers/etcd:3.5.1-0docker pull registry.aliyuncs.com/google_containers/coredns:v1.8.6

任务编排 install-k8s/install-k8s/tasks/main.yml

- name: install k8s cp  template: src=install-k8s.sh dest=/tmp/install-k8s.sh- name: install k8s  shell: sh /tmp/install-k8s.sh

5）k8s master节点初始化

install-k8s/master-init/templates/master-init.sh

#!/usr/bin/env bash# 判断是否已经初始化了kubectl get nodes |grep -q `hostname` 1>&2 >/dev/nullif [ $? -eq 0 ];then   exit 0fiip=`hostname -i`kubeadm init \  --apiserver-advertise-address=$ip \  --image-repository registry.aliyuncs.com/google_containers \  --kubernetes-version v{{ k8s_version }} \  --control-plane-endpoint=$ip \  --service-cidr=10.1.0.0/16 \  --pod-network-cidr=10.244.0.0/16 \  --v=5mkdir -p $HOME/.kuberm -rf $HOME/.kube/configsudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/config

任务编排 install-k8s/master-init/tasks/main.yml

- name: k8s master init cp  template: src=master-init.sh dest=/tmp/master-init.sh- name: k8s master init  shell: sh /tmp/master-init.sh

6）安装 CNI（flannel）

install-k8s/install-cni/files/install-flannel.sh

#!/usr/bin/env bash# 去掉master污点kubectl taint nodes `hostname` node-role.kubernetes.io/master:NoSchedule- 2>/dev/nullkubectl taint nodes `hostname` node.kubernetes.io/not-ready:NoSchedule- 2>/dev/null# For Kubernetes v1.17+kubectl apply -f https://raw.githubusercontent.com/flannel-io/flannel/v0.20.2/Documentation/kube-flannel.yml# 查看kubectl get all -n kube-flannel# 持续检查while truedo   kubectl get pods -n kube-flannel|grep -q '0/1'   if [ $? -ne 0 ];then      echo "flannel started"      break    else      echo "flannel starting..."    fi    sleep 1done

任务编排 install-k8s/install-cni/tasks/main.yml

- name: install cni flannel cp  copy: src=install-flannel.sh dest=/tmp/install-flannel.sh- name: install cni flannel  shell: sh /tmp/install-flannel.sh

7）master 节点加入k8s集群

install-k8s/master-join/files/master-join.sh

#!/usr/bin/env bash# 获取master ip，假设都是第一个节点为master# 证如果过期了，可以使用下面命令生成新证书上传，这里会打印出certificate key，后面会用到maser_ip=`head -1 /tmp/hosts |awk '{print $1}'`# 判断节点是否加入ssh $maser_ip "kubectl get nodes|grep -q `hostname`"if [ $? -eq 0 ];thenexit 0fiCERT_KEY=`ssh $maser_ip "kubeadm init phase upload-certs --upload-certs|tail -1"`join_str=`ssh $maser_ip kubeadm token create --print-join-command`$( echo $join_str " --control-plane --certificate-key $CERT_KEY --v=5")# 拿到上面打印的命令在需要添加的节点上执行# --control-plane 标志通知 kubeadm join 创建一个新的控制平面。加入master必须加这个标记# --certificate-key ... 将导致从集群中的 kubeadm-certs Secret 下载控制平面证书并使用给定的密钥进行解密。这里的值就是上面这个命令（kubeadm init phase upload-certs --upload-certs）打印出的key。mkdir -p $HOME/.kubesudo cp -i /etc/kubernetes/admin.conf $HOME/.kube/configsudo chown $(id -u):$(id -g) $HOME/.kube/config# 去掉master污点kubectl taint nodes `hostname` node-role.kubernetes.io/master:NoSchedule- 2>/dev/nullkubectl taint nodes `hostname` node.kubernetes.io/not-ready:NoSchedule- 2>/dev/null

任务编排 install-k8s/master-join/tasks/main.yml

- name: master join cp  copy: src=master-join.sh dest=/tmp/master-join.sh- name: master join  shell: sh /tmp/master-join.sh

8）node 节点加入k8s集群

install-k8s/node-join/files/node-join.sh

#!/usr/bin/env bash# 获取master ip，假设都是第一个节点为mastermaser_ip=`head -1 /tmp/hosts |awk '{print $1}'`# 判断节点是否加入ssh $maser_ip "kubectl get nodes|grep -q `hostname`"if [ $? -eq 0 ];thenexit 0fiCERT_KEY=`ssh $maser_ip "kubeadm init phase upload-certs --upload-certs|tail -1"`join_str=`ssh $maser_ip kubeadm token create --print-join-command`$( echo $join_str " --certificate-key $CERT_KEY --v=5")

任务编排 install-k8s/node-join/tasks/main.yml

- name: node join cp  copy: src=node-join.yaml dest=/tmp/node-join.yaml- name: node join  shell: sh /tmp/node-join.yaml

9）安装 ingress-nginx

install-k8s/install-ingress-nginx/files/ingress-nginx.sh

#!/usr/bin/env bash# wget https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.2.0/deploy/static/provider/cloud/deploy.yaml -O /tmp/deploy.yaml# 可以先把镜像下载，再安装docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/nginx-ingress-controller:v1.2.0docker pull registry.cn-hangzhou.aliyuncs.com/google_containers/kube-webhook-certgen:v1.1.1kubectl apply -f /tmp/deploy.yaml

任务编排 install-k8s/install-ingress-nginx/tasks/main.yml

- name: ingress-nginx deploy cp  copy: src=deploy.yaml dest=/tmp/deploy.yaml- name: install ingress-nginx cp  copy: src=ingress-nginx.sh dest=/tmp/ingress-nginx.sh- name: install ingress-nginx  shell: sh /tmp/ingress-nginx.sh

10）安装 nfs 共享存储

install-k8s/install-nfs-provisioner/files/nfs-provisioner.sh

#!/usr/bin/env bash### 安装helm# 下载包wget https://get.helm.sh/helm-v3.7.1-linux-amd64.tar.gz -O /tmp/helm-v3.7.1-linux-amd64.tar.gz# 解压压缩包tar -xf /tmp/helm-v3.7.1-linux-amd64.tar.gz -C /root/# 制作软连接rm -rf /usr/local/bin/helmln -s /root/linux-amd64/helm /usr/local/bin/helm# 判断是否已经部署helm list -n nfs-provisioner|grep -q nfs-provisionerif [ $? -eq 0 ];then   exit 0fi### 开始安装nfs-provisioner# 添加helm仓库源helm repo add nfs-subdir-external-provisioner https://kubernetes-sigs.github.io/nfs-subdir-external-provisioner/#### 安装nfsyum -y install  nfs-utils rpcbind# 服务端mkdir -p /opt/nfsdata# 授权共享目录chmod 666 /opt/nfsdatacat > /etc/exports<<EOF/opt/nfsdata *(rw,no_root_squash,no_all_squash,sync)EOF# 配置生效exportfs -rsystemctl enable --now rpcbindsystemctl enable --now nfs-server# 客户端for line in `cat /tmp/hosts`do    ip=`echo $line|awk '{print $1}'`    master_ip=`head -1 /tmp/hosts|awk '{print $1}'`    if [ "$ip" != "$master_ip" ];then       ssh $ip "yum -y install rpcbind"       ssh $ip "systemctl enable --now rpcbind"    fidone### helm安装nfs provisionerip=`hostname -i`helm install nfs-subdir-external-provisioner nfs-subdir-external-provisioner/nfs-subdir-external-provisioner \  --namespace=nfs-provisioner \  --create-namespace \  --set image.repository=willdockerhub/nfs-subdir-external-provisioner \  --set image.tag=v4.0.2 \  --set replicaCount=2 \  --set storageClass.name=nfs-client \  --set storageClass.defaultClass=true \  --set nfs.server=${ip} \  --set nfs.path=/opt/nfsdata# 查看kubectl get pods,deploy,sc -n nfs-provisioner# 持续检查while truedo   kubectl get pods -n nfs-provisioner|grep -q '0/1'   if [ $? -ne 0 ];then      echo "nfs-provisioner started"      break    else      echo "nfs-provisioner starting..."    fi    sleep 1done

任务编排 install-k8s/install-nfs-provisioner/tasks/main.yml

- name: install nfs-provisioner cp  copy: src=nfs-provisioner.sh dest=/tmp/nfs-provisioner.sh- name: install nfs-provisioner  shell: sh /tmp/nfs-provisioner.sh

11）k8s 环境安装编排 roles

install-k8s.yaml

- hosts: k8s  remote_user: root  roles:    - init- hosts: k8s  remote_user: root  roles:    - install-docker- hosts: k8s  remote_user: root  roles:    - install-k8s- hosts: master1  remote_user: root  roles:    - master-init- hosts: master1  remote_user: root  roles:    - install-cni- hosts: master2  remote_user: root  roles:    - master-join- hosts: node  remote_user: root  roles:    - node-join- hosts: master1  remote_user: root  roles:    - install-ingress-nginx- hosts: master1  remote_user: root  roles:    - install-nfs-provisioner

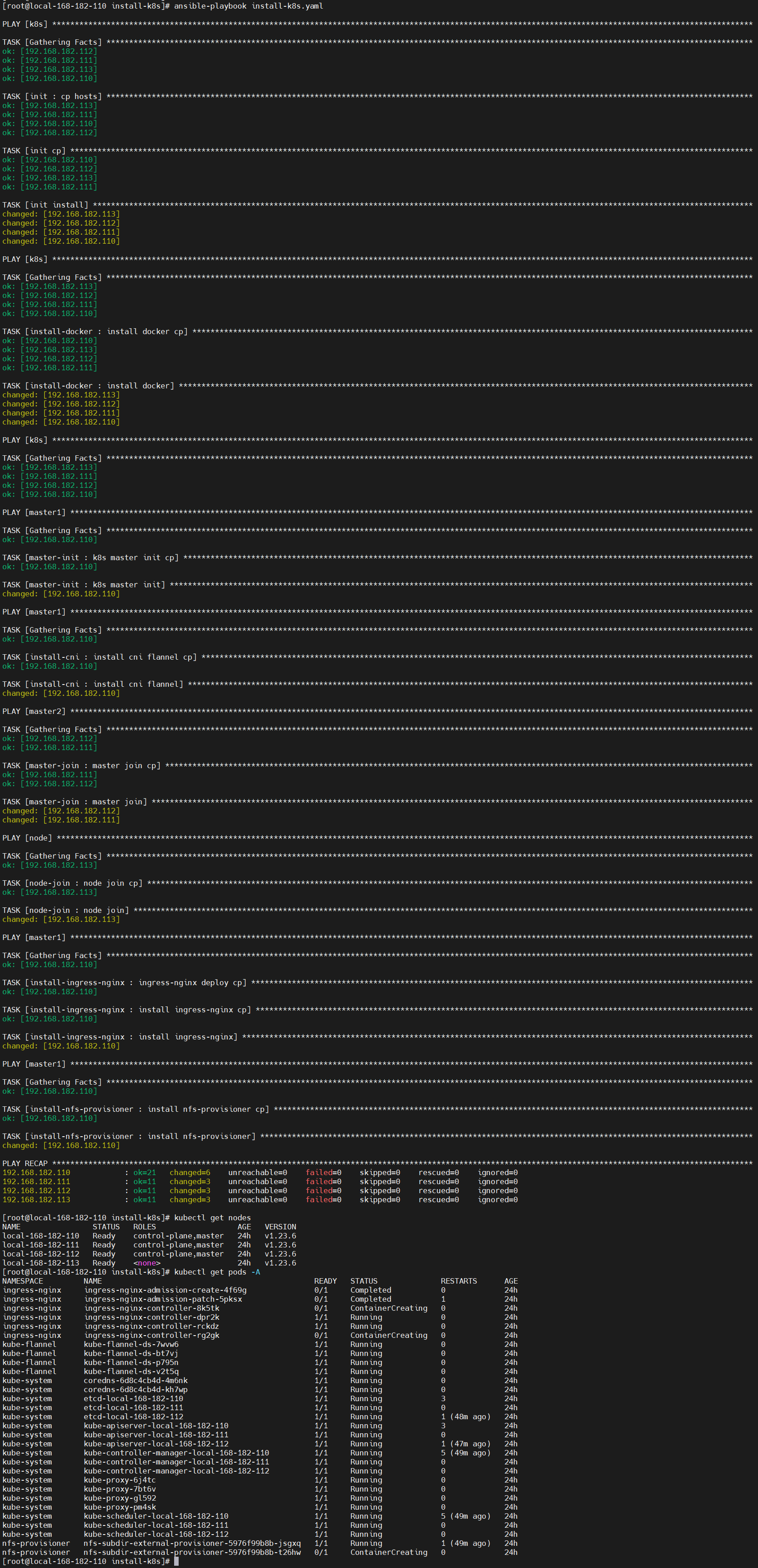

执行安装

# 可以加上-vvv显示更多信息ansible-playbook install-k8s.yamlkubectl get nodeskubectl get pods -A

12）k8s 环境卸载

install-k8s/uninstall-k8s/files/uninstall-k8s.sh

#!/usr/bin/env bashexpect <<-EOFspawn kubeadm resetexpect "*y/N*"send "y\n"expect eofEOFrm -rf /etc/kubernetes/*rm -fr ~/.kuberm -fr /var/lib/etcd

任务编排 install-k8s/uninstall-k8s/tasks/main.yaml

- name: uninstall k8s cp  copy: src=uninstall-k8s.sh dest=/tmp/uninstall-k8s.sh- name: uninstall k8s  shell: sh /tmp/uninstall-k8s.sh

13）k8s 环境卸载编排 roles

uninstall-k8s.yaml

- hosts: k8s  remote_user: root  roles:    - uninstall-k8s

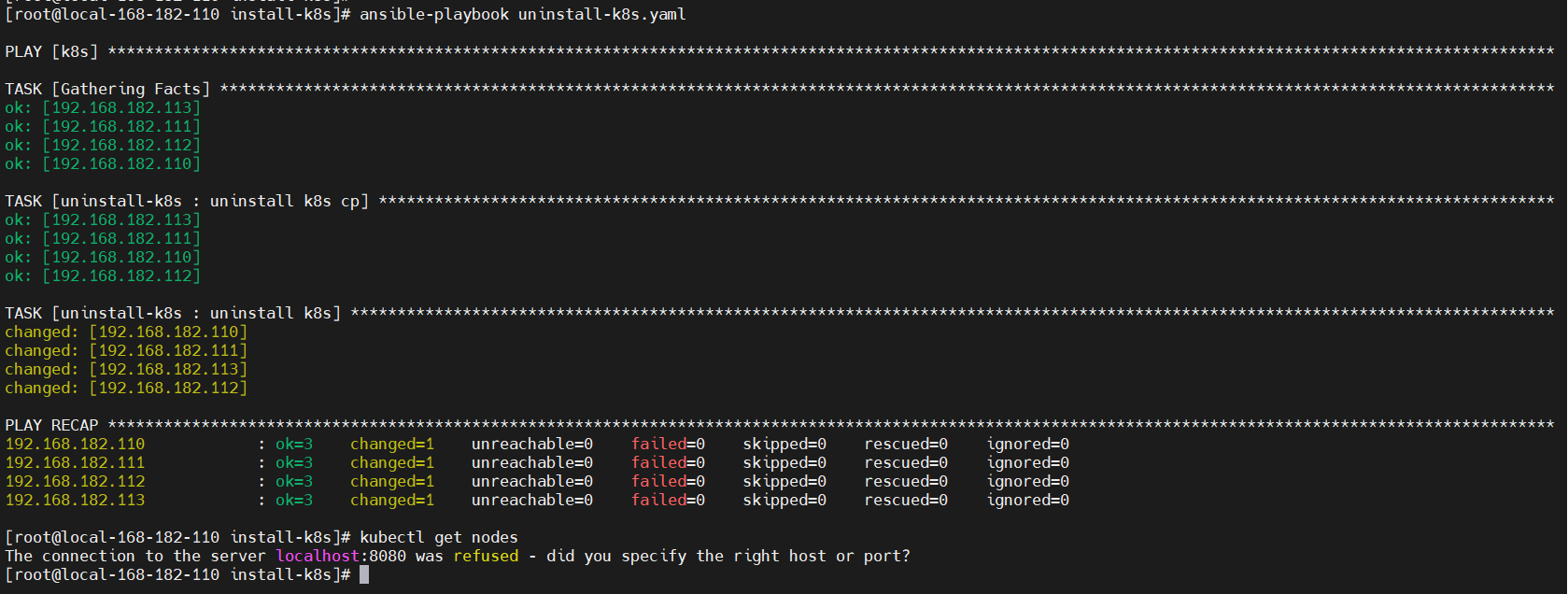

执行卸载

ansible-playbook uninstall-k8s.yaml

温馨提示：

其实创建目录结构可以通过ansible-galaxy工具，也可以通过这个工具安装在线别人编排好的包，非常方便的。

这里只是验证了k8s V1.23.6版本的，其它高版本和低版本后续会继续完善验证，还有就是如果执行脚本的话，可以将copy和shell模块并用一个script模块，编排就会变更更简洁，其实script内部也是先copy文件，执行完后会清理。

k8s 一键部署（ansible）就先到这里了，后续会继续完善，增加其它组件和验证其它版本，让部署k8s环境变得更简单方便。关注我的公众号【大数据与云原生技术分享】，回复 k8s，即可获取下载地址。
