背景:uniapp 开发的h5项目,需要播放m3u8/flv后缀的视频,网上有很多视频插件,但是样式和效果不尽如人意,博主最后选择mui-player插件,定制化稍微强一点以及有官方文档可以阅读,官网文档https://muiplayer.js.org/zh/guide/
tips:建议先阅读官方文档,再在页面进行引入

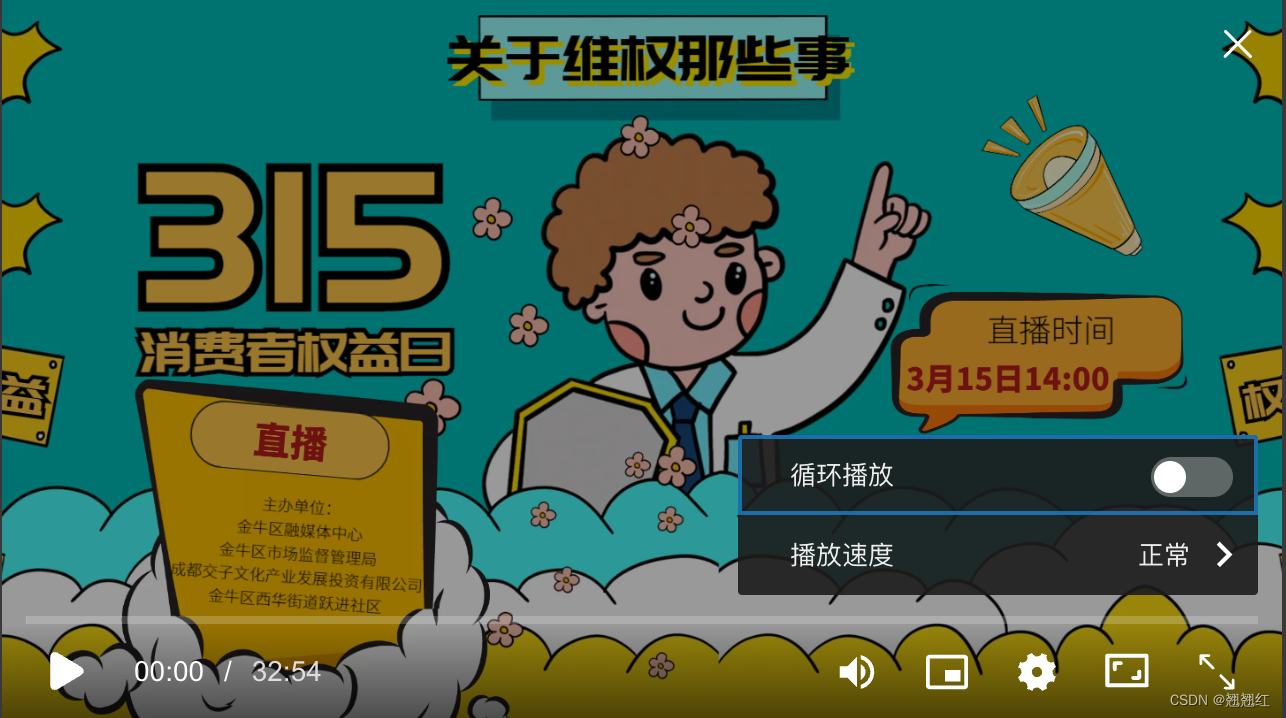

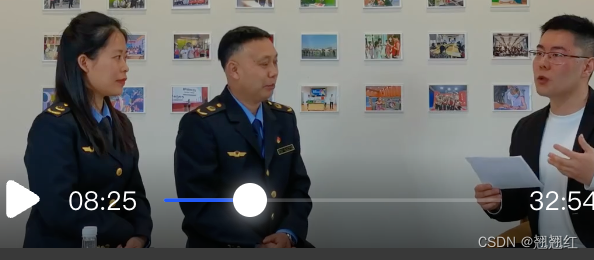

博主最后实现的效果如下,pc端和移动端为两种展示样式,pc可以设置声音、播放速度、分辨率、全屏、画中画等功能,具体还有其他的功能自定义可以参照官网,官网的说明很详细以及有示例进行参考;移动端和pc端的功能大差不差,只是展现形式略有差别。
1、安装mui-player插件
npm i mui-player --save
2、页面引入,可选择在需要展示视频的页面直接引入,也可以放入一个公共组件,这样方便多个页面都会使用播放器的情况,博主这里将播放器作为一个公共组件,在组件里面引入
// 播放器样式文件import 'mui-player/dist/mui-player.min.css'// npm安装方式引入mui-playerimport MuiPlayer from 'mui-player'// 要播放m3u8的视频就必须要引入hls.jsimport Hls from 'hls.js'// 要播放flv的视频就必须要引入flv.jsimport Flv from 'flv.js'// 要设置pc端视频的清晰度需要引入pc端扩展import MuiPlayerDesktopPlugin from 'mui-player-desktop-plugin'
3、template模板
<template><view id="mui-player"><!-- 可在这里添加你想要覆盖在视频上面的内容,这里我加了一个关闭按钮,层级最高,不会影响视频的播放 --><image v-if="showCloseIcon" src="@/sub-live/static/close.png" class="pos-a full-close" @click.stop="videoClose"></view></template>
4、data定一个空的mp对象
data() {return {mp: {}}},
5、需要向使用的页面传递的参数
props: {// 视频流地址,必传src: {type: String,default: ''},// 视频封面图,可选poster: {type: String,default: ''},// 是否要展示关闭视频图标showCloseIcon: {type: Boolean,default: false},// 当前视频是否是直播模式live: {type: Boolean,default: false},// 兼容音频m3u8(有些音频地址也是m3u8,但是音频不需要播放样式,所以需要兼容)isZero: {type: Boolean,default: false},// 设置pc/移动端清晰度选择childConfig: {type: Array,default: () => [{functions: '高清',selected: true},{functions: '标清'},{functions: '流畅'},]}}
6、mounted生命周期初始化
mounted() {// 防止this的改变const _this = this;// 根据视频路径后缀判断当前为m3u8还是flv的视频流var flieArr = _this.src.split('.');var suffix = flieArr[flieArr.length - 1];// m3u8格式var a = suffix.indexOf('m3u8') !== -1// flv格式var b = suffix.indexOf('flv') !== -1var c = {}// m3u8格式的视频配置if (a) {c = {type: 'hls',loader: Hls,config: {debug: false,}}}// flv格式的视频配置if (b) {c = {type: 'flv',loader: Flv,config: {cors: true},}}// 设置宽高,兼容音频,音频时高度为1,必须设置高度,不然音频没发播放,初始化会失败var sWidth = uni.getSystemInfoSync().screenWidth; // 获取屏幕宽度var width = 1;if (!_this.isZero) { // 不为音频if (_this.$util.isMobile()) { // 移动端动态获取width = sWidth;} else {width = 640; // pc端固定宽度为640}}var height = 1;if (!_this.isZero) {height = parseInt(width * 9 / 16) // 可改成你想设置的视频的高度,博主这里设置为宽高比为16:9的视频}_this.mp = new MuiPlayer({// 指定播放器容器container: '#mui-player',// 视频播放的资源地址src: _this.src,// 是否自动播放,亲测在ios某些机型上自动播放失效autoplay: false,// 是否静音播放muted: false,// 初始化播放器宽度width: width,// 初始化播放器高度height: height,// 播放器容器是否自适应视频高度autoFit: false,// 是否循环播放loop: false,// 视频封面的资源地址poster: _this.poster,// 是否开启直播模式,直播模式默认菜单配置不允许控制播放速度以及循环播放live: _this.live,// 配置声明启用同层播放videoAttribute: [{attrKey: 'webkit-playsinline',attrValue: 'webkit-playsinline'},{attrKey: 'playsinline',attrValue: 'playsinline'},{attrKey: 'x5-video-player-type',attrValue: 'h5-page'},],// flv以及m3u8视频资源的配置parse: c,// 自定义主题颜色themeColor: _this.$config.INFO.THEME_COLOR,// 非全屏模式下,是否显示播放器头部操作控件,具体可参考官方文档pageHead: false,plugins: [// pc端清晰度设置new MuiPlayerDesktopPlugin({customSetting: _this.childConfig.length > 0 ? [{functions: '清晰度',model: 'select',show: true,zIndex: 0,childConfig: _this.childConfig,onToggle: function(data, selected) {let onToggleLoad = function(state) {_this.mp.once('ready', function() {let _video = _this.mp.video();let _execute = function() {_video.currentTime = state.currentTime;state.paused ? _video.pause() :_video.play();}if (_video.readyState == 0) {_video.addEventListener('durationchange',function(e) {_execute();}, {once: true})} else {_execute();}})}// 选择清晰度后重载视频selected(function() {let _video = _this.mp.video();onToggleLoad({currentTime: _video.currentTime,paused: _video.paused});// 将当前选择的清晰度传递给父组件_this.$emit('onToggleFn', data.functions)});}}] : []})]});// 必须放在nextTick里面,等待dom渲染完成再监听视频的播放事件等,视频的其他事件也可在此处进行监听_this.$nextTick(() => {// 监听播放器已创建完成_this.mp.on('ready', function(event) {let _video = _this.mp.video();_video.addEventListener("play",function(e){//播放事件_this.$emit('onPlayFn')});_video.addEventListener("ended",function(e){//播放完成事件_this.$emit('onEndedFn')});});// 播放发生错误_this.mp.on('error', function(event) {console.log('error', event);});})}
7、组件销毁,视频播放器也要销毁
destroyed() {this.mp.destroy();},
8、可在组件内定义一些播放/暂停的事件供父组件调用(按需写入)
// 关闭视频,返回上一页videoClose() {uni.navigateBack();},// 播放视频playVideo() {let _video = this.mp.video(); // 获取视频示例_video.paused ?_video.play(): _video.pause(); // 和原生video事件一致},// 暂停视频pauseVideo(){let _video = this.mp.video();_video.pause();}
9、播放视频组件完整代码,可按需进行增删改
<template><view id="mui-player"><image v-if="showCloseIcon" src="@/sub-live/static/close.png" class="pos-a full-close" @click.stop="videoClose"></view></template><script>import 'mui-player/dist/mui-player.min.css'import MuiPlayer from 'mui-player'import Hls from 'hls.js'import Flv from 'flv.js'import MuiPlayerDesktopPlugin from 'mui-player-desktop-plugin'export default {props: {src: {type: String,default: ''},poster: {type: String,default: ''},showCloseIcon: {type: Boolean,default: false},live: {type: Boolean,default: false},// 兼容音频m3u8isZero: {type: Boolean,default: false},childConfig: {type: Array,default: () => [{functions: '高清',selected: true},{functions: '标清'},{functions: '流畅'},]}},data() {return {mp: {}}},watch: {src(newVal, oldVal) {this.mp.reloadUrl(newVal);}},mounted() {const _this = this;var flieArr = _this.src.split('.');var suffix = flieArr[flieArr.length - 1];// m3u8格式var a = suffix.indexOf('m3u8') !== -1// flv格式var b = suffix.indexOf('flv') !== -1var c = {}if (a) {c = {type: 'hls',loader: Hls,config: {debug: false,}}}if (b) {c = {type: 'flv',loader: Flv,config: {cors: true},}}var sWidth = uni.getSystemInfoSync().screenWidth;var width = 1;if (!_this.isZero) {if (_this.$util.isMobile()) {width = sWidth;} else {width = 640;}}var height = 1;if (!_this.isZero) {height = parseInt(width * 9 / 16)}_this.mp = new MuiPlayer({// 指定播放器容器container: '#mui-player',// 视频播放的资源地址src: _this.src,autoplay: false,muted: false,width: width,// 初始化播放器高度height: height,// 播放器容器是否自适应视频高度autoFit: false,// looploop: false,// 视频封面的资源地址poster: _this.poster,// 是否开启直播模式,直播模式默认菜单配置不允许控制播放速度以及循环播放live: _this.live,// 配置声明启用同层播放videoAttribute: [{attrKey: 'webkit-playsinline',attrValue: 'webkit-playsinline'},{attrKey: 'playsinline',attrValue: 'playsinline'},{attrKey: 'x5-video-player-type',attrValue: 'h5-page'},],parse: c,// 自定义主题颜色themeColor: _this.$config.INFO.THEME_COLOR,// 非全屏模式下,是否显示播放器头部操作控件pageHead: false,plugins: [new MuiPlayerDesktopPlugin({customSetting: _this.childConfig.length > 0 ? [{functions: '清晰度',model: 'select',show: true,zIndex: 0,childConfig: _this.childConfig,onToggle: function(data, selected) {let onToggleLoad = function(state) {_this.mp.once('ready', function() {let _video = _this.mp.video();let _execute = function() {_video.currentTime = state.currentTime;state.paused ? _video.pause() :_video.play();}if (_video.readyState == 0) {_video.addEventListener('durationchange',function(e) {_execute();}, {once: true})} else {_execute();}})}selected(function() {let _video = _this.mp.video();onToggleLoad({currentTime: _video.currentTime,paused: _video.paused});_this.$emit('onToggleFn', data.functions)});}}] : []})]});_this.$nextTick(() => {// 监听播放器已创建完成_this.mp.on('ready', function(event) {let _video = _this.mp.video();_video.addEventListener("play",function(e){//播放事件_this.$emit('onPlayFn')});_video.addEventListener("ended",function(e){//播放完成事件_this.$emit('onEndedFn')});});// 播放发生错误_this.mp.on('error', function(event) {console.log('error', event);});})},destroyed() {console.log('destroyed');this.mp.destroy();},methods: {videoClose() {uni.navigateBack();},playVideo() {let _video = this.mp.video();_video.paused ?_video.play(): _video.pause();},pauseVideo(){let _video = this.mp.video();_video.pause();}},}</script><style lang="scss" scoped>#mui-player{z-index: 2;}.full-close {top: 22rpx;right: 22rpx;width: 44rpx;height: 44rpx;cursor: pointer;z-index: 8;}</style>
10、父组件调用播放器,按需进行修改
<!-- #ifdef H5 --><common-player ref="muiplayer" :showCloseIcon="true" :poster="liveDetailInfo.thumb":live="liveDetailInfo.start_time <= nowTime && nowTime <= liveDetailInfo.end_time ? true : false":src="liveDetailInfo.rewriteVideoUrl" :childConfig="liveDetailInfo.qxdConfig"@onToggleFn="qxdToggle" @onEndedFn="ended" @onPlayFn="playFn"></common-player><!-- #endif -->
总结:此播放器还是使用了开源的mui-player,所以尽量先去看文档,文档写的很详细,只是需要大面积的增删改操作,最后定制为自已想要的样子。
