Android C++语言 通过Binder通信调用activity: [android.app.IActivityManager] 服务发广播_海月汐辰

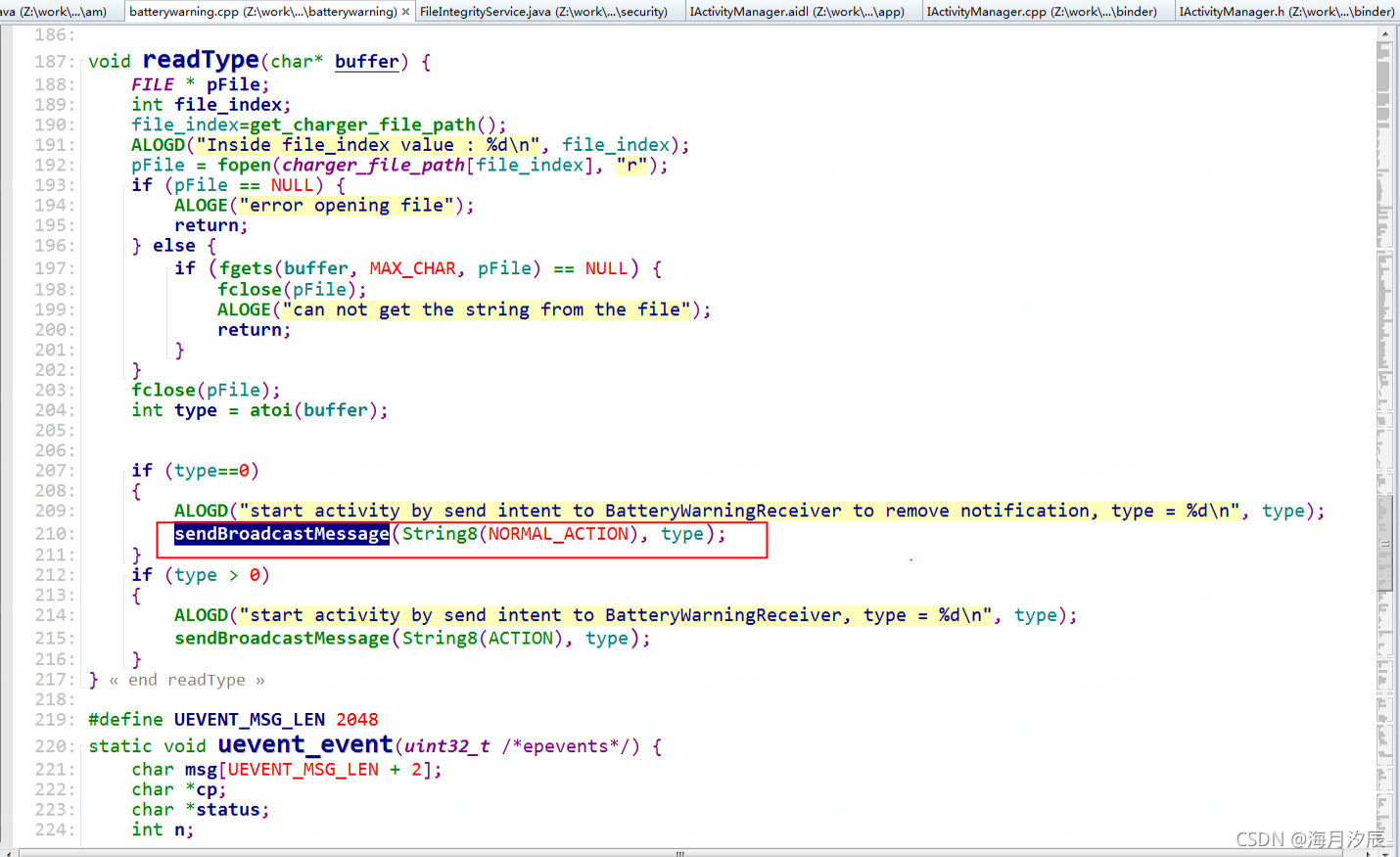

一、这里拿电池温度警告框的例子来学习一下C++语言 通过Binder通信调用activity: [android.app.IActivityManager] 服务发广播。

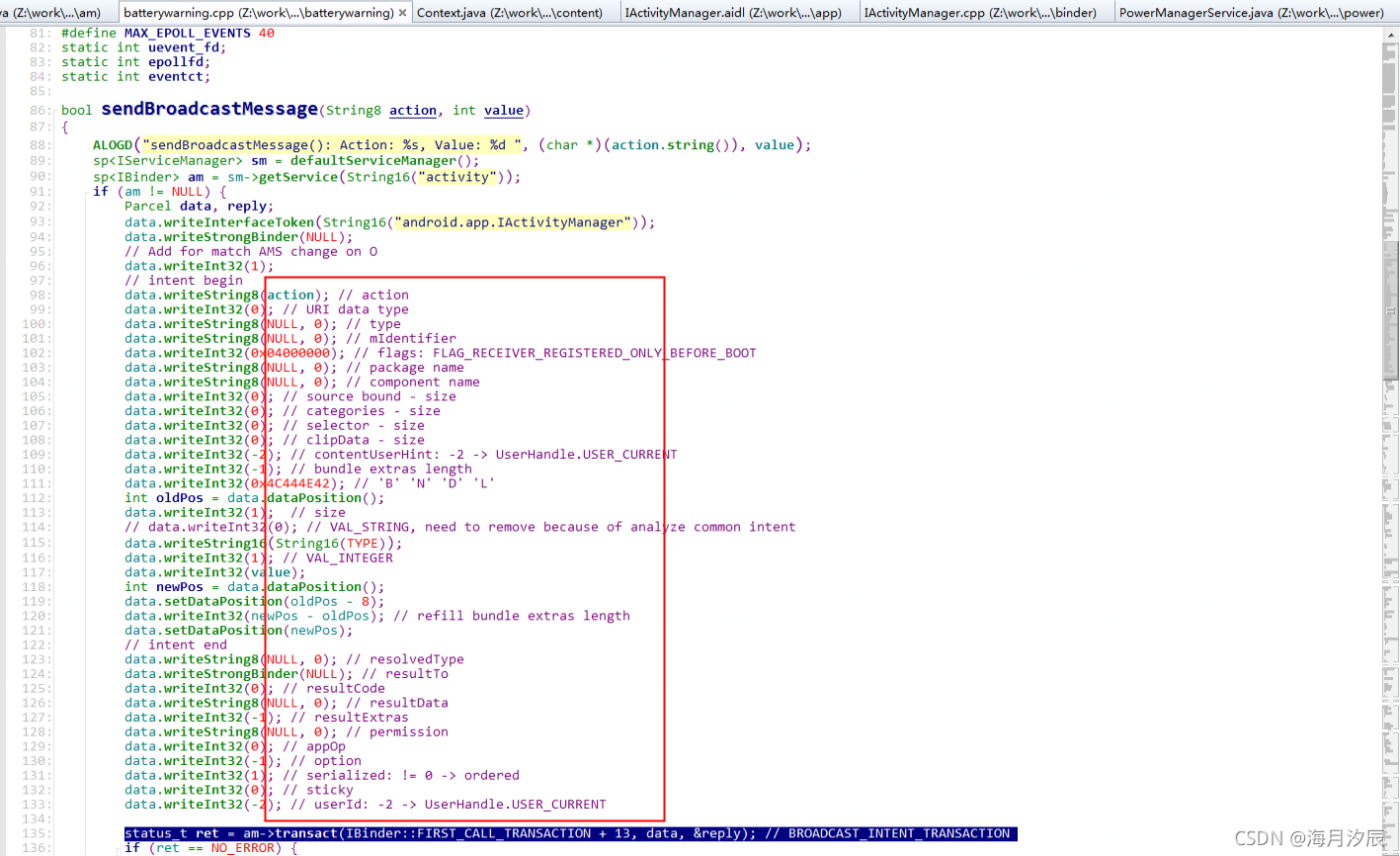

二、vendor\mediatek\proprietary\frameworks\opt\batterywarning\batterywarning.cpp 发广播的地方。

bool sendBroadcastMessage(String8 action, int value)
{
    ALOGD("sendBroadcastMessage(): Action: %s, Value: %d ", (char *)(action.string()), value);
    sp<IServiceManager> sm = defaultServiceManager();
    sp<IBinder> am = sm->getService(String16("activity"));
    if (am != NULL) {
        Parcel data, reply;
        data.writeInterfaceToken(String16("android.app.IActivityManager"));
        data.writeStrongBinder(NULL);
        // Add for match AMS change on O
        data.writeInt32(1);
        // intent begin
        data.writeString8(action); // action
        data.writeInt32(0); // URI data type
        data.writeString8(NULL, 0); // type
        data.writeString8(NULL, 0); // mIdentifier
        data.writeInt32(0x04000000); // flags: FLAG_RECEIVER_REGISTERED_ONLY_BEFORE_BOOT
        data.writeString8(NULL, 0); // package name
        data.writeString8(NULL, 0); // component name
        data.writeInt32(0); // source bound - size
        data.writeInt32(0); // categories - size
        data.writeInt32(0); // selector - size
        data.writeInt32(0); // clipData - size
        data.writeInt32(-2); // contentUserHint: -2 -> UserHandle.USER_CURRENT
        data.writeInt32(-1); // bundle extras length
        data.writeInt32(0x4C444E42); // 'B' 'N' 'D' 'L'
        int oldPos = data.dataPosition();
        data.writeInt32(1);  // size
        // data.writeInt32(0); // VAL_STRING, need to remove because of analyze common intent
        data.writeString16(String16(TYPE));
        data.writeInt32(1); // VAL_INTEGER
        data.writeInt32(value);
        int newPos = data.dataPosition();
        data.setDataPosition(oldPos - 8);
        data.writeInt32(newPos - oldPos); // refill bundle extras length
        data.setDataPosition(newPos);
        // intent end
        data.writeString8(NULL, 0); // resolvedType
        data.writeStrongBinder(NULL); // resultTo
        data.writeInt32(0); // resultCode
        data.writeString8(NULL, 0); // resultData
        data.writeInt32(-1); // resultExtras
        data.writeString8(NULL, 0); // permission
        data.writeInt32(0); // appOp
        data.writeInt32(-1); // option
        data.writeInt32(1); // serialized: != 0 -> ordered
        data.writeInt32(0); // sticky
        data.writeInt32(-2); // userId: -2 -> UserHandle.USER_CURRENT

        status_t ret = am->transact(IBinder::FIRST_CALL_TRANSACTION + 13, data, &reply); // BROADCAST_INTENT_TRANSACTION
        if (ret == NO_ERROR) {
            int exceptionCode = reply.readExceptionCode();
            if (exceptionCode) {
                ALOGE("sendBroadcastMessage(%s) caught exception %d\n",
                        (char *)(action.string()), exceptionCode);
                return false;
            }
        } else {
            return false;
        }
    } else {
        ALOGE("getService() couldn't find activity service!\n");
        return false;
    }
    return true;
}

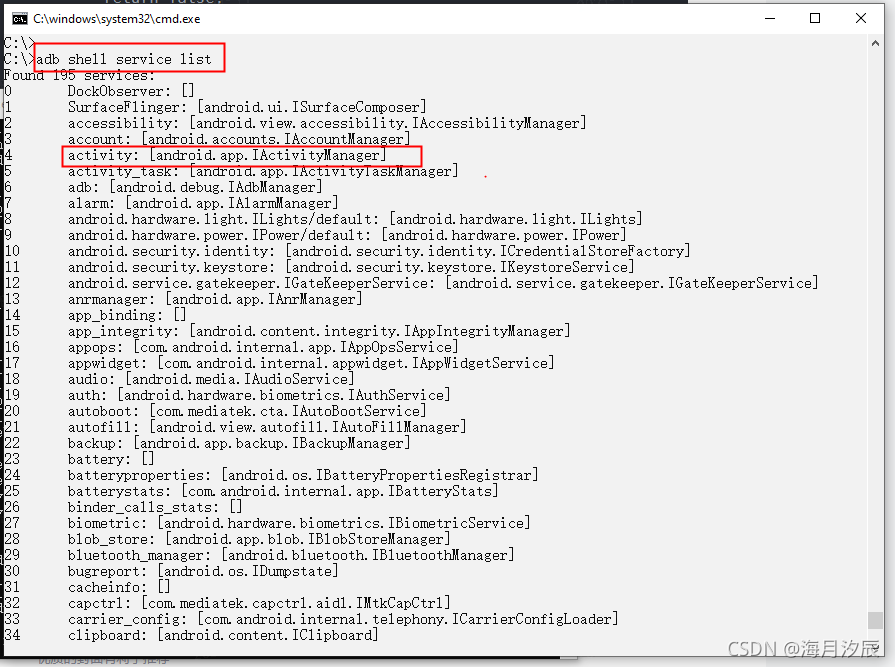

 三、从上面可以知道会调用一个activity服务，adb shell service list查看系统的service。

 四、那这个service哪里来的呢？咱们一步一步来分析一些吧。

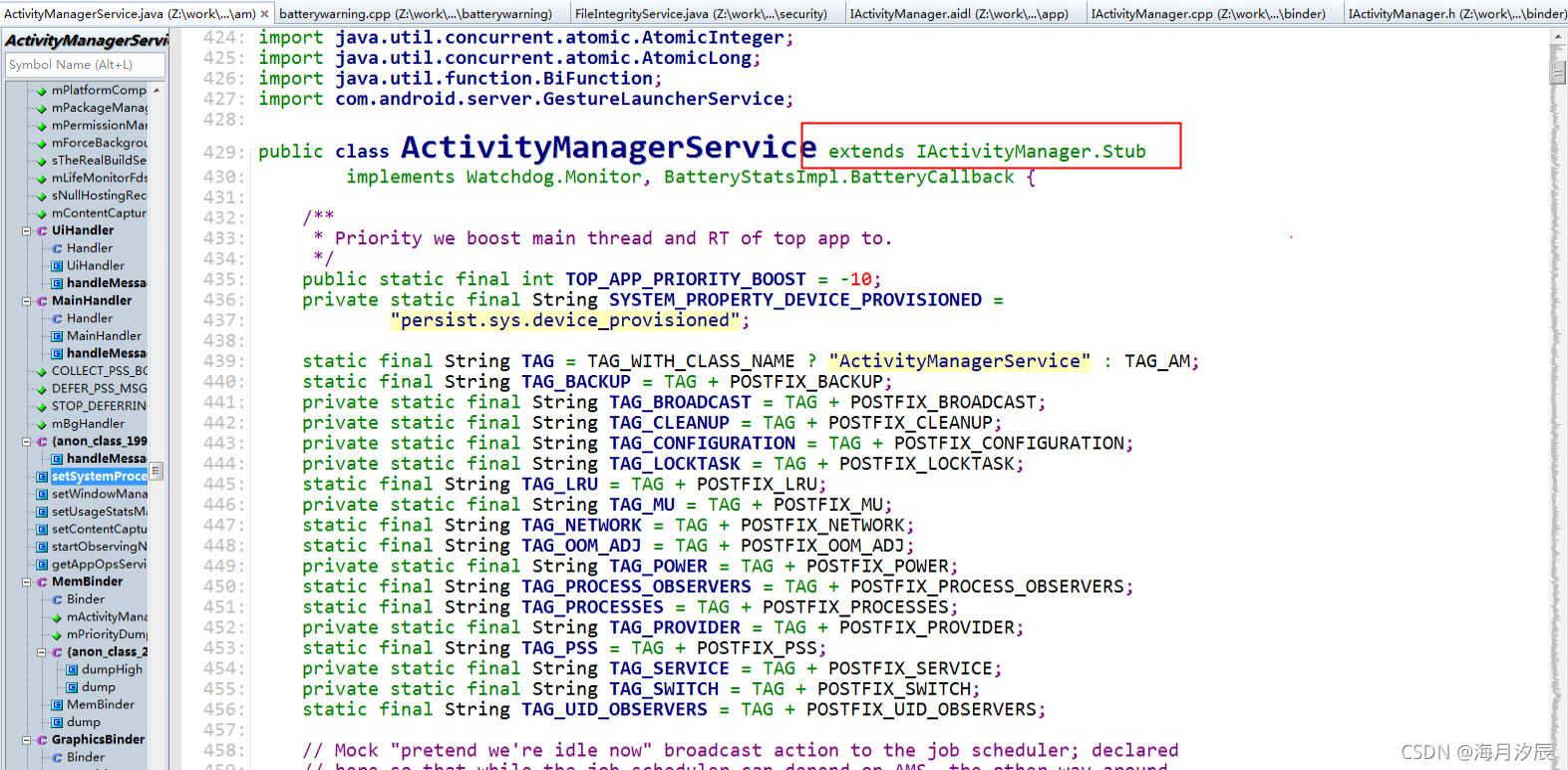

        4、1 服务文件frameworks\base\services\core\java\com\android\server\am\ActivityManagerService.java

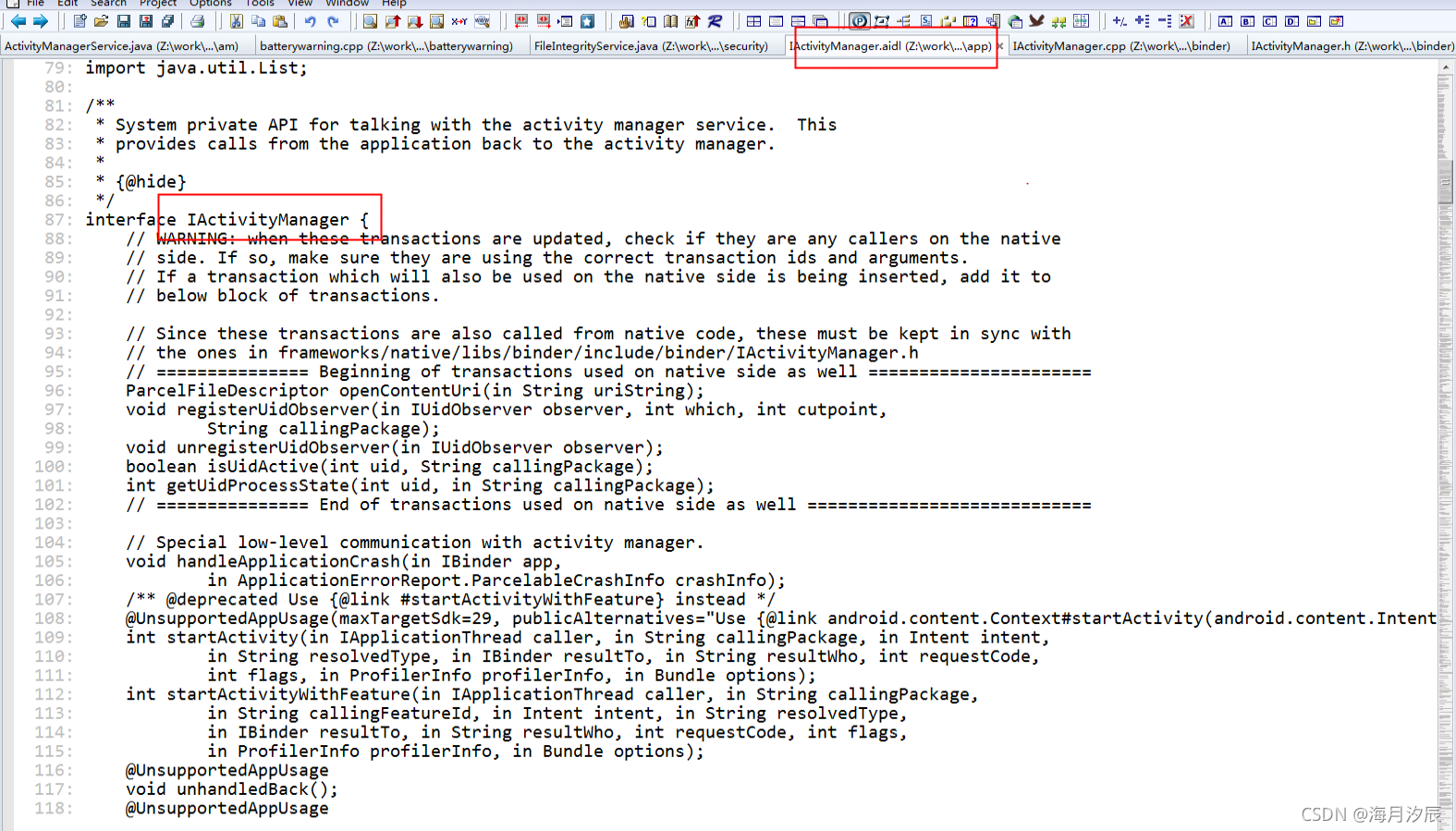

         4、2  frameworks\base\core\java\android\app\IActivityManager.aidl 文件

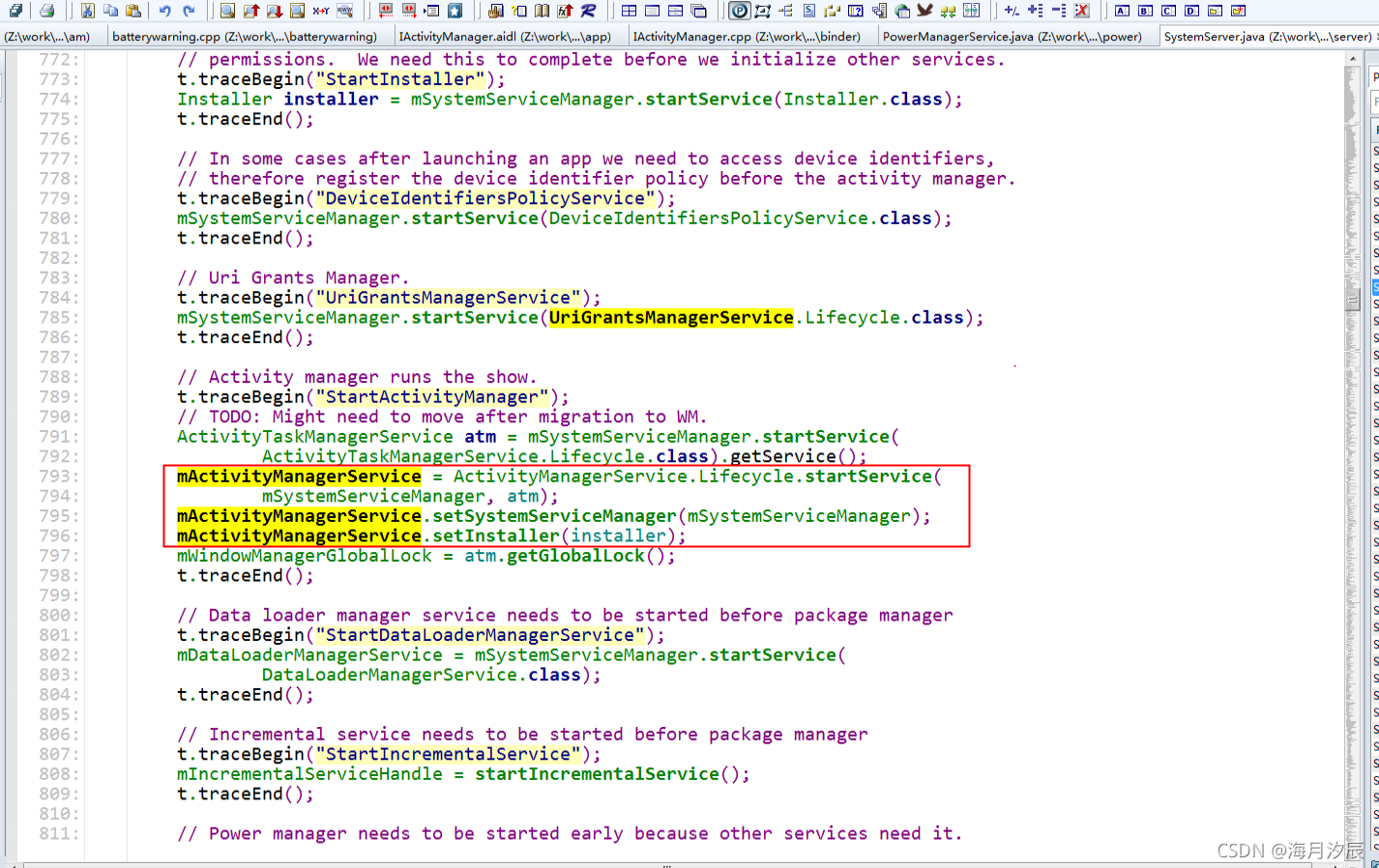

         4、3 开启服务

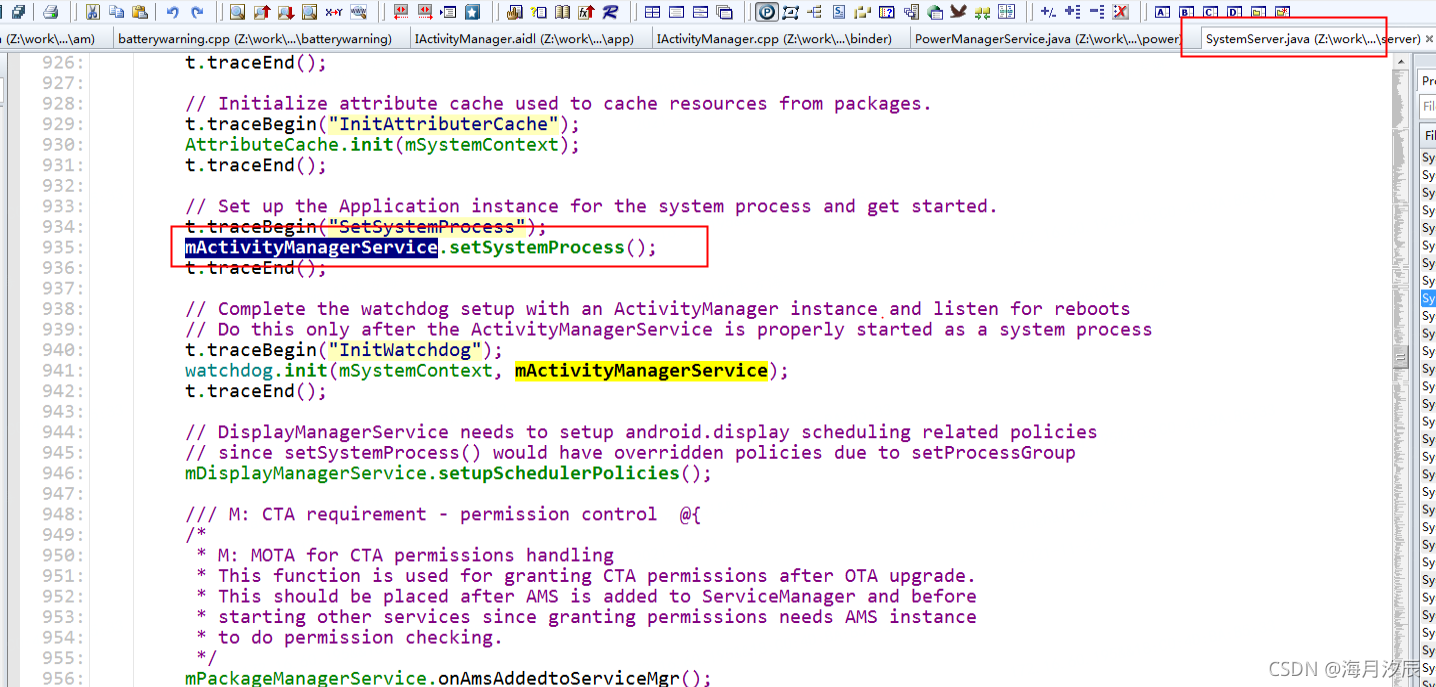

               frameworks\base\services\java\com\android\server\SystemServer.java里面调用setSystemProcess打开服务。

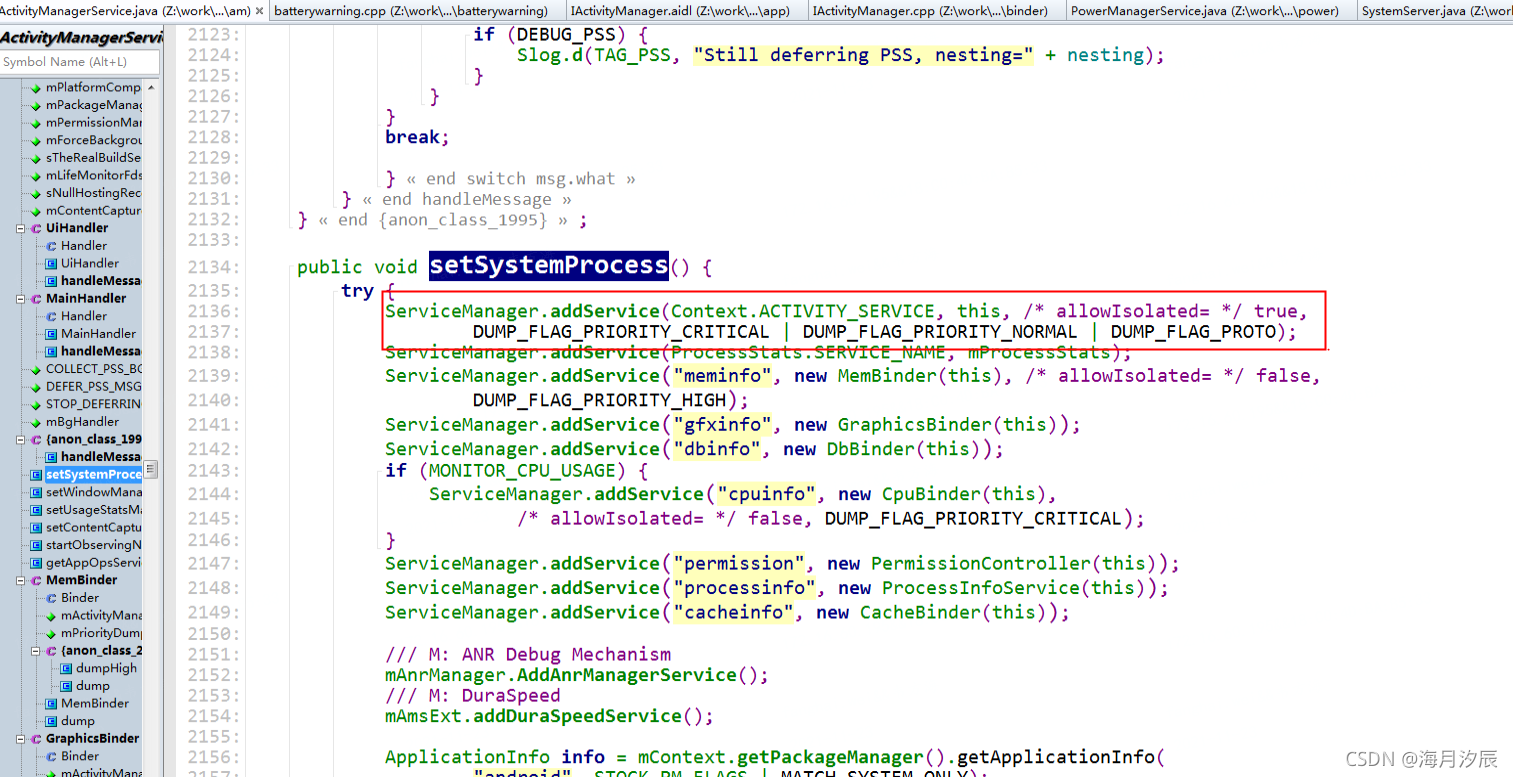

          4、4 看一下setSystemProcess的内容，   public static final String ACTIVITY_SERVICE = "activity";

          4、5 到这里就可以知道服务名是activity: [android.app.IActivityManager]是如何而来的了。

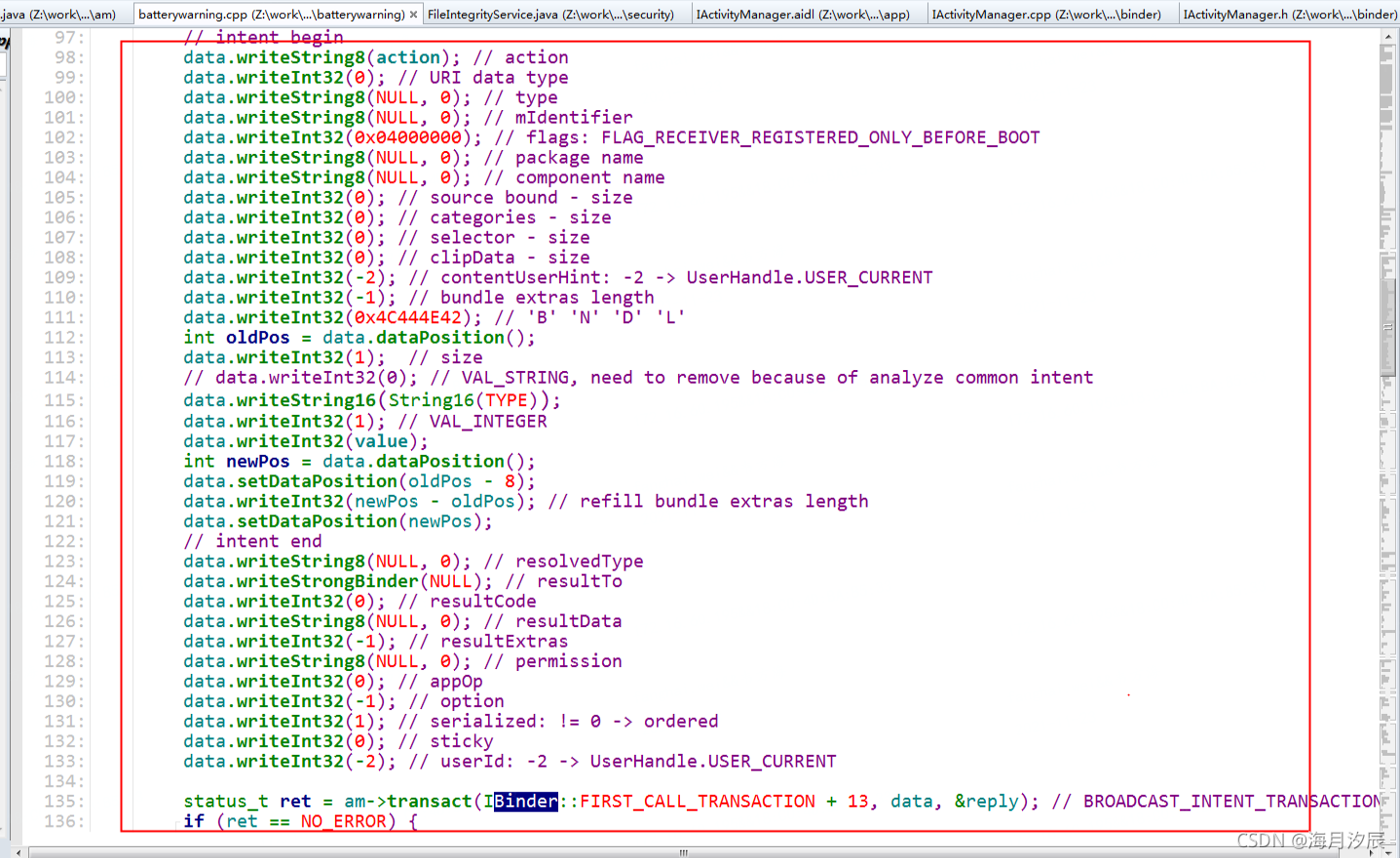

四、上面提到status_t ret = am->transact(IBinder::FIRST_CALL_TRANSACTION + 13, data, &reply); // BROADCAST_INTENT_TRANSACTION

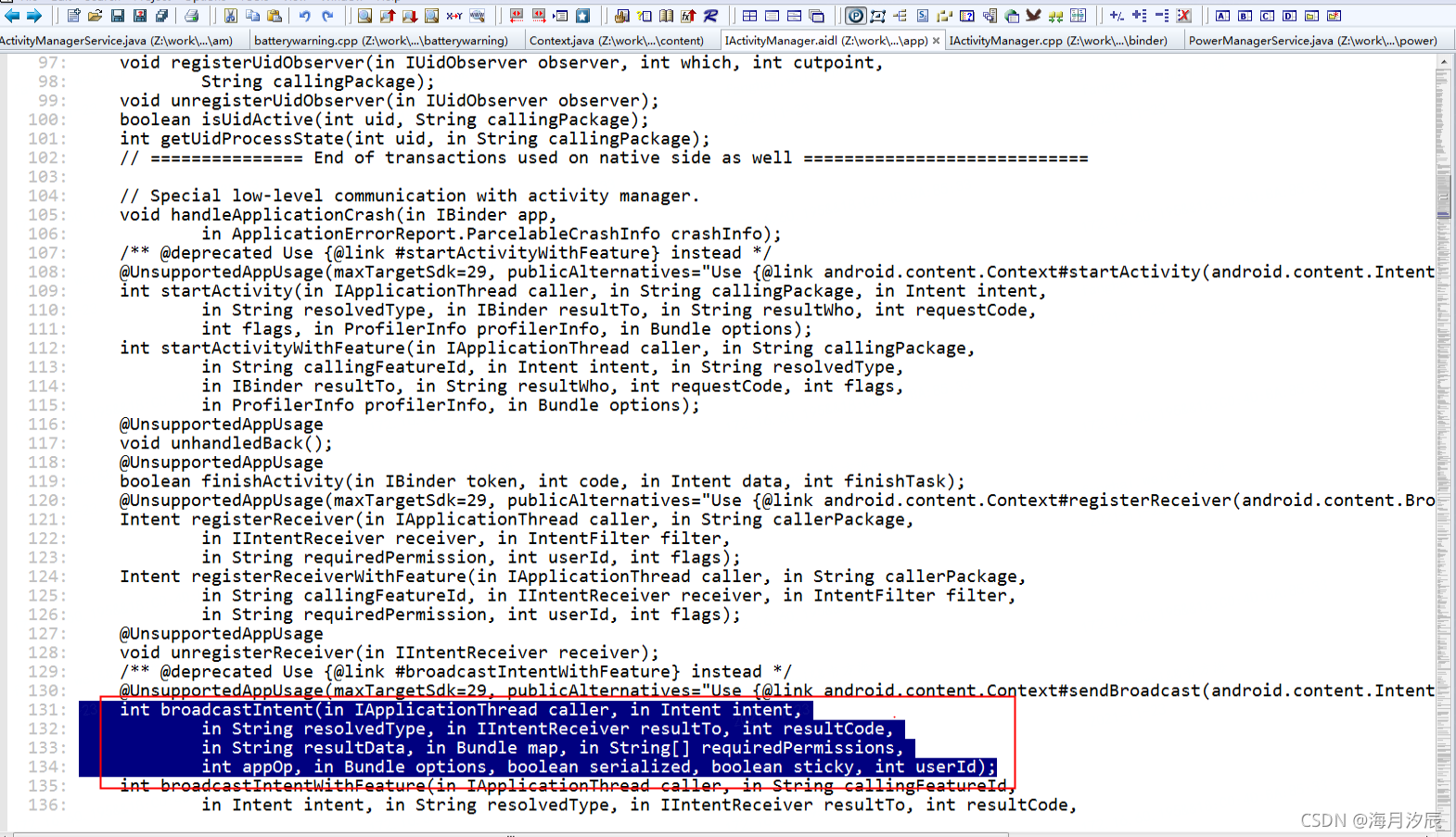

这个会调用哪个函数呢？上面的13是如何而来的呢？这个得分析一下frameworks\base\core\java\android\app\IActivityManager.aidl，可以知道    int broadcastIntent(in IApplicationThread caller, in Intent intent,
            in String resolvedType, in IIntentReceiver resultTo, int resultCode,
            in String resultData, in Bundle map, in String[] requiredPermissions,
            int appOp, in Bundle options, boolean serialized, boolean sticky, int userId);对应第13项。仔细观察会发现transact后面的data参数跟broadcastIntent是对应的，这个是调用的核心的。
