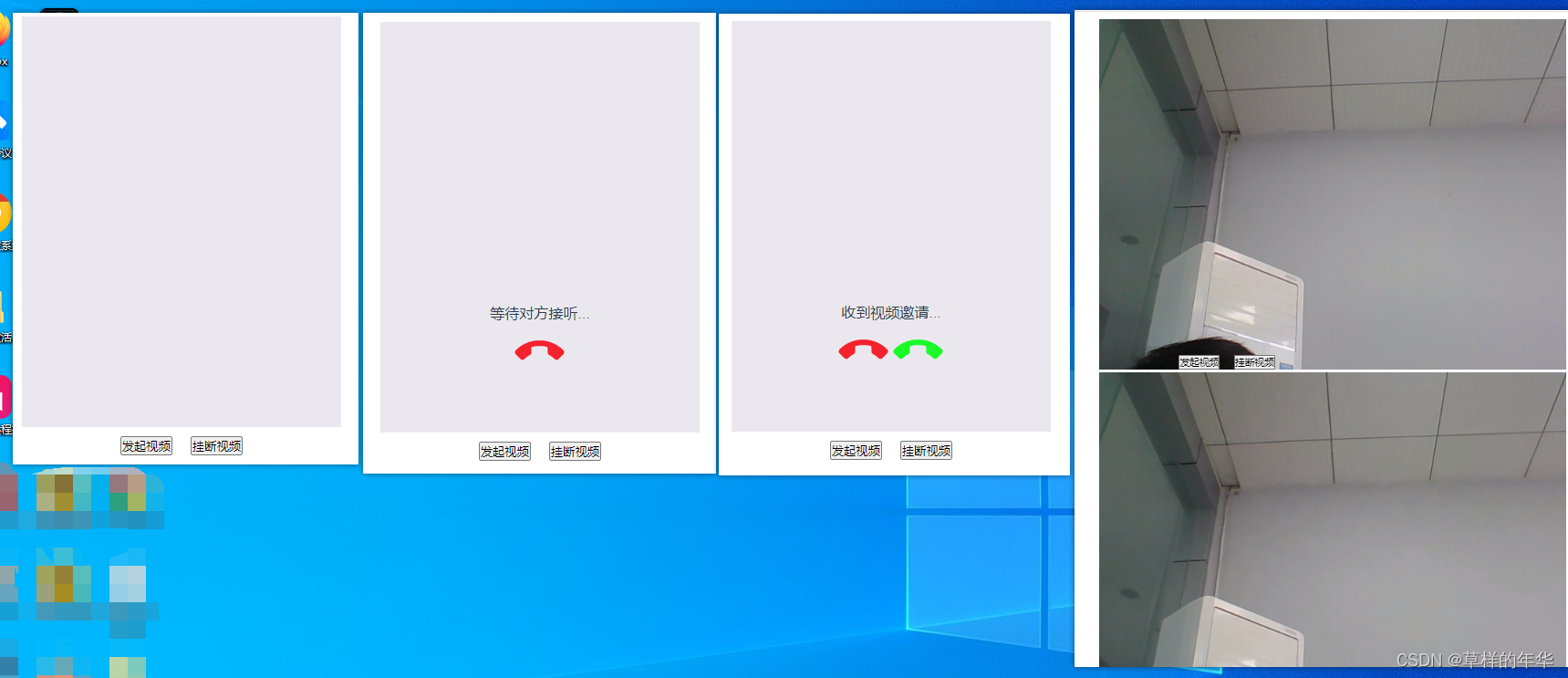

效果
前端代码
<template> <div class="flex items-center flex-col text-center p-12 h-screen"> <div class="relative h-full mb-4 fBox"> <video id="localVideo"></video> <video id="remoteVideo"></video> <div v-if="caller && calling"> <p class="mb-4 text-white">等待对方接听...</p> <img style="width: 60px;" @click="hangUp" src="@/assets/guaDuang.png" alt=""> </div> <div v-if="called && calling"> <p>收到视频邀请...</p> <div class="flex"> <img style="width: 60px" @click="hangUp" src="@/assets/guaDuang.png" alt=""> <img style="width: 60px" @click="acceptCall" src="@/assets/jieTing.png" alt=""> </div> </div> </div> <div> <button @click="callRemote" style="margin-right: 10px">发起视频</button> <button @click="hangUp" style="margin-left: 10px">挂断视频</button> </div> </div></template>
<script>import { io, Socket } from "socket.io-client";let roomId = '001';export default { name: 'HelloWorld', props: { msg: String }, data(){ return{ wsSocket:null,//实例 called:false,// 是否是接收方 caller:false,// 是否是发起方 calling:false,// 呼叫中 communicating:false,// 视频通话中 localVideo:null,// video标签实例,播放本人的视频 remoteVideo:null,// video标签实例,播放对方的视频 peer:null, localStream:null, } }, methods:{ // 发起方发起视频请求 async callRemote(){ let that = this; console.log('发起视频'); that.caller = true; that.calling = true; // await getLocalStream() // 向信令服务器发送发起请求的事件 await that.getLocalStream(); that.wsSocket.emit('callRemote', roomId) }, // 接收方同意视频请求 acceptCall(){ console.log('同意视频邀请'); this.wsSocket.emit('acceptCall', roomId) }, // 挂断视频 hangUp(){ this.wsSocket.emit('hangUp', roomId) }, reset(){ this.called = false; this.caller = false; this.calling = false; this.communicating = false; this.peer = null; this.localVideo.srcObject = null; this.remoteVideo.srcObject = null; this.localStream = undefined; console.log('挂断结束视频-------') }, // 获取本地音视频流 async getLocalStream(){ let that = this; let obj = { audio: true, video: true }; const stream = await navigator.mediaDevices.getUserMedia(obj); // 获取音视频流 that.localVideo.srcObject = stream; that.localVideo.play(); that.localStream = stream; return stream; } }, mounted() { let that = this; that.$nextTick(()=>{ that.localVideo = document.getElementById('localVideo'); that.remoteVideo = document.getElementById('remoteVideo'); }) let sock = io('localhost:3000'); // 对应服务的端口 // 连接成功 sock.on('connectionSuccess', (sock) => { console.log('连接成功:'); }); sock.emit('joinRoom', roomId) // 前端发送加入房间事件 sock.on('callRemote', (sock) => { // 如果是发送方自己收到这个事件就不用管 if (!that.caller){ // 不是发送方(用户A) that.called = true; // 接听方 that.calling = true; // 视频通话中 } }); sock.on('acceptCall',async ()=>{ if (that.caller){ // 用户A收到用户B同意视频的请求 that.peer = new RTCPeerConnection(); // 添加本地音视频流 that.peer.addStream && that.peer.addStream(that.localStream); // 通过监听onicecandidate事件获取candidate信息 that.peer.onicecandidate = (event) => { if (event.candidate) { console.log('用户A获取candidate信息', event.candidate); // 通过信令服务器发送candidate信息给用户B sock.emit('sendCandidate', {roomId, candidate: event.candidate}) } } // 接下来用户A和用户B就可以进行P2P通信流 // 监听onaddstream来获取对方的音视频流 that.peer.onaddstream = (event) => { console.log('用户A收到用户B的stream',event.stream); that.calling = false; that.communicating = true; that.remoteVideo.srcObject = event.stream; that.remoteVideo.play(); } // 生成offer let offer = await that.peer.createOffer({ offerToReceiveAudio: 1, offerToReceiveVideo: 1 }) console.log('offer', offer); // 设置本地描述的offer await that.peer.setLocalDescription(offer); // 通过信令服务器将offer发送给用户B sock.emit('sendOffer', { offer, roomId }) } }) // 收到offer sock.on('sendOffer',async (offer) => { if (that.called){ // 接收方 - 用户B console.log('收到offer',offer); // 创建自己的RTCPeerConnection that.peer = new RTCPeerConnection(); // 添加本地音视频流 const stream = await that.getLocalStream(); that.peer.addStream && that.peer.addStream(stream); // 通过监听onicecandidate事件获取candidate信息 that.peer.onicecandidate = (event) => { if (event.candidate) { console.log('用户B获取candidate信息', event.candidate); // 通过信令服务器发送candidate信息给用户A sock.emit('sendCandidate', {roomId, candidate: event.candidate}) } } // 接下来用户A和用户B就可以进行P2P通信流 // 监听onaddstream来获取对方的音视频流 that.peer.onaddstream = (event) => { console.log('用户B收到用户A的stream',event.stream); that.calling = false; that.communicating = true; that.remoteVideo.srcObject = event.stream; that.remoteVideo.play(); } // 设置远端描述信息 await that.peer.setRemoteDescription(offer); let answer = await that.peer.createAnswer(); console.log('用户B生成answer',answer); await that.peer.setLocalDescription(answer); // 发送answer给信令服务器 sock.emit('sendAnswer', { answer, roomId }) } }) // 用户A收到answer sock.on('sendAnswer',async (answer) => { if (that.caller){ // 接收方 - 用户A 判断是否是发送方 // console.log('用户A收到answer',answer); await that.peer.setRemoteDescription(answer); } }) // 收到candidate信息 sock.on('sendCandidate',async (candidate) => { console.log('收到candidate信息',candidate); // await that.peer.addIceCandidate(candidate) // 用户A和用户B分别收到candidate后,都添加到自己的peer对象上 // await that.peer.addCandidate(candidate) await that.peer.addIceCandidate(candidate) }) // 挂断 sock.on('hangUp',()=>{ that.reset() }) that.wsSocket = sock; }}</script>
服务端代码
const socket = require('socket.io');const http = require('http');const server = http.createServer()const io = socket(server, { cors: { origin: '*' // 配置跨域 }});io.on('connection', sock => { console.log('连接成功...') // 向客户端发送连接成功的消息 sock.emit('connectionSuccess'); sock.on('joinRoom',(roomId)=>{ sock.join(roomId); console.log('joinRoom-房间ID:'+roomId); }) // 广播有人加入到房间 sock.on('callRemote',(roomId)=>{ io.to(roomId).emit('callRemote') }) // 广播同意接听视频 sock.on('acceptCall',(roomId)=>{ io.to(roomId).emit('acceptCall') }) // 接收offer sock.on('sendOffer',({offer,roomId})=>{ io.to(roomId).emit('sendOffer',offer) }) // 接收answer sock.on('sendAnswer',({answer,roomId})=>{ io.to(roomId).emit('sendAnswer',answer) }) // 收到candidate sock.on('sendCandidate',({candidate,roomId})=>{ io.to(roomId).emit('sendCandidate',candidate) }) // 挂断结束视频 sock.on('hangUp',(roomId)=>{ io.to(roomId).emit('hangUp') })})server.listen(3000, () => { console.log('服务器启动成功');});
完整代码gitee地址: https://gitee.com/wade-nian/wdn-webrtc.git
参考文章:基于WebRTC实现音视频通话_npm create vite@latest webrtc-client -- --template-CSDN博客y
要是在拨打电话过程中,无法打开摄像头或者麦克风,浏览器也没有弹出获取摄像头及麦克风的权限运行,这是需要进行浏览器安全源的设置,步骤如下:

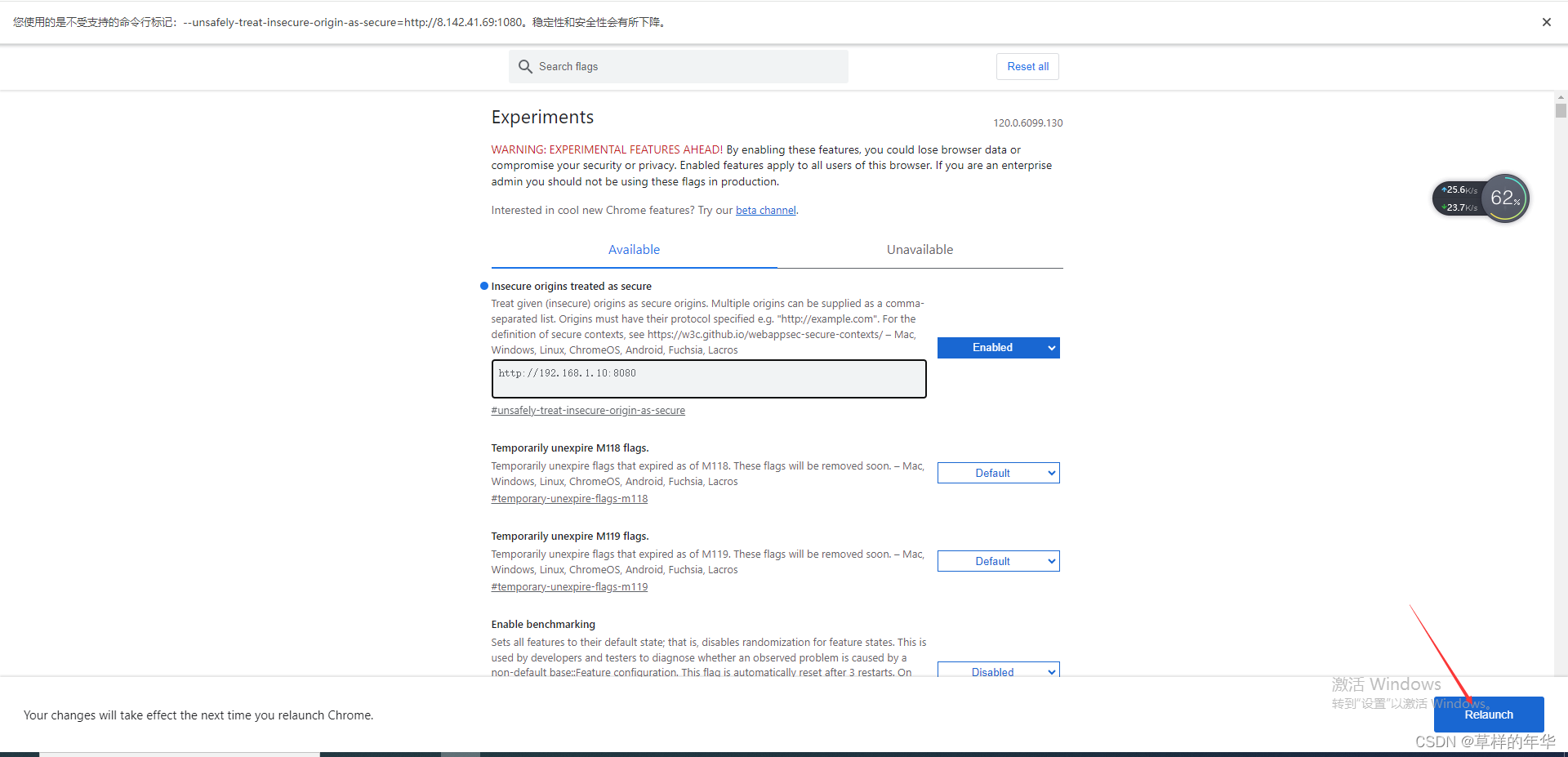

1、在 chrome 中 输入 chrome://flags/#unsafely-treat-insecure-origin-as-secure

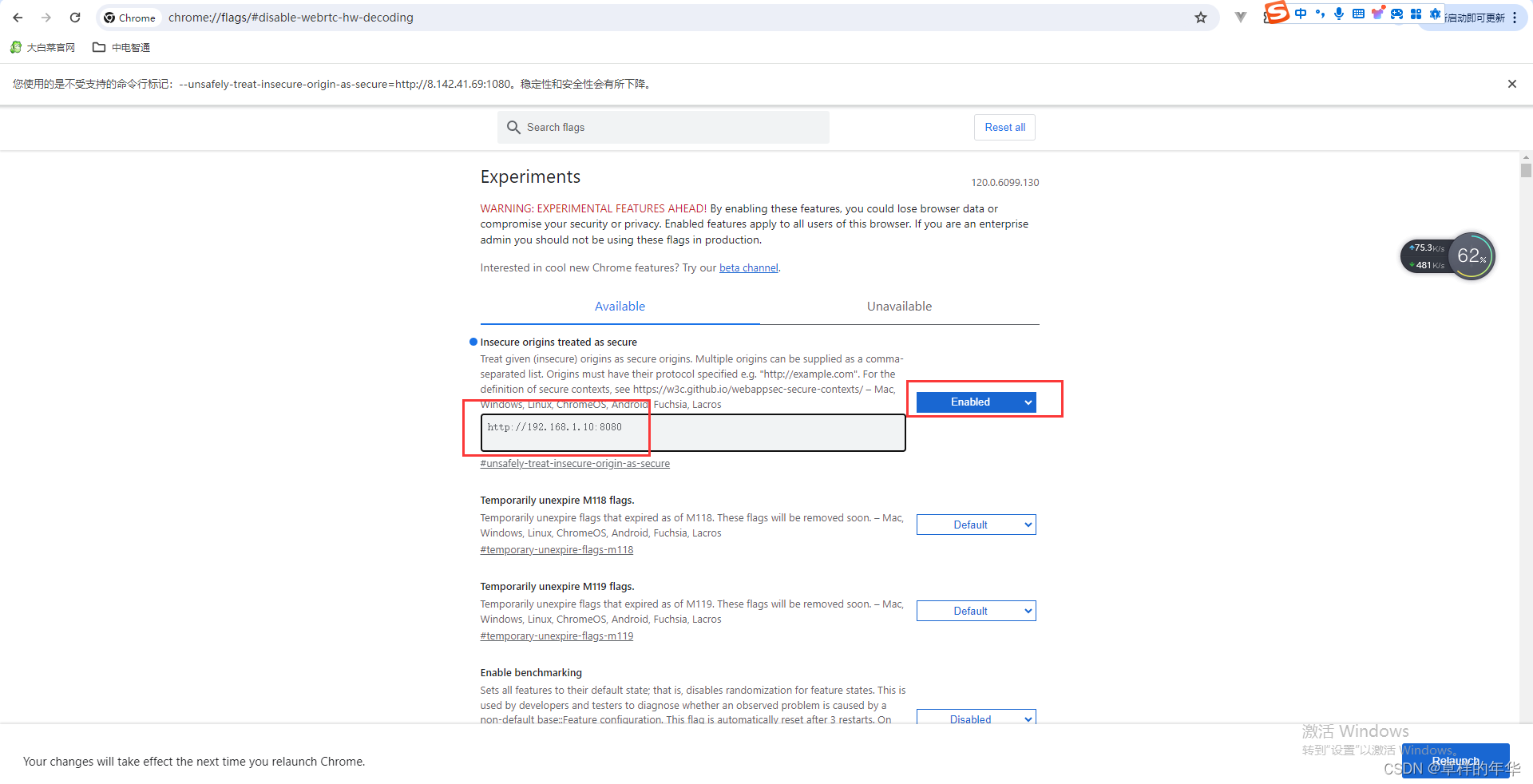

2、找到Insecure origins treated as secure
3、添加你服务器的地址 例如:http://192.168.1.10:8080
4、选择Enabled属性
5、点击右下角的Relaunch即可
