Java-21 深入浅出 MyBatis - 手写ORM框架2 手写Resources、MappedStatment、XMLBuilder等

7 人参与  2024年12月20日 14:01  分类 : 《资源分享》  评论

点击全文阅读


点一下关注吧!!!非常感谢!!持续更新!!!

大数据篇正在更新!https://blog.csdn.net/w776341482/category_12713819.html

在这里插入图片描述

目前已经更新到了:

MyBatis(正在更新)

框架实现

在当前的项目中,在 resources 下新建:

sqlMapConfig.xmlmapper.xml

sqlMapConfig.xml

<?xml version="1.0" encoding="UTF-8"?><configuration>    <property name="driverClass" value="com.mysql.cj.jdbc.Driver"></property>    <property name="jdbcUrl" value="jdbc:mysql://172.16.1.130:3306/wzk-mybatis?characterEncoding=utf-8"></property>    <property name="user" value="hive"></property>    <property name="password" value="hive@wzk.icu"></property>    <mapper resource="mapper.xml"></mapper></configuration>

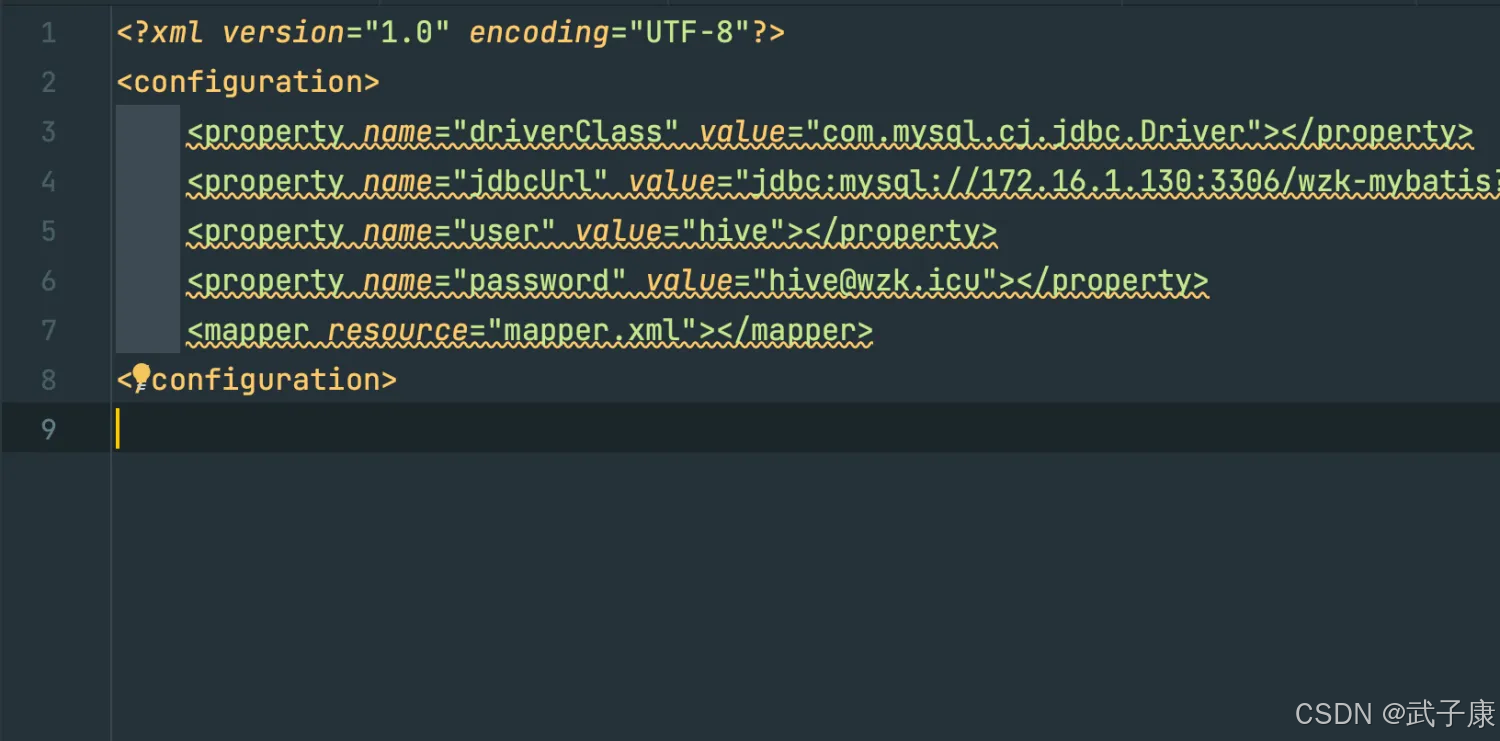

对应的截图如下所示:
在这里插入图片描述

这段代码是一个 MyBatis 的配置文件,通常命名为 mybatis-config.xml 或类似的名字。它主要完成以下任务:

配置数据库连接属性,例如驱动类、JDBC URL、用户名和密码。引入 MyBatis 的映射文件,用于定义 SQL 语句和映射关系。

mapper.xml

实现一个单查询和列表的查询

<mapper namespace="icu.wzk.dao.UserInfoMapper">    <select id="selectOne" parameterType="icu.wzk.model.UserInfo" resultType="icu.wzk.model.UserInfo">        SELECT            *        FROM            user_info        WHERE            username=#{username}    </select>    <select id="selectList" parameterType="icu.wzk.model.UserInfo" resultType="icu.wzk.model.UserInfo">        SELECT            *        FROM            user_info    </select></mapper>

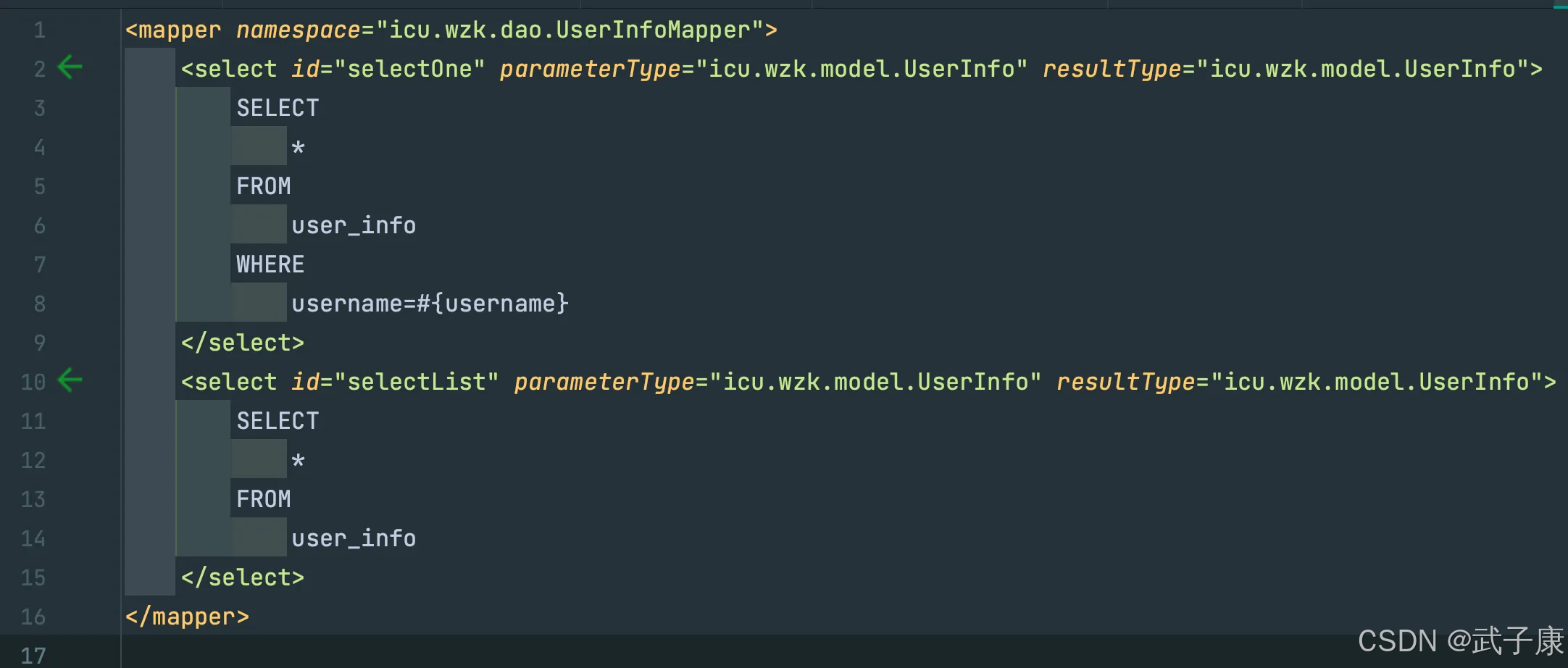

对应的截图如下所示:
在这里插入图片描述
命名空间 (namespace):

mapper namespace=“icu.wzk.dao.UserInfoMapper”:定义了映射文件的命名空间,用于标识当前的 Mapper 文件。这里的命名空间与 Java 接口类 UserInfoMapper 对应。

单条记录查询 (selectOne):

select id=“selectOne” parameterType=“icu.wzk.model.UserInfo” resultType=“icu.wzk.model.UserInfo”:这是一个 select 标签,用于查询单条记录。id=“selectOne” 定义了方法名称,与 UserInfoMapper 接口中的方法名对应。parameterType=“icu.wzk.model.UserInfo” 指定了方法的参数类型,这里是 UserInfo 对象。resultType=“icu.wzk.model.UserInfo” 指定了返回结果的类型,同样是 UserInfo 对象。

实体相关

model

新建一个实体类,UserInfo

package icu.wzk.model;import lombok.Data;@Datapublic class UserInfo {    private Long id;    private String username;    private String password;    private Integer age;}

资源相关

Configuration

package icu.wzk.bean;import lombok.Data;import javax.sql.DataSource;import java.util.HashMap;import java.util.Map;@Datapublic class Configuration {    private DataSource dataSource;    private Map<String, MappedStatement> mappedStatementMap = new HashMap<>();}

MappedStatment

package icu.wzk.bean;import lombok.Data;@Datapublic class MappedStatement {    private String id;    private String sql;    private String parameterType;    private String resultType;}

Resources

package icu.wzk.bean;import java.io.InputStream;public class Resources {    public static InputStream getResourceAsStream(String path) {        return Resources.class.getClassLoader().getResourceAsStream(path);    }}

解析相关

XMLConfigerBuilder

package icu.wzk.bean;import com.mchange.v2.c3p0.ComboPooledDataSource;import org.dom4j.Document;import org.dom4j.DocumentException;import org.dom4j.Element;import org.dom4j.io.SAXReader;import java.beans.PropertyVetoException;import java.io.InputStream;import java.util.List;import java.util.Properties;public class XMLConfigerBuilder {        private Configuration configuration;        public XMLConfigerBuilder(Configuration configuration) {        this.configuration = configuration;    }    public Configuration parseConfiguration(InputStream inputStream) throws DocumentException, PropertyVetoException, ClassNotFoundException {        Document document = new SAXReader().read(inputStream);        Element rootElement = document.getRootElement();        List<Element> propertyElements = rootElement.selectNodes("//property");        Properties properties = new Properties();        for (Element element : propertyElements) {            String name = element.attributeValue("name");            String value = element.attributeValue("value");            properties.setProperty(name, value);        }        ComboPooledDataSource comboSource = new ComboPooledDataSource();        comboSource.setDriverClass(properties.getProperty("driverClass"));        comboSource.setJdbcUrl(properties.getProperty("jdbcUrl"));        comboSource.setUser(properties.getProperty("user"));        comboSource.setPassword(properties.getProperty("password"));        configuration.setDataSource(comboSource);        List<Element> mappedElements = rootElement.selectNodes("//mapper");        XMLMapperBuilder xmlMapperBuilder = new XMLMapperBuilder(configuration);        for (Element element : mappedElements) {            String mapperPath = element.attributeValue("resource");            InputStream resourceAsStream = Resources.getResourceAsStream(mapperPath);            xmlMapperBuilder.parse(resourceAsStream);        }        return configuration;    }    }

这段代码是一个用于解析 XML 配置文件的 Java 类,主要作用是读取 XML 配置文件内容,初始化应用程序所需的配置信息(例如数据库连接池配置、Mapper 文件解析等)。

类的定义

类名 XMLConfigerBuilder:表示这是一个 XML 配置解析器。
成员变量 configuration:保存应用的配置信息,类型为 Configuration。

构造方法

XMLConfigerBuilder(Configuration configuration):通过构造方法将 Configuration 对象传入并保存在成员变量中。

parseConfiguration 方法

该方法负责解析 XML 文件并初始化 Configuration 对象,主要包括以下几个步骤:
解析 XML 文档:

使用 SAXReader 读取输入流(InputStream),生成 XML 文档对象。获取 XML 的根元素(rootElement)。

读取数据库配置:

查找 XML 中的 节点,解析出 name 和 value 属性,将其存入 Properties 对象。创建 ComboPooledDataSource 对象,用于配置数据库连接池,设置驱动类、URL、用户名和密码等信息。将初始化好的数据源对象设置到 configuration 中。

解析 Mapper 文件

查找 XML 中的 节点,提取每个节点的 resource 属性值(Mapper 文件路径)。逐个读取 Mapper 文件,通过 XMLMapperBuilder 的 parse 方法解析每个文件,将其结果更新到 configuration 中。

返回最终的 Configuration 对象

方法执行完成后,返回已经完整解析并初始化的 Configuration 对象。

XMLMapperBuilder

package icu.wzk.bean;import org.dom4j.Document;import org.dom4j.DocumentException;import org.dom4j.Element;import org.dom4j.io.SAXReader;import java.io.InputStream;import java.util.List;public class XMLMapperBuilder {    private Configuration configuration;    public XMLMapperBuilder(Configuration configuration) {        this.configuration = configuration;    }    public void parse(InputStream inputStream) throws DocumentException, ClassNotFoundException {        Document document = new SAXReader().read(inputStream);        Element rootElement = document.getRootElement();        String namespace = rootElement.attributeValue("namespace");        List<Element> selectList = rootElement.selectNodes("select");        for (Element element : selectList) {            String id = element.attributeValue("id");            String parameterType = element.attributeValue("parameterType");            String resultType = element.attributeValue("resultType");            String key = namespace + "." + id;            String textTrim = element.getTextTrim();            MappedStatement mappedStatement = new MappedStatement();            mappedStatement.setId(id);            mappedStatement.setParameterType(parameterType);            mappedStatement.setResultType(resultType);            mappedStatement.setSql(textTrim);            configuration.getMappedStatementMap().put(key, mappedStatement);        }    }}
