使用kube-prometheus部署k8s监控(超详细)

kubernetes的最新版本已经到了1.20.x,利用假期时间搭建了最新的k8s v1.20.2版本,截止我整理此文为止,发现官方最新的release已经更新到了v1.20.4

1、概述

1.1 在k8s中部署Prometheus监控的方法

通常在k8s中部署prometheus监控可以采取的方法有以下三种

通过yaml手动部署operator部署通过helm chart部署

1.2 什么是Prometheus Operator

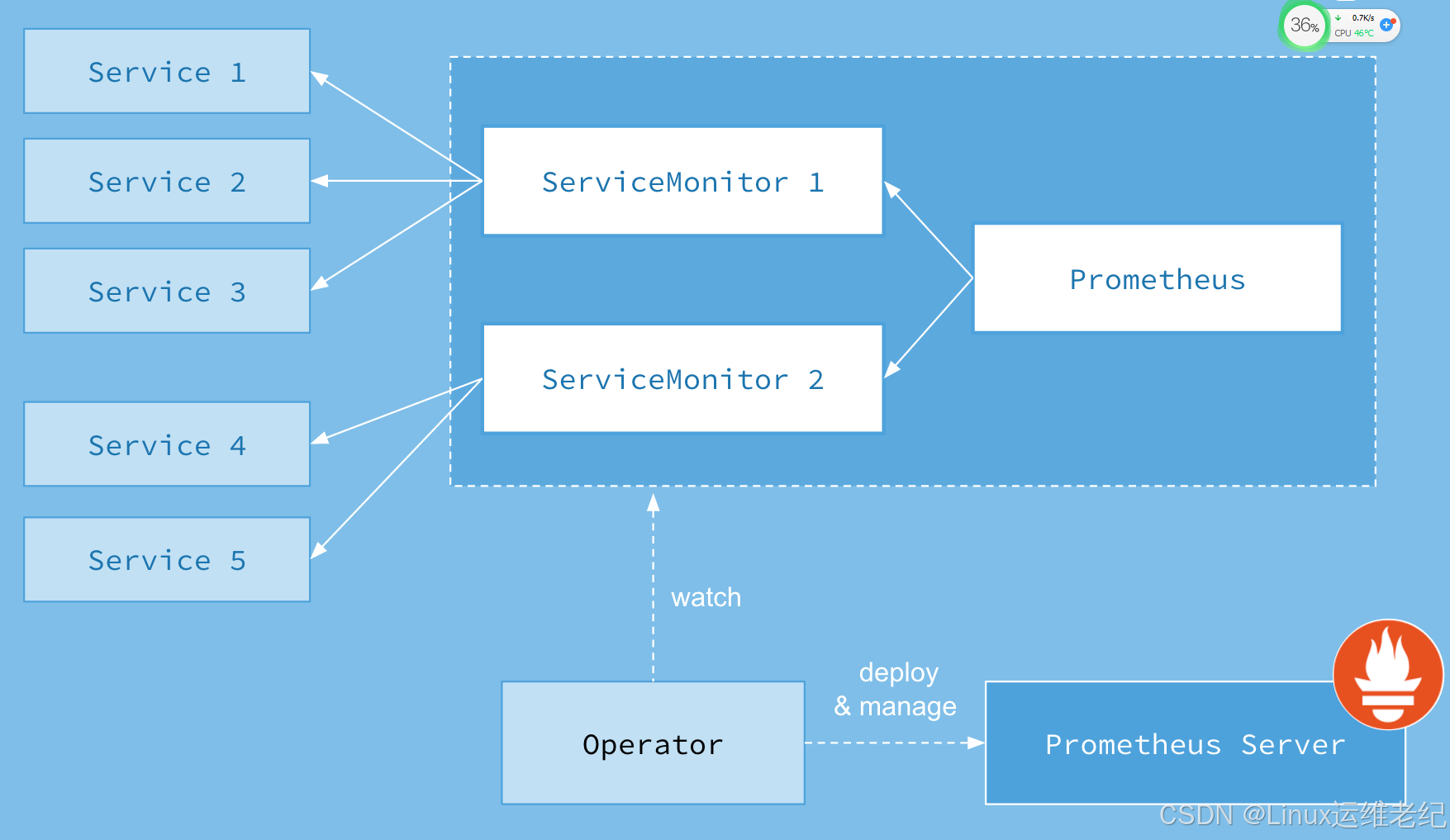

Prometheus Operator的本职就是一组用户自定义的CRD资源以及Controller的实现,Prometheus Operator负责监听这些自定义资源的变化,并且根据这些资源的定义自动化的完成如Prometheus Server自身以及配置的自动化管理工作。以下是Prometheus Operator的架构图

1.3 为什么用Prometheus Operator

由于Prometheus本身没有提供管理配置的AP接口(尤其是管理监控目标和管理警报规则),也没有提供好用的多实例管理手段,因此这一块往往要自己写一些代码或脚本。为了简化这类应用程序的管理复杂度,CoreOS率先引入了Operator的概念,并且首先推出了针对在Kubernetes下运行和管理EtcdEtcd Operator。并随后推出了Prometheus Operator

1.4 kube-prometheus项目介绍

prometheus-operator官方地址:GitHub - prometheus-operator/prometheus-operator: Prometheus Operator creates/configures/manages Prometheus clusters atop Kubernetes
kube-prometheus官方地址:GitHub - prometheus-operator/kube-prometheus: Use Prometheus to monitor Kubernetes and applications running on Kubernetes

两个项目的关系:前者只包含了Prometheus Operator,后者既包含了Operator,又包含了Prometheus相关组件的部署及常用的Prometheus自定义监控,具体包含下面的组件

The Prometheus Operator:创建CRD自定义的资源对象Highly available Prometheus:创建高可用的PrometheusHighly available Alertmanager:创建高可用的告警组件Prometheus node-exporter:创建主机的监控组件Prometheus Adapter for Kubernetes Metrics APIs:创建自定义监控的指标工具(例如可以通过nginx的request来进行应用的自动伸缩)kube-state-metrics:监控k8s相关资源对象的状态指标Grafana:进行图像展示

2、环境介绍

本文的k8s环境是通过kubeadm搭建的v 1.20.2版本,由1master+2node组合

持久化存储为storageclass动态存储,底层由ceph-rbd提供

➜  kubectl version -o yamlclientVersion:  buildDate: "2020-12-08T17:59:43Z"  compiler: gc  gitCommit: af46c47ce925f4c4ad5cc8d1fca46c7b77d13b38  gitTreeState: clean  gitVersion: v1.20.0  goVersion: go1.15.5  major: "1"  minor: "20"  platform: darwin/amd64serverVersion:  buildDate: "2021-01-13T13:20:00Z"  compiler: gc  gitCommit: faecb196815e248d3ecfb03c680a4507229c2a56  gitTreeState: clean  gitVersion: v1.20.2  goVersion: go1.15.5  major: "1"  minor: "20"  platform: linux/amd64➜  kubectl get nodes                                     NAME       STATUS   ROLES                  AGE   VERSIONk8s-m-01   Ready    control-plane,master   11d    v1.20.2k8s-n-01   Ready    <none>                 11d    v1.20.2k8s-n-02   Ready    <none>                 11d    v1.20.2➜  manifests kubectl get sc                                              NAME                            PROVISIONER                                   RECLAIMPOLICY   VOLUMEBINDINGMODE   ALLOWVOLUMEEXPANSION   AGEdynamic-ceph-rbd (default)      ceph.com/rbd                                  Delete          Immediate           false                  7d23h

kube-prometheus的兼容性说明(https://github.com/prometheus-operator/kube-prometheus#kubernetes-compatibility-matrix),按照兼容性说明,部署的是最新的release-0.7版本

kube-prometheus stackKubernetes 1.16Kubernetes 1.17Kubernetes 1.18Kubernetes 1.19Kubernetes 1.20
release-0.4✔ (v1.16.5+)
release-0.5
release-0.6
release-0.7
HEAD

3、清单准备

从官方的地址获取最新的release-0.7分支,或者直接打包下载release-0.7

➜  git clone https://github.com/prometheus-operator/kube-prometheus.git➜  git checkout release-0.7或者➜  wget -c https://github.com/prometheus-operator/kube-prometheus/archive/v0.7.0.zip

默认下载下来的文件较多,建议把文件进行归类处理,将相关yaml文件移动到对应目录下

➜  cd kube-prometheus/manifests➜  mkdir -p serviceMonitor prometheus adapter node-exporter kube-state-metrics grafana alertmanager operator other

最终结构如下

➜  manifests tree ..├── adapter│   ├── prometheus-adapter-apiService.yaml│   ├── prometheus-adapter-clusterRole.yaml│   ├── prometheus-adapter-clusterRoleAggregatedMetricsReader.yaml│   ├── prometheus-adapter-clusterRoleBinding.yaml│   ├── prometheus-adapter-clusterRoleBindingDelegator.yaml│   ├── prometheus-adapter-clusterRoleServerResources.yaml│   ├── prometheus-adapter-configMap.yaml│   ├── prometheus-adapter-deployment.yaml│   ├── prometheus-adapter-roleBindingAuthReader.yaml│   ├── prometheus-adapter-service.yaml│   └── prometheus-adapter-serviceAccount.yaml├── alertmanager│   ├── alertmanager-alertmanager.yaml│   ├── alertmanager-secret.yaml│   ├── alertmanager-service.yaml│   └── alertmanager-serviceAccount.yaml├── grafana│   ├── grafana-dashboardDatasources.yaml│   ├── grafana-dashboardDefinitions.yaml│   ├── grafana-dashboardSources.yaml│   ├── grafana-deployment.yaml│   ├── grafana-service.yaml│   └── grafana-serviceAccount.yaml├── kube-state-metrics│   ├── kube-state-metrics-clusterRole.yaml│   ├── kube-state-metrics-clusterRoleBinding.yaml│   ├── kube-state-metrics-deployment.yaml│   ├── kube-state-metrics-service.yaml│   └── kube-state-metrics-serviceAccount.yaml├── node-exporter│   ├── node-exporter-clusterRole.yaml│   ├── node-exporter-clusterRoleBinding.yaml│   ├── node-exporter-daemonset.yaml│   ├── node-exporter-service.yaml│   └── node-exporter-serviceAccount.yaml├── operator│   ├── 0namespace-namespace.yaml│   ├── prometheus-operator-0alertmanagerConfigCustomResourceDefinition.yaml│   ├── prometheus-operator-0alertmanagerCustomResourceDefinition.yaml│   ├── prometheus-operator-0podmonitorCustomResourceDefinition.yaml│   ├── prometheus-operator-0probeCustomResourceDefinition.yaml│   ├── prometheus-operator-0prometheusCustomResourceDefinition.yaml│   ├── prometheus-operator-0prometheusruleCustomResourceDefinition.yaml│   ├── prometheus-operator-0servicemonitorCustomResourceDefinition.yaml│   ├── prometheus-operator-0thanosrulerCustomResourceDefinition.yaml│   ├── prometheus-operator-clusterRole.yaml│   ├── prometheus-operator-clusterRoleBinding.yaml│   ├── prometheus-operator-deployment.yaml│   ├── prometheus-operator-service.yaml│   └── prometheus-operator-serviceAccount.yaml├── other├── prometheus│   ├── prometheus-clusterRole.yaml│   ├── prometheus-clusterRoleBinding.yaml│   ├── prometheus-prometheus.yaml│   ├── prometheus-roleBindingConfig.yaml│   ├── prometheus-roleBindingSpecificNamespaces.yaml│   ├── prometheus-roleConfig.yaml│   ├── prometheus-roleSpecificNamespaces.yaml│   ├── prometheus-rules.yaml│   ├── prometheus-service.yaml│   └── prometheus-serviceAccount.yaml└── serviceMonitor    ├── alertmanager-serviceMonitor.yaml    ├── grafana-serviceMonitor.yaml    ├── kube-state-metrics-serviceMonitor.yaml    ├── node-exporter-serviceMonitor.yaml    ├── prometheus-adapter-serviceMonitor.yaml    ├── prometheus-operator-serviceMonitor.yaml    ├── prometheus-serviceMonitor.yaml    ├── prometheus-serviceMonitorApiserver.yaml    ├── prometheus-serviceMonitorCoreDNS.yaml    ├── prometheus-serviceMonitorKubeControllerManager.yaml    ├── prometheus-serviceMonitorKubeScheduler.yaml    └── prometheus-serviceMonitorKubelet.yaml9 directories, 67 files

修改yaml,增加prometheus和grafana的持久化存储

manifests/prometheus/prometheus-prometheus.yaml

...  serviceMonitorSelector: {}  version: v2.22.1  retention: 3d  storage:    volumeClaimTemplate:      spec:        storageClassName: dynamic-ceph-rbd        resources:          requests:            storage: 5Gi

manifests/grafana/grafana-deployment.yaml

...      serviceAccountName: grafana      volumes:#      - emptyDir: {}#        name: grafana-storage      - name: grafana-storage        persistentVolumeClaim:          claimName: grafana-data

新增grafana的pvc,manifests/other/grafana-pvc.yaml

kind: PersistentVolumeClaimapiVersion: v1metadata:  name: grafana-data  namespace: monitoring  annotations:    volume.beta.kubernetes.io/storage-class: "dynamic-ceph-rbd"spec:  accessModes:    - ReadWriteMany  resources:    requests:      storage: 5Gi

4、开始部署

部署清单

➜  kubectl create -f other/grafana-pvc.yaml ➜  kubectl create -f operator/➜  kubectl create -f adapter/ -f alertmanager/ -f grafana/ -f kube-state-metrics/ -f node-exporter/ -f prometheus/ -f serviceMonitor/

查看状态

➜  kubectl get po,svc -n monitoring NAME                                       READY   STATUS    RESTARTS   AGEpod/alertmanager-main-0                    2/2     Running   0          15mpod/alertmanager-main-1                    2/2     Running   0          10mpod/alertmanager-main-2                    2/2     Running   0          15mpod/grafana-d69dcf947-wnspk                1/1     Running   0          22mpod/kube-state-metrics-587bfd4f97-bffqv    3/3     Running   0          22mpod/node-exporter-2vvhv                    2/2     Running   0          22mpod/node-exporter-7nsz5                    2/2     Running   0          22mpod/node-exporter-wggpp                    2/2     Running   0          22mpod/prometheus-adapter-69b8496df6-cjw6w    1/1     Running   0          23mpod/prometheus-k8s-0                       2/2     Running   1          75spod/prometheus-k8s-1                       2/2     Running   0          9m33spod/prometheus-operator-7649c7454f-nhl72   2/2     Running   0          28mNAME                            TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)                      AGEservice/alertmanager-main       ClusterIP   10.1.189.238   <none>        9093/TCP                     23mservice/alertmanager-operated   ClusterIP   None           <none>        9093/TCP,9094/TCP,9094/UDP   23mservice/grafana                 ClusterIP   10.1.29.30     <none>        3000/TCP                     23mservice/kube-state-metrics      ClusterIP   None           <none>        8443/TCP,9443/TCP            23mservice/node-exporter           ClusterIP   None           <none>        9100/TCP                     23mservice/prometheus-adapter      ClusterIP   10.1.75.64     <none>        443/TCP                      23mservice/prometheus-k8s          ClusterIP   10.1.111.121   <none>        9090/TCP                     23mservice/prometheus-operated     ClusterIP   None           <none>        9090/TCP                     14mservice/prometheus-operator     ClusterIP   None           <none>        8443/TCP                     28m

prometheusgrafanaalertmanager创建ingress

manifests/other/ingress.yaml

apiVersion: networking.k8s.io/v1kind: Ingressmetadata:  name: prom-ingress  namespace: monitoring  annotations:    kubernetes.io/ingress.class: "nginx"    prometheus.io/http_probe: "true"spec:  rules:  - host: alert.k8s-1.20.2.com    http:      paths:      - path: /        pathType: Prefix        backend:          service:            name: alertmanager-main            port:              number: 9093  - host: grafana.k8s-1.20.2.com    http:      paths:      - path: /        pathType: Prefix        backend:          service:            name: grafana            port:              number: 3000  - host: prom.k8s-1.20.2.com    http:      paths:      - path: /        pathType: Prefix        backend:          service:            name: prometheus-k8s            port:              number: 9090

5、解决ControllerManager、Scheduler监控问题

默认安装后访问prometheus,会发现有以下有三个报警:

WatchdogKubeControllerManagerDownKubeSchedulerDown

Watchdog是一个正常的报警,这个告警的作用是:如果alermanger或者prometheus本身挂掉了就发不出告警了,因此一般会采用另一个监控来监控prometheus,或者自定义一个持续不断的告警通知,哪一天这个告警通知不发了,说明监控出现问题了。prometheus operator已经考虑了这一点,本身携带一个watchdog,作为对自身的监控。

如果需要关闭,删除或注释掉Watchdog部分

prometheus-rules.yaml

...  - name: general.rules    rules:    - alert: TargetDown      annotations:        message: 'xxx'      expr: 100 * (count(up == 0) BY (job, namespace, service) / count(up) BY (job, namespace, service)) > 10      for: 10m      labels:        severity: warning#    - alert: Watchdog#      annotations:#        message: |#          This is an alert meant to ensure that the entire alerting pipeline is functional.#          This alert is always firing, therefore it should always be firing in Alertmanager#          and always fire against a receiver. There are integrations with various notification#          mechanisms that send a notification when this alert is not firing. For example the#          "DeadMansSnitch" integration in PagerDuty.#      expr: vector(1)#      labels:#        severity: none

KubeControllerManagerDownKubeSchedulerDown的解决

原因是因为在prometheus-serviceMonitorKubeControllerManager.yaml中有如下内容,但默认安装的集群并没有给系统kube-controller-manager组件创建svc

  selector:    matchLabels:      k8s-app: kube-controller-manager

修改kube-controller-manager的监听地址

# vim /etc/kubernetes/manifests/kube-controller-manager.yaml...spec:  containers:  - command:    - kube-controller-manager    - --allocate-node-cidrs=true    - --authentication-kubeconfig=/etc/kubernetes/controller-manager.conf    - --authorization-kubeconfig=/etc/kubernetes/controller-manager.conf    - --bind-address=0.0.0.0# netstat -lntup|grep kube-contro                                      tcp6       0      0 :::10257                :::*                    LISTEN      38818/kube-controll

创建一个serviceendpoint,以便serviceMonitor监听

other/kube-controller-namager-svc-ep.yaml

apiVersion: v1kind: Servicemetadata:  name: kube-controller-manager  namespace: kube-system  labels:    k8s-app: kube-controller-managerspec:  type: ClusterIP  clusterIP: None  ports:  - name: https-metrics    port: 10257    targetPort: 10257    protocol: TCP---apiVersion: v1kind: Endpointsmetadata:  name: kube-controller-manager  namespace: kube-system  labels:    k8s-app: kube-controller-managersubsets:- addresses:  - ip: 172.16.1.71  ports:    - name: https-metrics      port: 10257      protocol: TCP

kube-scheduler同理,修改kube-scheduler的监听地址

# vim /etc/kubernetes/manifests/kube-scheduler.yaml...spec:  containers:  - command:    - kube-scheduler    - --authentication-kubeconfig=/etc/kubernetes/scheduler.conf    - --authorization-kubeconfig=/etc/kubernetes/scheduler.conf    - --bind-address=0.0.0.0# netstat -lntup|grep kube-schedtcp6       0      0 :::10259                :::*                    LISTEN      100095/kube-schedul

创建一个serviceendpoint,以便serviceMonitor监听

kube-scheduler-svc-ep.yaml

apiVersion: v1kind: Servicemetadata:  name: kube-scheduler  namespace: kube-system  labels:    k8s-app: kube-schedulerspec:  type: ClusterIP  clusterIP: None  ports:  - name: https-metrics    port: 10259    targetPort: 10259    protocol: TCP---apiVersion: v1kind: Endpointsmetadata:  name: kube-scheduler  namespace: kube-system  labels:    k8s-app: kube-schedulersubsets:- addresses:  - ip: 172.16.1.71  ports:    - name: https-metrics      port: 10259      protocol: TCP

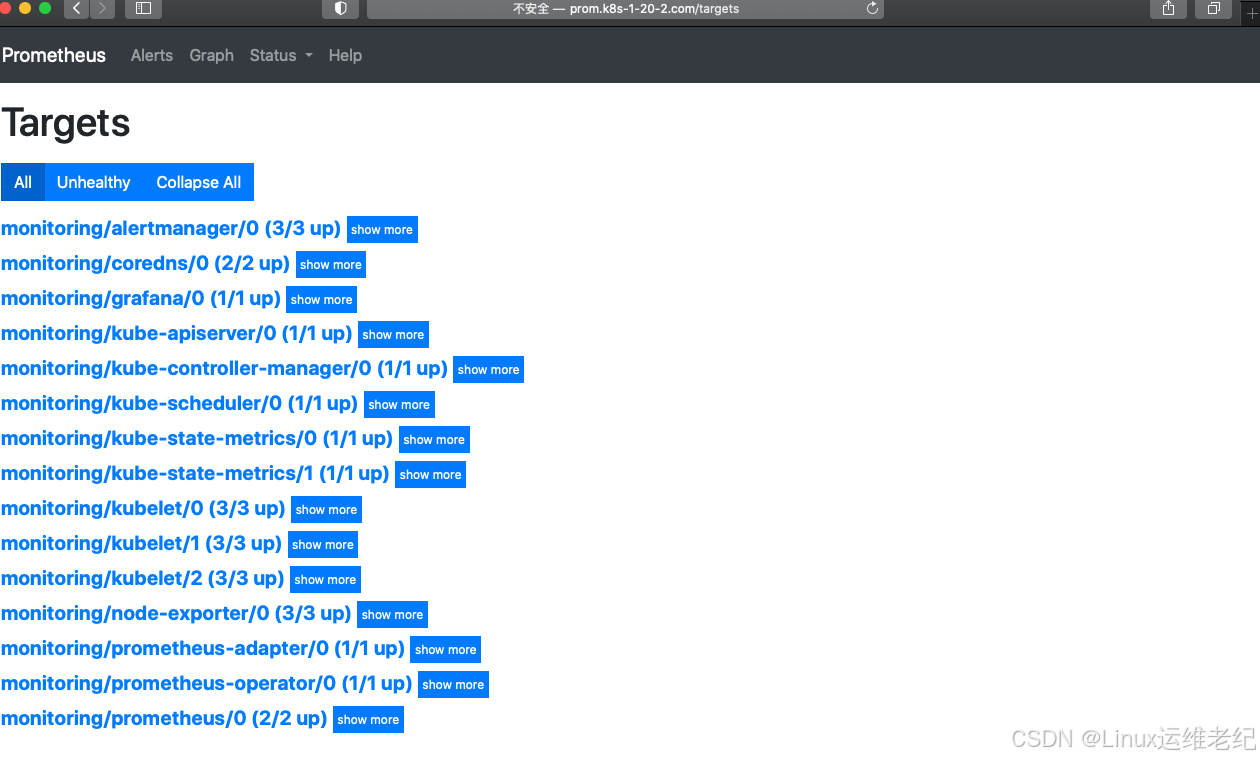

再次查看prometheusalert界面,全部恢复正常

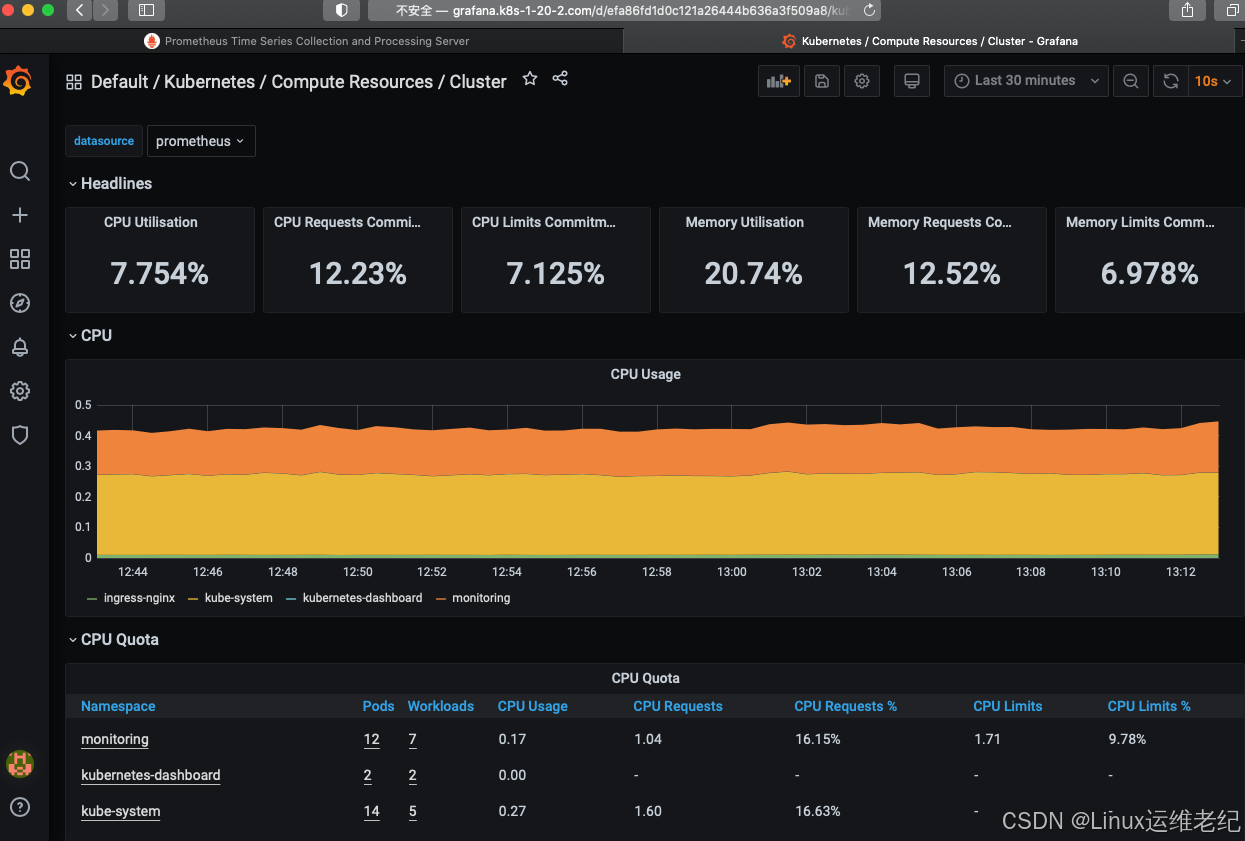

登录到grafana,查看相关图像展示

至此,通过kube-prometheus部署k8s监控已经基本完成了,后面再分享自定义监控和告警、告警通知、高可用、规模化部署等相关内容
