基于华为Ensp的校园/企业网的网络设计

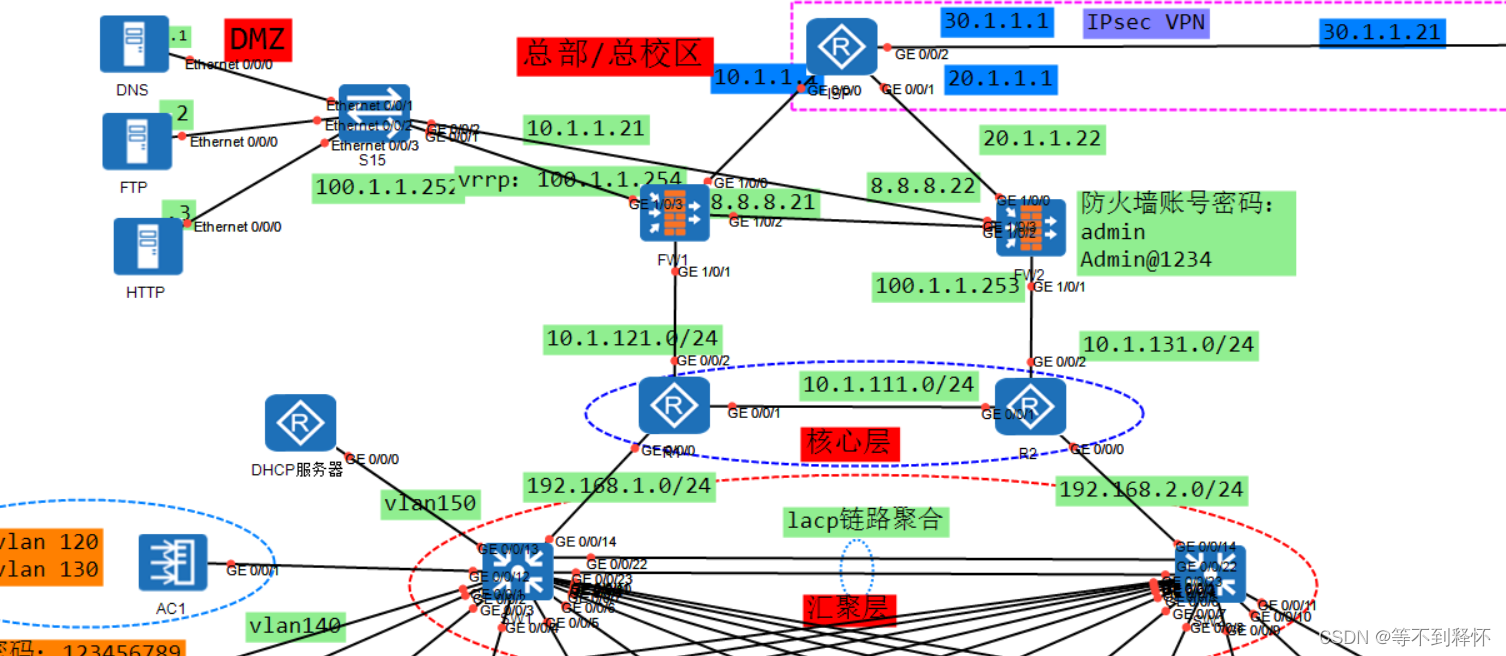

 设计图(文章结尾附上细节图)

引言

这是我的设计图，（软件还是Ensp，只不过是换了图标），该图主攻适用于设计基于IPSec  VPN技术的小伙伴，其运用到的技术还有VLAN划分、三层架构、MSTP+VRRP、链路聚合、DHCP、WLAN(无线局域网)、OSPF、双击热备、IPSec  VPN、单臂路由、DHCP技术等一系列，对毕设课题进行参考，场景适用于毕业设计、校园网络规划和企业网络规划。由什么问题可以在平台私信博主，看到会回，有什么不对的地方见谅，本人也是刚接触不久。上配置！

该网络配置全过程

总部/总校区部分

1、接入SW1

<Huawei>system-view[Huawei]sysname S1[S1]undo info-center enable [S1]vlan batch 10 120[S1]interface Ethernet0/0/1[S1-Ethernet0/0/1] port link-type access[S1-Ethernet0/0/1] port default vlan 10[S1-Ethernet0/0/1]interface Ethernet0/0/2[S1-Ethernet0/0/2] port link-type trunk[S1-Ethernet0/0/2] port trunk pvid vlan 120[S1-Ethernet0/0/2] port trunk allow-pass vlan 10 120[S1-Ethernet0/0/2]interface Ethernet0/0/3[S1-Ethernet0/0/3] port link-type access[S1-Ethernet0/0/3] port default vlan 10[S1-GigabitEthernet0/0/1] port link-type trunk[S1-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 120[S1-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S1-GigabitEthernet0/0/2] port link-type trunk[S1-GigabitEthernet0/0/2] port trunk allow-pass vlan 10 120

2、接入SW2

<Huawei>system-view[Huawei]sysname S2[S2]undo info-center enable[S2]undo info-center enable [S2]vlan batch 20 120[S2]interface Ethernet0/0/1[S2-Ethernet0/0/1] port link-type access[S2-Ethernet0/0/1] port default vlan 20[S2-Ethernet0/0/1]interface Ethernet0/0/2[S2-Ethernet0/0/2] port link-type trunk[S2-Ethernet0/0/2] port trunk pvid vlan 120[S2-Ethernet0/0/2] port trunk allow-pass vlan 20 120[S2-Ethernet0/0/2]interface Ethernet0/0/3[S2-Ethernet0/0/3] port link-type access[S2-Ethernet0/0/3] port default vlan 20[S2-Ethernet0/0/3]interface GigabitEthernet0/0/1[S2-GigabitEthernet0/0/1] port link-type trunk[S2-GigabitEthernet0/0/1] port trunk allow-pass vlan 20 120[S2-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S2-GigabitEthernet0/0/2] port link-type trunk[S2-GigabitEthernet0/0/2] port trunk allow-pass vlan 20 120

3、接入SW3

<Huawei>system-view [Huawei]sysname S3[S3]undo info-center enable Info: Information center is disabled.[S3]vlan batch 30 120[S3]interface Ethernet0/0/1[S3-Ethernet0/0/1] port link-type access[S3-Ethernet0/0/1] port default vlan 30[S3-Ethernet0/0/1]interface Ethernet0/0/2[S3-Ethernet0/0/2] port link-type trunk[S3-Ethernet0/0/2] port trunk pvid vlan 120[S3-Ethernet0/0/2] port trunk allow-pass vlan 30 120[S3-Ethernet0/0/2]interface Ethernet0/0/3[S3-Ethernet0/0/3] port link-type access[S3-Ethernet0/0/3] port default vlan 30[S3-Ethernet0/0/3]interface GigabitEthernet0/0/1[S3-GigabitEthernet0/0/1] port link-type trunk[S3-GigabitEthernet0/0/1] port trunk allow-pass vlan 30 120[S3-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S3-GigabitEthernet0/0/2] port link-type trunk[S3-GigabitEthernet0/0/2] port trunk allow-pass vlan 30 120

4、接入SW4

<Huawei>system-view [Huawei]sysname S4[S4]undo info-center enable [s4]vlan batch 40[s4]interface Ethernet0/0/1[s4-Ethernet0/0/1] port link-type access[s4-Ethernet0/0/1] port default vlan 40[s4-Ethernet0/0/1]interface Ethernet0/0/2[s4-Ethernet0/0/3] port link-type access[s4-Ethernet0/0/3] port default vlan 40[s4-Ethernet0/0/3]interface GigabitEthernet0/0/1[s4-GigabitEthernet0/0/1] port link-type trunk[s4-GigabitEthernet0/0/1] port trunk allow-pass vlan 40[s4-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[s4-GigabitEthernet0/0/2] port link-type trunk[s4-GigabitEthernet0/0/2] port trunk allow-pass vlan 40

5、接入SW5

<Huawei>system-view [Huawei]sysname S5[S5]undo info-center enable [S5]vlan ba 50[S5]interface Ethernet0/0/1[S5-Ethernet0/0/1] port link-type access[S5-Ethernet0/0/1] port default vlan 50[S5-Ethernet0/0/1]interface Ethernet0/0/3[S5-Ethernet0/0/3] port link-type access[S5-Ethernet0/0/3] port default vlan 50[S5-Ethernet0/0/3]interface GigabitEthernet0/0/1[S5-GigabitEthernet0/0/1] port link-type trunk[S5-GigabitEthernet0/0/1] port trunk allow-pass vlan 50[S5-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S5-GigabitEthernet0/0/2] port link-type trunk[S5-GigabitEthernet0/0/2] port trunk allow-pass vlan 50

6、接入SW6

<Huawei>system-view [Huawei]sysname S6[S6]undo info-center enable [S6]vlan batch 60[S6]interface Ethernet0/0/1[S6-Ethernet0/0/1] port link-type access[S6-Ethernet0/0/1] port default vlan 60[S6-Ethernet0/0/1]interface Ethernet0/0/3[S6-Ethernet0/0/3] port link-type access[S6-Ethernet0/0/3] port default vlan 60[S6-Ethernet0/0/3]interface GigabitEthernet0/0/1[S6-GigabitEthernet0/0/1] port link-type trunk[S6-GigabitEthernet0/0/1] port trunk allow-pass vlan 60[S6-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S6-GigabitEthernet0/0/2] port link-type trunk[S6-GigabitEthernet0/0/2] port trunk allow-pass vlan 60

7、接入SW7

<Huawei>system-view [Huawei]sysname S7[S7]undo info-center enable [S7]vlan batch 70 120[S7]interface Ethernet0/0/1[S7-Ethernet0/0/1] port link-type access[S7-Ethernet0/0/1] port default vlan 70[S7-Ethernet0/0/1]interface Ethernet0/0/2[S7-Ethernet0/0/2] port link-type trunk[S7-Ethernet0/0/2] port trunk pvid vlan 120[S7-Ethernet0/0/2] port trunk allow-pass vlan 70 120[S7-Ethernet0/0/2]interface Ethernet0/0/3[S7-Ethernet0/0/3] port link-type access[S7-Ethernet0/0/3] port default vlan 70[S7-Ethernet0/0/3]interface GigabitEthernet0/0/1[S7-GigabitEthernet0/0/1] port link-type trunk[S7-GigabitEthernet0/0/1] port trunk allow-pass vlan 70 120[S7-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S7-GigabitEthernet0/0/2] port link-type trunk[S7-GigabitEthernet0/0/2] port trunk allow-pass vlan 70 120

8、接入SW8

<Huawei>system-view [Huawei]sysname S8[S8]undo info-center enable [S8]vlan batch 80 120[S8]interface Ethernet0/0/1[S8-Ethernet0/0/1] port link-type access[S8-Ethernet0/0/1] port default vlan 80[S8-Ethernet0/0/1]interface Ethernet0/0/2[S8-Ethernet0/0/2] port link-type trunk[S8-Ethernet0/0/2] port trunk pvid vlan 120[S8-Ethernet0/0/2] port trunk allow-pass vlan 80 120[S8-Ethernet0/0/2]interface Ethernet0/0/3[S8-Ethernet0/0/3] port link-type access[S8-Ethernet0/0/3] port default vlan 80[S8-Ethernet0/0/3]interface GigabitEthernet0/0/1[S8-GigabitEthernet0/0/1] port link-type trunk[S8-GigabitEthernet0/0/1] port trunk allow-pass vlan 80 120[S8-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S8-GigabitEthernet0/0/2] port link-type trunk[S8-GigabitEthernet0/0/2] port trunk allow-pass vlan 80 120

9、接入SW9

<Huawei>system-view [Huawei]sysname S9[S9]undo info-center enable [S9]vlan batch 90[S9]interface Ethernet0/0/1[S9-Ethernet0/0/1] port link-type access[S9-Ethernet0/0/1] port default vlan 90[S9-Ethernet0/0/1]interface Ethernet0/0/3[S9-Ethernet0/0/3] port link-type access[S9-Ethernet0/0/3] port default vlan 90[S9-Ethernet0/0/3]interface GigabitEthernet0/0/1[S9-GigabitEthernet0/0/1] port link-type trunk[S9-GigabitEthernet0/0/1] port trunk allow-pass vlan 90[S9-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S9-GigabitEthernet0/0/2] port link-type trunk[S9-GigabitEthernet0/0/2] port trunk allow-pass vlan 90

10、接入SW10

<Huawei>system-view [Huawei]sysname S10[S10]undo info-center enable [S10]vlan batch 100 110[S10]interface Ethernet0/0/1[S10-Ethernet0/0/1] port link-type access[S10-Ethernet0/0/1] port default vlan 100[S10-Ethernet0/0/1]interface Ethernet0/0/3[S10-Ethernet0/0/3] port link-type access[S10-Ethernet0/0/3] port default vlan 100[S10-Ethernet0/0/3]interface GigabitEthernet0/0/1[S10-GigabitEthernet0/0/1] port link-type trunk[S10-GigabitEthernet0/0/1] port trunk allow-pass vlan 100[S10-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S10-GigabitEthernet0/0/2] port link-type trunk[S10-GigabitEthernet0/0/2] port trunk allow-pass vlan 100

11、接入SW11

<Huawei>system-view [Huawei]sysname S11[S11]undo info-center enable [S11]vlan batch 110[S11]interface Ethernet0/0/1[S11-Ethernet0/0/1] port link-type access[S11-Ethernet0/0/1] port default vlan 110[S11-Ethernet0/0/1]interface Ethernet0/0/3[S11-Ethernet0/0/3] port link-type access[S11-Ethernet0/0/3] port default vlan 110[S11-Ethernet0/0/3]interface GigabitEthernet0/0/1[S11-GigabitEthernet0/0/1] port link-type trunk[S11-GigabitEthernet0/0/1] port trunk allow-pass vlan 110[S11-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S11-GigabitEthernet0/0/2] port link-type trunk[S11-GigabitEthernet0/0/2] port trunk allow-pass vlan 110

 12、汇聚LSW1

<Huawei>system-view[Huawei]sysname SW1[SW1]undo info-center enable[SW1]vlan batch 10 20 30 40 50 60 70 80 90 100[SW1]vlan batch 110 120 130 150[SW1]dhcp enable[SW1]stp region-configuration[SW1-mst-region] region-name mstp[SW1-mst-region] revision-level 10[SW1-mst-region] instance 1 vlan 10 20 30 40 50 60 [SW1-mst-region] instance 2 vlan 70 80 90 100 110 120 [SW1-mst-region] instance 3 vlan 130 [SW1-mst-region] active region-configuration[SW1-mst-region]interface GigabitEthernet0/0/1[SW1-GigabitEthernet0/0/1] port link-type trunk[SW1-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 120[SW1-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[SW1-GigabitEthernet0/0/2] port link-type trunk[SW1-GigabitEthernet0/0/2] port trunk allow-pass vlan 20 120[SW1-GigabitEthernet0/0/2]interface GigabitEthernet0/0/3[SW1-GigabitEthernet0/0/3] port link-type trunk[SW1-GigabitEthernet0/0/3] port trunk allow-pass vlan 30 120[SW1-GigabitEthernet0/0/3]interface GigabitEthernet0/0/4[SW1-GigabitEthernet0/0/4] port link-type trunk[SW1-GigabitEthernet0/0/4] port trunk allow-pass vlan 40 120[SW1-GigabitEthernet0/0/4]interface GigabitEthernet0/0/5[SW1-GigabitEthernet0/0/5] port link-type trunk[SW1-GigabitEthernet0/0/5] port trunk allow-pass vlan 50 120[SW1-GigabitEthernet0/0/5]interface GigabitEthernet0/0/6[SW1-GigabitEthernet0/0/6] port link-type trunk[SW1-GigabitEthernet0/0/6] port trunk allow-pass vlan 60 120[SW1-GigabitEthernet0/0/6]interface GigabitEthernet0/0/7[SW1-GigabitEthernet0/0/7] port link-type trunk[SW1-GigabitEthernet0/0/7] port trunk allow-pass vlan 70 120[SW1-GigabitEthernet0/0/7]interface GigabitEthernet0/0/8[SW1-GigabitEthernet0/0/8] port link-type trunk[SW1-GigabitEthernet0/0/8] port trunk allow-pass vlan 80 120[SW1-GigabitEthernet0/0/8]interface GigabitEthernet0/0/9[SW1-GigabitEthernet0/0/9] port link-type trunk[SW1-GigabitEthernet0/0/9] port trunk allow-pass vlan 90 120[SW1-GigabitEthernet0/0/9]interface GigabitEthernet0/0/10[SW1-GigabitEthernet0/0/10] port link-type trunk[SW1-GigabitEthernet0/0/10] port trunk allow-pass vlan 100 120[SW1-GigabitEthernet0/0/10]interface GigabitEthernet0/0/11[SW1-GigabitEthernet0/0/11] port link-type trunk[SW1-GigabitEthernet0/0/11] port trunk allow-pass vlan 110 120[SW1-GigabitEthernet0/0/11]interface GigabitEthernet0/0/12[SW1-GigabitEthernet0/0/12] port link-type access[SW1-GigabitEthernet0/0/12] port default vlan 130[SW1-GigabitEthernet0/0/12]interface GigabitEthernet0/0/13[SW1-GigabitEthernet0/0/13] port link-type access[SW1-GigabitEthernet0/0/13] port default vlan 150[SW1-GigabitEthernet0/0/13]quit[SW1]interface Vlanif1[SW1-Vlanif1] ip address 192.168.1.1 255.255.255.0 [SW1-Vlanif1]interface Vlanif10[SW1-Vlanif10] ip address 192.168.8.2 255.255.248.0 [SW1-Vlanif10] vrrp vrid 10 virtual-ip 192.168.8.1[SW1-Vlanif10] vrrp vrid 10 priority 120[SW1-Vlanif10] dhcp select relay[SW1-Vlanif10] dhcp relay server-ip 192.168.150.1[SW1-Vlanif10]interface Vlanif20[SW1-Vlanif20] ip address 192.168.16.2 255.255.255.0 [SW1-Vlanif20] vrrp vrid 20 virtual-ip 192.168.16.1[SW1-Vlanif20] vrrp vrid 20 priority 120[SW1-Vlanif20] dhcp select relay[SW1-Vlanif20] dhcp relay server-ip 192.168.150.1[SW1-Vlanif20]interface Vlanif30[SW1-Vlanif30] ip address 192.168.17.2 255.255.255.0 [SW1-Vlanif30] vrrp vrid 30 virtual-ip 192.168.17.1[SW1-Vlanif30] vrrp vrid 30 priority 120[SW1-Vlanif30] dhcp select relay[SW1-Vlanif30] dhcp relay server-ip 192.168.150.1[SW1-Vlanif30]interface Vlanif40[SW1-Vlanif40] ip address 192.168.20.2 255.255.252.0 [SW1-Vlanif40] vrrp vrid 40 virtual-ip 192.168.20.1[SW1-Vlanif40] vrrp vrid 40 priority 120[SW1-Vlanif40] dhcp select relay[SW1-Vlanif40] dhcp relay server-ip 192.168.150.1[SW1-Vlanif40]interface Vlanif50[SW1-Vlanif50] ip address 192.168.24.2 255.255.255.0 [SW1-Vlanif50] vrrp vrid 50 virtual-ip 192.168.24.1[SW1-Vlanif50] vrrp vrid 50 priority 120[SW1-Vlanif50] dhcp select relay[SW1-Vlanif50] dhcp relay server-ip 192.168.150.1[SW1-Vlanif50]interface Vlanif60[SW1-Vlanif60] ip address 192.168.25.2 255.255.255.0 [SW1-Vlanif60] vrrp vrid 60 virtual-ip 192.168.25.1[SW1-Vlanif60] vrrp vrid 60 priority 120[SW1-Vlanif60] dhcp select relay[SW1-Vlanif60] dhcp relay server-ip 192.168.150.1[SW1-Vlanif60]interface Vlanif70[SW1-Vlanif70] ip address 192.168.32.2 255.255.248.0 [SW1-Vlanif70] vrrp vrid 70 virtual-ip 192.168.32.1[SW1-Vlanif70] dhcp select relay[SW1-Vlanif70] dhcp relay server-ip 192.168.150.1[SW1-Vlanif70]interface Vlanif80[SW1-Vlanif80] ip address 192.168.40.2 255.255.255.0 [SW1-Vlanif80] vrrp vrid 80 virtual-ip 192.168.40.1[SW1-Vlanif80] dhcp select relay[SW1-Vlanif80] dhcp relay server-ip 192.168.150.1[SW1-Vlanif80]interface Vlanif90[SW1-Vlanif90] ip address 192.168.44.2 255.255.252.0 [SW1-Vlanif90] vrrp vrid 90 virtual-ip 192.168.44.1[SW1-Vlanif90] dhcp select relay[SW1-Vlanif90] dhcp relay server-ip 192.168.150.1[SW1-Vlanif90]interface Vlanif100[SW1-Vlanif100] ip address 192.168.48.2 255.255.252.0  [SW1-Vlanif100] vrrp vrid 100 virtual-ip 192.168.48.1[SW1-Vlanif100] dhcp select relay[SW1-Vlanif100] dhcp relay server-ip 192.168.150.1[SW1-Vlanif110] vrrp vrid 110 virtual-ip 192.168.52.1[SW1-Vlanif110] dhcp select relay[SW1-Vlanif110] dhcp relay server-ip 192.168.150.1[SW1-Vlanif110]interface Vlanif120[SW1-Vlanif120] ip address 192.168.53.2 255.255.255.0 [SW1-Vlanif120] vrrp vrid 120 virtual-ip 192.168.53.1[SW1-Vlanif120] dhcp select relay[SW1-Vlanif120] dhcp relay server-ip 192.168.150.1[SW1-Vlanif120]interface Vlanif130[SW1-Vlanif130] ip address 192.168.130.2 255.255.255.0 [SW1-Vlanif130]interface Vlanif150[SW1-Vlanif150] ip address 192.168.150.2 255.255.255.0[SW1-Vlanif150]ospf 1 [SW1-ospf-1] import-route direct[SW1-ospf-1] area 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.1.1 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.8.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.16.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.17.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.20.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.24.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.25.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.32.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.40.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.44.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.48.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.52.2 0.0.0.0 [SW1-ospf-1-area-0.0.0.0]  network 192.168.53.2 0.0.0.0[SW1-ospf-1-area-0.0.0.0]stp instance 1 root primary[SW1]stp instance 2 root secondary[SW1]stp instance 3 root primary

 13、汇聚LSW2

<Huawei>system-view[Huawei]sysname SW2[SW2]undo info-center enable[SW2]vlan batch 10 20 30 40 50 60 70 80 90 100[SW2]vlan batch 110 120[SW2]dhcp enable[SW2]stp region-configuration[SW2-mst-region] region-name mstp[SW2-mst-region] revision-level 10[SW2-mst-region] instance 1 vlan 10 20 30 40 50 60 [SW2-mst-region] instance 2 vlan 70 80 90 100 110 120 [SW2-mst-region] instance 3 vlan 130 [SW2-mst-region] active region-configuration[SW2-mst-region]interface GigabitEthernet0/0/1[SW2-GigabitEthernet0/0/1] port link-type trunk[SW2-GigabitEthernet0/0/1] port trunk allow-pass vlan 10 120[SW2-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[SW2-GigabitEthernet0/0/2] port link-type trunk[SW2-GigabitEthernet0/0/2] port trunk allow-pass vlan 20 120[SW2-GigabitEthernet0/0/2]interface GigabitEthernet0/0/3[SW2-GigabitEthernet0/0/3] port link-type trunk[SW2-GigabitEthernet0/0/3] port trunk allow-pass vlan 30 120[SW2-GigabitEthernet0/0/3]interface GigabitEthernet0/0/4[SW2-GigabitEthernet0/0/4] port link-type trunk[SW2-GigabitEthernet0/0/4] port trunk allow-pass vlan 40 120[SW2-GigabitEthernet0/0/4]interface GigabitEthernet0/0/5[SW2-GigabitEthernet0/0/5] port link-type trunk[SW2-GigabitEthernet0/0/5] port trunk allow-pass vlan 50 120[SW2-GigabitEthernet0/0/5]interface GigabitEthernet0/0/6[SW2-GigabitEthernet0/0/6] port link-type trunk[SW2-GigabitEthernet0/0/6] port trunk allow-pass vlan 60 120[SW2-GigabitEthernet0/0/6]interface GigabitEthernet0/0/7[SW2-GigabitEthernet0/0/7] port link-type trunk[SW2-GigabitEthernet0/0/7] port trunk allow-pass vlan 70 120[SW2-GigabitEthernet0/0/7]interface GigabitEthernet0/0/8[SW2-GigabitEthernet0/0/8] port link-type trunk[SW2-GigabitEthernet0/0/8] port trunk allow-pass vlan 80 120[SW2-GigabitEthernet0/0/8]interface GigabitEthernet0/0/9[SW2-GigabitEthernet0/0/9] port link-type trunk[SW2-GigabitEthernet0/0/9] port trunk allow-pass vlan 90 120[SW2-GigabitEthernet0/0/9]interface GigabitEthernet0/0/10[SW2-GigabitEthernet0/0/10] port link-type trunk[SW2-GigabitEthernet0/0/10] port trunk allow-pass vlan 100 120[SW2-GigabitEthernet0/0/10]interface GigabitEthernet0/0/11[SW2-GigabitEthernet0/0/11] port link-type trunk[SW2-GigabitEthernet0/0/11] port trunk allow-pass vlan 110 120[SW2-GigabitEthernet0/0/11]interface Eth-Trunk1[SW2-Eth-Trunk1] port link-type trunk[SW2-Eth-Trunk1] port trunk allow-pass vlan 10 20 30 40 50 60 70 80 90 100[SW2-Eth-Trunk1] port trunk allow-pass vlan 110 120[SW2-Eth-Trunk1] mode lacp-static[SW2-Eth-Trunk1]interface Vlanif1[SW2-Vlanif1] ip address 192.168.2.1 255.255.255.0 [SW2-Vlanif1]interface Vlanif10[SW2-Vlanif10] ip address 192.168.8.3 255.255.248.0 [SW2-Vlanif10] vrrp vrid 10 virtual-ip 192.168.8.1[SW2-Vlanif10] dhcp select relay[SW2-Vlanif10] dhcp relay server-ip 192.168.150.1[SW2-Vlanif10]interface Vlanif20[SW2-Vlanif20] ip address 192.168.16.3 255.255.255.0 [SW2-Vlanif20] vrrp vrid 20 virtual-ip 192.168.16.1[SW2-Vlanif20] dhcp select relay[SW2-Vlanif20] dhcp relay server-ip 192.168.150.1[SW2-Vlanif20]interface Vlanif30[SW2-Vlanif30] ip address 192.168.17.3 255.255.255.0 [SW2-Vlanif30] vrrp vrid 30 virtual-ip 192.168.17.1[SW2-Vlanif30] dhcp select relay[SW2-Vlanif30] dhcp relay server-ip 192.168.150.1[SW2-Vlanif30]interface Vlanif40[SW2-Vlanif40] ip address 192.168.20.3 255.255.252.0 [SW2-Vlanif40] vrrp vrid 40 virtual-ip 192.168.20.1[SW2-Vlanif40] dhcp select relay[SW2-Vlanif40] dhcp relay server-ip 192.168.150.1[SW2-Vlanif40]interface Vlanif50[SW2-Vlanif50] ip address 192.168.24.3 255.255.255.0 [SW2-Vlanif50] vrrp vrid 50 virtual-ip 192.168.24.1[SW2-Vlanif50] dhcp select relay[SW2-Vlanif50] dhcp relay server-ip 192.168.150.1[SW2-Vlanif50]interface Vlanif60[SW2-Vlanif60] ip address 192.168.25.3 255.255.255.0 [SW2-Vlanif60] vrrp vrid 60 virtual-ip 192.168.25.1[SW2-Vlanif60] dhcp select relay[SW2-Vlanif60] dhcp relay server-ip 192.168.150.1[SW2-Vlanif60]interface Vlanif70[SW2-Vlanif70] ip address 192.168.32.3 255.255.248.0 [SW2-Vlanif70] vrrp vrid 70 virtual-ip 192.168.32.1[SW2-Vlanif70] vrrp vrid 70 priority 120[SW2-Vlanif70] dhcp select relay[SW2-Vlanif70] dhcp relay server-ip 192.168.150.1[SW2-Vlanif70]interface Vlanif80[SW2-Vlanif80] ip address 192.168.40.3 255.255.255.0 [SW2-Vlanif80] vrrp vrid 80 virtual-ip 192.168.40.1[SW2-Vlanif80] vrrp vrid 80 priority 120[SW2-Vlanif80] dhcp select relay[SW2-Vlanif80] dhcp relay server-ip 192.168.150.1[SW2-Vlanif80]interface Vlanif90[SW2-Vlanif90] ip address 192.168.44.3 255.255.252.0 [SW2-Vlanif90] vrrp vrid 90 virtual-ip 192.168.44.1[SW2-Vlanif90] vrrp vrid 90 priority 120[SW2-Vlanif90] dhcp relay server-ip 192.168.150.1[SW2-Vlanif90]interface Vlanif100[SW2-Vlanif100] ip address 192.168.48.3 255.255.252.0 [SW2-Vlanif100] vrrp vrid 100 virtual-ip 192.168.48.1[SW2-Vlanif100] vrrp vrid 100 priority 120[SW2-Vlanif100] dhcp select relay[SW2-Vlanif100] dhcp relay server-ip 192.168.150.1[SW2-Vlanif100]interface Vlanif110[SW2-Vlanif110] ip address 192.168.52.3 255.255.255.0 [SW2-Vlanif110] vrrp vrid 110 virtual-ip 192.168.52.1[SW2-Vlanif110] vrrp vrid 110 priority 120[SW2-Vlanif110] dhcp select relay[SW2-Vlanif110]ospf 1 [SW2-ospf-1] area 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.2.1 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.8.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.16.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.17.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.20.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.24.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.25.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.32.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.40.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.44.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.48.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.52.3 0.0.0.0 [SW2-ospf-1-area-0.0.0.0]  network 192.168.53.3 0.0.0.0[SW2-ospf-1-area-0.0.0.0]stp instance 1 root secondary[SW2]stp instance 2 root primary[SW2]stp instance 3 root secondary

 14、无线AC

<AC6005>system-view [AC6005]undo info-center enable [AC6005] sysname AC1[AC1]vlan batch 130[AC1]vlan pool vlan10[AC1-vlan-pool-vlan10] vlan 10[AC1-vlan-pool-vlan10]vlan pool vlan20[AC1-vlan-pool-vlan20] vlan 20[AC1-vlan-pool-vlan20]vlan pool vlan30[AC1-vlan-pool-vlan30] vlan 30[AC1-vlan-pool-vlan30]vlan pool vlan70[AC1-vlan-pool-vlan70] vlan 70[AC1-vlan-pool-vlan70]vlan pool vlan80[AC1-vlan-pool-vlan80] vlan 80[AC1-vlan-pool-vlan80]quit[AC1]interface Vlanif130[AC1-Vlanif130] ip address 192.168.130.1 255.255.255.0[AC1-Vlanif130]interface GigabitEthernet0/0/1[AC1-GigabitEthernet0/0/1] port link-type access[AC1-GigabitEthernet0/0/1] port default vlan 130[AC1-GigabitEthernet0/0/1]quit[AC1]ip route-static 0.0.0.0 0.0.0.0 192.168.130.2[AC1]capwap source interface vlanif130[AC1]wlan[AC1-wlan-view]ap auth-mode mac-auth [AC1-wlan-view]regulatory-domain-profile name China[AC1-wlan-regulate-domain-China]country-code CN [AC1-wlan-regulate-domain-China]quit[AC1-wlan-view]ap-id 1 type-id 69 ap-mac 00e0-fc8b-7c80[AC1-wlan-ap-1]ap-name AP1[AC1-wlan-ap-1]ap-group ap1[AC1-wlan-ap-1]ap-id 2 type-id 69 ap-mac 00e0-fc5d-2640 [AC1-wlan-ap-2] ap-name AP2[AC1-wlan-ap-2] ap-group ap2[AC1-wlan-ap-2] ap-id 3 type-id 69 ap-mac 00e0-fc2e-5ad0 [AC1-wlan-ap-3]ap-name AP3[AC1-wlan-ap-3]ap-group ap3[AC1-wlan-ap-3]ap-id 4 type-id 69 ap-mac 00e0-fc3f-7770 [AC1-wlan-ap-4] ap-name AP4[AC1-wlan-ap-4]ap-group ap4[AC1-wlan-ap-4]ap-id 5 type-id 69 ap-mac 00e0-fcdc-0c70 [AC1-wlan-ap-5]ap-name AP5[AC1-wlan-ap-5]ap-group ap5[AC1-wlan-view] security-profile name xiaoyuan[AC1-wlan-sec-prof-xiaoyuan]security wpa2 psk pass-phrase 123456789 aes[AC1-wlan-sec-prof-xiaoyuan]quit[AC1-wlan-view] ssid-profile name xiaoyuan[AC1-wlan-ssid-prof-xiaoyuan][AC1-wlan-ssid-prof-xiaoyuan]  ssid Campus Network[AC1-wlan-ssid-prof-xiaoyuan]quit[AC1-wlan-view] vap-profile name ap1[AC1-wlan-vap-prof-ap1]service-vlan vlan-pool vlan10[AC1-wlan-vap-prof-ap1]ssid-profile xiaoyuan[AC1-wlan-vap-prof-ap1]security-profile xiaoyuan[AC1-wlan-vap-prof-ap1]vap-profile name ap2[AC1-wlan-vap-prof-ap2]service-vlan vlan-pool vlan20[AC1-wlan-vap-prof-ap2]ssid-profile xiaoyuan[AC1-wlan-vap-prof-ap2]security-profile xiaoyuan[AC1-wlan-vap-prof-ap2]vap-profile name ap3[AC1-wlan-vap-prof-ap3]service-vlan vlan-pool vlan30[AC1-wlan-vap-prof-ap3]ssid-profile xiaoyuan[AC1-wlan-vap-prof-ap3]security-profile xiaoyuan[AC1-wlan-vap-prof-ap3]vap-profile name ap4[AC1-wlan-vap-prof-ap4]service-vlan vlan-pool vlan70[AC1-wlan-vap-prof-ap4]ssid-profile xiaoyuan[AC1-wlan-vap-prof-ap4]security-profile xiaoyuan[AC1-wlan-vap-prof-ap4]vap-profile name ap5[AC1-wlan-vap-prof-ap5]service-vlan vlan-pool vlan80[AC1-wlan-vap-prof-ap5]ssid-profile xiaoyuan[AC1-wlan-vap-prof-ap5]security-profile xiaoyuan[AC1-wlan-vap-prof-ap5]quit[AC1-wlan-view]ap-group name ap1[AC1-wlan-ap-group-ap1]regulatory-domain-profile China[AC1-wlan-ap-group-ap1]vap-profile ap1 wlan 1  radio 0[AC1-wlan-ap-group-ap1]vap-profile ap1 wlan 1 radio 1[AC1-wlan-ap-group-ap1]quit[AC1-wlan-view]ap-group name ap2[AC1-wlan-ap-group-ap2]regulatory-domain-profile China[AC1-wlan-ap-group-ap2]vap-profile ap2 wlan 1  radio 0[AC1-wlan-ap-group-ap2]vap-profile ap2 wlan 1 radio 1[AC1-wlan-ap-group-ap2]quit[AC1-wlan-view]ap-group name ap3[AC1-wlan-ap-group-ap3]regulatory-domain-profile China[AC1-wlan-ap-group-ap3]vap-profile ap3 wlan 1  radio 0[AC1-wlan-ap-group-ap3]vap-profile ap3 wlan 1 radio 1[AC1-wlan-ap-group-ap3]quit[AC1-wlan-view]ap-group name ap4[AC1-wlan-ap-group-ap4]regulatory-domain-profile China[AC1-wlan-ap-group-ap4]vap-profile ap4 wlan 1  radio 0[AC1-wlan-ap-group-ap4]vap-profile ap4 wlan 1 radio 1[AC1-wlan-ap-group-ap4]quit[AC1-wlan-view]ap-group name ap5[AC1-wlan-ap-group-ap5]regulatory-domain-profile China[AC1-wlan-ap-group-ap5]vap-profile ap5 wlan 1  radio 0[AC1-wlan-ap-group-ap5]vap-profile ap5 wlan 1 radio 1[AC1-wlan-ap-group-ap5]quit

15、DHCP

这里使用一台路由器充当DHCP服务器

<Huawei>system-view[Huawei]sysname DHCP[DHCP]undo info-center enable[DHCP]dhcp enable[DHCP]interface GigabitEthernet0/0/0[DHCP-GigabitEthernet0/0/0] ip address 192.168.150.1 255.255.255.0[DHCP-GigabitEthernet0/0/0] dhcp select global[DHCP-GigabitEthernet0/0/0]ip pool vlan10[DHCP-ip-pool-vlan10] gateway-list 192.168.8.1[DHCP-ip-pool-vlan10] network 192.168.8.0 mask 255.255.248.0[DHCP-ip-pool-vlan10] excluded-ip-address 192.168.8.2 192.168.8.3[DHCP-ip-pool-vlan10] dns-list 100.1.1.1[DHCP-ip-pool-vlan10]ip pool vlan20[DHCP-ip-pool-vlan20] gateway-list 192.168.16.1[DHCP-ip-pool-vlan20] network 192.168.16.0 mask 255.255.255.0[DHCP-ip-pool-vlan20] excluded-ip-address 192.168.16.2 192.168.16.3[DHCP-ip-pool-vlan20] dns-list 100.1.1.1[DHCP-ip-pool-vlan20]ip pool vlan30[DHCP-ip-pool-vlan30] gateway-list 192.168.17.1[DHCP-ip-pool-vlan30] network 192.168.17.0 mask 255.255.255.0[DHCP-ip-pool-vlan30] excluded-ip-address 192.168.17.2 192.168.17.3[DHCP-ip-pool-vlan30] dns-list 100.1.1.1[DHCP-ip-pool-vlan30]ip pool vlan40[DHCP-ip-pool-vlan40] gateway-list 192.168.20.1[DHCP-ip-pool-vlan40] network 192.168.20.0 mask 255.255.252.0[DHCP-ip-pool-vlan40] excluded-ip-address 192.168.20.2 192.168.20.3[DHCP-ip-pool-vlan40] dns-list 100.1.1.1[DHCP-ip-pool-vlan40]ip pool vlan50[DHCP-ip-pool-vlan50] gateway-list 192.168.24.1[DHCP-ip-pool-vlan50] network 192.168.24.0 mask 255.255.255.0[DHCP-ip-pool-vlan50] excluded-ip-address 192.168.24.2 192.168.24.3[DHCP-ip-pool-vlan50] dns-list 100.1.1.1[DHCP-ip-pool-vlan50]ip pool vlan60[DHCP-ip-pool-vlan60] gateway-list 192.168.25.1[DHCP-ip-pool-vlan60] network 192.168.25.0 mask 255.255.255.0[DHCP-ip-pool-vlan60] excluded-ip-address 192.168.25.2 192.168.25.3[DHCP-ip-pool-vlan60] dns-list 100.1.1.1[DHCP-ip-pool-vlan60]ip pool vlan70[DHCP-ip-pool-vlan70] gateway-list 192.168.32.1[DHCP-ip-pool-vlan70] network 192.168.32.0 mask 255.255.248.0[DHCP-ip-pool-vlan70] excluded-ip-address 192.168.32.2 192.168.32.3[DHCP-ip-pool-vlan70] dns-list 100.1.1.1[DHCP-ip-pool-vlan70]ip pool vlan80[DHCP-ip-pool-vlan80] gateway-list 192.168.40.1 [DHCP-ip-pool-vlan80] network 192.168.40.0 mask 255.255.255.0 [DHCP-ip-pool-vlan80] excluded-ip-address 192.168.40.2 192.168.40.3 [DHCP-ip-pool-vlan80] dns-list 100.1.1.1 [DHCP-ip-pool-vlan80]ip pool vlan90[DHCP-ip-pool-vlan90] gateway-list 192.168.44.1 [DHCP-ip-pool-vlan90] network 192.168.44.0 mask 255.255.252.0 [DHCP-ip-pool-vlan90] excluded-ip-address 192.168.44.2 192.168.44.3 [DHCP-ip-pool-vlan90] dns-list 100.1.1.1 [DHCP-ip-pool-vlan90]ip pool vlan100[DHCP-ip-pool-vlan100] gateway-list 192.168.48.1 [DHCP-ip-pool-vlan100] network 192.168.48.0 mask 255.255.252.0 [DHCP-ip-pool-vlan100] excluded-ip-address 192.168.48.2 192.168.48.3 [DHCP-ip-pool-vlan100] dns-list 100.1.1.1 [DHCP-ip-pool-vlan100]ip pool vlan110[DHCP-ip-pool-vlan110] gateway-list 192.168.52.1 [DHCP-ip-pool-vlan110] network 192.168.52.0 mask 255.255.255.0 [DHCP-ip-pool-vlan110] excluded-ip-address 192.168.52.2 192.168.52.3 [DHCP-ip-pool-vlan110] dns-list 100.1.1.1 [DHCP-ip-pool-vlan110]ip pool vlan120[DHCP-ip-pool-vlan120] gateway-list 192.168.53.1 [DHCP-ip-pool-vlan120] network 192.168.53.0 mask 255.255.255.0 [DHCP-ip-pool-vlan120] excluded-ip-address 192.168.53.2 192.168.53.3 [DHCP-ip-pool-vlan120] option 43 sub-option 3 ascii 192.168.130.1[DHCP-ip-pool-vlan120]ip route-static 0.0.0.0 0.0.0.0 192.168.150.2

 16、核心AR1

<Huawei>system-view[Huawei]sysname R1[R1]undo info-center enable[R1]interface GigabitEthernet0/0/0[R1-GigabitEthernet0/0/0] ip address 192.168.1.2 255.255.255.0 [R1-GigabitEthernet0/0/0]interface GigabitEthernet0/0/1[R1-GigabitEthernet0/0/1] ip address 10.1.111.1 255.255.255.0 [R1-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[R1-GigabitEthernet0/0/2] ip address 10.1.121.2 255.255.255.0 [R1-GigabitEthernet0/0/2]ospf 1 [R1-ospf-1] area 0.0.0.0 [R1-ospf-1-area-0.0.0.0]  network 10.1.111.1 0.0.0.0 [R1-ospf-1-area-0.0.0.0]  network 10.1.121.2 0.0.0.0 [R1-ospf-1-area-0.0.0.0]  network 192.168.1.2 0.0.0.0

 17、核心AR2

<Huawei>system-view[Huawei]sysname S2[S2]undo  info-center enable[S2]interface GigabitEthernet0/0/0[S2-GigabitEthernet0/0/0] ip address 192.168.2.2 255.255.255.0 [S2-GigabitEthernet0/0/0]interface GigabitEthernet0/0/1[S2-GigabitEthernet0/0/1] ip address 10.1.111.2 255.255.255.0 [S2-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[S2-GigabitEthernet0/0/2] ip address 10.1.131.2 255.255.255.0 [S2-GigabitEthernet0/0/2]ospf 1 [S2-ospf-1][S2-ospf-1] area 0.0.0.0 [S2-ospf-1-area-0.0.0.0]  network 10.1.111.2 0.0.0.0 [S2-ospf-1-area-0.0.0.0]  network 10.1.131.2 0.0.0.0 [S2-ospf-1-area-0.0.0.0]  network 192.168.2.2 0.0.0.0

 18、防火墙FW1&FW2

FW1：<USG6000V1>system-view [USG6000V1]undo info-center enable [USG6000V1]sysname FW1[FW1]interface GigabitEthernet1/0/0[FW1-GigabitEthernet1/0/0] ip address 10.1.1.21 255.255.255.0[FW1-GigabitEthernet1/0/0] service-manage ping permit[FW1-GigabitEthernet1/0/0]interface GigabitEthernet1/0/1[FW1-GigabitEthernet1/0/1] undo shutdownInfo: Interface GigabitEthernet1/0/1 is not shutdown.[FW1-GigabitEthernet1/0/1] ip address 10.1.121.1 255.255.255.0[FW1-GigabitEthernet1/0/1] service-manage ping permit[FW1-GigabitEthernet1/0/1]interface GigabitEthernet1/0/2[FW1-GigabitEthernet1/0/2] ip address 8.8.8.21 255.255.255.0[FW1-GigabitEthernet1/0/2] service-manage ping permit[FW1-GigabitEthernet1/0/2]interface GigabitEthernet1/0/3[FW1-GigabitEthernet1/0/3] ip address 100.1.1.252 255.255.255.0[FW1-GigabitEthernet1/0/3] vrrp vrid 10 virtual-ip 100.1.1.254 active[FW1-GigabitEthernet1/0/3] service-manage ping permit[FW1-GigabitEthernet1/0/3]quit[FW1]firewall zone trust[FW1-zone-trust] add interface GigabitEthernet1/0/1[FW1-zone-trust]firewall zone untrust[FW1-zone-untrust] add interface GigabitEthernet1/0/0[FW1-zone-untrust]firewall zone dmz[FW1-zone-dmz] add interface GigabitEthernet1/0/2[FW1-zone-dmz] add interface GigabitEthernet1/0/3[FW1-zone-dmz]quit[FW1]ospf 1[FW1-ospf-1] area 0.0.0.0[FW1-ospf-1-area-0.0.0.0]network 8.8.8.21 0.0.0.0[FW1-ospf-1-area-0.0.0.0]network 10.1.1.21 0.0.0.0[FW1-ospf-1-area-0.0.0.0]network 10.1.121.1 0.0.0.0[FW1-ospf-1-area-0.0.0.0]network 100.1.1.252 0.0.0.0[FW1-ospf-1-area-0.0.0.0]quit[FW1-ospf-1]quitFW2：<USG6000V1>system-view [USG6000V1]undo info-center enable [USG6000V1]sysname FW2[FW2]interface GigabitEthernet1/0/0[FW2-GigabitEthernet1/0/0]ip address 20.1.1.22 255.255.255.0[FW2-GigabitEthernet1/0/0]service-manage ping permit[FW2-GigabitEthernet1/0/0]interface GigabitEthernet1/0/1[FW2-GigabitEthernet1/0/1]ip address 10.1.131.1 255.255.255.0[FW2-GigabitEthernet1/0/1]service-manage ping permit[FW2-GigabitEthernet1/0/1]interface GigabitEthernet1/0/2[FW2-GigabitEthernet1/0/2]ip address 8.8.8.22 255.255.255.0[FW2-GigabitEthernet1/0/2]service-manage ping permit[FW2-GigabitEthernet1/0/2]interface GigabitEthernet1/0/3[FW2-GigabitEthernet1/0/3] ip address 100.1.1.253 255.255.255.0[FW2-GigabitEthernet1/0/3]vrrp vrid 10 virtual-ip 100.1.1.254 standby[FW2-GigabitEthernet1/0/3]service-manage ping permit[FW2-GigabitEthernet1/0/3]quit[FW2]firewall zone trust[FW2-zone-trust] add interface GigabitEthernet1/0/1[FW2-zone-trust]firewall zone untrust[FW2-zone-untrust] add interface GigabitEthernet1/0/0[FW2-zone-untrust]firewall zone dmz[FW2-zone-dmz] add interface GigabitEthernet1/0/2[FW2-zone-dmz] add interface GigabitEthernet1/0/3[FW2-zone-dmz]quit[FW2]ospf 1[FW2-ospf-1]area 0.0.0.0[FW2-ospf-1-area-0.0.0.0]network 8.8.8.22 0.0.0.0[FW2-ospf-1-area-0.0.0.0]network 10.1.131.1 0.0.0.0[FW2-ospf-1-area-0.0.0.0]network 20.1.1.22 0.0.0.0[FW2-ospf-1-area-0.0.0.0]network 100.1.1.253 0.0.0.0[FW2-ospf-1-area-0.0.0.0]quit[FW2-ospf-1]quitFW1防火墙双击热备我没有放，就先省略了，配置了FW1的策略，FW2的也就自然而然的自动备份上了，这里FW2是备份防火墙，配置完就可以实现IPSec VPN,需要拷贝的可以找我，拷贝的是全的，请谅解！

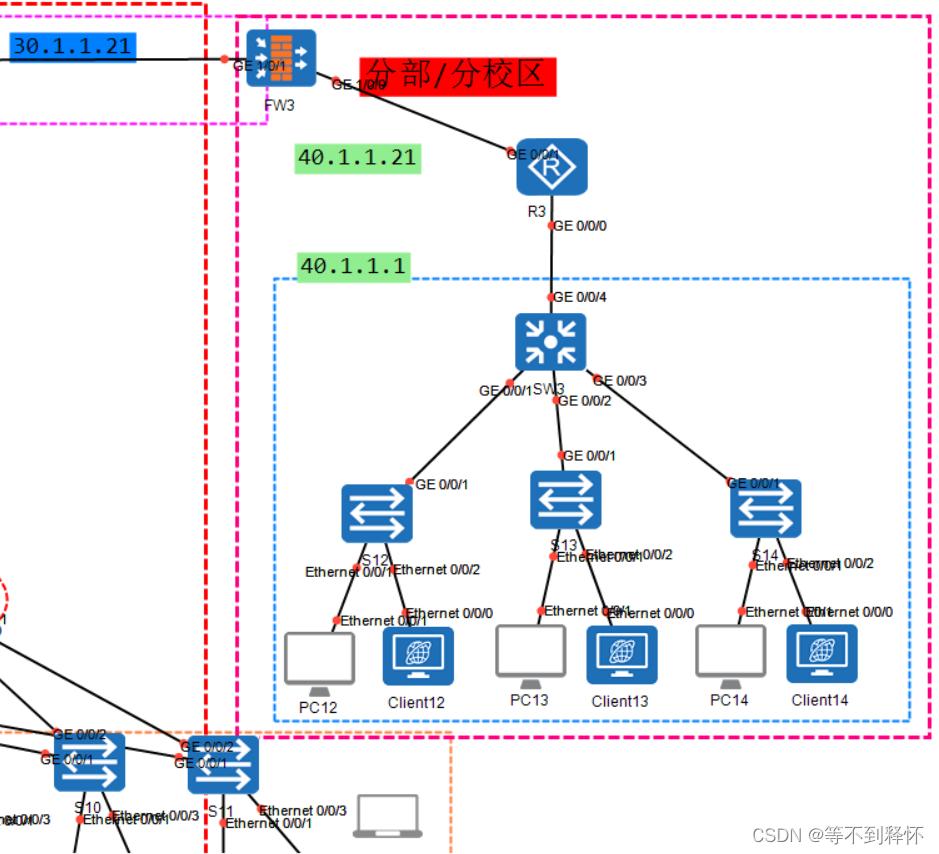

分部/分校区部分

19、接入SW12

<Huawei>system-view [Huawei]sysname S12[S12]undo info-center enable [S12]vlan batch 10[S12]interface Ethernet0/0/1[S12-Ethernet0/0/1] port link-type access[S12-Ethernet0/0/1] port default vlan 10[S12-Ethernet0/0/1]interface Ethernet0/0/2[S12-Ethernet0/0/2] port link-type access[S12-Ethernet0/0/2] port default vlan 10[S12-Ethernet0/0/2]interface GigabitEthernet0/0/1[S12-GigabitEthernet0/0/1] port link-type trunk[S12-GigabitEthernet0/0/1] port trunk allow-pass vlan 10

20、接入SW13

<Huawei>system-view [Huawei]sysname S13[S13]undo info-center enable [S13]interface Ethernet0/0/1[S13-Ethernet0/0/1] port link-type access[S13-Ethernet0/0/1] port default vlan 20[S13-Ethernet0/0/1]interface Ethernet0/0/2[S13-Ethernet0/0/2] port link-type access[S13-Ethernet0/0/2] port default vlan 20[S13-Ethernet0/0/2]interface GigabitEthernet0/0/1[S13-GigabitEthernet0/0/1] port link-type trunk[S13-GigabitEthernet0/0/1] port trunk allow-pass vlan 20

21、接入SW14

<Huawei>system-view [Huawei]sysname S14[S14]vlan batch 30[S14]undo info-center enable [S14]interface Ethernet0/0/1[S14-Ethernet0/0/1] port link-type access[S14-Ethernet0/0/1] port default vlan 30[S14-Ethernet0/0/1]interface Ethernet0/0/2[S14-Ethernet0/0/2] port link-type access[S14-Ethernet0/0/2] port default vlan 30[S14-Ethernet0/0/2]interface GigabitEthernet0/0/1[S14-GigabitEthernet0/0/1] port link-type trunk[S14-GigabitEthernet0/0/1] port trunk allow-pass vlan 30

22、汇聚 LSW3

<Huawei>system-view[Huawei]sysname SW3[SW3]undo info-center enable[SW3]vlan batch 10 20 30[SW3]interface GigabitEthernet0/0/1[SW3-GigabitEthernet0/0/1] port link-type trunk[SW3-GigabitEthernet0/0/1] port trunk allow-pass vlan 10[SW3-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[SW3-GigabitEthernet0/0/2] port link-type trunk[SW3-GigabitEthernet0/0/2] port trunk allow-pass vlan 20[SW3-GigabitEthernet0/0/2]interface GigabitEthernet0/0/3[SW3-GigabitEthernet0/0/3] port link-type trunk[SW3-GigabitEthernet0/0/3] port trunk allow-pass vlan 30[SW3-GigabitEthernet0/0/3]interface GigabitEthernet0/0/4[SW3-GigabitEthernet0/0/4] port link-type trunk[SW3-GigabitEthernet0/0/4] port trunk allow-pass vlan 10 20 30

23、核心AR3

[R3]dhcp enableInfo: The operation may take a few seconds. Please wait for a moment.done.[R3]interface GigabitEthernet0/0/0.10[R3-GigabitEthernet0/0/0.10] dot1q termination vid 10[R3-GigabitEthernet0/0/0.10] ip address 172.16.10.254 255.255.255.0 [R3-GigabitEthernet0/0/0.10] arp broadcast enable[R3-GigabitEthernet0/0/0.10] dhcp select interface[R3-GigabitEthernet0/0/0.10] dhcp server dns-list 100.1.1.1 [R3-GigabitEthernet0/0/0.10]interface GigabitEthernet0/0/0.20[R3-GigabitEthernet0/0/0.20] dot1q termination vid 20[R3-GigabitEthernet0/0/0.20] ip address 172.16.20.254 255.255.255.0 [R3-GigabitEthernet0/0/0.20] arp broadcast enable[R3-GigabitEthernet0/0/0.20] dhcp select interface[R3-GigabitEthernet0/0/0.20] dhcp server dns-list 100.1.1.1 [R3-GigabitEthernet0/0/0.20]interface GigabitEthernet0/0/0.30[R3-GigabitEthernet0/0/0.30] dot1q termination vid 30[R3-GigabitEthernet0/0/0.30] ip address 172.16.30.254 255.255.255.0 [R3-GigabitEthernet0/0/0.30] arp broadcast enable[R3-GigabitEthernet0/0/0.30] dhcp select interface[R3-GigabitEthernet0/0/0.30] dhcp server dns-list 100.1.1.1 [R3-GigabitEthernet0/0/0.30]interface GigabitEthernet0/0/1[R3-GigabitEthernet0/0/1] ip address 40.1.1.1 255.255.255.0 [R3-GigabitEthernet0/0/1]ospf 1 [R3-ospf-1][R3-ospf-1] area 0.0.0.0 [R3-ospf-1-area-0.0.0.0]  network 40.1.1.1 0.0.0.0 [R3-ospf-1-area-0.0.0.0]  network 172.16.10.254 0.0.0.0 [R3-ospf-1-area-0.0.0.0]  network 172.16.20.254 0.0.0.0 [R3-ospf-1-area-0.0.0.0]  network 172.16.30.254 0.0.0.0

 24、防火墙FW3

<USG6000V1>system-view [USG6000V1]undo info-center enable [USG6000V1]sysname FW3[FW3]interface GigabitEthernet1/0/0[FW3-GigabitEthernet1/0/0]ip address 40.1.1.21 255.255.255.0[FW3-GigabitEthernet1/0/0]service-manage ping permit[FW3-GigabitEthernet1/0/0]interface GigabitEthernet1/0/1[FW3-GigabitEthernet1/0/1]ip address 30.1.1.21 255.255.255.0[FW3-GigabitEthernet1/0/1]service-manage ping permit[FW3-GigabitEthernet1/0/1]quit[FW3]firewall zone trust[FW3-zone-trust] add interface GigabitEthernet1/0/0[FW3-zone-trust]firewall zone untrust[FW3-zone-untrust] add interface GigabitEthernet1/0/1[FW3-zone-untrust]quit[FW3]ospf 1[FW3-ospf-1]area 0.0.0.0[FW3-ospf-1-area-0.0.0.0]network 30.1.1.21 0.0.0.0[FW3-ospf-1-area-0.0.0.0]network 40.1.1.21 0.0.0.0[FW3-ospf-1-area-0.0.0.0]quit[FW3-ospf-1]quit[FW3]acl number 3000[FW3-acl-adv-3000]rule 5 permit ip source 172.16.0.0 0.0.255.255 destination 192.168.0.0 0.0.255.255 [FW3-acl-adv-3000]quit[FW3]ipsec proposal 10[FW3-ipsec-proposal-10]esp authentication-algorithm sha2-256 [FW3-ipsec-proposal-10]esp encryption-algorithm aes-256 [FW3-ipsec-proposal-10]quit[FW3]ike proposal 10[FW3-ike-proposal-10]encryption-algorithm aes-256 [FW3-ike-proposal-10]dh group14 [FW3-ike-proposal-10]authentication-algorithm sha2-256 [FW3-ike-proposal-10]authentication-method pre-share[FW3-ike-proposal-10]integrity-algorithm hmac-sha2-256 [FW3-ike-proposal-10]prf hmac-sha2-256 [FW3-ike-proposal-10]quit[FW3]ike peer fw12[FW3-ike-peer-fw12]pre-shared-key Hcie[FW3-ike-peer-fw12]ike-proposal 10[FW3-ike-peer-fw12]remote-address 10.1.1.21 [FW3-ike-peer-fw12]remote-address 20.1.1.22 [FW3-ike-peer-fw12]quit[FW3]ipsec policy map 10 isakmp[FW3-ipsec-policy-isakmp-map-10]security acl 3000[FW3-ipsec-policy-isakmp-map-10]ike-peer fw12[FW3-ipsec-policy-isakmp-map-10]proposal 10[FW3-ipsec-policy-isakmp-map-10]quit[FW3]interface GigabitEthernet1/0/1[FW3-GigabitEthernet1/0/1]ipsec policy map

ISP配置

<Huawei>system-view[Huawei]sysname ISP[ISP]undo info-center enable[ISP]interface GigabitEthernet0/0/0[ISP-GigabitEthernet0/0/0] ip address 10.1.1.1 255.255.255.0 [ISP-GigabitEthernet0/0/0]interface GigabitEthernet0/0/1[ISP-GigabitEthernet0/0/1] ip address 20.1.1.1 255.255.255.0 [ISP-GigabitEthernet0/0/1]interface GigabitEthernet0/0/2[ISP-GigabitEthernet0/0/2] ip address 30.1.1.1 255.255.255.0 [ISP-GigabitEthernet0/0/2]ospf 1 [ISP-ospf-1] area 0.0.0.0 [ISP-ospf-1-area-0.0.0.0]  network 10.1.1.1 0.0.0.0 [ISP-ospf-1-area-0.0.0.0]  network 20.1.1.1 0.0.0.0 [ISP-ospf-1-area-0.0.0.0]  network 30.1.1.1 0.0.0.0

附录

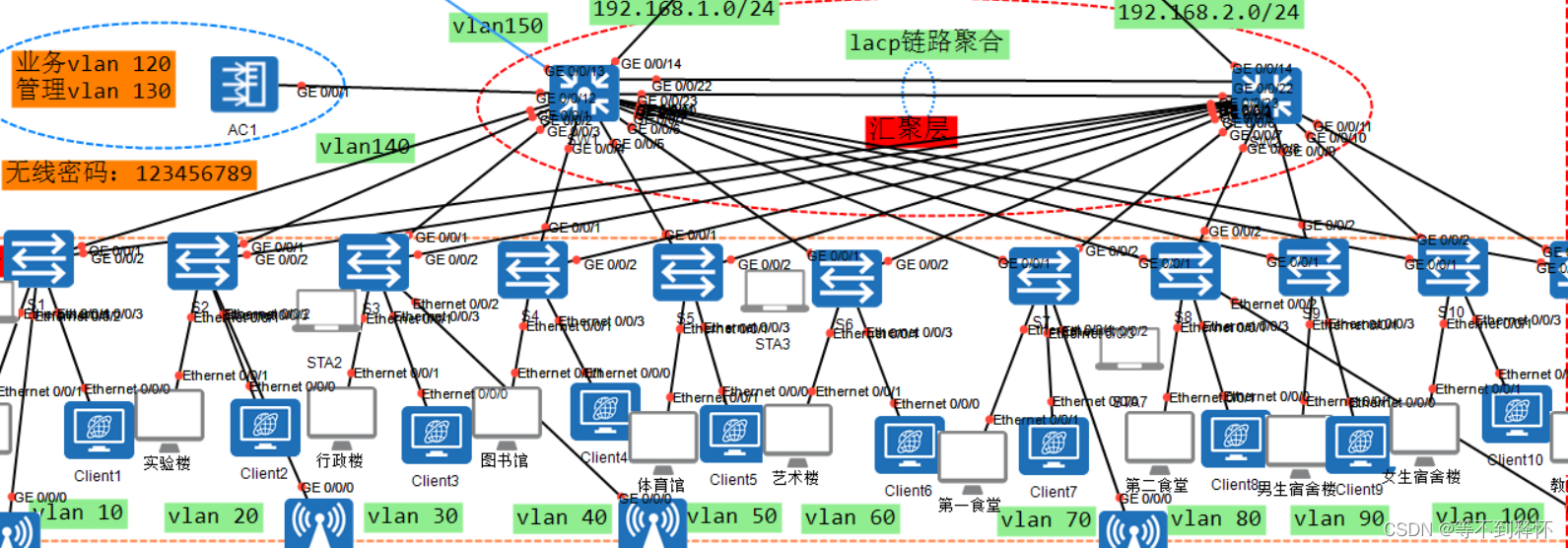

该拓扑图细节图
