项目名称：matlabGUI设计——函数图像绘制
项目简介
MATLAB GUI 编程是一个功能强大的工具，可以帮助我们构建交互式的用户界面并处理用户输入。通过获取编辑框对象的文本内容、设置图形属性和绘制函数图形，实现了按下按钮事件绘制图像的功能。
功能特点
-可视化绘制
-有平面和立体图像
-可自定范围
-自由度极高
-可二次开发
使用方法
1.打开matlab gui

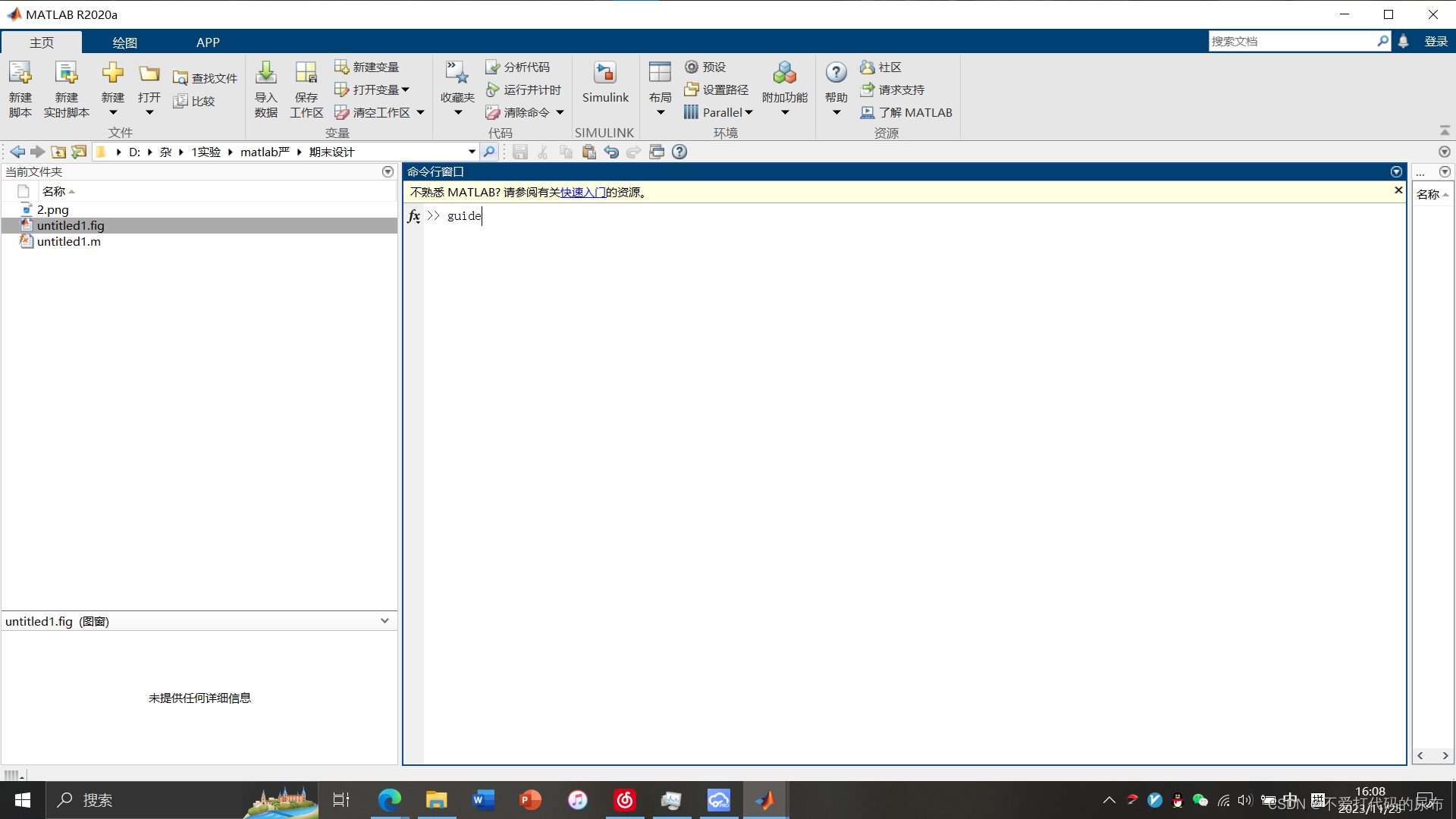

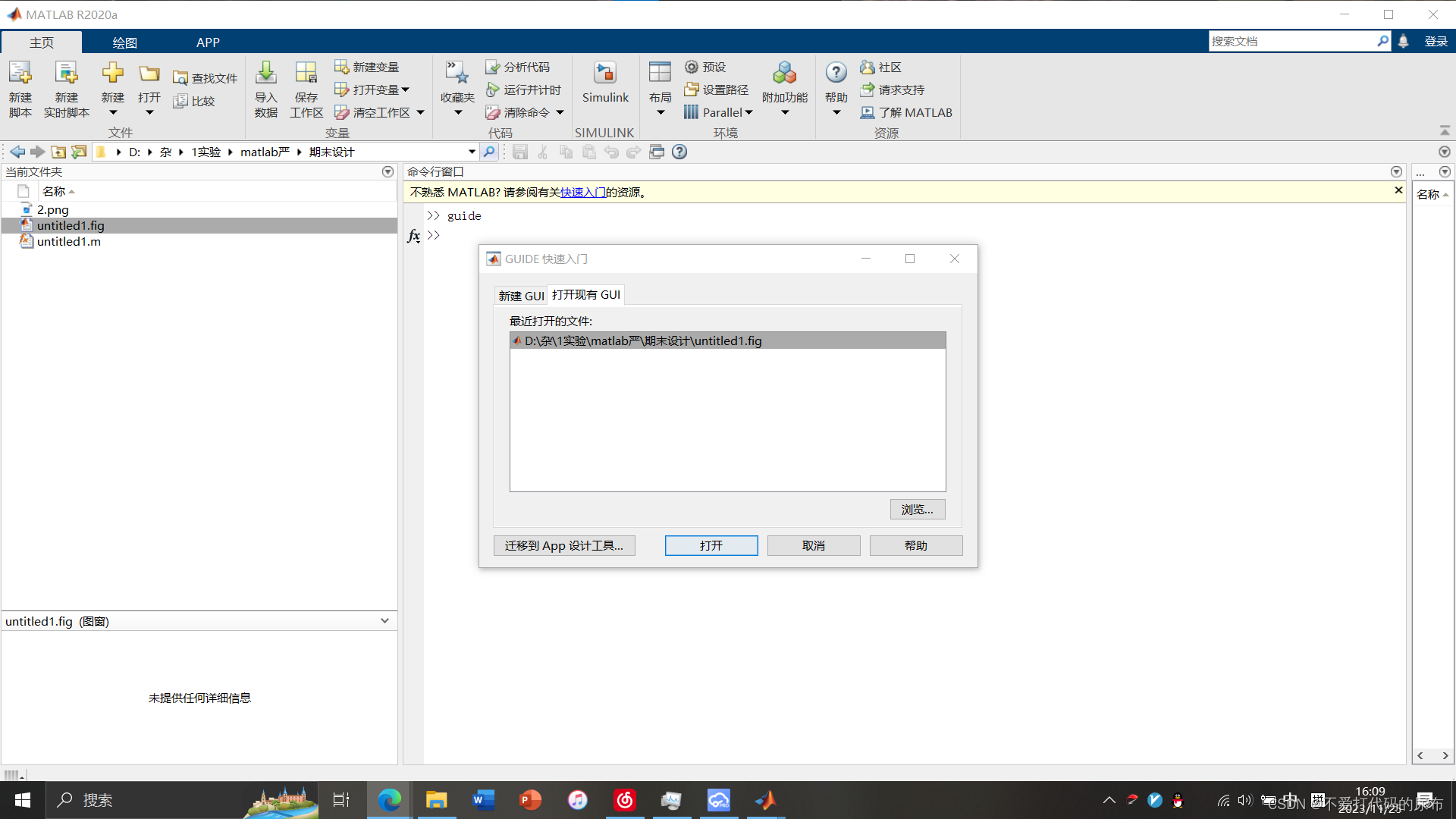

在matlab命令行窗口输入"guide",敲下回车，选择打开现有gui，选择fig文件

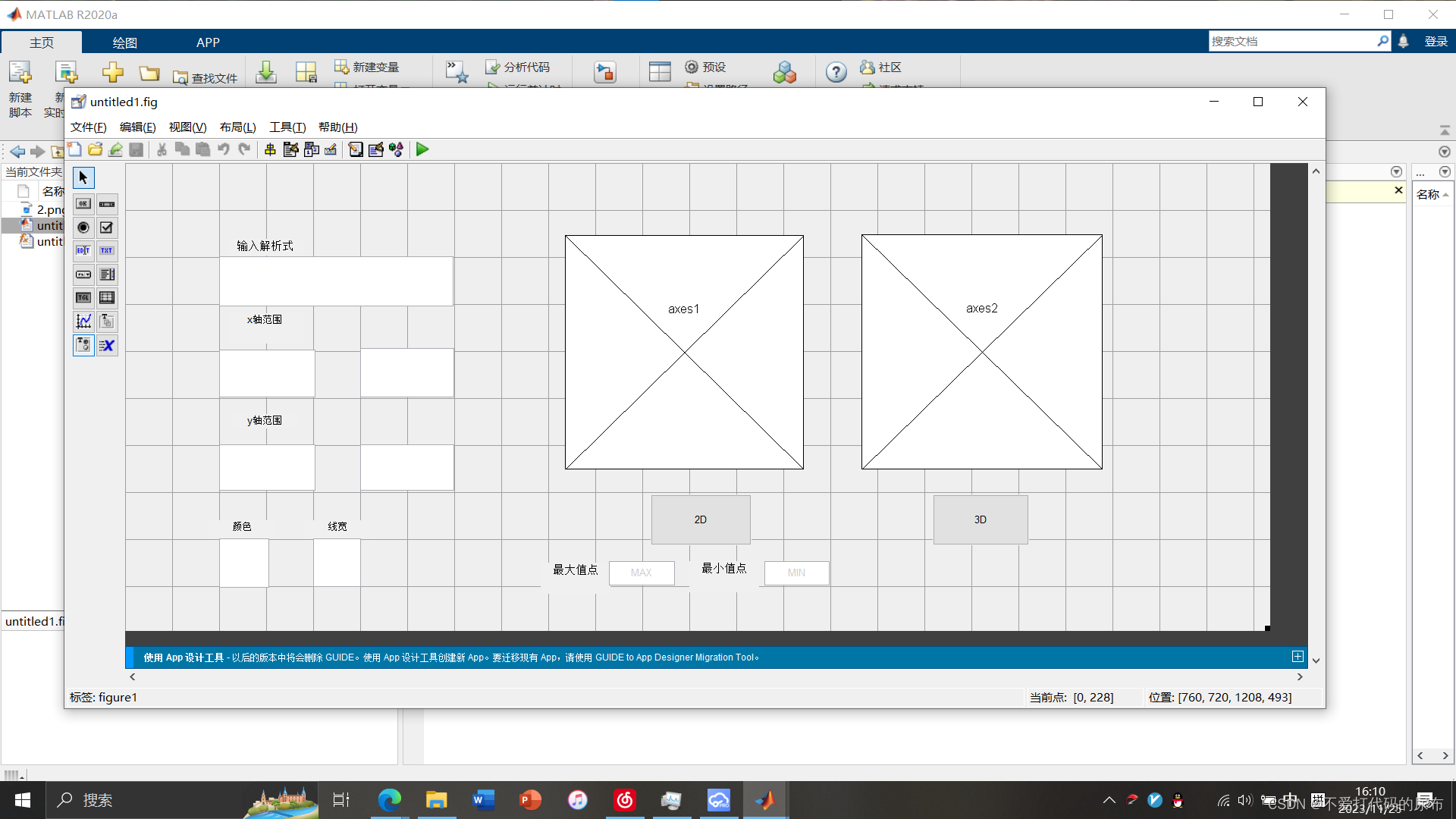

点击打开，出现gui编辑框

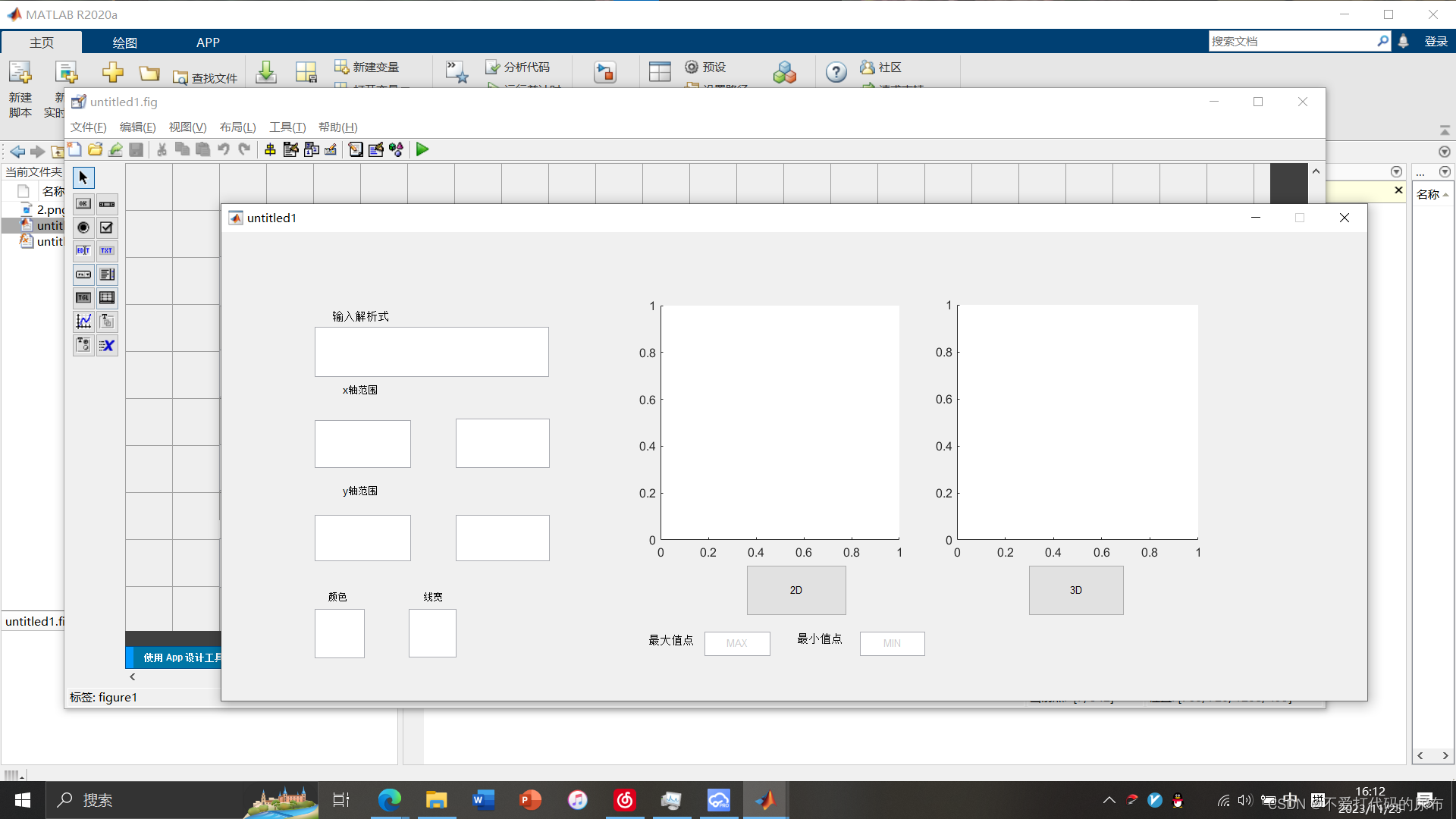

然后再点击运行，就可以看到输入框、生成图案的按键啦
2.获取用户输入
回调函数可以通过获取编辑框对象的文本内容，获得用户在界面中输入的数据。这使得我们能够在按钮按下事件中获取用户输入的值，用于进一步的处理和计算。

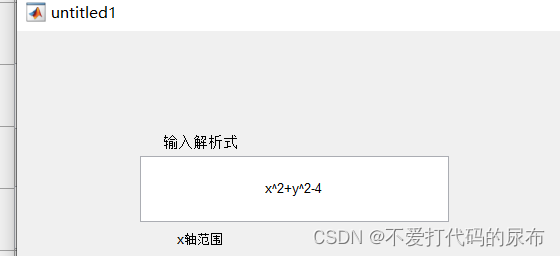

此时我们在输入解析式这边输入我们想要绘制的函数：我们以x^2+y^2=4为例，绘制图像
注：我是直接默认输入的解析式=0了，所以我们输入x^2+y^2-4
3.修改图形属性
回调函数可以使用 set 函数来修改图形对象的各种属性，如线条颜色、线宽、字体样式等。通过修改这些属性，我们可以实现对图形的定制化显示。

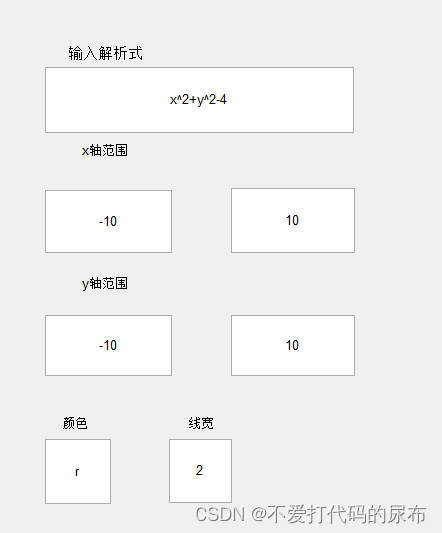

按照这个输入：颜色选红色就输入r。（若是蓝色就输入b，黄色就是y，英文首字母..）然后线宽可以选任意数字，我们以2为例，范围就看你想要多大了。
4.绘制图形
回调函数可以利用 MATLAB 提供的绘图函数（如 ezplot 和 ezmesh）绘制二维或三维的函数图形。这些函数可以根据输入的公式和坐标范围，自动生成具有可视化效果的函数图形，方便用户进行数据分析和可视化。

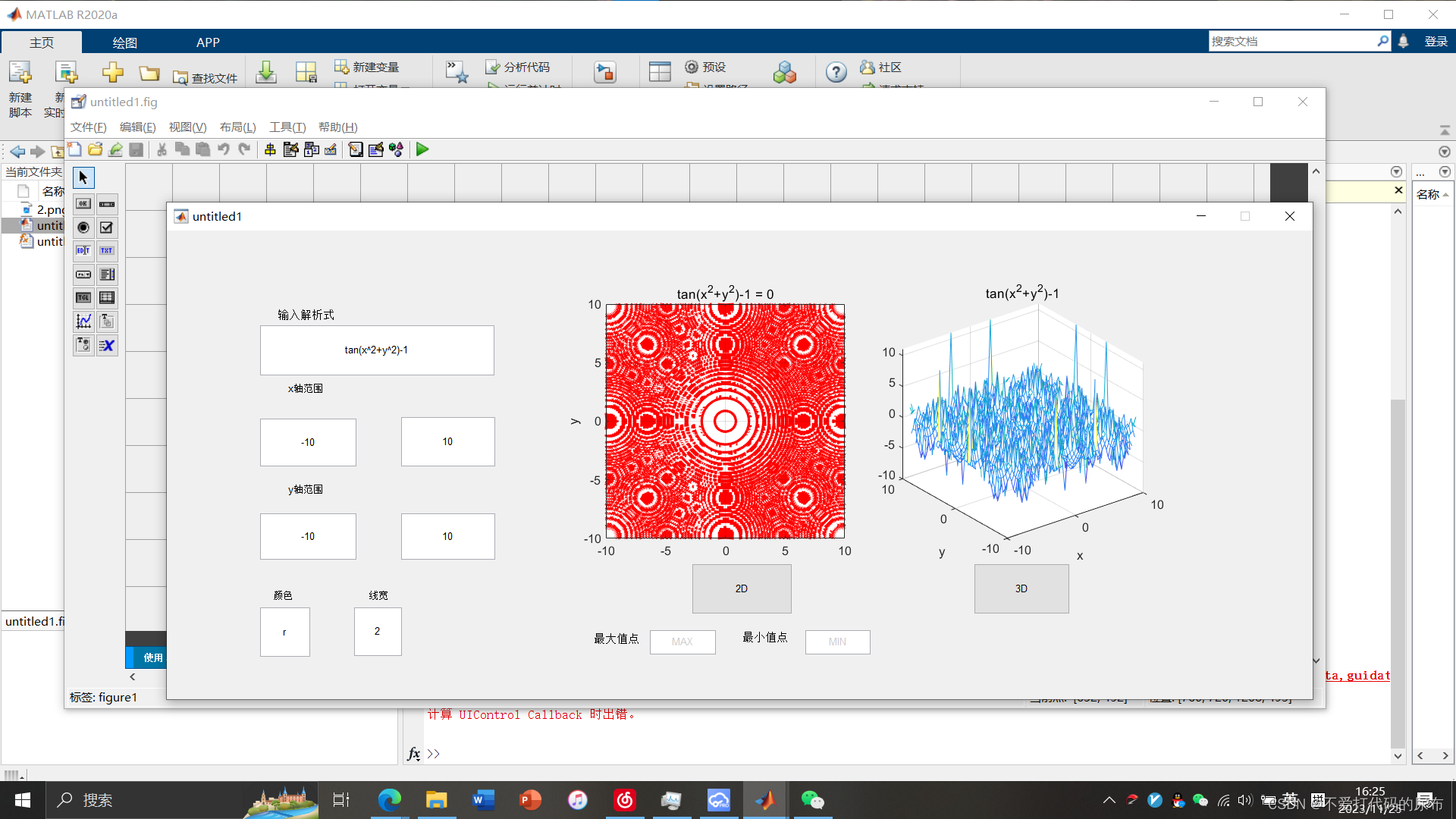

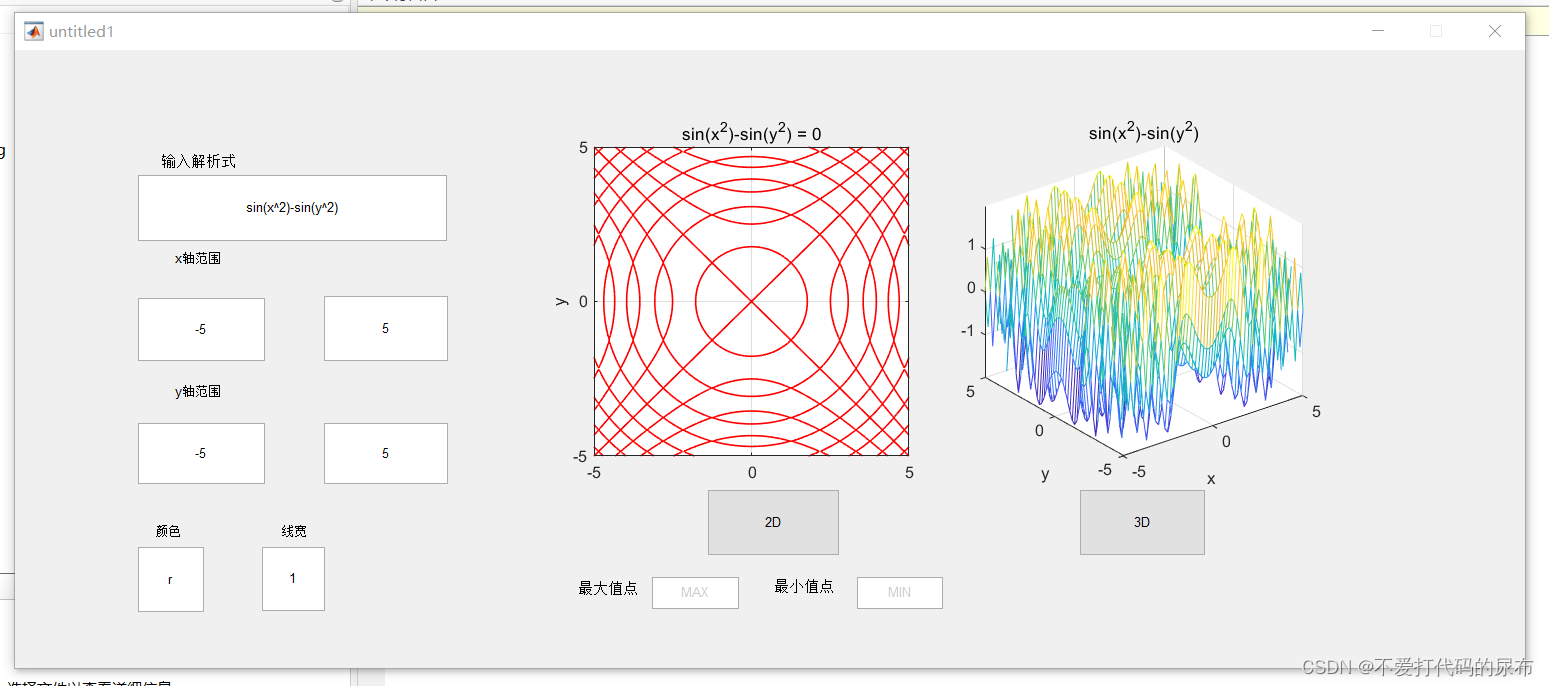

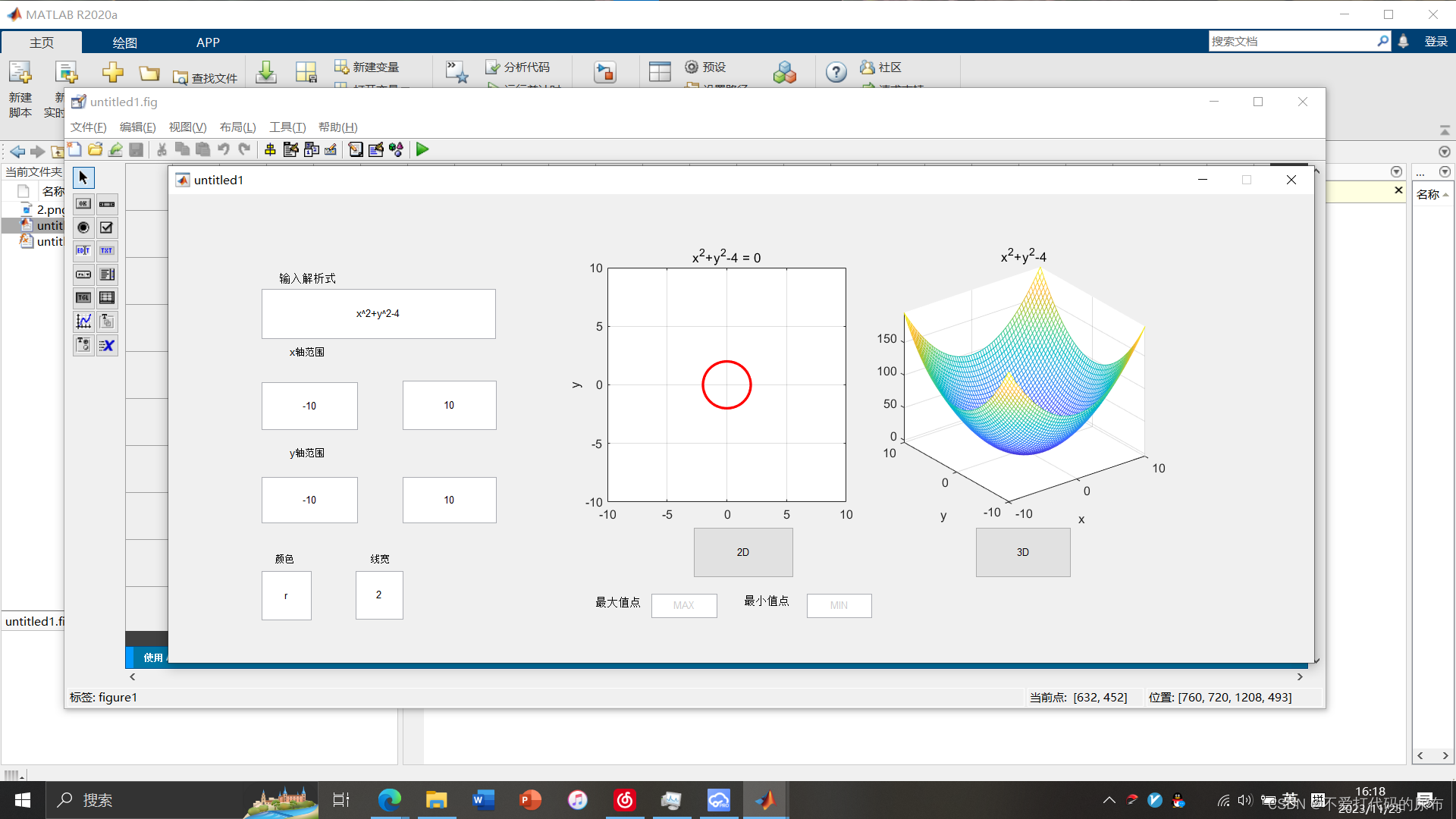

当进行完上面三个步骤，到这里就只需要点点两个按钮（2D、3D）就可以看到图像啦
最大值点和最小值点功能还没做出来，要是有大佬可以指点就更好啦0.o
程序讲解
二维图像的绘制
pushbutton1_Callback：
function pushbutton1_Callback(hObject, eventdata, handles)% hObject handle to pushbutton1 (see GCBO)% eventdata reserved - to be defined in a future version of MATLAB% handles structure with handles and user data (see GUIDATA)fd = get(handles.edit1,'String'); %公式输入框axes(handles.axes1);Xmin = get(handles.edit4,'String');Xmax = get(handles.edit5,'String');Ymin = get(handles.edit6,'String');Ymax = get(handles.edit7,'String');f1 = ezplot(fd,[str2num(Xmin),str2num(Xmax),str2num(Ymin),str2num(Ymax)]);col = get(handles.edit2,'String');set(f1,'Color',col);wid = get(handles.edit3,'String');set(f1,'LineWidth',str2num(wid));grid on;三维图像的绘制：
pushbutton2_Callback：
function pushbutton2_Callback(hObject, eventdata, handles)% hObject handle to pushbutton2 (see GCBO)% eventdata reserved - to be defined in a future version of MATLAB% handles structure with handles and user data (see GUIDATA)fd = get(handles.edit1,'String');axes(handles.axes2);syms x y zf=get(handles.edit1,'String');Xmin = get(handles.edit4,'String');Xmax = get(handles.edit5,'String');Ymin = get(handles.edit6,'String');Ymax = get(handles.edit7,'String');ezmesh(f,[str2num(Xmin),str2num(Xmax),str2num(Ymin),str2num(Ymax)])grid on;完成程序：
