横竖屏切换的时候会调用ActivityThread中的handleRelaunchActivity（）看名字就知道是要重新启动Activity，handleRelaunchActivity（）有个handleRelaunchActivityInner（），从handleRelaunchActivityInner（）这个方法开始进入正题:
private void handleRelaunchActivityInner(ActivityClientRecord r, int configChanges,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingIntents,
PendingTransactionActions pendingActions, boolean startsNotResumed,
Configuration overrideConfig, String reason) {
// Preserve last used intent, it may be set from Activity#setIntent().
final Intent customIntent = r.activity.mIntent;
// Need to ensure state is saved.
if (!r.paused) {
performPauseActivity(r, false, reason, null /* pendingActions */);
}
if (!r.stopped) {
callActivityOnStop(r, true /* saveState */, reason);
}
handleDestroyActivity(r.token, false, configChanges, true, reason);
r.activity = null;
r.window = null;
r.hideForNow = false;
r.nextIdle = null;
// Merge any pending results and pending intents; don't just replace them
if (pendingResults != null) {
if (r.pendingResults == null) {
r.pendingResults = pendingResults;
} else {
r.pendingResults.addAll(pendingResults);
}
}
if (pendingIntents != null) {
if (r.pendingIntents == null) {
r.pendingIntents = pendingIntents;
} else {
r.pendingIntents.addAll(pendingIntents);
}
}
r.startsNotResumed = startsNotResumed;
r.overrideConfig = overrideConfig;
handleLaunchActivity(r, pendingActions, customIntent);
}横竖屏切换的时候重启activity首先会先销毁activity所以这个方法的主要代码:
private void handleRelaunchActivityInner(ActivityClientRecord r, int configChanges,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingIntents,
PendingTransactionActions pendingActions, boolean startsNotResumed,
Configuration overrideConfig, String reason) {
...
handleDestroyActivity(r.token, false, configChanges, true, reason);
...
handleLaunchActivity(r, pendingActions, customIntent);
}先看handleDestroyActivity(r.token, false, configChanges, true, reason);这个方法,
public void handleDestroyActivity(IBinder token, boolean finishing, int configChanges,
boolean getNonConfigInstance, String reason) {
ActivityClientRecord r = performDestroyActivity(token, finishing,
configChanges, getNonConfigInstance, reason);
if (r != null) {
cleanUpPendingRemoveWindows(r, finishing);
WindowManager wm = r.activity.getWindowManager();
View v = r.activity.mDecor;
if (v != null) {
if (r.activity.mVisibleFromServer) {
mNumVisibleActivities--;
}
IBinder wtoken = v.getWindowToken();
if (r.activity.mWindowAdded) {
if (r.mPreserveWindow) {
// Hold off on removing this until the new activity's
// window is being added.
r.mPendingRemoveWindow = r.window;
r.mPendingRemoveWindowManager = wm;
// We can only keep the part of the view hierarchy that we control,
// everything else must be removed, because it might not be able to
// behave properly when activity is relaunching.
r.window.clearContentView();
} else {
wm.removeViewImmediate(v);
}
}
if (wtoken != null && r.mPendingRemoveWindow == null) {
WindowManagerGlobal.getInstance().closeAll(wtoken,
r.activity.getClass().getName(), "Activity");
} else if (r.mPendingRemoveWindow != null) {
// We're preserving only one window, others should be closed so app views
// will be detached before the final tear down. It should be done now because
// some components (e.g. WebView) rely on detach callbacks to perform receiver
// unregister and other cleanup.
WindowManagerGlobal.getInstance().closeAllExceptView(token, v,
r.activity.getClass().getName(), "Activity");
}
r.activity.mDecor = null;
}
if (r.mPendingRemoveWindow == null) {
// If we are delaying the removal of the activity window, then
// we can't clean up all windows here. Note that we can't do
// so later either, which means any windows that aren't closed
// by the app will leak. Well we try to warning them a lot
// about leaking windows, because that is a bug, so if they are
// using this recreate facility then they get to live with leaks.
WindowManagerGlobal.getInstance().closeAll(token,
r.activity.getClass().getName(), "Activity");
}
// Mocked out contexts won't be participating in the normal
// process lifecycle, but if we're running with a proper
// ApplicationContext we need to have it tear down things
// cleanly.
Context c = r.activity.getBaseContext();
if (c instanceof ContextImpl) {
((ContextImpl) c).scheduleFinalCleanup(
r.activity.getClass().getName(), "Activity");
}
}
if (finishing) {
try {
ActivityTaskManager.getService().activityDestroyed(token);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
mSomeActivitiesChanged = true;
}这个方法是要销毁Activity的，核心代码是performDestroyActivity(token, finishing, configChanges, getNonConfigInstance, reason)这句:
public void handleDestroyActivity(IBinder token, boolean finishing, int configChanges,
boolean getNonConfigInstance, String reason) {
ActivityClientRecord r = performDestroyActivity(token, finishing,
configChanges, getNonConfigInstance, reason);
...
}我们继续往下看：
ActivityClientRecord performDestroyActivity(IBinder token, boolean finishing,
int configChanges, boolean getNonConfigInstance, String reason) {
ActivityClientRecord r = mActivities.get(token);
Class<? extends Activity> activityClass = null;
if (localLOGV) Slog.v(TAG, "Performing finish of " + r);
if (r != null) {
activityClass = r.activity.getClass();
r.activity.mConfigChangeFlags |= configChanges;
if (finishing) {
r.activity.mFinished = true;
}
performPauseActivityIfNeeded(r, "destroy");
if (!r.stopped) {
callActivityOnStop(r, false /* saveState */, "destroy");
}
if (getNonConfigInstance) {
try {
r.lastNonConfigurationInstances
= r.activity.retainNonConfigurationInstances();
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to retain activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
}
try {
r.activity.mCalled = false;
mInstrumentation.callActivityOnDestroy(r.activity);
if (!r.activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + safeToComponentShortString(r.intent) +
" did not call through to super.onDestroy()");
}
if (r.window != null) {
r.window.closeAllPanels();
}
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to destroy activity " + safeToComponentShortString(r.intent)
+ ": " + e.toString(), e);
}
}
r.setState(ON_DESTROY);
}
schedulePurgeIdler();
// updatePendingActivityConfiguration() reads from mActivities to update
// ActivityClientRecord which runs in a different thread. Protect modifications to
// mActivities to avoid race.
synchronized (mResourcesManager) {
mActivities.remove(token);
}
StrictMode.decrementExpectedActivityCount(activityClass);
return r;
}这里我们看到了熟悉的retainNonConfigurationInstances()：
ActivityClientRecord performDestroyActivity(IBinder token, boolean finishing,
int configChanges, boolean getNonConfigInstance, String reason) {
...
if (getNonConfigInstance) {
try {
r.lastNonConfigurationInstances
= r.activity.retainNonConfigurationInstances();
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to retain activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
}
...
}先看这个判断if (getNonConfigInstance) ，这个getNonConfigInstance如果是true就会走进去调用我们熟悉的retainNonConfigurationInstances（），看到这个getNonConfigInstance是参数传进来，看一下调用追溯到handleDestroyActivity(r.token, false, configChanges, true, reason);这个方法,发现就是true所以会进入判断调用：
r.lastNonConfigurationInstances = r.activity.retainNonConfigurationInstances();
先分析:r.activity.retainNonConfigurationInstances();这个会调用到Activity的retainNonConfigurationInstances();方法:
NonConfigurationInstances retainNonConfigurationInstances() {
Object activity = onRetainNonConfigurationInstance();
HashMap<String, Object> children = onRetainNonConfigurationChildInstances();
FragmentManagerNonConfig fragments = mFragments.retainNestedNonConfig();
// We're already stopped but we've been asked to retain.
// Our fragments are taken care of but we need to mark the loaders for retention.
// In order to do this correctly we need to restart the loaders first before
// handing them off to the next activity.
mFragments.doLoaderStart();
mFragments.doLoaderStop(true);
ArrayMap<String, LoaderManager> loaders = mFragments.retainLoaderNonConfig();
if (activity == null && children == null && fragments == null && loaders == null
&& mVoiceInteractor == null) {
return null;
}
NonConfigurationInstances nci = new NonConfigurationInstances();
nci.activity = activity;
nci.children = children;
nci.fragments = fragments;
nci.loaders = loaders;
if (mVoiceInteractor != null) {
mVoiceInteractor.retainInstance();
nci.voiceInteractor = mVoiceInteractor;
}
return nci;
}这个方法第一句就会调用onRetainNonConfigurationInstance()，这个方法的实现是在ComponentActivity：

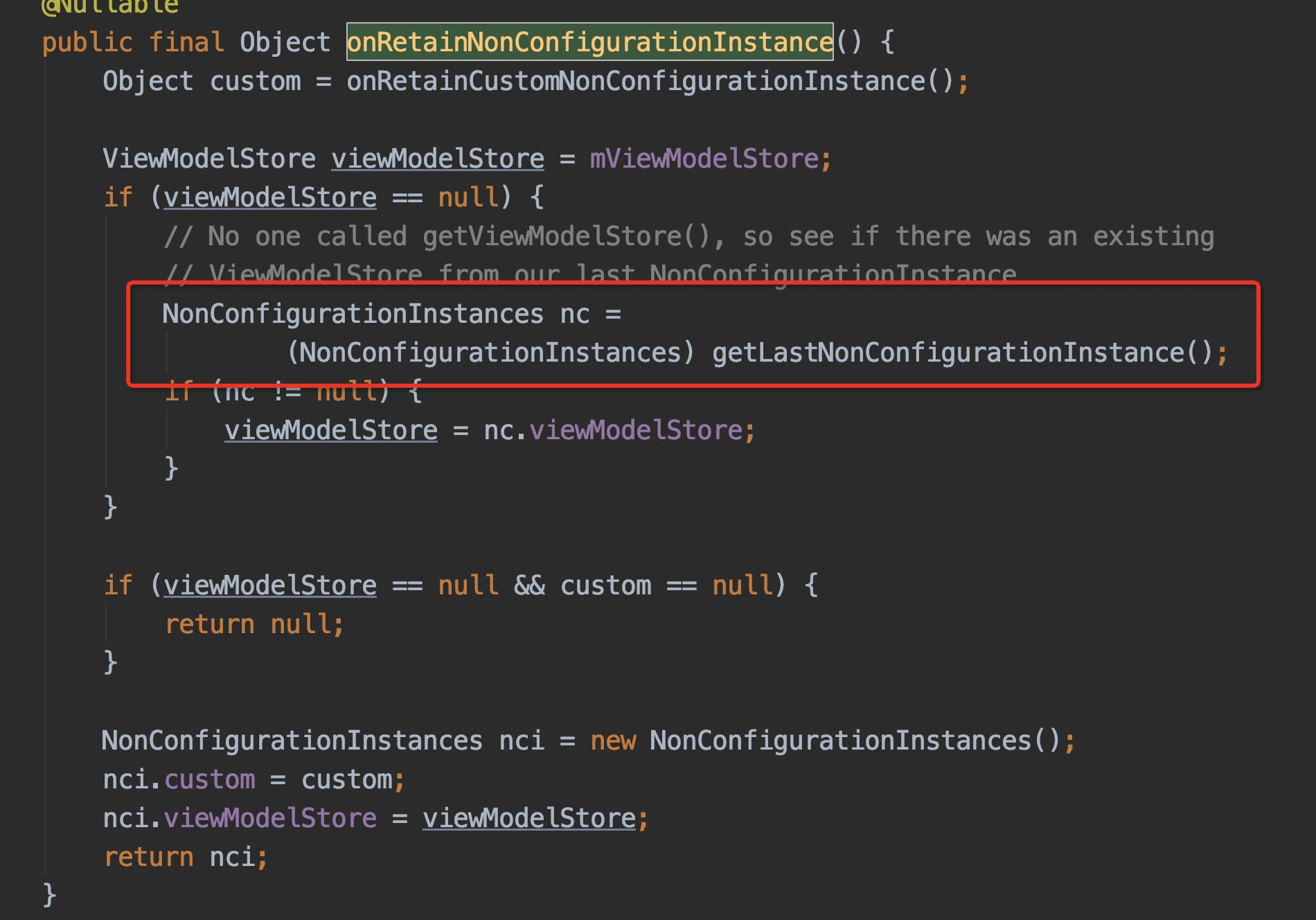

public final Object onRetainNonConfigurationInstance() {
Object custom = onRetainCustomNonConfigurationInstance();
ViewModelStore viewModelStore = mViewModelStore;
if (viewModelStore == null) {
// No one called getViewModelStore(), so see if there was an existing
// ViewModelStore from our last NonConfigurationInstance
NonConfigurationInstances nc =
(NonConfigurationInstances) getLastNonConfigurationInstance();
if (nc != null) {
viewModelStore = nc.viewModelStore;
}
}
if (viewModelStore == null && custom == null) {
return null;
}
NonConfigurationInstances nci = new NonConfigurationInstances();
nci.custom = custom;
nci.viewModelStore = viewModelStore;
return nci;
}上篇学习ViewModel原理的时候我们分析过了这个方法就是用来保存viewModelStore的,这里再扩展一点，这个方法的第一句是Object custom = onRetainCustomNonConfigurationInstance();这个方法会在横竖屏切换的时候切换，我写了个例子大家看一下效果:
public class MyActivity extends AppCompatActivity {
@Override
protected void onCreate(@Nullable Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
ActivityBinding binding = ActivityBinding.inflate(getLayoutInflater());
setContentView(binding.getRoot());
Log.e("ViewModel", "onCreate");
}
@Override
protected void onSaveInstanceState(@NonNull Bundle outState) {
Log.e("ViewModel", "onSaveInstanceState");
super.onSaveInstanceState(outState);
}
@Override
protected void onRestoreInstanceState(@NonNull Bundle savedInstanceState) {
Log.e("ViewModel", "onRestoreInstanceState");
super.onRestoreInstanceState(savedInstanceState);
}
@Nullable
@Override
public Object onRetainCustomNonConfigurationInstance() {
Log.e("ViewModel", "onRetainCustomNonConfigurationInstance");
return super.onRetainCustomNonConfigurationInstance();
}
@Override
protected void onRestart() {
super.onRestart();
Log.e("ViewModel", "onRestart");
}
@Override
protected void onStart() {
super.onStart();
Log.e("ViewModel", "onStart");
}
@Override
protected void onResume() {
super.onResume();
Log.e("ViewModel", "onResume");
}
@Override
protected void onPause() {
super.onPause();
Log.e("ViewModel", "onPause");
}
@Override
protected void onStop() {
super.onStop();
Log.e("ViewModel", "onStop");
}
@Override
protected void onDestroy() {
super.onDestroy();
Log.e("ViewModel","onDestroy");
}
}

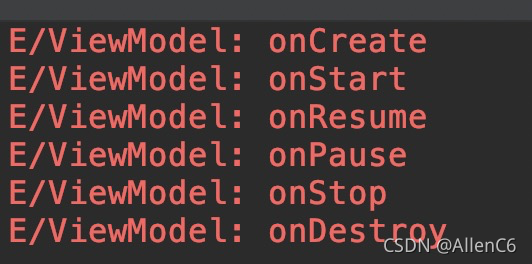

不横竖屏切换正常调用顺序:
横竖屏切换时的调用顺序:
可以看到 Object custom = onRetainCustomNonConfigurationInstance();每次在横竖屏切换销毁之前都会调用，所以我们可以通过这个方法保存我们自己的数据。它和viewModelStore一样被存在

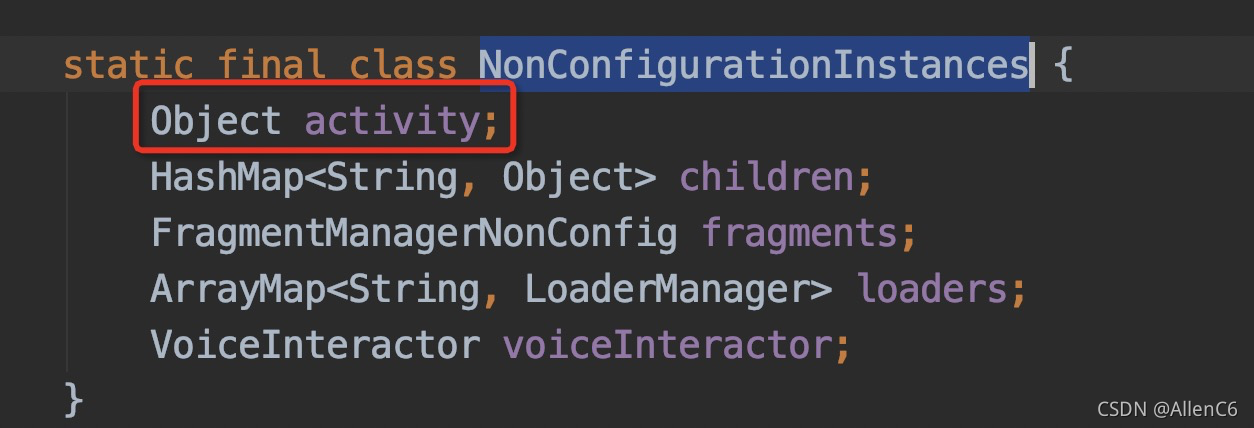

ComponentActivity中的静态内部类NonConfigurationInstances：
static final class NonConfigurationInstances {
Object custom;
ViewModelStore viewModelStore;
}然后作为返回值返回到Activity中的:

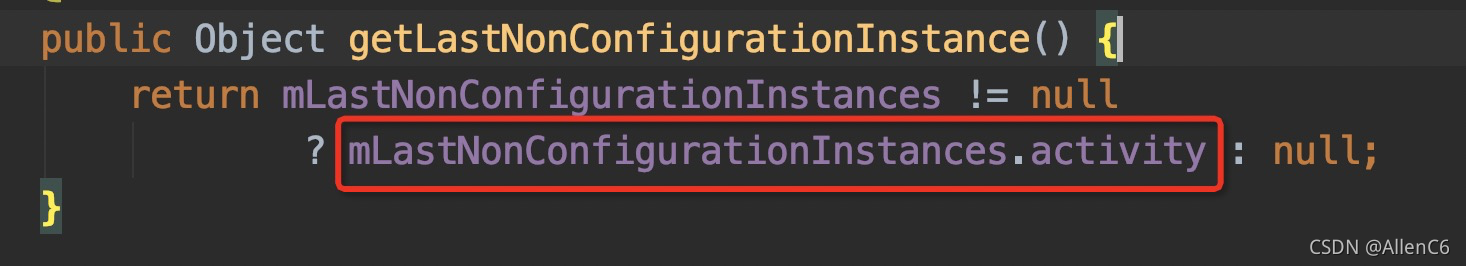

然后通过Activity中的静态内部类NonConfigurationInstances:
static final class NonConfigurationInstances {
Object activity;
HashMap<String, Object> children;
FragmentManagerNonConfig fragments;
ArrayMap<String, LoaderManager> loaders;
VoiceInteractor voiceInteractor;
}最后NonConfigurationInstances做为返回值返回到ActivityThread中的这句:
r.lastNonConfigurationInstances = r.activity.retainNonConfigurationInstances();
是不是很熟悉:
ActivityClientRecord performDestroyActivity(IBinder token, boolean finishing,
int configChanges, boolean getNonConfigInstance, String reason) {
...
if (getNonConfigInstance) {
try {
r.lastNonConfigurationInstances
= r.activity.retainNonConfigurationInstances();
} catch (Exception e) {
if (!mInstrumentation.onException(r.activity, e)) {
throw new RuntimeException(
"Unable to retain activity "
+ r.intent.getComponent().toShortString()
+ ": " + e.toString(), e);
}
}
}
...
}返回值中包含我们的ViewModelStore，最后它被赋值保存在了r对象的lastNonConfigurationInstances中，这个r对象就是ActivityClientRecord。
好了，现在知道了onRetainNonConfigurationInstance（）的调用逻辑了。
现在知道在横竖屏切换activity销毁之前viewModelStore被ActivityClientRecord在ActivityTread中保存了下来，顺便分析一下保存之后在activity销毁了如何在重建activity后恢复:
private void handleRelaunchActivityInner(ActivityClientRecord r, int configChanges,
List<ResultInfo> pendingResults, List<ReferrerIntent> pendingIntents,
PendingTransactionActions pendingActions, boolean startsNotResumed,
Configuration overrideConfig, String reason) {
...
handleDestroyActivity(r.token, false, configChanges, true, reason);
...
handleLaunchActivity(r, pendingActions, customIntent);
}分析 handleLaunchActivity(r, pendingActions, customIntent);，这个r对象就是上面存储了ViewModelStore的对象,我们详细分析一下:
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
mSomeActivitiesChanged = true;
if (r.profilerInfo != null) {
mProfiler.setProfiler(r.profilerInfo);
mProfiler.startProfiling();
}
// Make sure we are running with the most recent config.
handleConfigurationChanged(null, null);
if (localLOGV) Slog.v(
TAG, "Handling launch of " + r);
// Initialize before creating the activity
if (!ThreadedRenderer.sRendererDisabled
&& (r.activityInfo.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0) {
HardwareRenderer.preload();
}
WindowManagerGlobal.initialize();
// Hint the GraphicsEnvironment that an activity is launching on the process.
GraphicsEnvironment.hintActivityLaunch();
final Activity a = performLaunchActivity(r, customIntent);
if (a != null) {
r.createdConfig = new Configuration(mConfiguration);
reportSizeConfigurations(r);
if (!r.activity.mFinished && pendingActions != null) {
pendingActions.setOldState(r.state);
pendingActions.setRestoreInstanceState(true);
pendingActions.setCallOnPostCreate(true);
}
} else {
// If there was an error, for any reason, tell the activity manager to stop us.
try {
ActivityTaskManager.getService()
.finishActivity(r.token, Activity.RESULT_CANCELED, null,
Activity.DONT_FINISH_TASK_WITH_ACTIVITY);
} catch (RemoteException ex) {
throw ex.rethrowFromSystemServer();
}
}
return a;
}核心代码:
public Activity handleLaunchActivity(ActivityClientRecord r,
PendingTransactionActions pendingActions, Intent customIntent) {
...
final Activity a = performLaunchActivity(r, customIntent);
...
return a;
}我们继续看:
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
ActivityInfo aInfo = r.activityInfo;
if (r.packageInfo == null) {
r.packageInfo = getPackageInfo(aInfo.applicationInfo, r.compatInfo,
Context.CONTEXT_INCLUDE_CODE);
}
ComponentName component = r.intent.getComponent();
if (component == null) {
component = r.intent.resolveActivity(
mInitialApplication.getPackageManager());
r.intent.setComponent(component);
}
if (r.activityInfo.targetActivity != null) {
component = new ComponentName(r.activityInfo.packageName,
r.activityInfo.targetActivity);
}
ContextImpl appContext = createBaseContextForActivity(r);
Activity activity = null;
try {
java.lang.ClassLoader cl = appContext.getClassLoader();
activity = mInstrumentation.newActivity(
cl, component.getClassName(), r.intent);
StrictMode.incrementExpectedActivityCount(activity.getClass());
r.intent.setExtrasClassLoader(cl);
r.intent.prepareToEnterProcess();
if (r.state != null) {
r.state.setClassLoader(cl);
}
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to instantiate activity " + component
+ ": " + e.toString(), e);
}
}
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
if (localLOGV) Slog.v(TAG, "Performing launch of " + r);
if (localLOGV) Slog.v(
TAG, r + ": app=" + app
+ ", appName=" + app.getPackageName()
+ ", pkg=" + r.packageInfo.getPackageName()
+ ", comp=" + r.intent.getComponent().toShortString()
+ ", dir=" + r.packageInfo.getAppDir());
if (activity != null) {
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (r.overrideConfig != null) {
config.updateFrom(r.overrideConfig);
}
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
Window window = null;
if (r.mPendingRemoveWindow != null && r.mPreserveWindow) {
window = r.mPendingRemoveWindow;
r.mPendingRemoveWindow = null;
r.mPendingRemoveWindowManager = null;
}
// Activity resources must be initialized with the same loaders as the
// application context.
appContext.getResources().addLoaders(
app.getResources().getLoaders().toArray(new ResourcesLoader[0]));
appContext.setOuterContext(activity);
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.configCallback,
r.assistToken);
if (customIntent != null) {
activity.mIntent = customIntent;
}
r.lastNonConfigurationInstances = null;
checkAndBlockForNetworkAccess();
activity.mStartedActivity = false;
int theme = r.activityInfo.getThemeResource();
if (theme != 0) {
activity.setTheme(theme);
}
activity.mCalled = false;
if (r.isPersistable()) {
mInstrumentation.callActivityOnCreate(activity, r.state, r.persistentState);
} else {
mInstrumentation.callActivityOnCreate(activity, r.state);
}
if (!activity.mCalled) {
throw new SuperNotCalledException(
"Activity " + r.intent.getComponent().toShortString() +
" did not call through to super.onCreate()");
}
r.activity = activity;
mLastReportedWindowingMode.put(activity.getActivityToken(),
config.windowConfiguration.getWindowingMode());
}
r.setState(ON_CREATE);
// updatePendingActivityConfiguration() reads from mActivities to update
// ActivityClientRecord which runs in a different thread. Protect modifications to
// mActivities to avoid race.
synchronized (mResourcesManager) {
mActivities.put(r.token, r);
}
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}核心代码:
private void handleFixedRotationAdjustments(@NonNull IBinder token,
@Nullable FixedRotationAdjustments fixedRotationAdjustments,
@Nullable Configuration overrideConfig) {
...
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config,
r.referrer, r.voiceInteractor, window, r.configCallback,
r.assistToken);
...
return activity;
}这个attach方法的一个参数r.lastNonConfigurationInstances，这个很熟悉就是r.lastNonConfigurationInstances = r.activity.retainNonConfigurationInstances()这个就是activity的NonConfigurationInstances用来保存ViewModelStore，这样保存的ViewModelStore就被传到了Activity的attach方法中。
接下来我们分析Activity的attach方法:
final void attach(Context context, ActivityThread aThread,
Instrumentation instr, IBinder token, int ident,
Application application, Intent intent, ActivityInfo info,
CharSequence title, Activity parent, String id,
NonConfigurationInstances lastNonConfigurationInstances,
Configuration config, String referrer, IVoiceInteractor voiceInteractor,
Window window, ActivityConfigCallback activityConfigCallback, IBinder assistToken) {
attachBaseContext(context);
mFragments.attachHost(null /*parent*/);
mWindow = new PhoneWindow(this, window, activityConfigCallback);
mWindow.setWindowControllerCallback(mWindowControllerCallback);
mWindow.setCallback(this);
mWindow.setOnWindowDismissedCallback(this);
mWindow.getLayoutInflater().setPrivateFactory(this);
if (info.softInputMode != WindowManager.LayoutParams.SOFT_INPUT_STATE_UNSPECIFIED) {
mWindow.setSoftInputMode(info.softInputMode);
}
if (info.uiOptions != 0) {
mWindow.setUiOptions(info.uiOptions);
}
mUiThread = Thread.currentThread();
mMainThread = aThread;
mInstrumentation = instr;
mToken = token;
mAssistToken = assistToken;
mIdent = ident;
mApplication = application;
mIntent = intent;
mReferrer = referrer;
mComponent = intent.getComponent();
mActivityInfo = info;
mTitle = title;
mParent = parent;
mEmbeddedID = id;
mLastNonConfigurationInstances = lastNonConfigurationInstances;
if (voiceInteractor != null) {
if (lastNonConfigurationInstances != null) {
mVoiceInteractor = lastNonConfigurationInstances.voiceInteractor;
} else {
mVoiceInteractor = new VoiceInteractor(voiceInteractor, this, this,
Looper.myLooper());
}
}
mWindow.setWindowManager(
(WindowManager)context.getSystemService(Context.WINDOW_SERVICE),
mToken, mComponent.flattenToString(),
(info.flags & ActivityInfo.FLAG_HARDWARE_ACCELERATED) != 0);
if (mParent != null) {
mWindow.setContainer(mParent.getWindow());
}
mWindowManager = mWindow.getWindowManager();
mCurrentConfig = config;
mWindow.setColorMode(info.colorMode);
mWindow.setPreferMinimalPostProcessing(
(info.flags & ActivityInfo.FLAG_PREFER_MINIMAL_POST_PROCESSING) != 0);
setAutofillOptions(application.getAutofillOptions());
setContentCaptureOptions(application.getContentCaptureOptions());
}我们要找的核心逻辑:
mLastNonConfigurationInstances = lastNonConfigurationInstances;
这样就被缓存在了Activity中的mLastNonConfigurationInstances成员变量中,这个mLastNonConfigurationInstances是Activity的NonConfigurationInstances:
这个 NonConfigurationInstances中的Object activity是ComponentActivity中的
再看一下这个mLastNonConfigurationInstances是啥时候用的:
这个 mLastNonConfigurationInstances.activity就是ComponentActivity存储ViewModelStore的NonConfigurationInstances。
好了一切都归于平静了。
总结一下：在横竖屏切换的时候会调用ActivityThread中的handleRelaunchActivity方法，handleRelaunchActivity方法的核心是handleRelaunchActivityInner方法，在handleRelaunchActivityInner方法中处理了activity的销毁和重建，在销毁之前把ViewModelStore保存起来，在重建的时候把保存的数据通过Activity的attach方法传入新的Activity中，这样就实现了ViewModel在横竖屏切换的时候不会丢失。
